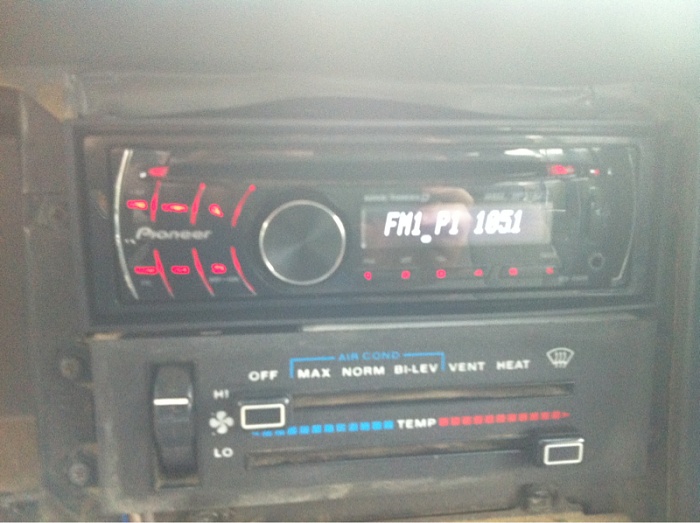

Deck Install

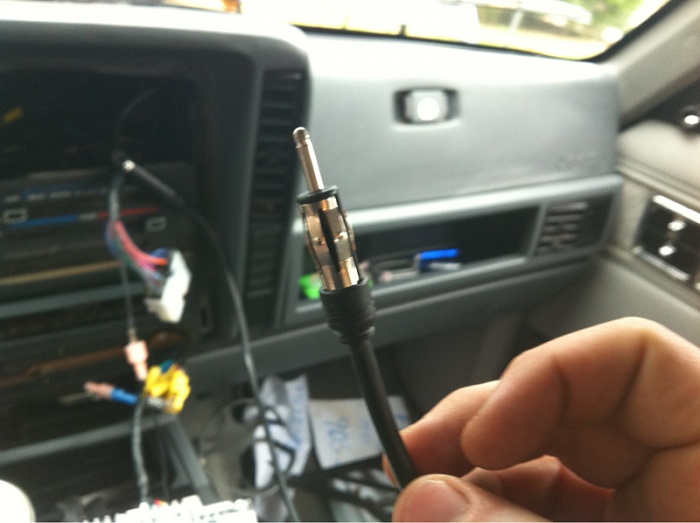

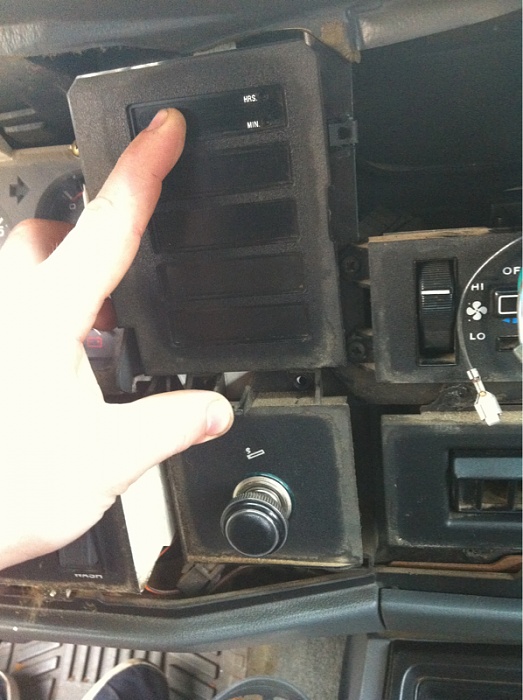

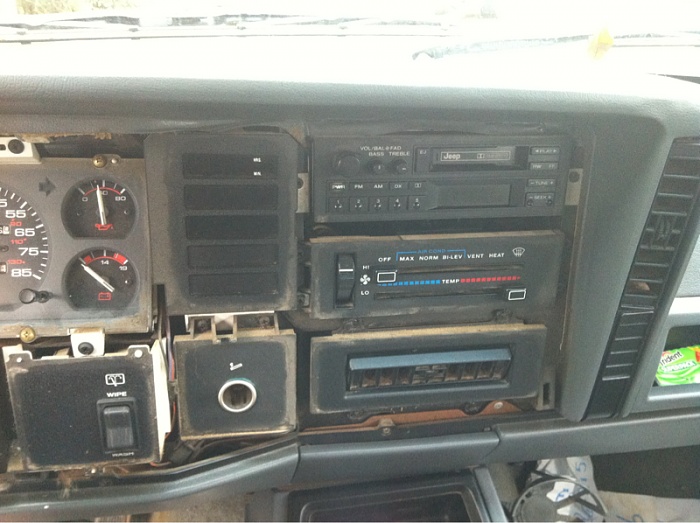

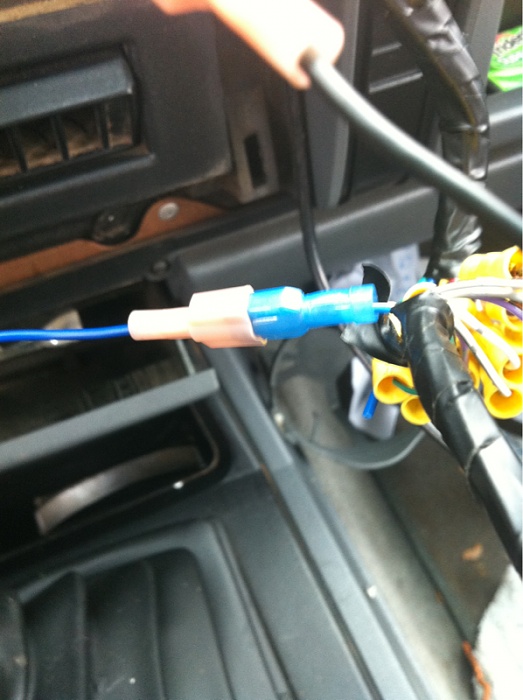

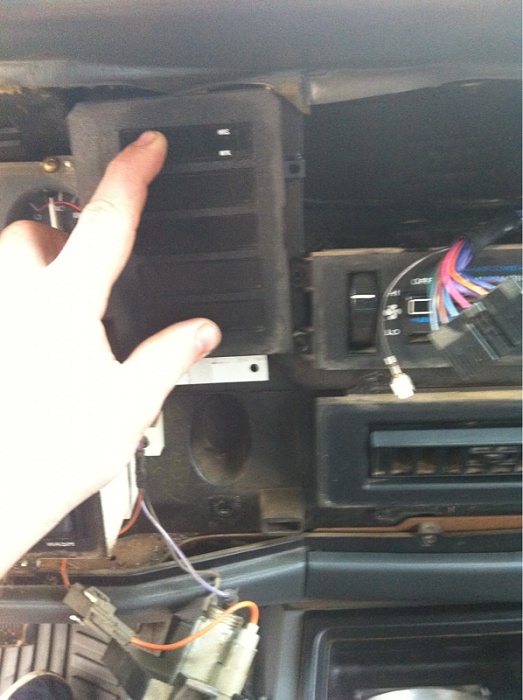

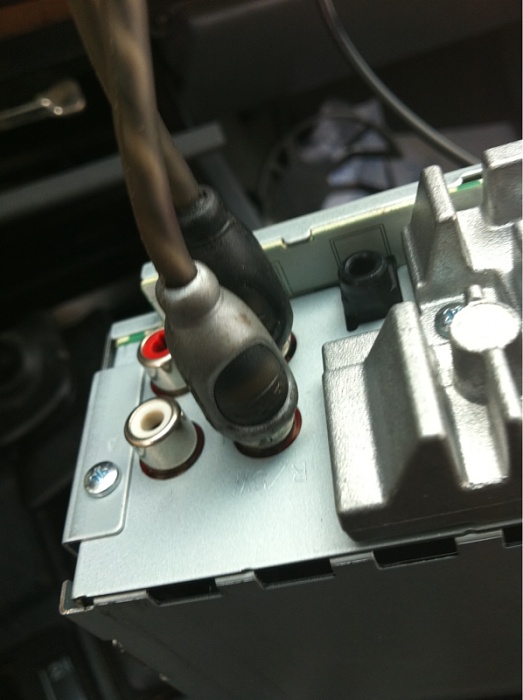

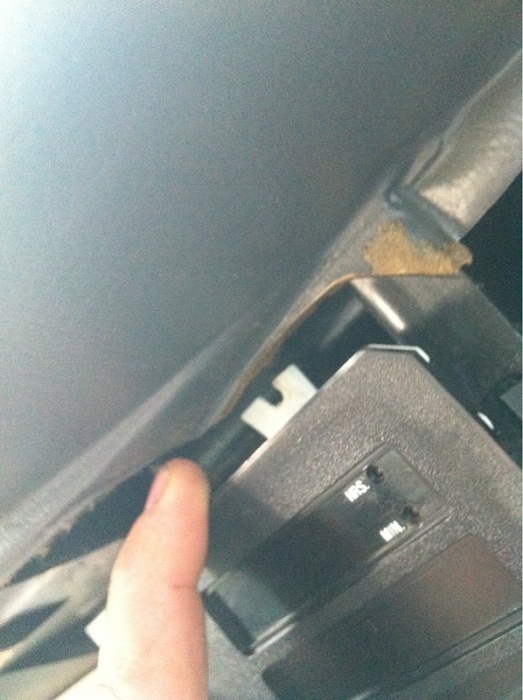

Remove two Phillips screws from dash bezel....clock assembly is held in by a Phillips head screw one on top and bottom.....it may be hidden by dash Use a female speaker connector to connect to the ground....since the original ground is to the OEM radio....I used an antenna extension because the OEM was really short making things difficult to handle, connect RCA if needed, connect remote wire to blue/white wire from radio....this allows the amp to be turned off/on with the turn of the key( probably the most impotent little wire with an amp install) thanks for looking any questions just hit me up....AutoTech4life
