Default dash instrument cluster swap

hey all,

it never fails - you guys always know whats up!

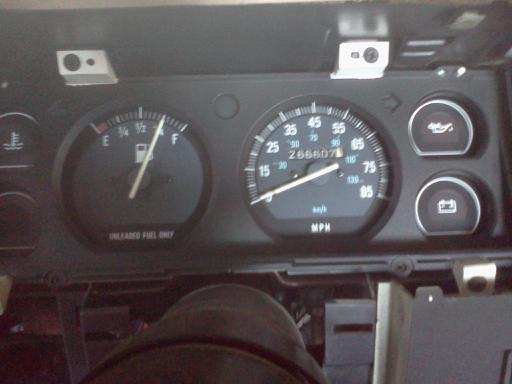

so on my 94 manual cherokee, it came with this ****ty simple dash cluster that doesnt include a tac nor does it have a trip mileage counter - the tac is what i really dislike missing... here's a picture of the original:
Name:  downsized_0415141715b_zps791b4689.jpg
Views: 118
Size:  22.4 KB




So i was at a local pull yourself junk yard, and picked up a unit from somewhere in the late 80s-early 90's dash with a tac and trip counter, among other functions. i also pulled the wiring harness. will this work for my jeep? i mean, will it recognize the tac since it didnt have one factory built, or will it not work at all. i wanted to ask on here first before i tried anything and f**ked it up. Here's a pic of the new unit:

Name:  downsized_0415141715_zpsd9afcdbe.jpg
Views: 120
Size:  30.9 KB

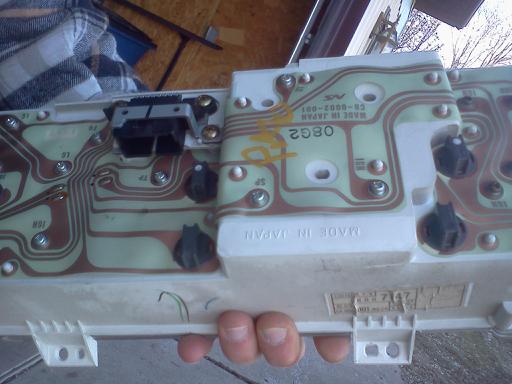

Name:  downsized_0415141715a_zps5cd13e4e.jpg
Views: 96
Size:  31.3 KB
Reply
Old Apr 15, 2014 | 11:57 PM
  #2
ZINGGG's Avatar
CF Veteran

Joined: Oct 2011
Posts: 4,440
Likes: 3
From: Seal Beach, CA
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Many people have done the cluster swap. Pretty sure the biggest issue is getting the coolant temp gauge to work. I'm not an expert on this subject, but I know there are many threads out there on the topic. Search it up.
Reply
Old Apr 16, 2014 | 12:04 AM
  #3
MonacaYankee's Avatar
CF Veteran
15 Year Member

Joined: Mar 2010
Posts: 1,442
Likes: 9
From: NC
Year: 99 94
Model: Cherokee (XJ)
Engine: I6
Default

If your xj has a cable going into the cluster and the one you got did not then it won't work.
Reply
Old Apr 16, 2014 | 12:14 AM
  #4
95Cherokee's Avatar
CF Veteran

Joined: Feb 2009
Posts: 2,203
Likes: 3
From: Houston Tx.
Year: 1995
Model: Cherokee
Engine: 4.0
Default

You'll have to switch out your oil pressure sensor with one made for a gauge instead of an idiot light. Less than 10 bucks.
Reply
