Comp cut?
#1
Member
Thread Starter
Join Date: Feb 2011
Location: Haleyville al
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Comp cut?
So im considering comp cutting my rear but im jus wonderin if it will affect the strength of the unibody or anythin and if so then how can i get it to hold up? Any advise would b great!
#3
CF Veteran
Join Date: Jul 2009
Location: New Jersey (Milltown, Lavallette, and Wayne)
Posts: 2,245
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0L I6
You can do it if you have the proper fabrication skills to make it work right. Its not going to be just cutting the body at the fenders, there will be lots of welding and metal fab involved. You will need to create new wheel wells and weld them back to the quarter panel and the unibody. Strength will be greatly compromised so you will need to stiffen the unibody rails and possibly do a full interior cage tied into the unibody rails to re-stiffen the chassis. This whole project will require good welds and tube bending and lots of custom fabrication. If you can tackle it go for it, but don't make a hack job out of it and compromise your safety.
#4
Member
Thread Starter
Join Date: Feb 2011
Location: Haleyville al
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Lol i guess i shoulda said that im a welder and pipe fitter by trade so the welding and fabricating aint a problem and i was plannin on doin some frame stiffners at the same time. I was jus wondering if it needed a cage or anything in that nature but i guess i got my answer! Thank you!
#6
CF Veteran
Join Date: Jul 2009
Location: New Jersey (Milltown, Lavallette, and Wayne)
Posts: 2,245
Likes: 0
Received 1 Like
on
1 Post
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Lol i guess i shoulda said that im a welder and pipe fitter by trade so the welding and fabricating aint a problem and i was plannin on doin some frame stiffners at the same time. I was jus wondering if it needed a cage or anything in that nature but i guess i got my answer! Thank you!
#7
CF Veteran
Join Date: Sep 2010
Location: Warsaw, IN
Posts: 2,844
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000,1990,1999
Model: Cherokee
Engine: 4.0
Trending Topics
#8
Member
Thread Starter
Join Date: Feb 2011
Location: Haleyville al
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Haha yeah it shouldnt b to big of a problem. And im not stretchin it right now but soon i will b. I jus had tons and 36's put under it so not much room in the back. No fenders up front so no problems there. Im workin in PA and im hopeing to bring it up here in a week or 2.
#9
Member
Join Date: Sep 2009
Location: fremont,mi
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
mine is comp cut about 4" below the rear window (4dr) and i plan on unibody stiffners from control arm mount to leaf mount and plan internal cage along with a cross member in the hatch opening and underneath basicaly tieing the unibody rails back together, mine will also be stretched 4-5" using dodge ram leafs springs and a bumper mounted shackle.
#10
Member
Thread Starter
Join Date: Feb 2011
Location: Haleyville al
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Yeah that will work good. Im plannin on 4 linkin the rear if the cash will let me lol then do the stretch. And mines a 2 door btw. And this is with 36's i had about 6.5" of lift but the new spring perches and axles gave it more lift then i figured it would have
#11
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L

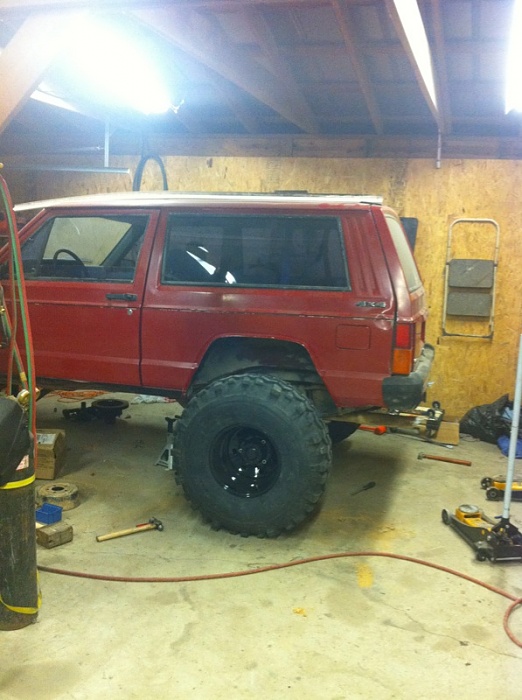

It's not a comp cut but here is one a guy I know did. It's linked in the rear and those are 36s. He redid the fender wells and moved his tank. Whole unitbody is plated and it has a cage.
#12
Senior Member
Join Date: Jul 2010
Location: Japan
Posts: 913
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 L I6

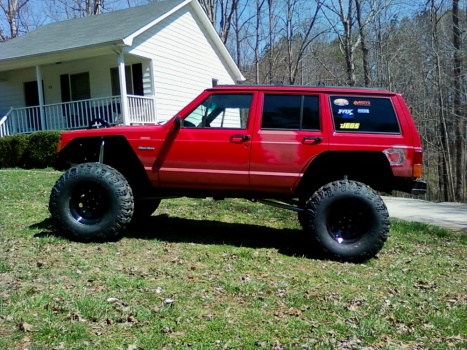

Man I really like the way this guy did his comp cut and would like to do this to mine one day. I am no expert so I can't give any advice with regards to strength, but if you plated or put stiffeners on the Unibody I am sure you would be fine.
#14
Member
Thread Starter
Join Date: Feb 2011
Location: Haleyville al
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Haha that red jeep took trimmin fenders to a whole new level! But i like it! And that second pic is how i was wantin to do mine
#15
CF Veteran
Join Date: Jan 2009
Posts: 2,740
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Model: Cherokee
Engine: 4.0
THe unibody on the xj is stiffer then ppl think. As long as you keep roof intact you can cut as high as you like as long as your rig doesnt have rust issues.
THe cage I have in my rig is so rigid.. I can jack left corner of rig up.. and lift whole rig.
Personally the next xj I build I am going to narrow the rear by pie cutting the roof and angling it all in.
THe cage I have in my rig is so rigid.. I can jack left corner of rig up.. and lift whole rig.
Personally the next xj I build I am going to narrow the rear by pie cutting the roof and angling it all in.
