Bumper templates?
#1
CF Veteran
Thread Starter
Join Date: Apr 2011
Location: Oregon
Posts: 2,120
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: i6 HO
Bumper templates?
Does anyone know where i can get some bumper templates?
I want to make a front bumper but dont think i have the creative mind to think it up...
I am thinking of buying a front bumper with the pre runners on it, but thats pretty spendy and i guess i can make one for cheaper... Just dont think i can make the templates in my head.
Same with a rear bumper w/ tire swing. I wish i had auto cad.
Does anyone have bumper templates? If so PM or post here.
I want to make a front bumper but dont think i have the creative mind to think it up...
I am thinking of buying a front bumper with the pre runners on it, but thats pretty spendy and i guess i can make one for cheaper... Just dont think i can make the templates in my head.
Same with a rear bumper w/ tire swing. I wish i had auto cad.
Does anyone have bumper templates? If so PM or post here.
#2
Member
Join Date: Sep 2010
Location: Albuquerque, NM
Posts: 191
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0 XJ
This is the one I like, I found a template online for one that was close to this. I will try to find it and send it to you. If you use the one on the Logan's Metals site as a model you can use cardboard to make the mock up and full size templates. You only have to make and measure for half because you can flip over the cardboard patterns for the other side. That way it doesn't seem so daunting of a task. lol
Just write pass side and driver side on the cardboard faces to keep from getting confused. You can also make and bolt the fabbed new bumper brackets on and then measure, cut and make the rest of your cardboard template pieces to fit the brackets and front end of the Jeep.
This is the model I like:
Part # LMP-XJF840101
http://www.logansmetals4x4.com/id9.html
Does anyone know where i can get some bumper templates?
I want to make a front bumper but dont think i have the creative mind to think it up...
I am thinking of buying a front bumper with the pre runners on it, but thats pretty spendy and i guess i can make one for cheaper... Just dont think i can make the templates in my head.
Same with a rear bumper w/ tire swing. I wish i had auto cad.
Does anyone have bumper templates? If so PM or post here.
I want to make a front bumper but dont think i have the creative mind to think it up...
I am thinking of buying a front bumper with the pre runners on it, but thats pretty spendy and i guess i can make one for cheaper... Just dont think i can make the templates in my head.
Same with a rear bumper w/ tire swing. I wish i had auto cad.
Does anyone have bumper templates? If so PM or post here.
#4
Member
Join Date: Sep 2010
Location: Albuquerque, NM
Posts: 191
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0 XJ
This guy built an awesome rear bumper. I really like the urethane isolator bushing he used on the tire carrier. Most people use a trailer spindle for the pivot.
Spindles:
http://www.etrailer.com/Trailer-Spin...FegZQgodTnmNNQ
Cool tire carrier build.
Down past his front bumper pics:
http://www.naxja.org/forum/showthrea...hlight=bumpers
Spindles:
http://www.etrailer.com/Trailer-Spin...FegZQgodTnmNNQ
Cool tire carrier build.
Down past his front bumper pics:
http://www.naxja.org/forum/showthrea...hlight=bumpers
#5
Senior Member
Join Date: Jun 2011
Location: Brookfield, WI
Posts: 967
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.2L bored out 4.0L I6
i like how everyone is still beating around the bush, dude asked for templates not pics and advice lmao, sorry i have yet to find templates or blue prints or any bumper more then a bar and some tubing lol
#6
Seasoned Member
Join Date: Dec 2010
Location: Frisco, Texas
Posts: 309
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6

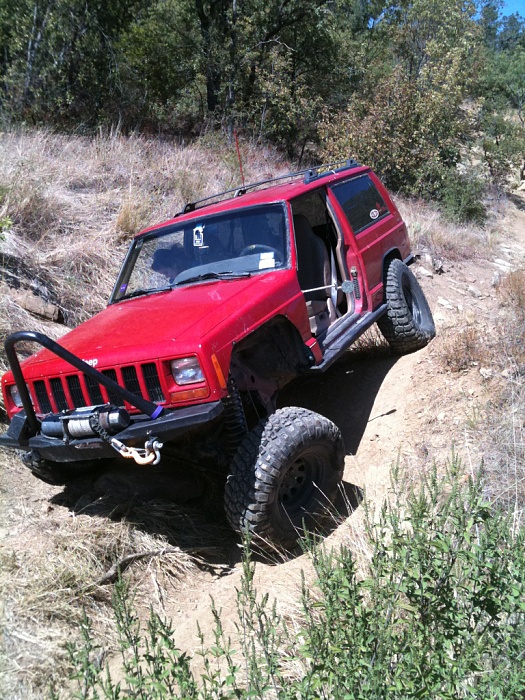

Heres mine, main part is 2x6 tube and some 1/8" flat for the angled pieces and 1/4" flat for the mounts. Not the best templates, but I've had 10 or 11 people ask for them. Good luck man, I just looked at a bunch of bumpers and took what I liked from all of them to make my own. Take it slow and think out what you want and it'll turn out good.
