Bed lined my roof

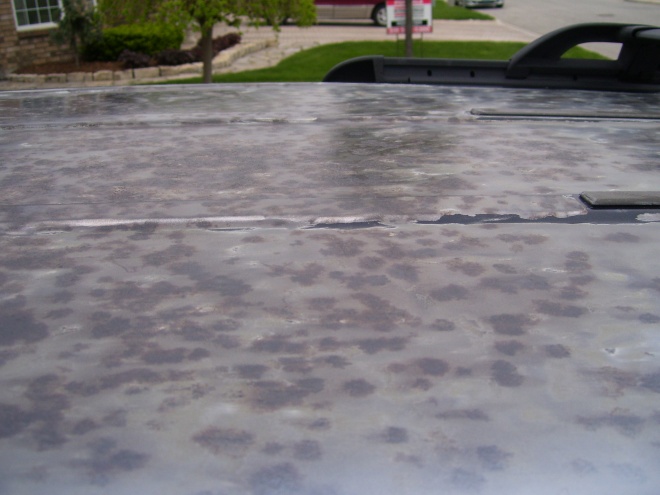

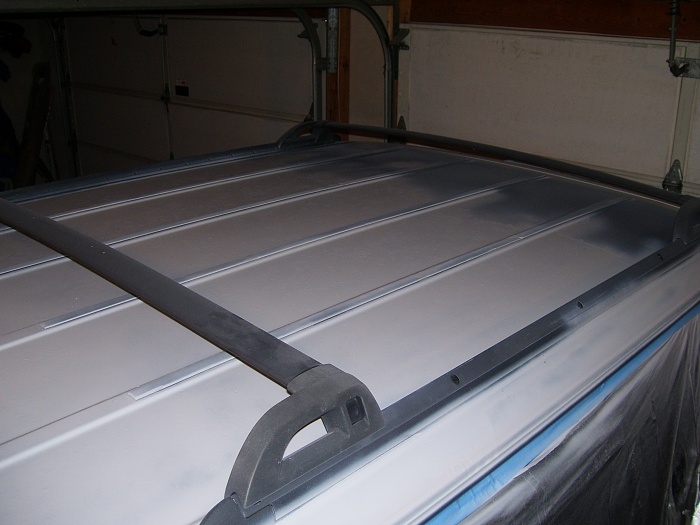

ok my roof had some defective paint or something and i decided to bed line it after seeing how some of you had done. the metal was rusted bad so i got out my angle grinder and wire wheel and started at it. it took me 4.5 hours and my arms were ready to fall off but this is what it looked like..
then because the metal didn't look so good i used some rust killer primer on the bare metal after i taped everything off.
Attachment 48709

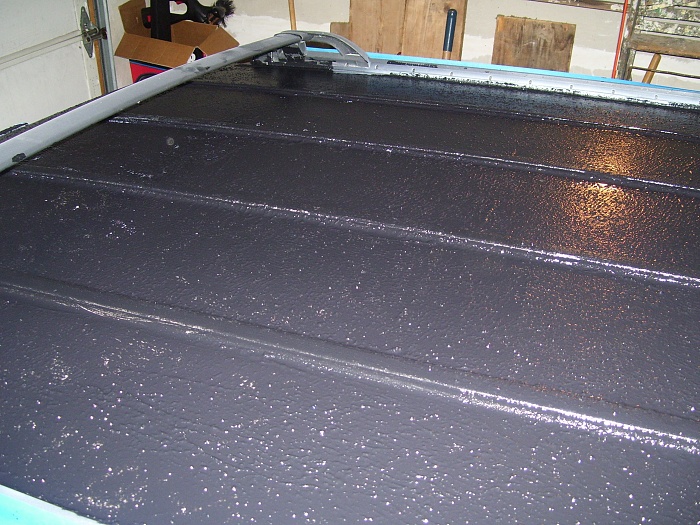

then it was time for the Duplicolor bedliner. had to stir it for about 30 min. to get it properly mixed. then i applied 2 coats about 2 hours apart. here it is, I still have some touch up to do but that won't take long.
then because the metal didn't look so good i used some rust killer primer on the bare metal after i taped everything off.
Attachment 48709
then it was time for the Duplicolor bedliner. had to stir it for about 30 min. to get it properly mixed. then i applied 2 coats about 2 hours apart. here it is, I still have some touch up to do but that won't take long.
#4
CF Veteran
Join Date: Jun 2010
Location: Hayward, CA
Posts: 1,378
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
May have been better off with the rattle can stuff, I think it looks nicer even though its not as tough (doesnt really need to be tough on the roof). nice work though, i bet that was a pain in the butt to get done
#6
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Ypsilanti, MI
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Thanks and the finish is gritty and hard. i just realized that the photo is after the first application. i did one more layer. i will have to post that after the touch up
Trending Topics
#8
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Ypsilanti, MI
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
#10
Member
Join Date: Feb 2011
Location: CT
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I'm doing this sometime this summer, my roof has all these little circles and you can tell there is rust underneath...
Im thinking just grind/sand, prime and then roll it on and it shouldn't be too obvious on my purple xj
It should hold up good if i throw a kayak up there sometime lol
Im thinking just grind/sand, prime and then roll it on and it shouldn't be too obvious on my purple xj
It should hold up good if i throw a kayak up there sometime lol
#11
Seasoned Member
Thread Starter
Join Date: May 2010
Location: Ypsilanti, MI
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
hey everyone , just to let you know there was a noticeable decrease in cabin noise with the addition of the bed liner to the roof.
#12
CF Veteran
Join Date: Dec 2010
Location: S.Jersey
Posts: 1,700
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
you beat me to it. i have been planning on doing this too.

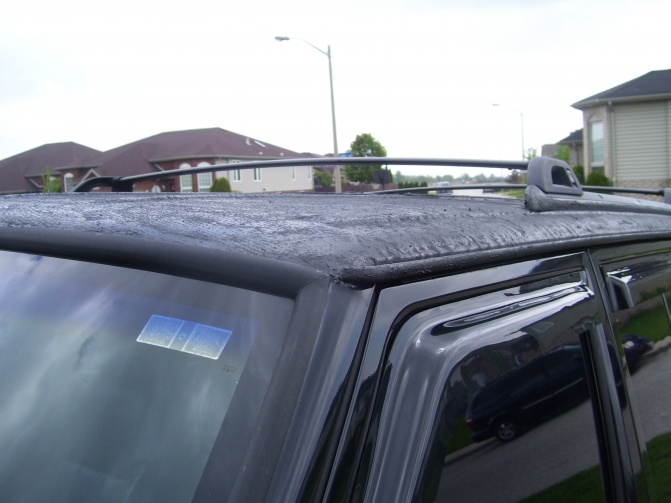

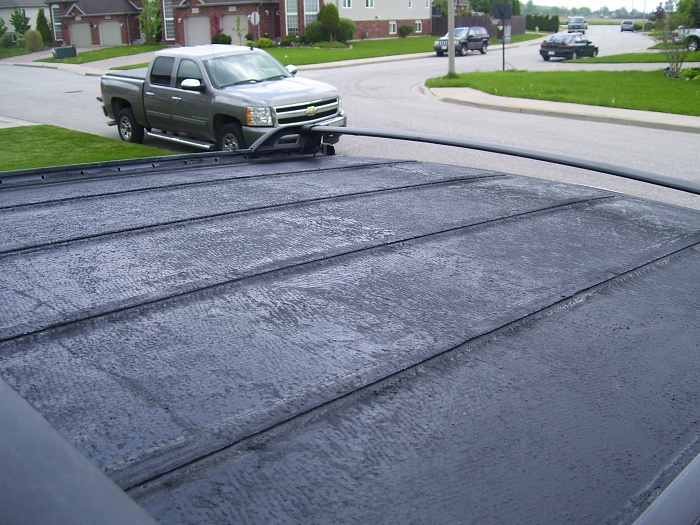

Hard to say how it looks though. anyway you can get some out side pics in daylight?
