ba10/5 to ax15 clutch line
#1
ba10/5 to ax15 clutch line

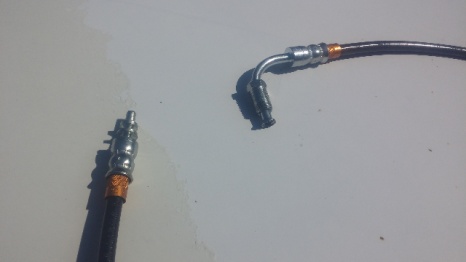

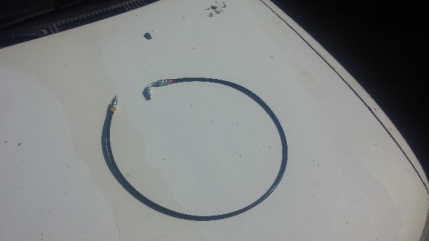

Ok so i found a bunch of different write ups on how to make a custom clutch line but some write up don't say how well it work or the part number to find the fittings so just to let everyone know there is a local shop in loveland co thats makes custom hydraulic line
If anyone wants one made i can go to the shop and send it threw mail
Pm for pricing and what type of hose
If anyone wants one made i can go to the shop and send it threw mail
Pm for pricing and what type of hose
#2
CF Veteran
Join Date: May 2008
Posts: 3,018
Likes: 0
Received 13 Likes
on
13 Posts
Year: 1988
Model: Cherokee
Engine: AMC242
Any Parker-Hannifin (or other fluid power) dealer should be able to make any line you need - just tell them what it's for, and length and fittings.
However, if you're switching to an AX-15i (internal slave,) you can use the same clutch kit as the BA-10/5 - hydraulics and all - with the possible exception of the input shaft pilot bushing (if you have the small - ~5/8" - pilot, you can use the same bushing. If you have the large - ~7/8" - pilot, you can use one from an early 1970's CJ-series with the V8-304 and three-speed manual, it drops right in.
However, if you're switching to an AX-15i (internal slave,) you can use the same clutch kit as the BA-10/5 - hydraulics and all - with the possible exception of the input shaft pilot bushing (if you have the small - ~5/8" - pilot, you can use the same bushing. If you have the large - ~7/8" - pilot, you can use one from an early 1970's CJ-series with the V8-304 and three-speed manual, it drops right in.
