Cherokee Chat General non-tech Cherokee chat
XJ/MJ/ZJ/WJ

After market header

Thread Tools

Search this Thread

Old Jan 10, 2012 | 03:35 PM
  #1
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default After market header

Sup guys I have a leak in my stock header manifold I want a after market one anybody have one on therein ther xj. What r the good and the bad hit me back
Reply
Old Jan 10, 2012 | 06:27 PM
  #2
XJeep98Classic's Avatar
Senior Member

Joined: Aug 2011
Posts: 738
Likes: 0
From: OKC
Year: 1998
Model: Cherokee
Engine: Straight 6
Default

Go for obx or obx racing or pacesetter.... They are 98% as good as Banks and Hooker but cost half the price !
Reply
Old Jan 10, 2012 | 07:11 PM
  #3
Donnie_K's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,173
Likes: 0
From: Columbus, Ohio
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

Yeah! What he said! er uh... wait? who?

Anyway... here's the one jeep guys who don't wanna fork out 500 bucks for a banks header use...

http://www.ineedparts.com/auto-parts...-manifold.html
Reply
Old Jan 10, 2012 | 07:24 PM
  #4
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default

Thanks guys. Is it hard to put on
Reply
Old Jan 10, 2012 | 08:01 PM
  #5
XJeep98Classic's Avatar
Senior Member

Joined: Aug 2011
Posts: 738
Likes: 0
From: OKC
Year: 1998
Model: Cherokee
Engine: Straight 6
Default

Originally Posted by Xj7piggy
Thanks guys. Is it hard to put on
Put simply, No, but it is VERY tedious and take all day!

Last edited by XJeep98Classic; Jan 10, 2012 at 08:26 PM.
Reply
Old Jan 10, 2012 | 08:23 PM
  #6
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default

I figure. Thanks guys
Reply
Old Jan 11, 2012 | 09:06 AM
  #7
Donnie_K's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,173
Likes: 0
From: Columbus, Ohio
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

not really, the hardest part is getting at the lower manifold bolts, you won't be able to get em all on with a ratchet, you'll be needing to use a wrench... racheting wrenches are worth their weight in gold.
Reply
Old Jan 11, 2012 | 11:43 AM
  #8
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default

Got plenty of those they do come in handy do y'all no were I can get a right up
Reply
Old Jan 11, 2012 | 12:06 PM
  #9
kjc's Avatar
kjc
CF Veteran

Joined: Aug 2011
Posts: 1,031
Likes: 4
From: Blue Springs, MO
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
Default

Originally Posted by Xj7piggy
Got plenty of those they do come in handy do y'all no were I can get a right up
4.0L?

To install:
Clean the gasket mating surfaces thoroughly. Install a new gasket over the alignment dowels and position the exhaust manifold to the cylinder head. Install bolt No. 3 finger-tight.

Install the intake manifold and the remaining bolts and washers.

On 1991–98 models, tighten bolts, in sequence, to the following torque specifications:
Bolts 1–5 — 23 ft. lbs. (31 Nm)
Bolts 6 and 7 — 17 ft. lbs. (23 Nm)
Bolts 8–11 — 23 ft. lbs. (31 Nm)

Install the fuel rail and injectors.
Install the power steering pump and tension the accessory belt to specification.
Using new O-rings, install the fuel supply and return lines.
Connect all electrical connectors, vacuum connectors, throttle cable, cruise control cable and transmission lines pressure cable.
Install the air cleaner assembly.
Using a new seal, connect the exhaust pipe to the manifold and tighten the bolts to 23 ft. lbs. (31 Nm).
Connect the negative battery cable.
Start the engine and check for leaks.

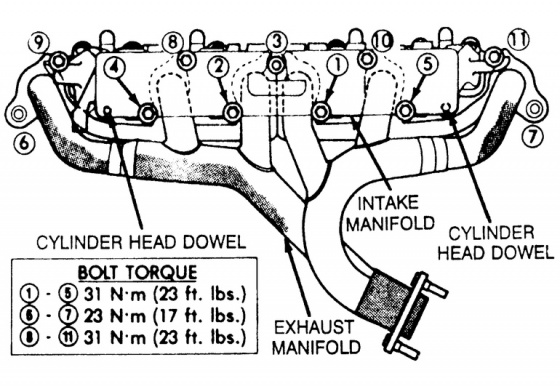

Attached Thumbnails After market header-manifold-torque.jpg
Reply
Old Jan 11, 2012 | 12:37 PM
  #10
Donnie_K's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,173
Likes: 0
From: Columbus, Ohio
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

It's a little different for the header... but it does come with instructions.
Reply
Old Jan 12, 2012 | 05:43 PM
  #11
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default

Thanks good right up This is going to help?
Reply
Old Jan 12, 2012 | 07:08 PM
  #12
Donnie_K's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,173
Likes: 0
From: Columbus, Ohio
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Default

You need to know tightening order and torque settings, yes. though because on the header you will have to do some of the torqueing by feel with a wrench. using a stock exhaust manifold, use the pattern provided, it will help. Using an aftermarket header, use the pattern that came with the header, yes... that will help too... not doing so will void any warranty you may have had.
Reply
Old Jan 12, 2012 | 07:13 PM
  #13
Xj7piggy's Avatar
Thread Starter
Junior Member

Joined: Jun 2011
Posts: 49
Likes: 0
Model: Cherokee
Default

Iv done a few on some hondas. Thanks buddy
Reply
