ZJ bumper fab

Thread Tools

Search this Thread

Old Feb 21, 2011 | 07:27 PM
Share
  #1
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default ZJ bumper fab
Here is where i am now, I want to do a "tube style" bumper. I have about 12 feet of 2" galv pipe.

Any pointers? Stuff to do/look out for?

(Ill keep updating)

Thanks guys!

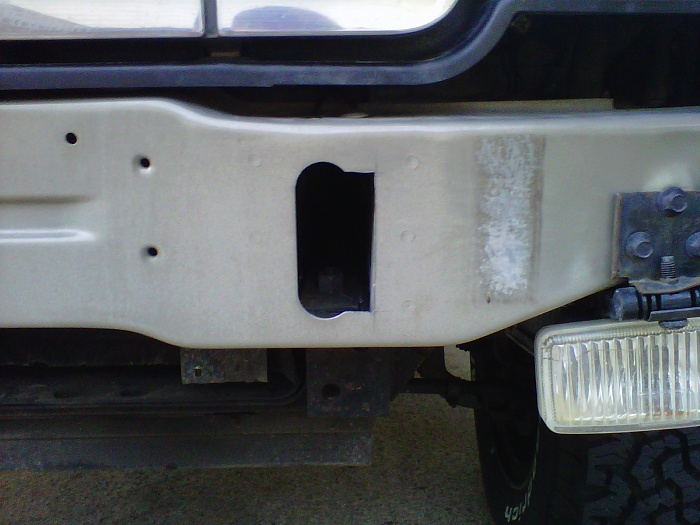

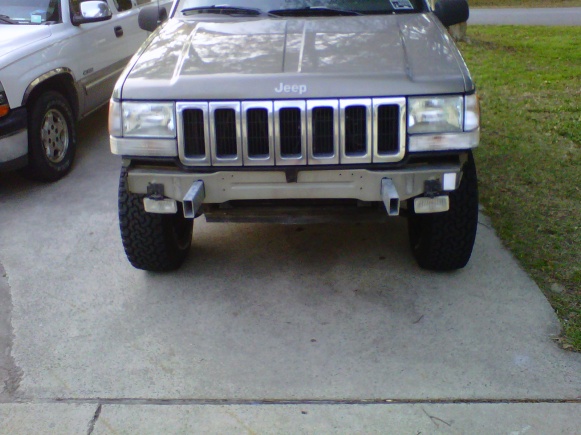

ZJ bumper fab-img00099-20110221-1748.jpg

ZJ bumper fab-img00100-20110221-1749.jpg
Reply
0
Old Feb 21, 2011 | 07:40 PM
Share
  #2
2000'XJ's Avatar
2000'XJ
Newbie

Joined: Jan 2010
Posts: 25
Likes: 0
From: Southern Idaho
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Have fun!

Fyi, If your not familiar with Welding with galvanized pipe please look it up. It can be hazardous to your respiratory system
Reply
0
Old Feb 21, 2011 | 10:25 PM
Share
  #3
ChileRedBateman's Avatar
ChileRedBateman
Member

Joined: May 2010
Posts: 182
Likes: 0
From: Concord, NH
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
/\/\/\ so true /\/\/\
you need to grind all galv away from weld area... do not mess around, please read up first... here are a few things for you
http://www.sperkoengineering.com/htm...Galvanized.pdf
http://www.finishing.com/355/27.shtml read some of these posts...
http://www.ehow.com/way_5465382_can-...zed-steel.html
Reply
0
Old Feb 21, 2011 | 11:34 PM
Share
  #4
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default
Originally Posted by 2000'XJ
Have fun!

Fyi, If your not familiar with Welding with galvanized pipe please look it up. It can be hazardous to your respiratory system
Man...

Thanks guys, i had NO idea...

Any other pointers for the brackets, welds, nuts and bolts to use??
Reply
0
Old Feb 22, 2011 | 07:36 AM
Share
  #5
ChileRedBateman's Avatar
ChileRedBateman
Member

Joined: May 2010
Posts: 182
Likes: 0
From: Concord, NH
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by makingaZJ
Man...

Thanks guys, i had NO idea...

Any other pointers for the brackets, welds, nuts and bolts to use??
at least grade 8 bolts/nuts... if making a long weld do it in steps so that heat doesn't warp your work.
Reply
0
Old Feb 24, 2011 | 06:05 PM
Share
  #6
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default
UPDATE:

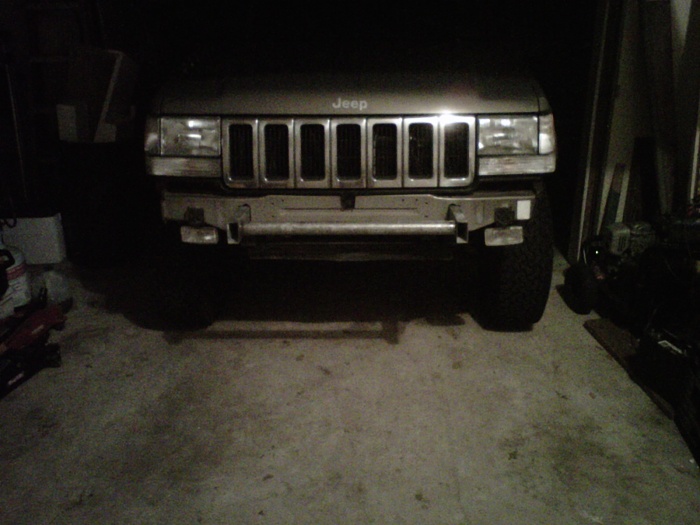

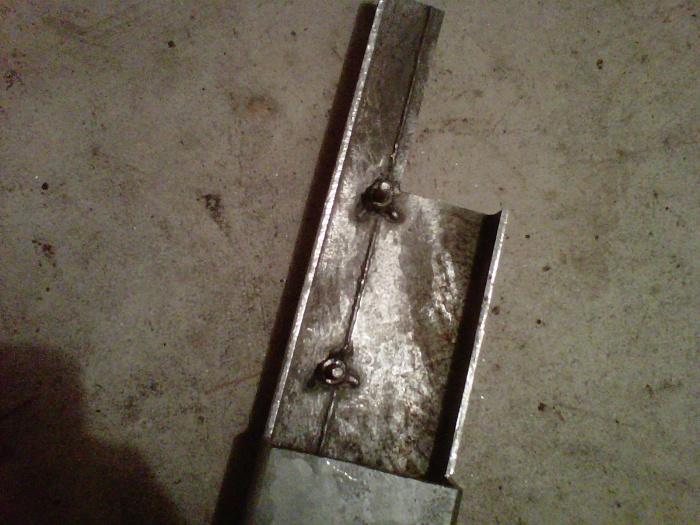

A little progress made; some brackets and the center bar.

ZJ bumper fab-img00103-20110222-2228.jpg

ZJ bumper fab-img00106-20110224-1856.jpg
Reply
0
Old Feb 24, 2011 | 07:49 PM
Share
  #7
ChileRedBateman's Avatar
ChileRedBateman
Member

Joined: May 2010
Posts: 182
Likes: 0
From: Concord, NH
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
keep the pics coming... so what you doing to keep those lungs safe?
Reply
0

Trending Topics

Old Mar 1, 2011 | 06:31 PM
Share
  #8
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default Almost Done!

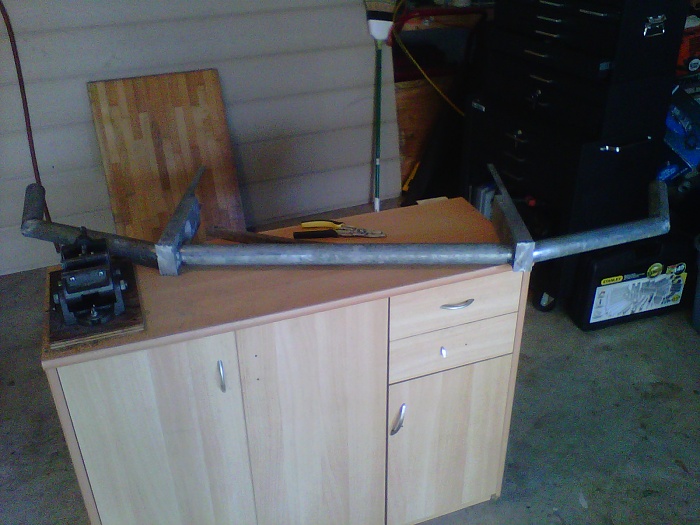

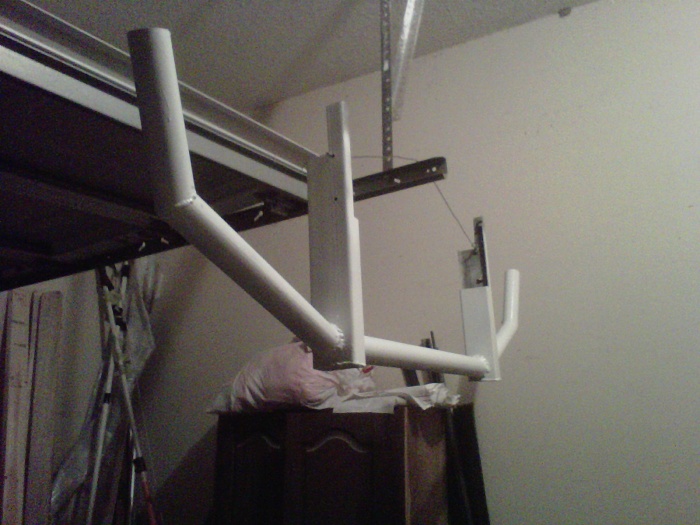

Finished burning everything together; and got it primed.

ZJ bumper fab-img00109-20110301-1620.jpg

ZJ bumper fab-img00113-20110301-1852.jpg
Reply
0
Old Mar 1, 2011 | 08:57 PM
Share
  #9
ChileRedBateman's Avatar
ChileRedBateman
Member

Joined: May 2010
Posts: 182
Likes: 0
From: Concord, NH
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
good start, what you got planned next for it.
Reply
0
Old Mar 1, 2011 | 09:16 PM
Share
  #10
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default
Originally Posted by ChileRedBateman
good start, what you got planned next for it.
IDK, i kinda want to do a stinger and some sort of radiator guard.

but im out of pipe so ill ride it like this for now until i find some more ha.
Reply
0
Old Mar 1, 2011 | 10:13 PM
Share
  #11
OrvisKrawler's Avatar
OrvisKrawler
Senior Member

Joined: Sep 2010
Posts: 507
Likes: 1
From: Eden Utah
Default
better add some support for those side bars that wrap around or theyll be history the first thing that hits them

hope you werent breathing when you were welding that galvanized pipe. thats toxic
Reply
0
Old Mar 7, 2011 | 08:59 AM
Share
  #12
rickybarth's Avatar
rickybarth
Seasoned Member

Joined: Oct 2009
Posts: 489
Likes: 0
From: long island
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default
how did te bumper turn ouit im curious i want to make one for my zj is that 2x4 square tubing you used
Reply
0
Old Mar 9, 2011 | 09:40 PM
Share
  #13
makingaZJ's Avatar
makingaZJ
Thread Starter
Junior Member

Joined: Nov 2010
Posts: 74
Likes: 0
From: Georgia
Year: 1997
Model: Grand Cherokee
Engine: 4.0 L6
Default
Originally Posted by rickybarth
how did te bumper turn ouit im curious i want to make one for my zj is that 2x4 square tubing you used
its mounted, but still being built kinda as-i-go ha.

its actually 2/3" i believe.
Reply
0
