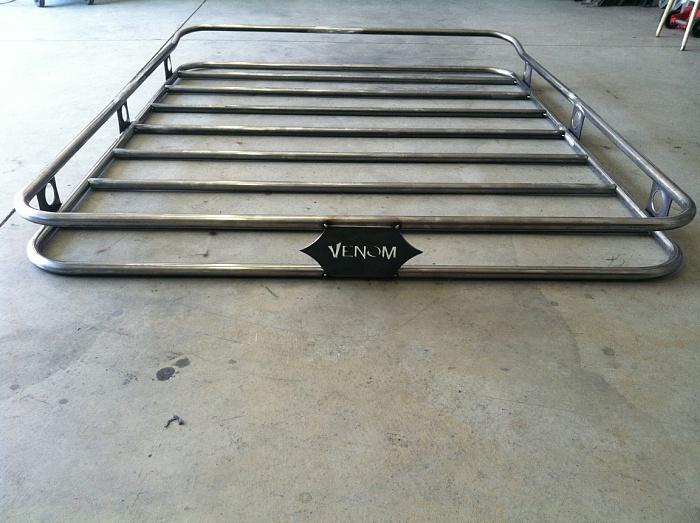

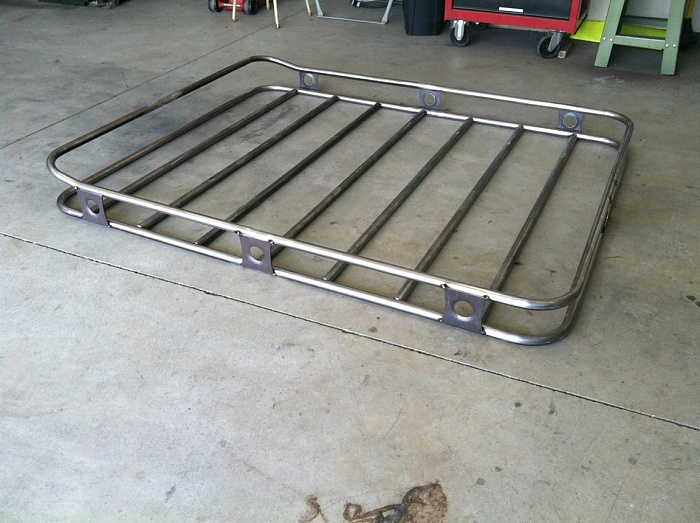

Made from 1" x .095" wall mild steel tubing.

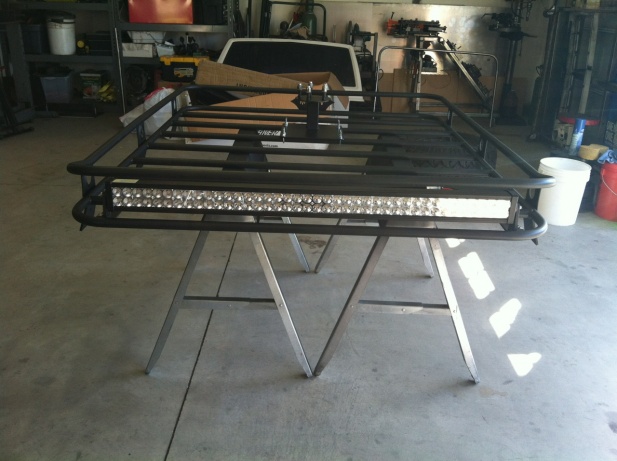

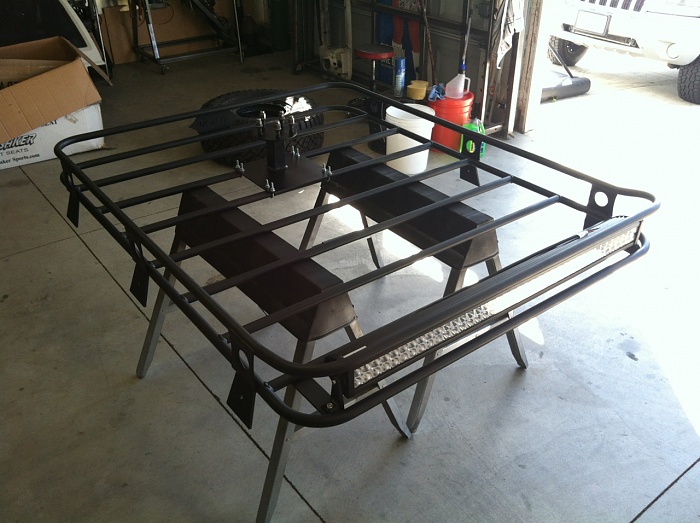

42" LED light bar, and spare tire mount.
Waiting for the paint to fully cure, then I'll set it up on the roof.



......



best looking one ive seen yet........ but I would never sport one



Thanks.
I was never really a fan of them, but they grew on me. I figured an expedition type rig needs to have a rack.



had a question for you what brand is the light bar?
And do you have a build spec sheet that could be posed up.
I'm in the process of redesigning my rack and yours fits the bill.

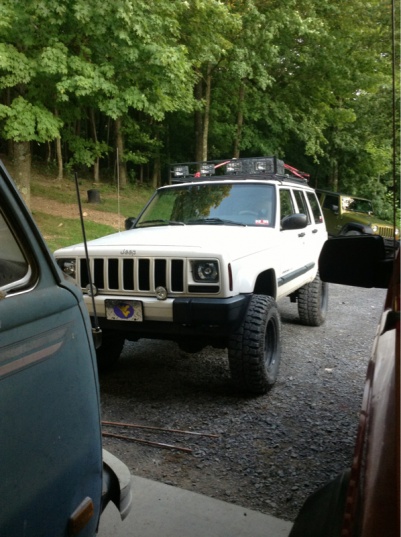

This is one I built for my rig



I can give you dimensions, if that's what your looking for.
It's 63" x 51". The top and bottom rails are 3" apart, with a 12 degree kick up to accommodate the light bar.
I used 1" tubing .095" wall.

The light bar is from China, bought off eBay.



Like always venom lookin clean.



Thanks for the info, gives me a place to start.



would you sell some of those flared hole plates, if so pm me please



ive gotta say everytime i see a fab thread and see that the OP is venom i get excited lol. excellent work sir. its a damn shame you dont live in Connecticut or youd be constantly employed by ME!!



Thanks!

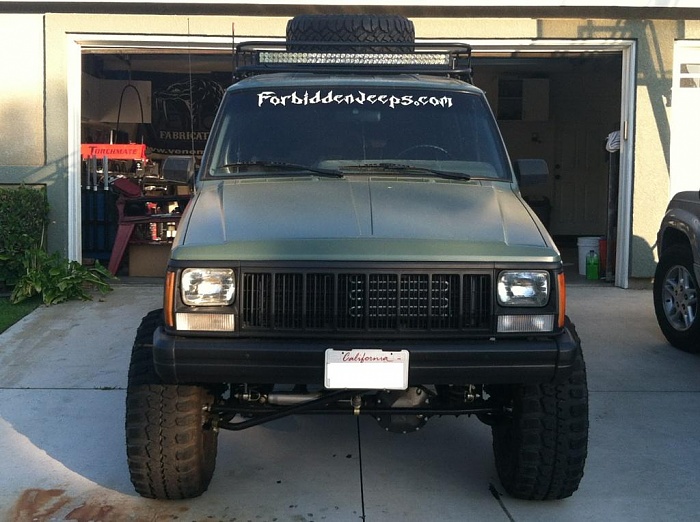

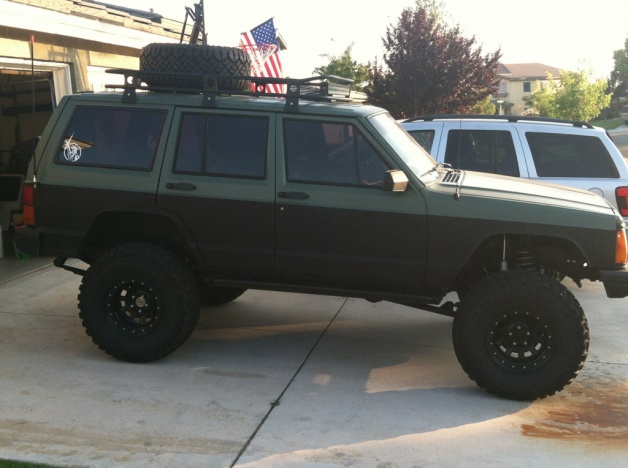

Got it up on the roof, just need to wire up the light.



Love the roof rack man!



nice i like the color of your xj also
