Sweet Switch Panel

Thread Tools

Search this Thread

Old 06-17-2011 | 08:23 AM
  #16
Cowboyformhell's Avatar
Junior Member

Joined: Mar 2009
Posts: 87
Likes: 0
From: Phila
Year: 99
Model: Cherokee
Default

Originally Posted by That Jeep Guy XJMJ
says someone who hasn't experienced battle style toggle switches
I havnt just assuming they wouldnt be that hard my bad
Old 06-18-2011 | 12:13 AM
  #17
That Jeep Guy XJMJ's Avatar
CF Veteran

Joined: Jun 2009
Posts: 2,296
Likes: 350
From: Michigan
Year: 1987 MJ, 1973 J2000, 1986 XJ, 08 JK
Model: Comanche (MJ)
Engine: 4.0L H.O
Default

Originally Posted by Cowboyformhell
I havnt just assuming they wouldnt be that hard my bad
lol its ok i was just givin ya a hard time, those covers do make it awkward sometimes for turning stuff on though but yea turning them off is a dream
Old 06-18-2011 | 05:05 PM
  #18
xj wheeler's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,845
Likes: 2
From: S.E. Tx
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top
Default

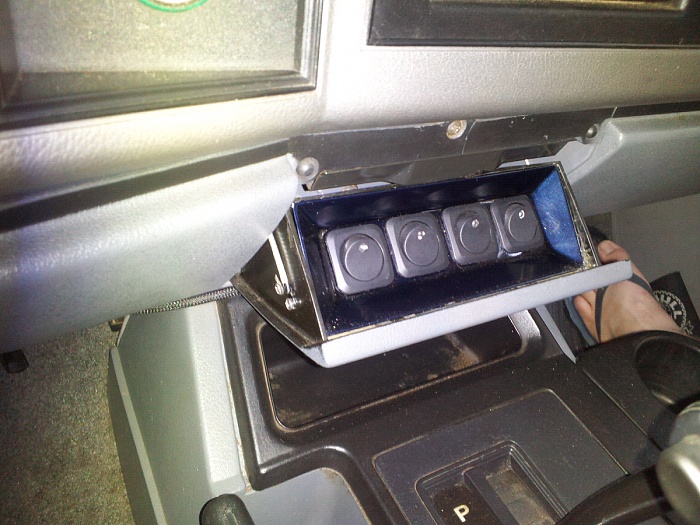

This is my switch panel, i made it out of 16 gauge sheet metal. Lot of work for something so simple, but l think it came out nice enough.
Attached Thumbnails Sweet Switch Panel-forumrunner_20110618_170222.jpg   Sweet Switch Panel-forumrunner_20110618_170257.jpg
Old 06-18-2011 | 07:35 PM
  #19
Captain_America's Avatar
Member

Joined: Jan 2011
Posts: 127
Likes: 0
From: Riverside, California
Year: 1988
Model: Cherokee
Engine: 4.0 Low Output
Default

^^^^ I like it! Nice and clean...
Old 06-19-2011 | 07:12 AM
  #20
michelle2010's Avatar
Newbie

Joined: Jun 2011
Posts: 16
Likes: 0
From: Pomfret, CT
Year: 1992
Model: Cherokee
Engine: 4.0
Default

I really like it. I think I might do the same thing when I help my husband put the extra lights on my cherokee in a couple of weeks.
Old 06-20-2011 | 06:35 PM
  #21
jt07's Avatar
Junior Member

Joined: Jun 2011
Posts: 59
Likes: 0
From: Phoenix, AZ
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Where is the wiring that connects it to the lights? Do you just guide the wires though the dash?
Old 06-20-2011 | 07:08 PM
  #22
xj wheeler's Avatar
CF Veteran

Joined: Jun 2011
Posts: 1,845
Likes: 2
From: S.E. Tx
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top
Default

Originally Posted by jt07
Where is the wiring that connects it to the lights? Do you just guide the wires though the dash?
What i did was drill two holes in the backside of the ashtray. Then two holes in the dash right behind the ashtray to line up with the other two holes. And just feed the wires through to the left under the dash. I loosen the lower dash panel to drill the holes in it so i wouldn't hit anything behind it.
Old 06-21-2011 | 10:18 AM
  #23
Alertmicro's Avatar
Member

Joined: Sep 2010
Posts: 220
Likes: 0
From: little rock arkansas
Year: 1999
Model: Cherokee
Engine: High output 4.0L with torque header
Default

That is a genius idea , makes me wish I had an older model with an ash tray like that , but I got a 99 , think I'm gonna put my switches in my overhead consol were the garage door opener thing is ..... Sweet and genius idea man , original !!

Sent from my iPhone using CherokeeFM
Old 06-22-2011 | 03:43 PM
  #24
98jeepsrt6's Avatar
Senior Member

Joined: Mar 2010
Posts: 718
Likes: 0
From: Miami,Fl
Year: 1998
Model: Cherokee
Engine: 4.0 L6 Srt
Default

for the 97 and up guys..
Attached Images
Old 06-22-2011 | 08:40 PM
  #25
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 4
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by 98jeepsrt6
for the 97 and up guys..
I wish I can do that I got the rear wiper etc over there. I'm lookin to mount mine to the left of the steering wheel
Old 06-22-2011 | 08:45 PM
  #26
Cherokee.Dreamer's Avatar
Senior Member

Joined: May 2011
Posts: 774
Likes: 0
From: Astoria, Oregon
Year: 1998
Model: Cherokee
Engine: Straight 6 4.0L
Default

Originally Posted by 98jeepsrt6
for the 97 and up guys..
You shoudl take more pics of your switch panel I have a 98 and like this idea
Old 06-22-2011 | 09:31 PM
  #27
XJ-92's Avatar
CF Veteran

Joined: Feb 2011
Posts: 2,450
Likes: 2
From: Dubuque IA,Libertyville IL
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

i have mine mounted where the factory clock would go on the dash
Old 06-22-2011 | 10:10 PM
  #28
e30's Avatar
e30
Seasoned Member

Joined: Nov 2009
Posts: 342
Likes: 1
Model: Cherokee
Default

i bought a police bezel and fitted another fog switch for my roof light i think it looks very clean.....right is for roof and left is for my 500's i have my bumper fogs relayed to turn on when my parking lights come on so i didnt need to use a switch and i knew i was gunna run them alot


Last edited by e30; 06-22-2011 at 10:13 PM.
Old 06-22-2011 | 10:13 PM
  #29
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 4
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by e30
i bought a police bezel and fitted another fog switch for my roof light i think it looks very clean
That bezel looks like mine but I indont think I have space on mines for an extra switch...
Old 06-22-2011 | 10:16 PM
  #30
e30's Avatar
e30
Seasoned Member

Joined: Nov 2009
Posts: 342
Likes: 1
Model: Cherokee
Default

Originally Posted by sycoglitch
That bezel looks like mine but I indont think I have space on mines for an extra switch...
yea you have to buy the one with the 4 spots the police and forest service xj's had them for extended idle switch
