started my rear bumper today.

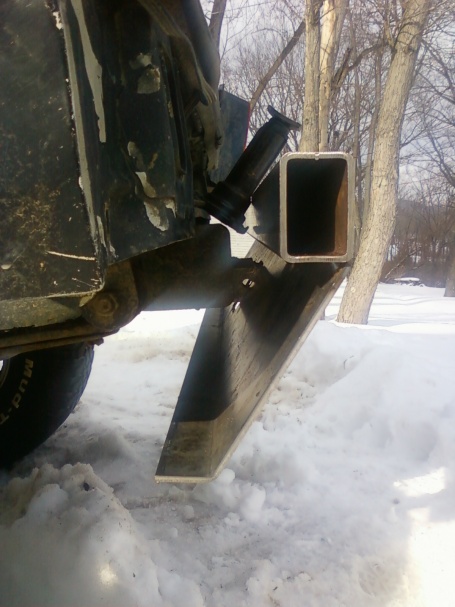

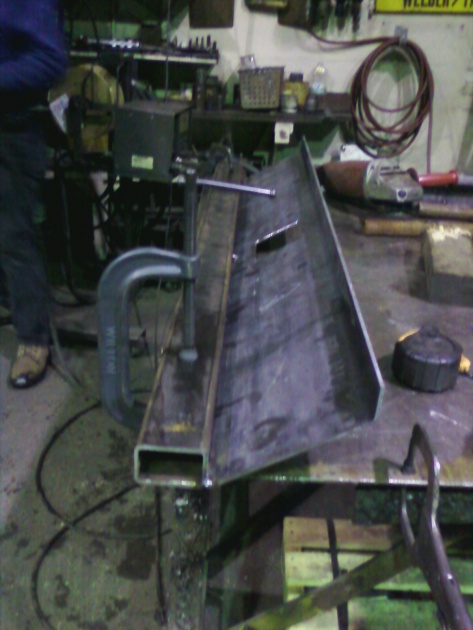

just a few pics to show you step one of my fitting/fabbing process. still have to add the pieces under the lights, the diamond plate to go up to the hatch, and the mounts.
#3
CF Veteran
Join Date: Dec 2008
Location: eaton ohio
Posts: 1,533
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0
looks pretty good so far, what are you gonna use to fill in the gap between the hatch and the bumper? if you plan on doin some offroading with it it looks like that lower part that fits around the hitch is gonna snag on pretty much everything unless you lift it to prolly around 4 and even then it'll prolly hang up on high angle approaches and departures so i would be weary of that but im really interested to see where the bumper goes as far as design
#4
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: Washington, NJ
Posts: 352
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
looks pretty good so far, what are you gonna use to fill in the gap between the hatch and the bumper? if you plan on doin some offroading with it it looks like that lower part that fits around the hitch is gonna snag on pretty much everything unless you lift it to prolly around 4 and even then it'll prolly hang up on high angle approaches and departures so i would be weary of that but im really interested to see where the bumper goes as far as design
#5
Senior Member
Join Date: Jan 2009
Posts: 562
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: Renix 4.0L
I've actually never seen one like that, and I really want to see what it turns out like. And it would be cool if you could tie a gas tank skid into it, since it already hangs down low enough.
Trending Topics
#8
CF Veteran
Join Date: Aug 2009
Location: Las Vegas
Posts: 1,263
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996 Limited
Model: Grand Cherokee
Engine: 5.2
Looks good. I would bend it below the hitch some more and Im liking the idea of tieing it in to the gas tank skid
#11
Junior Member
Join Date: Jan 2010
Location: N.E. Wisconsin
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Nice start. At least you're attempting it unlike alot of us. The only thing I can see in this stage of the build is make sure you can still get to your reciever pin on your hitch. I am interested as to how and where you go with this build.
#13
Senior Member
Join Date: Apr 2009
Location: Phillipsburg, NJ
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.ol renix
i was thinking of bending it right after the hitch and making it like a skid plate effect
#15
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: Washington, NJ
Posts: 352
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
I can't fab or weld so it's better than anything I can do, but I agree bending it higher up would help your departure angle. With it the way it is you will def get hung up and dig in. Maybe you can incorporate a gas tank skid into the design since your like half way there already, that would be sweet.
