shackle relocation brackets

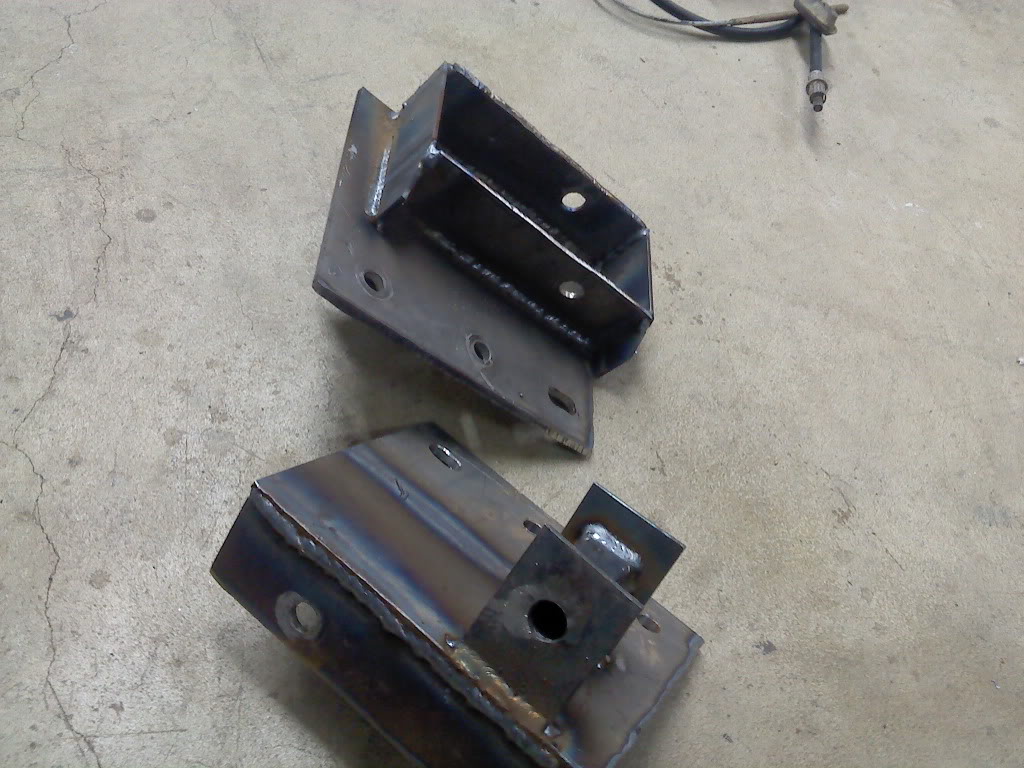

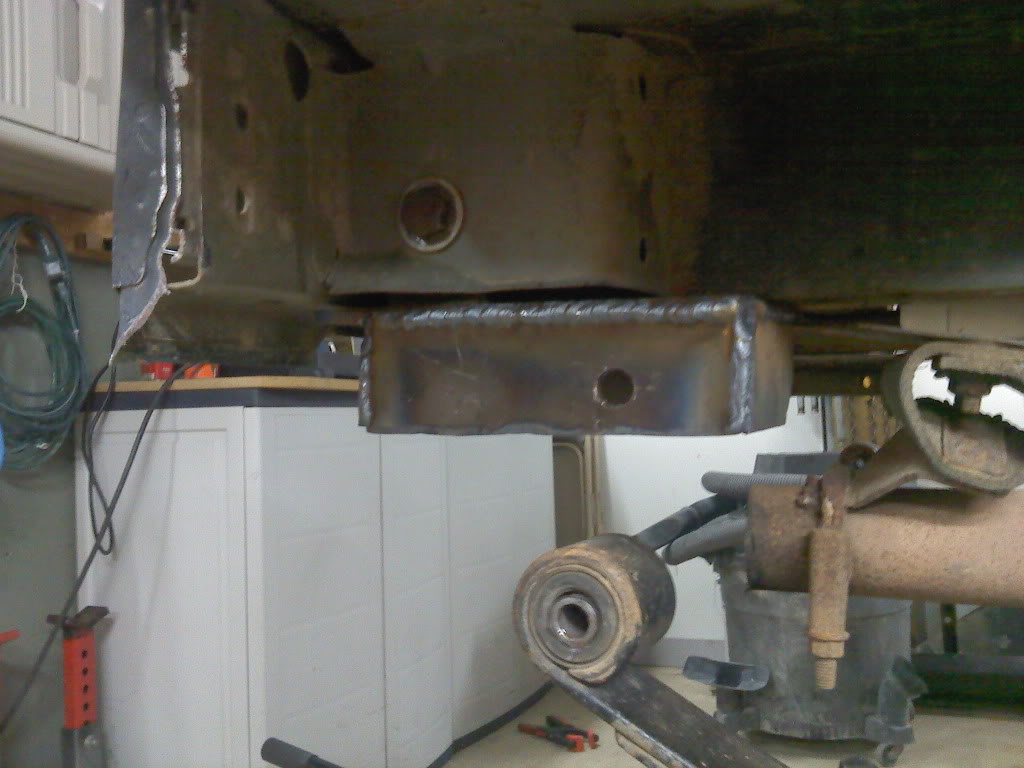

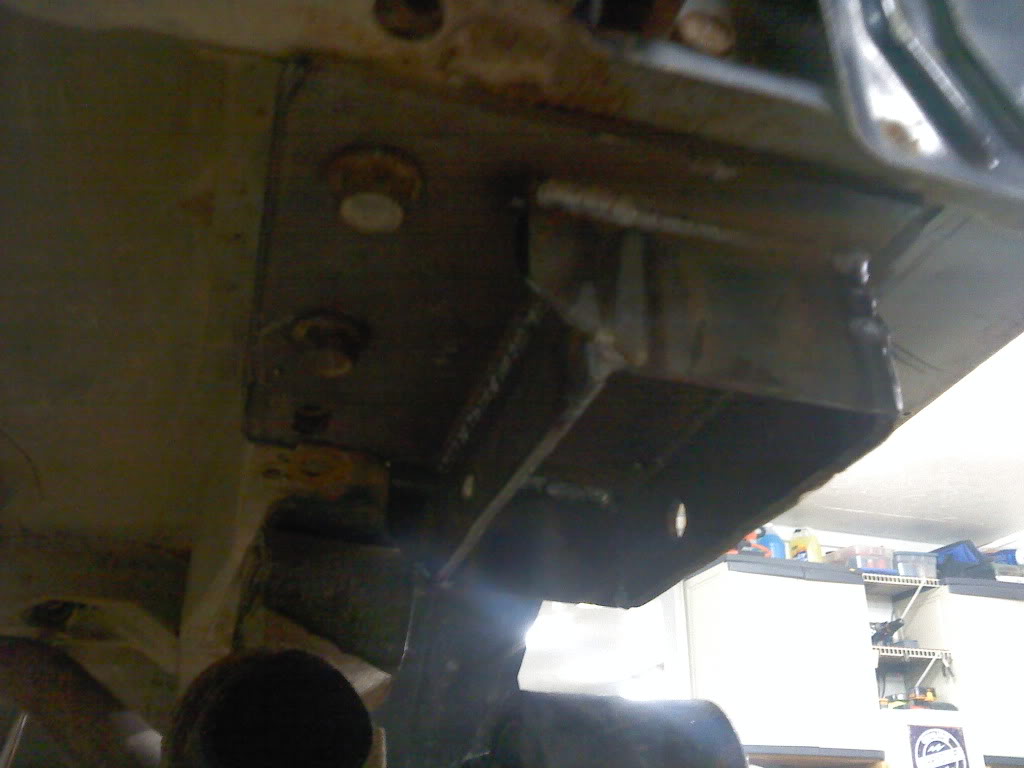

Alright well today i made my shackle relocation brackets, i pretty much copied hd offroad ones but here is some pics, they are made of all 1/4" and 3/16th"
#4
Senior Member
Join Date: Oct 2011
Location: near Chattanooga, TN
Posts: 845
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Probably because most folks will never adjust their shackles once they're installed!
You should be able to pretty accurately place the shackle hole, with the weight on the springs, use the shackle angle you want to obtain, bring that angle forward the height of your shackle, and bam, there's where you hole needs to end up. Now getting from there to here, well that's up to you!
These look good, I've got a set drawn up on my bench awaiting their go-time too! too many project ideas, not enough time. Nice work.
You should be able to pretty accurately place the shackle hole, with the weight on the springs, use the shackle angle you want to obtain, bring that angle forward the height of your shackle, and bam, there's where you hole needs to end up. Now getting from there to here, well that's up to you!
These look good, I've got a set drawn up on my bench awaiting their go-time too! too many project ideas, not enough time. Nice work.
#6
CF Veteran
Join Date: Jan 2011
Location: Missouri
Posts: 2,251
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0HO
when I made mine I used this weird thing called geometry to figure out where mine needed to sit... WORKED perfect the first time.
Yours look great BTW
Yours look great BTW
#7
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: michigan
Posts: 359
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 lt 6cyl
thanks guys, and yea i just made the one hole because i knew where i wanted to be, then i just tacked it in a few spots and set the jeeps weight on it to check it, ended up getting right were i wanted on the second attempt.
Trending Topics
#9
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: michigan
Posts: 359
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 lt 6cyl
#12
Seasoned Member
Thread Starter
Join Date: Feb 2010
Location: michigan
Posts: 359
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0 lt 6cyl
the shackle are from autozone they are the chevy drop ons for what they cost they are not worth making, and yea tonight i will draw up these with dimensions for you guys
#14
Newbie
Join Date: Mar 2011
Location: Canada
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0
did you gain any more lift with these. I want to know because i need to fab up some of these because i have had a few occasions when my shackles bind up with the rear of the stock shackle box in high flex situations. Great job by the way!
#15
CF Veteran
Join Date: Jan 2011
Location: Missouri
Posts: 2,251
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0HO
you can really make them anyway you want... if you like your current height them simple build around that ... if you want to gain a little lift then remember you have to move the frame to shackle mount hole DOWN 2" to get just 1" of lift
