Rebuilding a hf 20tin press

Old 10-15-2013, 11:32 PM
  #1
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

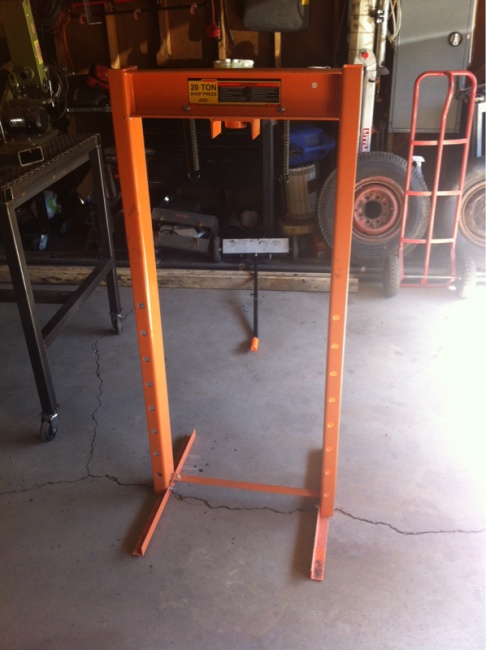

That should say TON by the way. Started with this junk. Rebuilding a hf 20tin press-image-291924621.jpg Got about this far. Rebuilding a hf 20tin press-image-1056725820.jpg Then this happened ! Rebuilding a hf 20tin press-image-140557015.jpg One little drop of slag hit my wedding ring. Melted my finger to the muscle! I was just tacking in some plate on the sides, and bam! Learned my lesson the hard way. I will never weld gloveless again. I can just about make a fist, so it should be finished soon.
Cnwxj is offline
Old 10-15-2013, 11:46 PM
  #2
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Ouch!
odgreen is offline
Old 10-15-2013, 11:50 PM
  #3
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Slag sucks. I was wearing gloves when I learned my lesson, no jacket though, it got me in the arm. Not nearly as bad as that though. It looks like you're pretty much rebuilding that frame only beefier. Why not do the uprights as well?
JerrytheJeep is offline
Old 10-15-2013, 11:57 PM
  #4
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

Originally Posted by JerrytheJeep View Post
Slag sucks. I was wearing gloves when I learned my lesson, no jacket though, it got me in the arm. Not nearly as bad as that though. It looks like you're pretty much rebuilding that frame only beefier. Why not do the uprights as well?
I boxed the sides with 3/16 plate, no pic yet.
Cnwxj is offline
Old 10-16-2013, 08:18 PM
  #5
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,083
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

What are u going to do with this press
XJwonders is offline
Old 10-16-2013, 08:34 PM
  #6
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJwonders View Post
What are u going to do with this press
My guess is press stuff.....
odgreen is offline
Old 10-16-2013, 08:51 PM
  #7
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,083
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I mean with all the extra stuff welded on it, I'm wondering what he plan to do with it
XJwonders is offline
Old 10-16-2013, 10:41 PM
  #8
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,080
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Press some really beef stuff?
roninofako is offline
Old 10-17-2013, 05:51 AM
  #9
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,083
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by roninofako View Post
Press some really beef stuff?
Lol. If that was the case, don't u think 20 tons might be not enough? Lol
XJwonders is offline
Old 10-17-2013, 08:55 AM
  #10
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

Also, never weld with flip flops on.

Had a small bit of slag land right in the center of my flip flop, then I stepped on it.

No fun.

I need a press.
Lowrange2 is offline
Old 10-17-2013, 08:57 AM
  #11
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

Originally Posted by XJwonders View Post
What are u going to do with this press
well press stuff! I just hated that every time I used it, it would use half the force to rack the frame. It's total overkill, but that's my way! I've seen guys put 30 ton cyls on with no problem.
Cnwxj is offline
Old 10-17-2013, 08:59 AM
  #12
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

Originally Posted by Lowrange2 View Post
Also, never weld with flip flops on. Had a small bit of slag land right in the center of my flip flop, then I stepped on it. No fun. I need a press.
that would suck.
Cnwxj is offline
Old 11-08-2013, 01:50 AM
  #13
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

Almost done! It's a beast!

Rebuilding a hf 20tin press-image-4188971943.jpg
Cnwxj is offline
Old 11-15-2013, 08:13 AM
  #14
Junior Member

Join Date: Sep 2013
Posts: 43
Model: Cherokee
Default

I like the wheels. I might consider putting them on mine now.
BriansCJ is offline
Old 11-15-2013, 01:10 PM
  #15
Senior Member
Thread Starter

Cnwxj's Avatar

Join Date: Jan 2011
Posts: 596
Model: Cherokee
Default

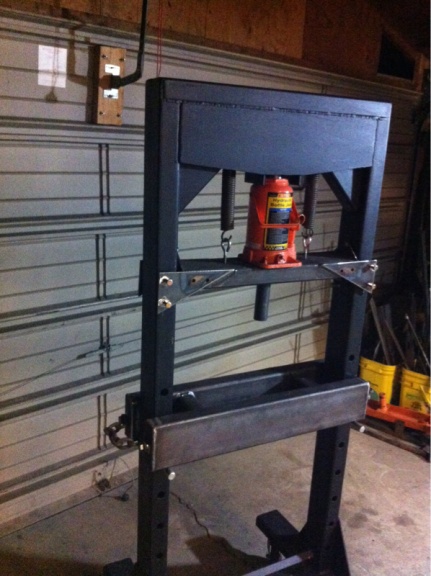

Rebuilding a hf 20tin press-image-3263125616.jpg



Rebuilding a hf 20tin press-image-875666992.jpg

Other than a coat of paint, I call it good! Made in China, made better in America.

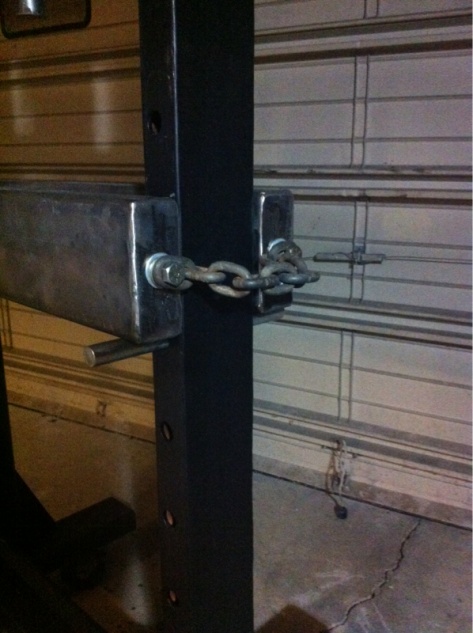

Attached Thumbnails Rebuilding a hf 20tin press-image-916512765.jpg
Cnwxj is offline
