Rear quarter pannel armor

Reply




Old 07-21-2018, 04:55 PM
  #1
Senior Member
Thread Starter

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 513
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default Rear quarter pannel armor

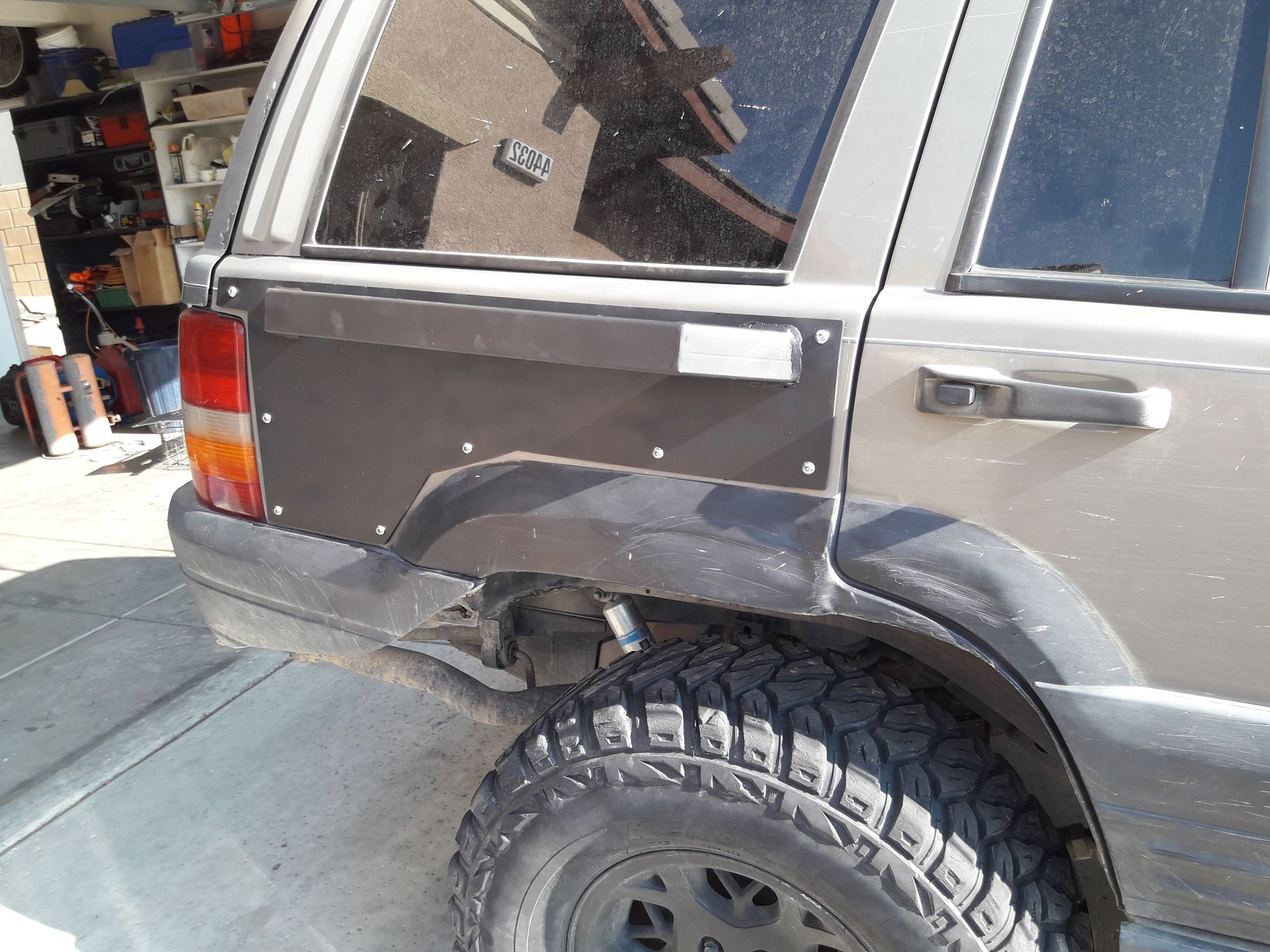

Hey everone, I decided to build rear quarter pannel armor with rub rails. I finished the panels and need to start making the rub rails. Some questions i have are (1) how far out from the body should i go with the rails? Initial thought is perhaps an inch beyond the distance the door handle sticks out. Q (2) - what angle should the rail end depart from the body? It needs to be angled enough to not catch anything but also permit a long enough strait run. Its a pretty short run to begin with.

I will post up my process when I am done so it will help other members who may decide to make a set. Like all projects, it would have been simpler and much, much quicker to buy a set but I wanted to try making it myself. Thanks!

Last edited by jon-d; 07-21-2018 at 04:56 PM. Reason: Photos added
jon-d is offline
Reply With Quote
Old 07-21-2018, 04:58 PM
  #2
Senior Member
Thread Starter

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 513
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

Another photo...
jon-d is offline
Reply With Quote
Old 08-06-2018, 11:48 PM
  #3
Senior Member
Thread Starter

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 513
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

Its done.



jon-d is offline
Reply With Quote
Old 08-10-2018, 04:36 PM
  #4
CF Veteran

DJKnightmare's Avatar

Join Date: Dec 2008
Location: Philadelphia, Pa
Posts: 1,193
Year: 1989
Model: Cherokee
Engine: 4.0 6cyl
Default

NICE!
DJKnightmare is offline
Reply With Quote
Old 08-10-2018, 06:00 PM
  #5
Junior Member

TheGeneralLee125's Avatar

Join Date: Jan 2018
Location: Western, Ohio
Posts: 37
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0 Liter Inline-6
Default

That's pretty cool never thought about that // Might consider this down the road
--------------------------------------------------------------------------------------------------------
  • 00' XJ Sport // Dana-35 // Inline-6 // 4WD // 4-door
TheGeneralLee125 is offline
Reply With Quote
Old 08-11-2018, 11:22 AM
  #6
Senior Member
Thread Starter

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 513
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

Thanks fellas! It was a tremendous amout of work. Showed it to a few of my club members and they are considering making a set for themselves. I will be testing it on the Rubicon trail this week. I am really looking forward to that trip!
jon-d is offline
Reply With Quote
Old 08-11-2018, 11:39 AM
  #7
Senior Member

Join Date: Dec 2017
Location: Calgary, AB
Posts: 568
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Looks good just a few things bug me.

For the rub rail dom tube would look better and I would have contoured the bottom better to fit the moulding better. Finally it should have been slightly angled on the front to match the door angle.

​​​​
firebane is offline
Reply With Quote
Old 08-13-2018, 03:09 PM
  #8
4XPLAY

vulcan96's Avatar

Join Date: Dec 2017
Location: 801
Posts: 124
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by firebane View Post
Looks good just a few things bug me.

For the rub rail dom tube would look better and I would have contoured the bottom better to fit the moulding better. Finally it should have been slightly angled on the front to match the door angle.

​​​​
Do You just comment to hear yourself talk.....? I dont recall the title saying look I made armor just like everyone else's in the whole world.

jon-d,
Looks great man, always glad to see people tackle a project on their own, and make it there own.
vulcan96 is offline
Reply With Quote
Old 08-13-2018, 04:54 PM
  #9
Senior Member

Join Date: Feb 2011
Location: orrville ohio
Posts: 760
Year: 1994
Model: Cherokee
Engine: 4.0
Default

love the square tube it would fit the look of my xj

Last edited by tinytrax78; 08-14-2018 at 08:06 AM. Reason: verbage
tinytrax78 is online now
Reply With Quote
Old 08-13-2018, 06:08 PM
  #10
Senior Member

Join Date: Dec 2017
Location: Calgary, AB
Posts: 568
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Originally Posted by tinytrax78 View Post
love the square tube it fits the look of a xj
Not a xj
firebane is offline
Reply With Quote
Old 08-13-2018, 06:10 PM
  #11
Senior Member

Join Date: Dec 2017
Location: Calgary, AB
Posts: 568
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Originally Posted by vulcan96 View Post
Do You just comment to hear yourself talk.....? I dont recall the title saying look I made armor just like everyone else's in the whole world.

jon-d,
Looks great man, always glad to see people tackle a project on their own, and make it there own.
Relax, feedback is always good and I even said it looks good.
firebane is offline
Reply With Quote
Old 08-18-2018, 09:57 PM
  #12
Senior Member
Thread Starter

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 513
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

Tackled the Rubicon last week it was a great trip. We had 6 jeeps in our group and camped at buck lake. Every wheeling trip i have done up to that point seemed easy in comparison. The ZJ was the least capable of the group but I had no real difficulties.

I am disappointed to say i never used my new armor. In fact i went out of my way to hit a tree with one on the way out just to make myself feel better about the effort I put into them. My front, however could have used some guards. Tire slipped off a rock and bashed the fender into a rock wall. Then, on the way out i hit two trees completing the job. So, any sugestions on what my next project should look like? I was thinking of removing the plastic bumper and welding up some round tube between the frame and winch plate to protect the corners.
jon-d is offline
Reply With Quote
