Portable Fire Ring

Reply




Old 08-18-2017, 07:08 PM
  #1
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 679
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default Portable Fire Ring

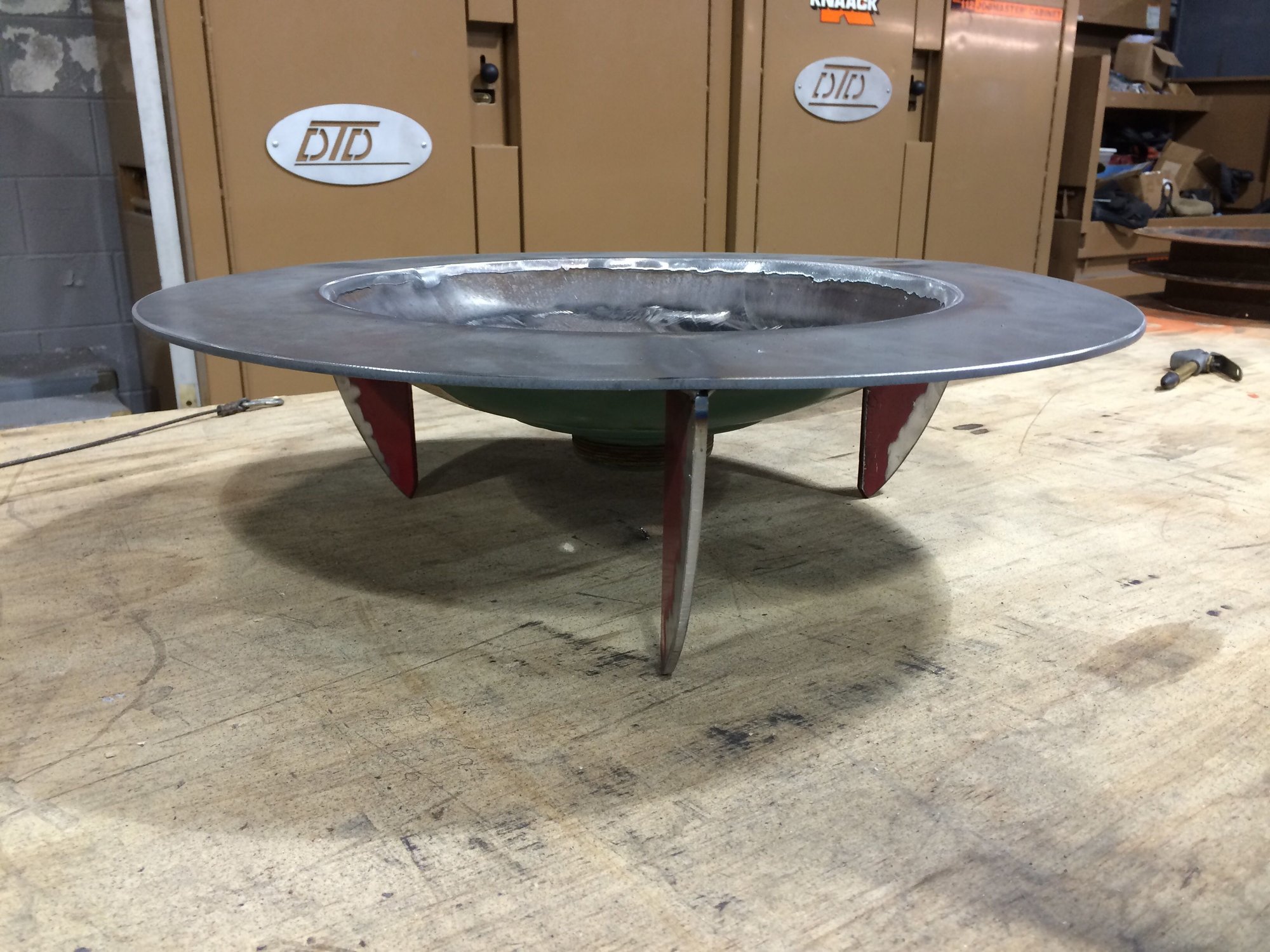

Made from scraps at my current job. Currently considering how to attach to my spare tire carrier:






ElMartillo is offline
Reply With Quote
Old 08-18-2017, 07:26 PM
  #2
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 679
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default In Use

ElMartillo is offline
Reply With Quote
Old 08-22-2017, 10:43 AM
  #3
CF Veteran

DJKnightmare's Avatar

Join Date: Dec 2008
Location: Philadelphia, Pa
Posts: 1,192
Year: 1989
Model: Cherokee
Engine: 4.0 6cyl
Default

The simplest thing I can think of would be to drill holes to match the bolt pattern of the Jeep, put extended studs in the tire carrier, and bolt then bolt the tire on using one set of lug nuts, and then bolting the fire ring onto the outside of the tire. This way you won't be unbolting the tire every time you want to set fire to something.
DJKnightmare is offline
Reply With Quote
Old 08-22-2017, 12:53 PM
  #4
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,440
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Originally Posted by DJKnightmare View Post
The simplest thing I can think of would be to drill holes to match the bolt pattern of the Jeep, put extended studs in the tire carrier, and bolt then bolt the tire on using one set of lug nuts, and then bolting the fire ring onto the outside of the tire. This way you won't be unbolting the tire every time you want to set fire to something.
Excellent idea.
roninofako is offline
Reply With Quote
Old 08-22-2017, 07:16 PM
  #5
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 679
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by DJKnightmare View Post
The simplest thing I can think of would be to drill holes to match the bolt pattern of the Jeep, put extended studs in the tire carrier, and bolt then bolt the tire on using one set of lug nuts, and then bolting the fire ring onto the outside of the tire. This way you won't be unbolting the tire every time you want to set fire to something.

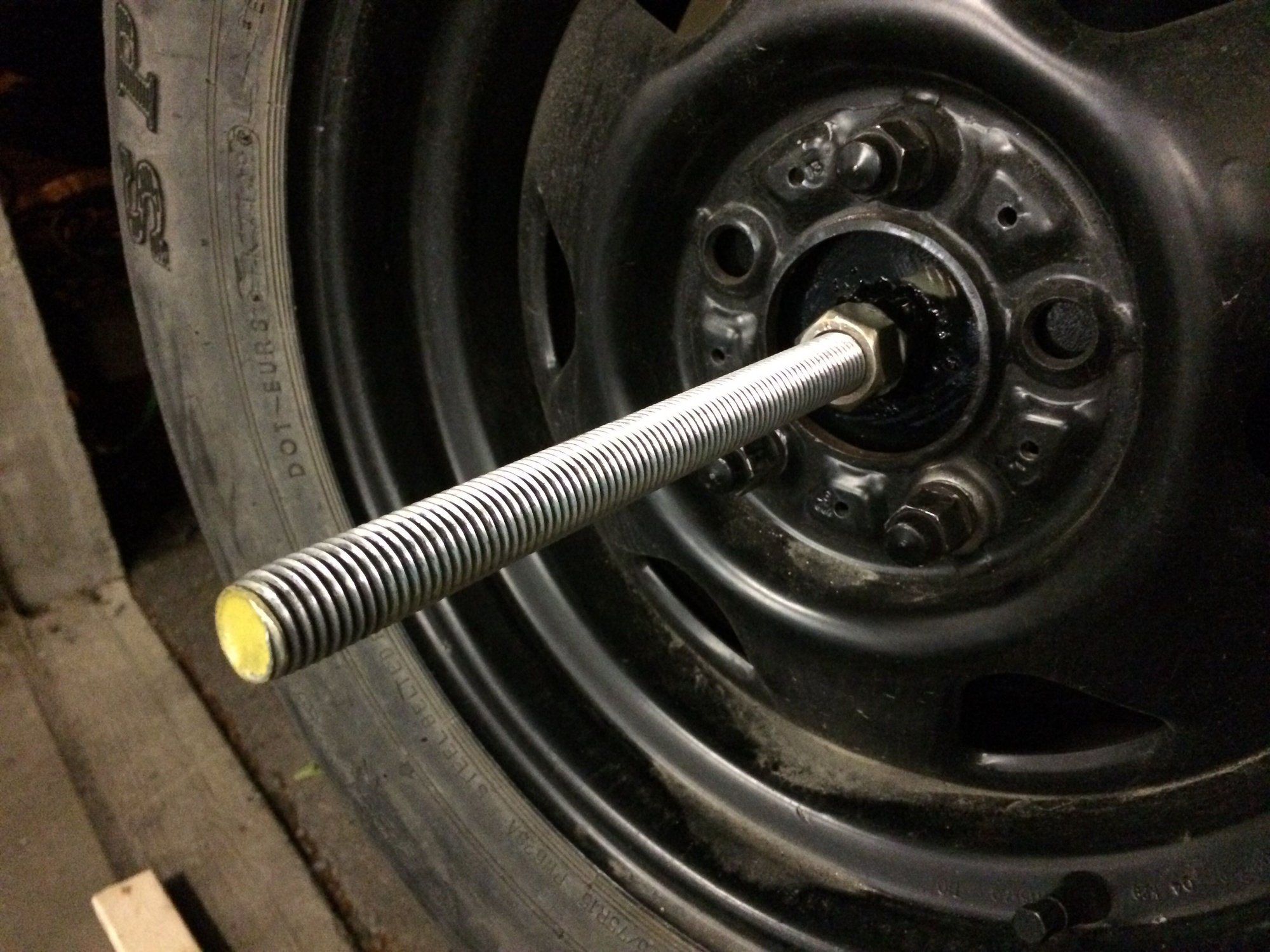

Great suggestion, but I came up with even simpler. I'll post photos in a few days.
ElMartillo is offline
Reply With Quote
Old 08-23-2017, 07:43 PM
  #6
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 679
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default





ElMartillo is offline
Reply With Quote
Old 08-23-2017, 08:07 PM
  #7
CF Veteran

Martlor13's Avatar

Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,408
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Just a question. Do you frequently need a fire ring? I love what you did, it's awesome. But I've never needed one haha....theres usually one or we just make one with a shovel haha. Just curious man
Martlor13 is offline
Reply With Quote
Old 08-23-2017, 08:29 PM
  #8
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,440
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Originally Posted by ElMartillo View Post




That is exactly what I was thinking, since you already had the hole in the bottom. Great job.

Originally Posted by Martlor13 View Post
Just a question. Do you frequently need a fire ring? I love what you did, it's awesome. But I've never needed one haha....theres usually one or we just make one with a shovel haha. Just curious man
This kinda depends on where you go. Sometimes you can't build a fire pit due to local restrictions. Trust me, only place out here is in the middle of the wide open desert, haha...but, it could also come in handy at places like parks, the beach, etc...
roninofako is offline
Reply With Quote
Old 08-23-2017, 08:31 PM
  #9
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,440
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

One more thing...if you want that paint to hold up, go get that thing blasted and ceramic coated...probably won't cost that much...maybe $40-60
roninofako is offline
Reply With Quote
Old 08-23-2017, 08:49 PM
  #10
Senior Member
Thread Starter

ElMartillo's Avatar

Join Date: Dec 2015
Location: Nationwide, USA
Posts: 679
Year: 89
Model: Cherokee
Engine: Renix 4.0
Default

Originally Posted by Martlor13 View Post
Just a question. Do you frequently need a fire ring? I love what you did, it's awesome. But I've never needed one haha....theres usually one or we just make one with a shovel haha. Just curious man
Originally Posted by roninofako View Post
This kinda depends on where you go. Sometimes you can't build a fire pit due to local restrictions. Trust me, only place out here is in the middle of the wide open desert, haha...but, it could also come in handy at places like parks, the beach, etc...
I prefer a "leave no trace" approach to camping, and there are areas of the country, i.e. the southwestern deserts where it's required to burn in a metal fire ring. Besides, pulling this off the back of my rig is easier than digging a hole or gathering rocks.

Originally Posted by roninofako View Post
That is exactly what I was thinking, since you already had the hole in the bottom. Great job.
Thanks for the compliments, gents.

Originally Posted by roninofako View Post
One more thing...if you want that paint to hold up, go get that thing blasted and ceramic coated...probably won't cost that much...maybe $40-60
Hadn't thought of that. I'll look into it. Thanks!
ElMartillo is offline
Reply With Quote
Old 08-23-2017, 10:04 PM
  #11
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,430
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Excellent execution. I like it.
bad_idea is offline
Reply With Quote
Old 08-23-2017, 11:24 PM
  #12
CF Veteran

Martlor13's Avatar

Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,408
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ElMartillo View Post
I prefer a "leave no trace" approach to camping, and there are areas of the country, i.e. the southwestern deserts where it's required to burn in a metal fire ring. Besides, pulling this off the back of my rig is easier than digging a hole or gathering rocks.
Ok. Was just curious. I can see lots of uses for it, just wanted to know yours haha. I live in New Mexico and there are lots of desert areas. But most of the time I'm up in the mountains. We don't make large fires per se, but they wouldn't fit in your ring. But really man I dig your creation haha. Any concern of it being stolen?

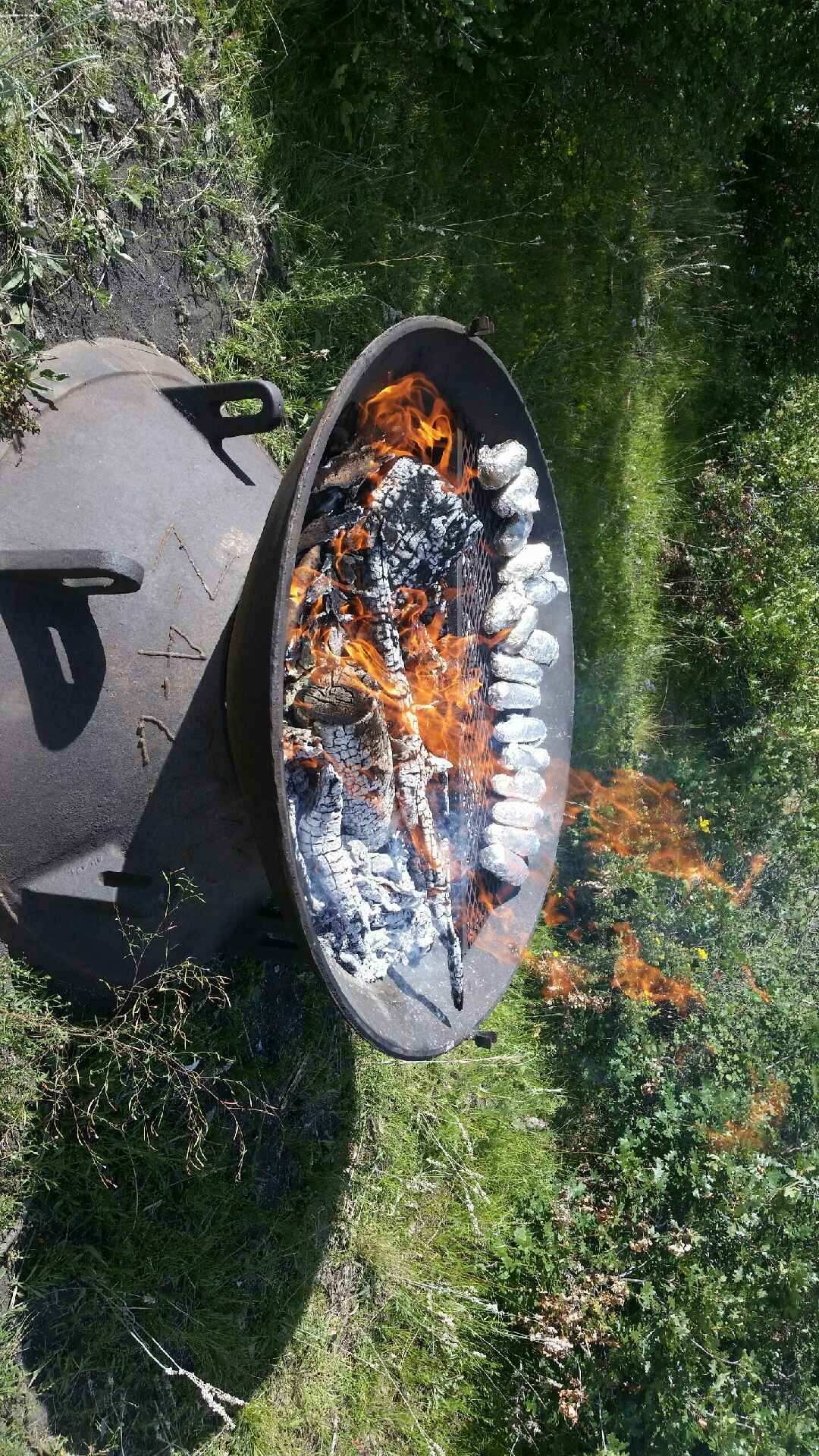

we own property up on the mountain. My pops found these huge discs in someone's yard one day as he was passing by. Stopped and bought them. Then this fire pit was created lol. It has the grill, thing for a rotisserie, and in the center there is an "oven" that goes down into the 2nd disc and cooks with coals. Sadly, it's not portable...pretty dang heavy. Took a backhoe to set the pieces haha

not sure if you can tell by the pic but it's 4 feet across.
Martlor13 is offline
Reply With Quote
Old 08-28-2017, 05:36 PM
  #13
CF Veteran

DJKnightmare's Avatar

Join Date: Dec 2008
Location: Philadelphia, Pa
Posts: 1,192
Year: 1989
Model: Cherokee
Engine: 4.0 6cyl
Default

Maybe paint the bottom Blaze Orange so that no one rear ends you.

(Drivers around here suck so bad, that I nearly painted the back of my rig orange with yellow stripes)
DJKnightmare is offline
Reply With Quote
Old 09-12-2017, 04:22 PM
  #14
Member

Join Date: Feb 2017
Location: Pampa, Texas
Posts: 170
Year: 1986
Model: Cherokee
Engine: 2.5 liter
Default

Looks like if you had a double-carden shaft and an off-set gear box you could make a deep water propulsion unit. Just kidding man.

Looks like a really good idea.

Happy Jeepin"
texastaz38 is offline
Reply With Quote
Old 11-28-2017, 09:35 PM
  #15
Seasoned Member

StuckBuck's Avatar

Join Date: Mar 2015
Location: Oregon
Posts: 453
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by texastaz38 View Post
Looks like if you had a double-carden shaft and an off-set gear box you could make a deep water propulsion unit. Just kidding man.

Looks like a really good idea.

Happy Jeepin"
Heeeyyyy... you might be onto somethin there. Build a rear diff cover that houses a new pinion gear, bearing, and seal. With some sort of quick connect yoke for a prop..... Amphibious jeep! lol
StuckBuck is offline
