OBA Bracket

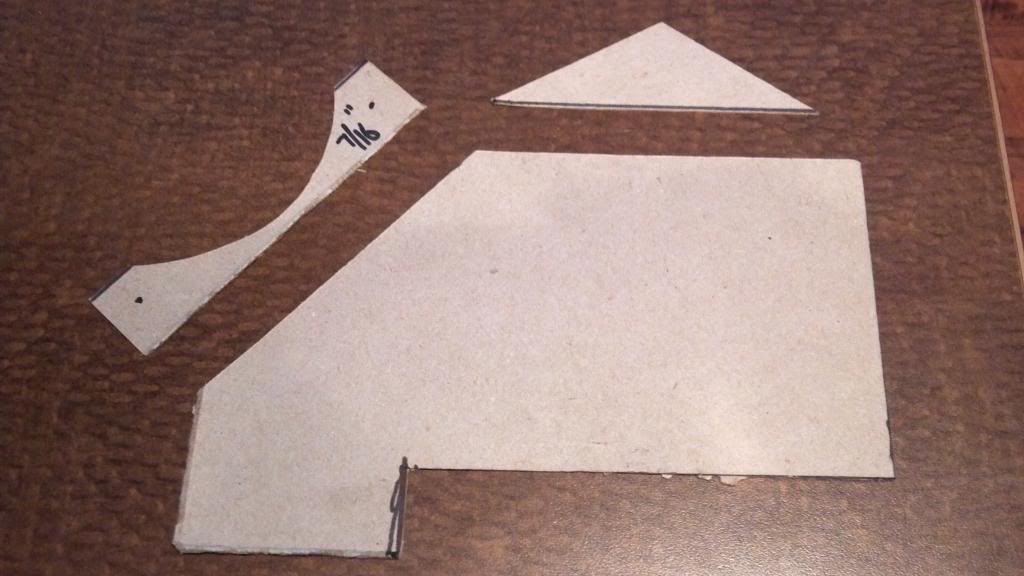

Nothing too fancy, just a shelf bracket to drop a second Sanden compressor on the driver-side for OBA:
Belt alignment looks off in that picture, not sure why? Cell phone camera... Regardless, now I just need to get my air fittings and I'll be good to go!
Belt alignment looks off in that picture, not sure why? Cell phone camera... Regardless, now I just need to get my air fittings and I'll be good to go!
#2
CF Veteran
Join Date: Aug 2010
Location: Greensboro
Posts: 1,220
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L
Great idea. I really like that. I've thought about putting my second battery where the air box was but this makes me want to do what you've done haha
#4
Senior Member
Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 5 Likes
on
5 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
From a structural stand point I would recommend running a brace back (toward the rear of the vehicle) somewhere on the block so that you have a more solid mount. Right now you have two pointing points that are more or less vertical (I know the lower is slightly farther back) and don't offer much support for/aft. The best mounting will have a triangulated attachment. Looks good other than that, I like the idea. I would like to do something similar with a York compressor I have in the garage but have to figure out what to do with the air filter.
