SWC custom

i wanna build some lift shackles for my beater trail rig to get a quick 2'' lift.. i need the dimensions and pics of them please.. i need the width of the arms and the length of eye to eye and where they are bent.. thanks guys!!!

xjoffroad

how about contacting a shackle manufacturer. bet they will give you the dimensions over the phone...........

SWC custom

never thought of that and im not sure lol.. i was just wondering if someone had a set they could snap a few pics of and write down the dimensions real quick

My375hp302

Or, you could just do this...

https://www.cherokeeforum.com/f2/hom...s-sorta-43324/

posjeepxj

or go to your parts store and buy some chevy drop shackles

SWC custom

i forgot all about that thread but thats what we eneded up doing!!!!

JerseyJeeper

What year and model??

MAN00XJ

I'd like to know as well, although im assuming S10 since thats the vehicle used for the "bastard" pack.

xjmarc

Full size Chevy drop shackles. They sell them with the lift blocks and such. Not sure of the year but you will get 2.5-3" out of them. I think I paid about $30 for mine.

v8eater

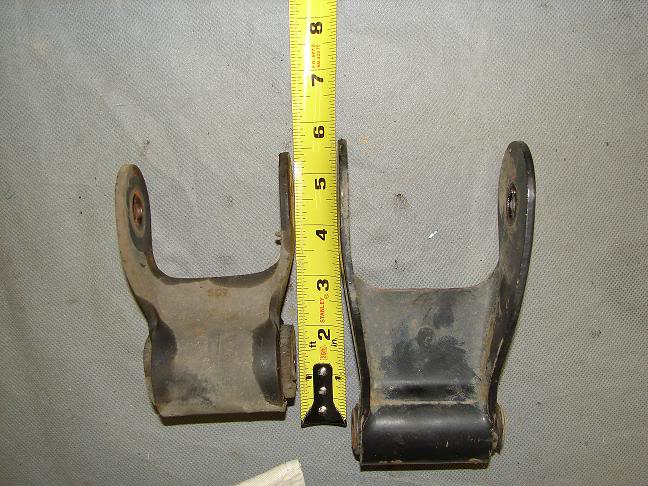

F150 shackles from a Junkyard will get you a little over a inch but you will have to grind a little of the F150 steel bushing to get it into the shackle location on the XJ.

JerseyJeeper

Any year full size Chevy pickup???

BLKXJ 96

Ram truck shackles are 2" longer as well and only slightly wider.

nick_n_ii

Dakota shackles look to be 3/4" to 1" I'll know this weekend installing a set on a buddy's XJ

xjmarc

Doesn't specify a year on the box, just lowering shackles for 1500 series trucks. Go to AutoZone, Advance etc and ask for them.

JerseyJeeper

Went to advance auto parts and they didn't carry them so I'll check Auto Zone later on to see if they carry them.
