The Homebrew Jeep Mod Thread

Old 03-28-2012, 10:12 PM
  #16
Junior Member

smoothlandin's Avatar

Join Date: Apr 2011
Location: Niantic, CT
Posts: 86
Year: 94
Model: Cherokee
Engine: 4.0
Default

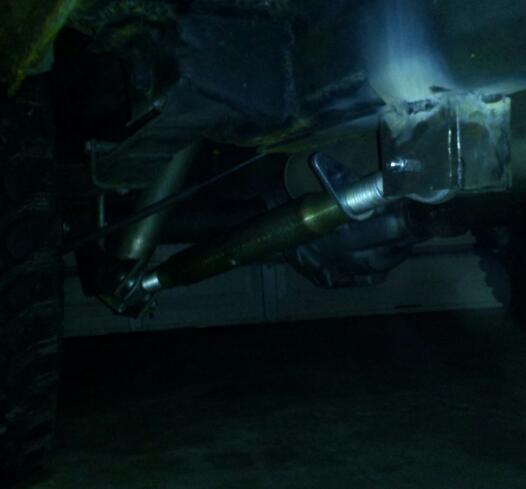

Here is my traction device...works excellent. The frame end is welded, and I fabbed a bracket to bolt to my shock mount. Actually, I replaced the shock stud with a 9/16 grade 8 bolt, and the rest of the hardware is 3/4". It doesn't interfere with rear suspension movement, at least not with my setup.

Name:  2011-12-09 20.51.01-2.jpg
Views: 9453
Size:  17.0 KB
smoothlandin is offline
Old 03-29-2012, 09:49 AM
  #17
Senior Member

DIRTDOGXJ's Avatar

Join Date: May 2011
Location: Metro Detroit
Posts: 590
Year: 1993
Model: Cherokee
Engine: 4.7 Hesco stroker
Default

Originally Posted by smoothlandin View Post
Here is my traction device...works excellent. The frame end is welded, and I fabbed a bracket to bolt to my shock mount. Actually, I replaced the shock stud with a 9/16 grade 8 bolt, and the rest of the hardware is 3/4". It doesn't interfere with rear suspension movement, at least not with my setup.

Attachment 105511
More pictures and explanation of this please....Is that from Tractor Supply?
DIRTDOGXJ is offline
Old 03-29-2012, 10:09 AM
  #18
Member

DualPurposeXJ's Avatar

Join Date: Dec 2011
Location: Menifee, CA
Posts: 149
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by DIRTDOGXJ View Post
More pictures and explanation of this please....Is that from Tractor Supply?
It helps prevent axle wrap. It does look like a tractor link
DualPurposeXJ is offline
Old 03-29-2012, 10:50 AM
  #19
Junior Member

mygreenxj's Avatar

Join Date: Feb 2012
Location: zebulon, nc.
Posts: 72
Year: 1995
Model: Cherokee
Engine: 4.0 h.o
Default

Originally Posted by smoothlandin View Post
Here is my traction device...works excellent. The frame end is welded, and I fabbed a bracket to bolt to my shock mount. Actually, I replaced the shock stud with a 9/16 grade 8 bolt, and the rest of the hardware is 3/4". It doesn't interfere with rear suspension movement, at least not with my setup.

Attachment 105511
is that for like an adjustable short arm 4 link design? if so its cool. how well does it work ?cost, and where do you get it from . any demensions . how far forward from axle?
mygreenxj is offline
Old 03-29-2012, 11:10 AM
  #20
Senior Member

Search and destroy's Avatar

Join Date: Nov 2011
Posts: 589
Model: Cherokee
Default

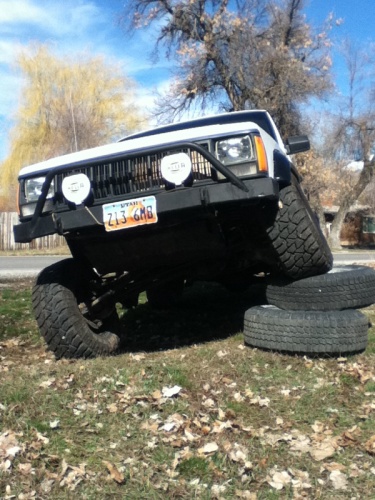

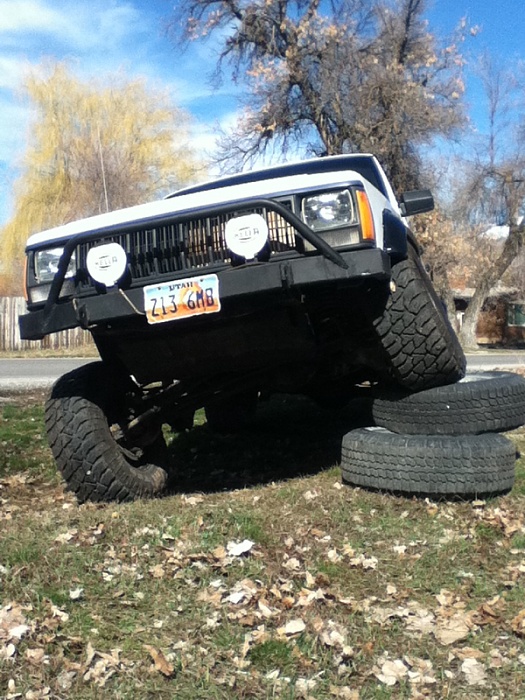

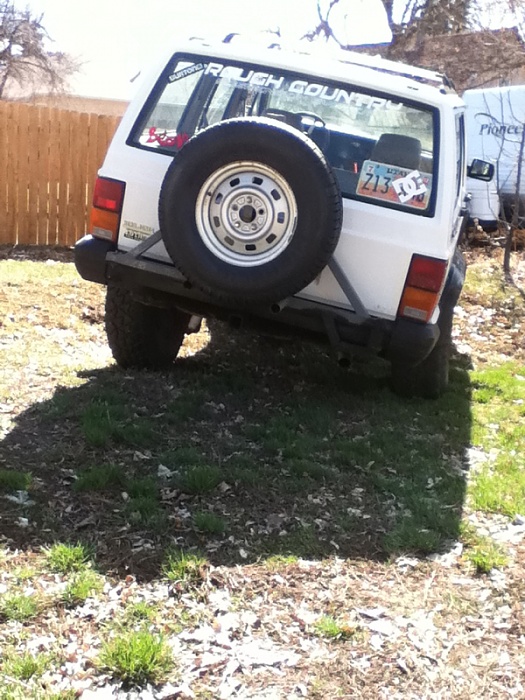

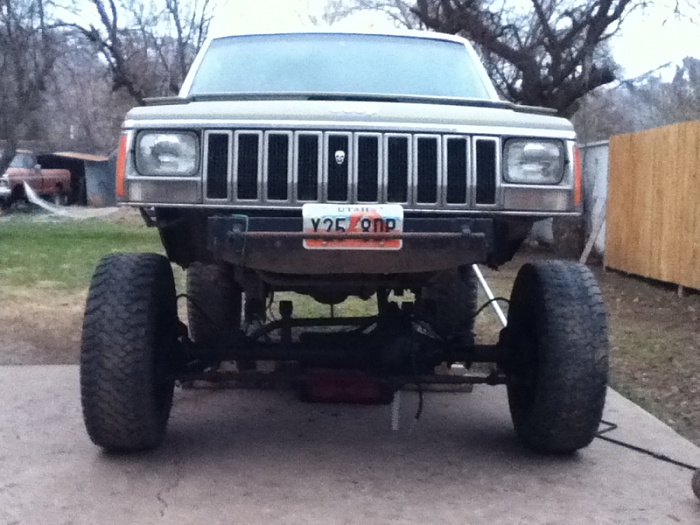

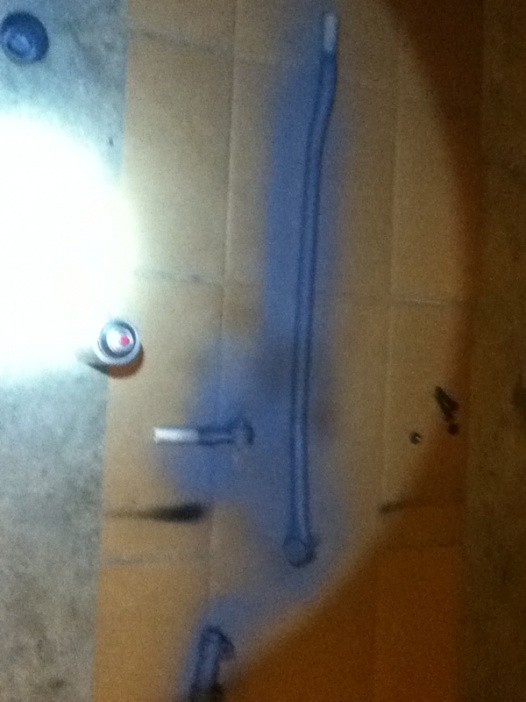

Pretty sure this counts bumpers, tie rod, and full size swap on my dads jeep.
Attached Thumbnails The Homebrew Jeep Mod Thread-image-905353059.jpg   The Homebrew Jeep Mod Thread-image-3830028847.jpg   The Homebrew Jeep Mod Thread-image-2910621950.jpg   The Homebrew Jeep Mod Thread-image-1998494325.jpg
Search and destroy is offline
Old 03-29-2012, 11:10 AM
  #21
Junior Member

smoothlandin's Avatar

Join Date: Apr 2011
Location: Niantic, CT
Posts: 86
Year: 94
Model: Cherokee
Engine: 4.0
Default

It's a 3 point hitch part from tractor supply, and the brackets are 1/4 " plate I had laying around. I will explain it better after work.
smoothlandin is offline
Old 03-30-2012, 10:59 PM
  #22
Senior Member

cherokee_ftw_5's Avatar

Join Date: Sep 2010
Location: West Fargo, ND
Posts: 607
Year: 1988
Model: Cherokee
Engine: 4.0l renix
Default

N20jeep's high clearence transmount, INSANE!! So jealous.
cherokee_ftw_5 is offline
Old 03-31-2012, 10:46 PM
  #23
Member

Red Sled 01's Avatar

Join Date: Feb 2011
Location: Indianapolis, IN
Posts: 158
Year: 2001
Model: Cherokee
Engine: 4.0
Default

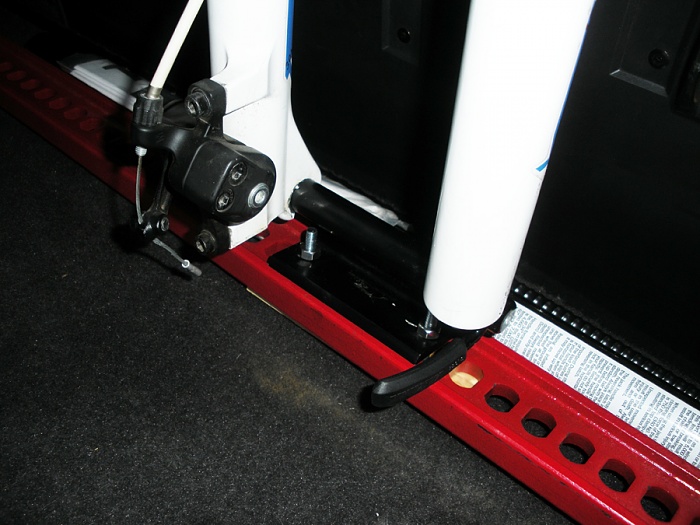

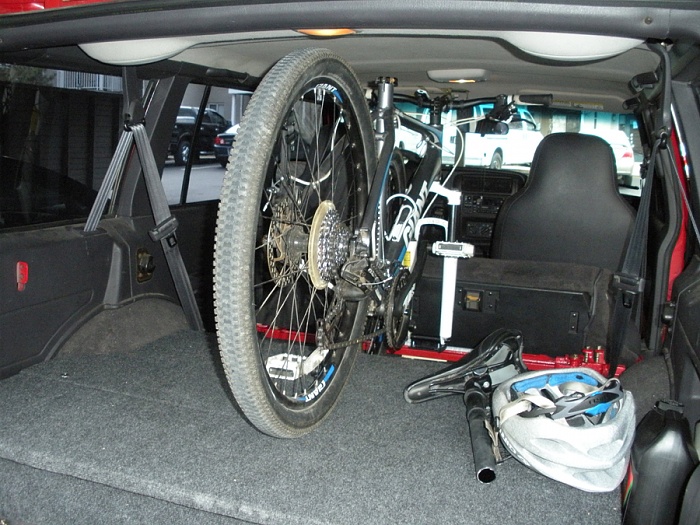

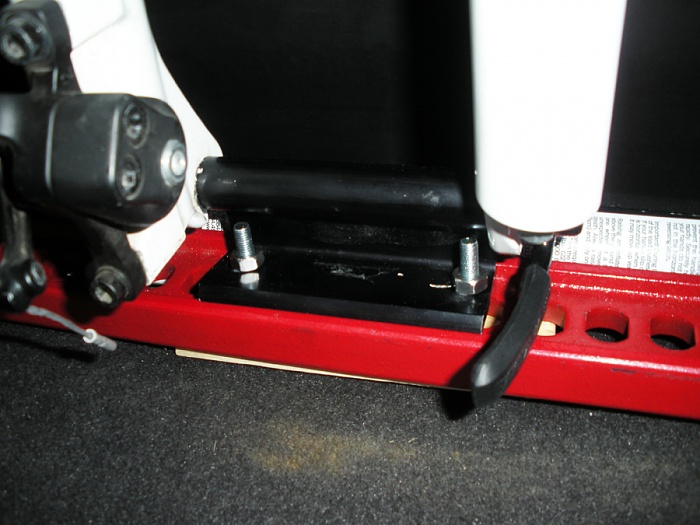

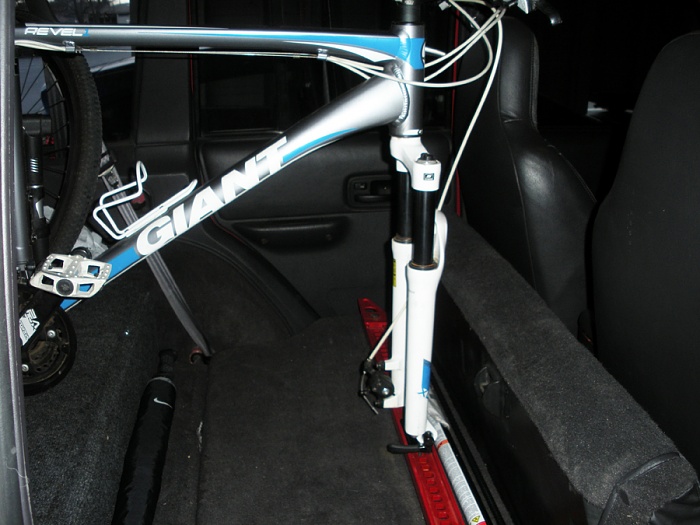

I made secondary use of my high jack lift laying behind my driver's seat. I bought a front fork bike mount from Dick's Sporting Goods for $25. Ran bolts through two of the many holes provided on the high jack lift, securing the fork mount, and allowing the lift to act as a giant foot/stabilizer once the bike was attached. Now I can transport my bike inside my vehicle, keeping it free from rain and other inclement weather when not in use. Keeps it perfectly upright and doesn't bounce around at all. I'm very pleased with the simplicity and efficiency of it.
Attached Thumbnails The Homebrew Jeep Mod Thread-pic_8.jpg   The Homebrew Jeep Mod Thread-pic_9.jpg   The Homebrew Jeep Mod Thread-pic_7.jpg   The Homebrew Jeep Mod Thread-pic_6.jpg
Red Sled 01 is offline
Old 03-31-2012, 10:50 PM
  #24
Senior Member

martyinco's Avatar

Join Date: Jan 2011
Location: Thornton, CO
Posts: 859
Year: 1998
Model: Cherokee
Engine: 4.0
Default

That's brilliant! I'm gonna steal that for my bike!
martyinco is offline
Old 03-31-2012, 11:05 PM
  #25
Member

Red Sled 01's Avatar

Join Date: Feb 2011
Location: Indianapolis, IN
Posts: 158
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by martyinco View Post
That's brilliant! I'm gonna steal that for my bike!
PLEASE DO!!!
Red Sled 01 is offline
Old 04-01-2012, 02:32 AM
  #26
CF Veteran

F1Addict's Avatar

Join Date: Nov 2011
Location: SoCal
Posts: 2,373
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by martyinco View Post
That's brilliant!...
X2
F1Addict is offline
Old 04-01-2012, 03:21 AM
  #27
Senior Member

Gary Briggs's Avatar

Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Year: 1996
Model: Cherokee
Engine: 4litre
Default

Best solution I could come up with to the cup holder problem, looks the cleanest to. I made a "cup" out of some 3" SS tubing and inlayed it near the ebrake! Can only put it on that side due to the ducting on the other side.

Name:  cup1.jpg
Views: 1535
Size:  34.7 KB

Name:  cup3.jpg
Views: 1535
Size:  50.5 KB

Name:  cup4.jpg
Views: 1496
Size:  37.4 KB
Gary Briggs is offline
Old 04-01-2012, 12:15 PM
  #28
Seasoned Member

JeepSpeed18's Avatar

Join Date: Jul 2009
Posts: 271
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Default

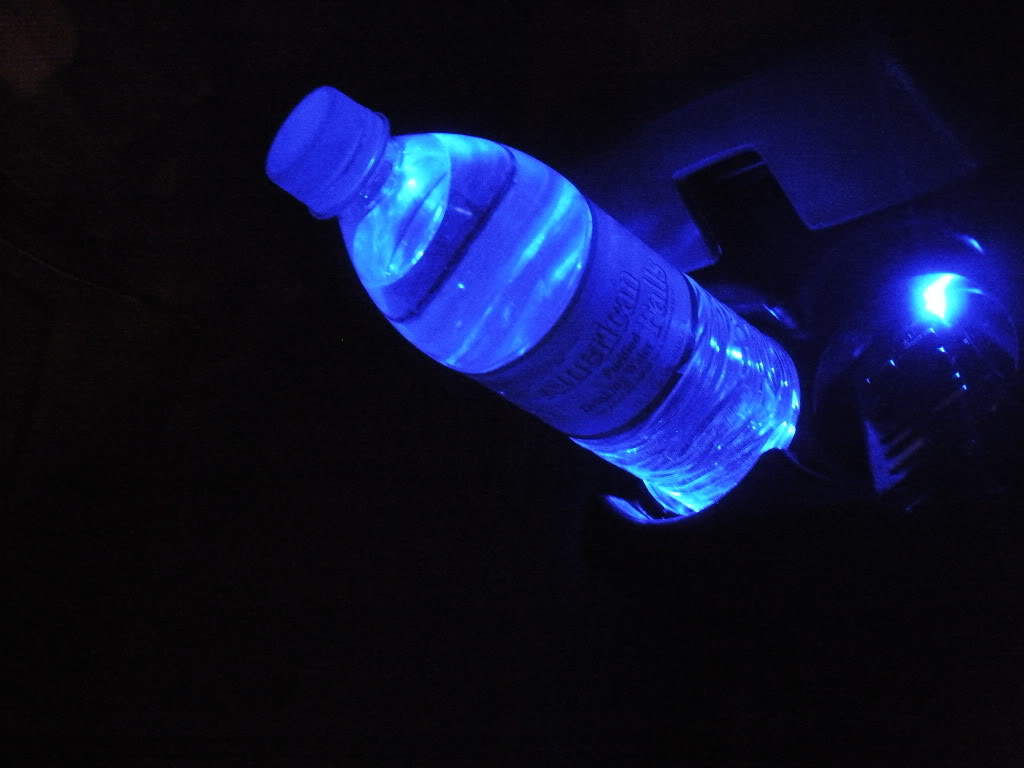

Cup holder with custom LED's

Name:  DSCN4085.jpg
Views: 1489
Size:  91.1 KB

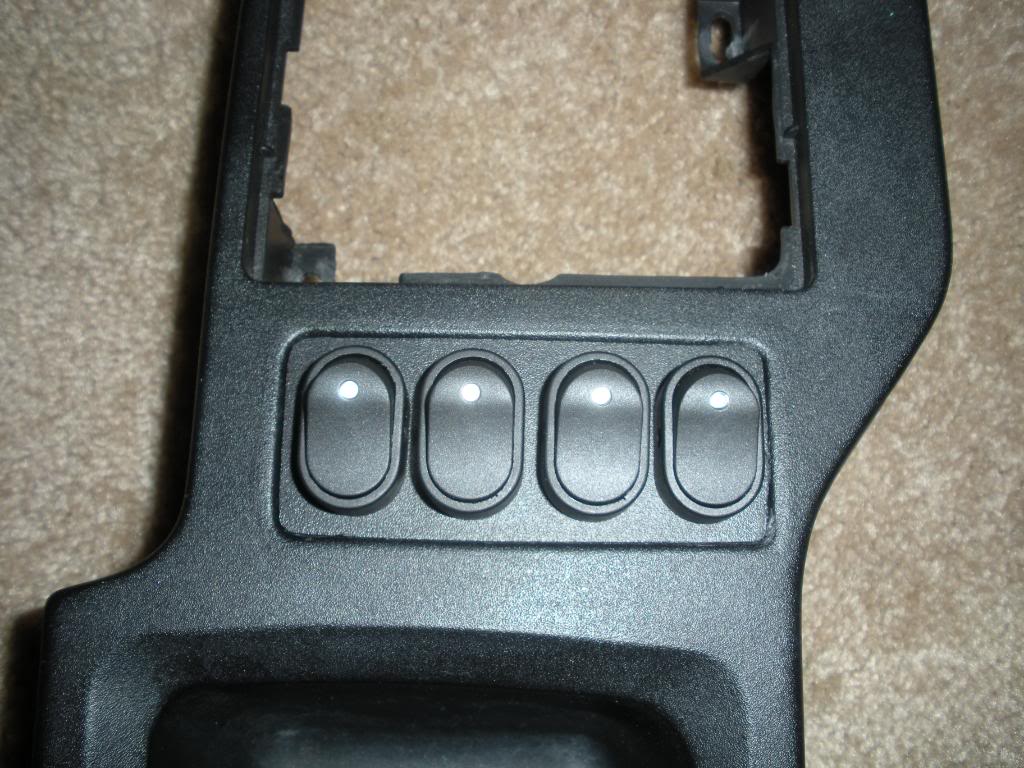

Cutome made switch panel

Name:  DSCN4003.jpg
Views: 1501
Size:  136.1 KB
Name:  DSCN4073.jpg
Views: 1668
Size:  107.4 KB
JeepSpeed18 is offline
Old 04-01-2012, 08:44 PM
  #29
Junior Member

Join Date: Dec 2011
Location: ontario Canada
Posts: 48
Year: 1993
Model: Cherokee
Engine: 4.0L

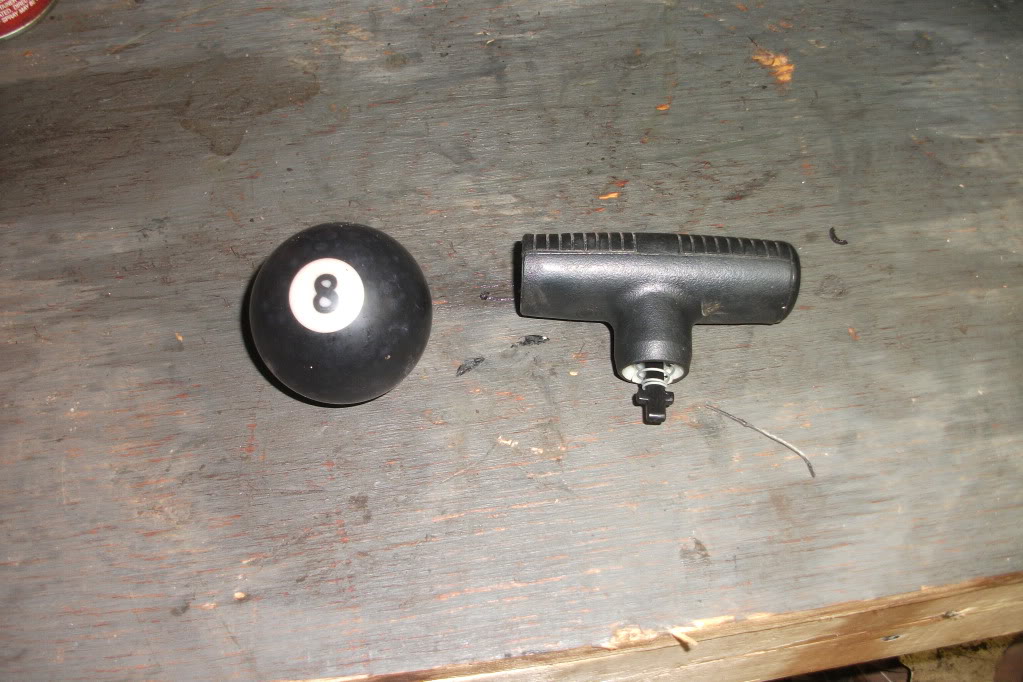

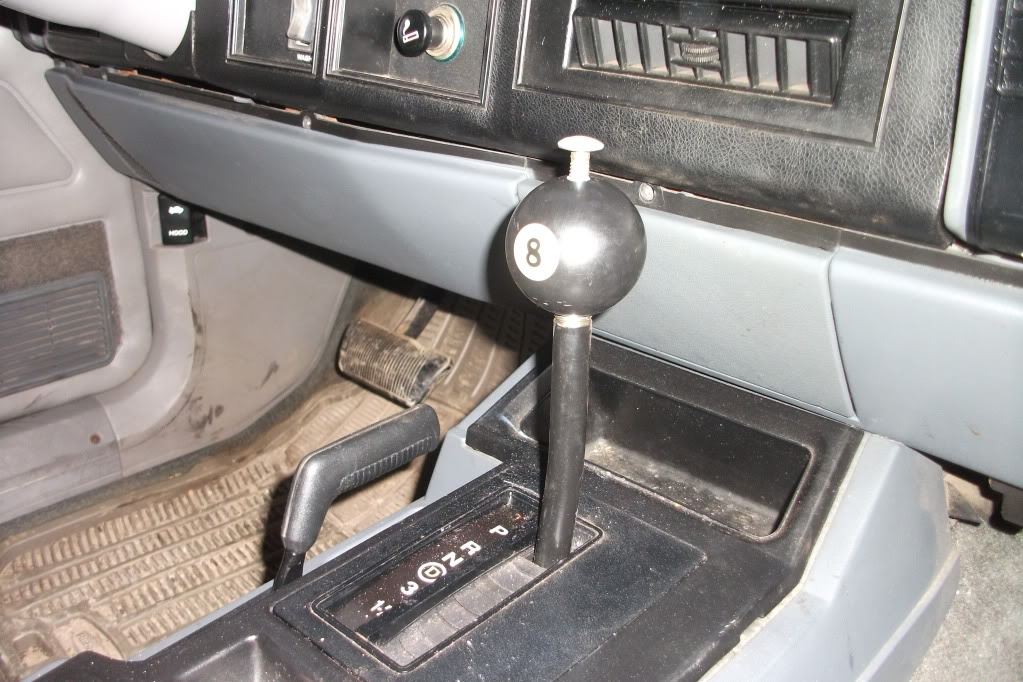

Default Real 8 ball shift ****.

i still have to finish making a better button for it.
Name:  2011086.jpg
Views: 1493
Size:  128.4 KB

Name:  2011091.jpg
Views: 1488
Size:  146.1 KB
mynameismud is offline
Old 04-02-2012, 07:23 AM
  #30
Seasoned Member

BODCherokee's Avatar

Join Date: Dec 2011
Location: Springfield, MA
Posts: 372
Year: 1993
Model: Cherokee
Engine: 4.0
Default

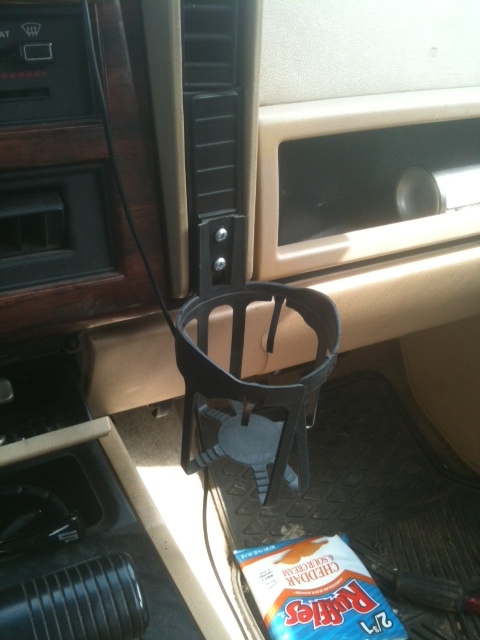

i was going to try the console cupholder idea but i didnt want to have to buy a new hole saw because i didnt have the right size for the pvc i bought. I had like 3 of these cupholders lying around, they come with a hook on top so you can hook it on the window when out wheeling. i cut the top part off and ta-da! Also this weekend i folded in all the edges inside my front wheel wells and painted them. Came out very nice.
Attached Thumbnails The Homebrew Jeep Mod Thread-cupholder.jpg   The Homebrew Jeep Mod Thread-wheelwellfolding.jpg
BODCherokee is offline
