Heavy duty rear bumper

Old 08-04-2014, 08:55 PM
  #1
Junior Member
Thread Starter

87xjDave's Avatar

Join Date: Sep 2010
Location: San Antonio, TX
Posts: 87
Year: 87
Model: Cherokee
Engine: 4.0
Default Heavy duty rear bumper

Built heavy duty rear bumper out of 1/4" thick 4" square tube, with 3/16" thick 2"x3" rectangle tube stock inserted into unibody frame rails, which I had to cut out with a grinder and saw to insert the bumper mounts.

Heavy duty rear bumper-prep_body.jpg
Bolted with 5 grade eight bolts on each side. Weighs 75 lbs.
Heavy duty rear bumper-bolt-points.jpg
Heavy duty rear bumper-4x4and2x3.jpg
Heavy duty rear bumper-primer1.jpg

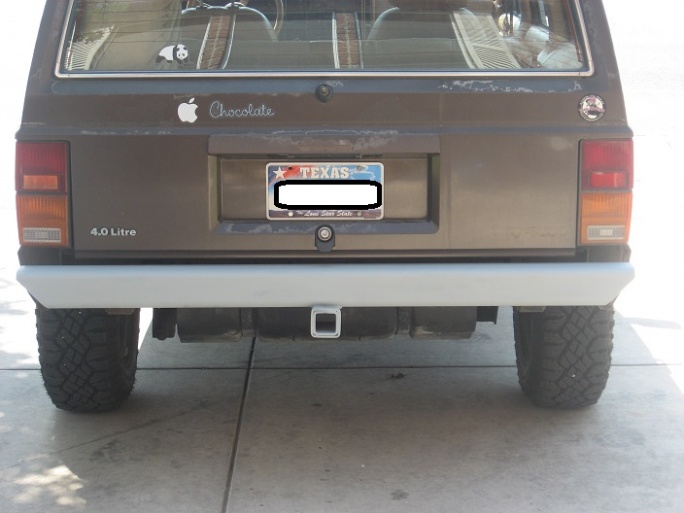

Welded the complete bumper with a MIG welder and here it is primed and bolted on.
Heavy duty rear bumper-primered.jpg
87xjDave is offline
Old 08-04-2014, 09:45 PM
  #2
Junior Member

dirtydolladanny's Avatar

Join Date: Oct 2013
Location: Flowery Branch, Georgia
Posts: 32
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Love the simplicity. What about putting some tabs for D rings?
dirtydolladanny is offline
Old 08-05-2014, 07:44 AM
  #3
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Ya should of cut a hole in the center and slid the hitch inside for better clearance and more weld area. Good job though.
HS00XJ is offline
