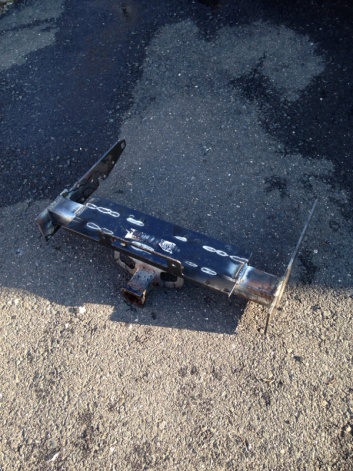

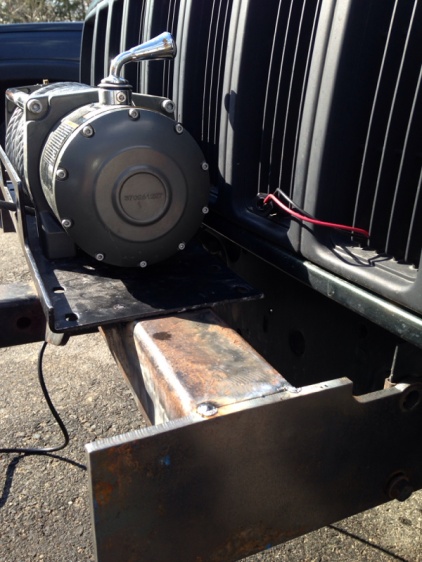

Hello everyone. I started work on my front receiver and winch mount. I got the frame tie in brackets from nates 4x4. The receiver came from my dad's truck because the insurance company paid for a new one after a fender bender (even though it was fine). The winch plate came from harbor freight. Total cost so far: $90. It's still a work in progress. I plan on adding d ring tabs and also light tabs. I will also add "wings" on the sides to protect the corners of the jeep. Let me know what you think.



Front reciever and winch mount-image-1802525152.jpg



Front reciever and winch mount-image-2238831555.jpg



Front reciever and winch mount-image-444427767.jpg



Front reciever and winch mount-image-2621507213.jpg



Click image for larger version

Name:	image-2238831555.jpg
Views:	175
Size:	97.4 KB
ID:	236223


Front reciever and winch mount-image-597637534.jpg

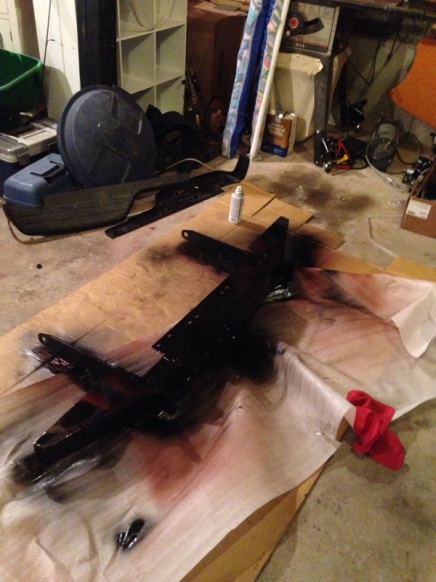

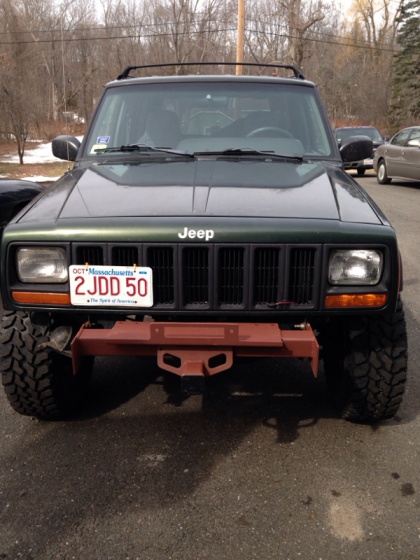

I just threw a quick coat of primer on to keep it from rusting until next weekend.

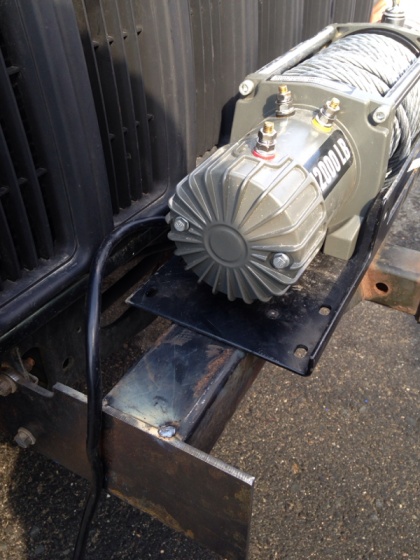

Attached Thumbnails Front reciever and winch mount-image-3917369169.jpg
I ARE EL1TE is offline
Old 03-23-2014, 09:22 PM
  #2
Junior Member

wickedwelder's Avatar

Join Date: Nov 2010
Location: Casper Wyoming
Posts: 91
Year: 1989
Model: Cherokee
Engine: 4.0
Default

I like the way that's coming out. Good idea using the receiver. Does the winch plate from HF seem stout enough? I think I'm going to use the receiver idea when I build my bumper. Can't wait to see the finished product.
wickedwelder is offline
Old 03-24-2014, 09:15 AM
  #3
Member

Join Date: May 2013
Location: Martinsburg, IL
Posts: 156
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Looks great! I put a receiver in mine as well, I think it will be invaluable later on.
OneArmRedneck is offline
Old 03-24-2014, 10:16 AM
  #4
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

Thanks guys. The winch plate is only 1/8" steel but there is over 4 feet off weld holding it to the receiver and I'm considering adding some 1/4" plate as gussets as well. It's not going anywhere.

Last edited by I ARE EL1TE; 03-24-2014 at 10:19 AM.
I ARE EL1TE is offline
Old 03-24-2014, 10:34 AM
  #5
CF Veteran

no rdplz's Avatar

Join Date: Jan 2010
Location: Virginia Beach by way of Michigan
Posts: 5,482
Default

Looking good! Definitely add some front and rear gussets to the winch plate. Not hard at all to do. Look forward to seeing how this turns out.
no rdplz is offline
Old 03-30-2014, 07:12 PM
  #6
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

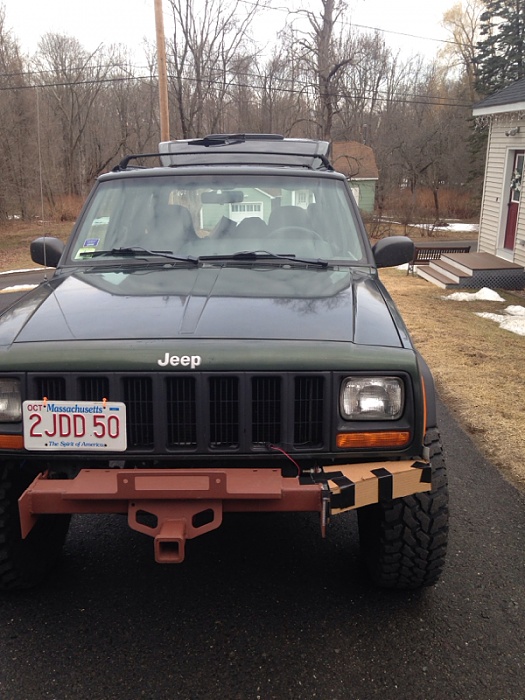

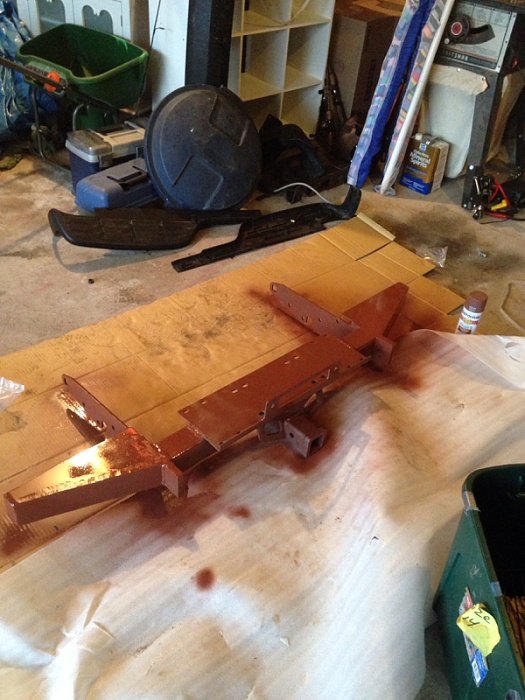

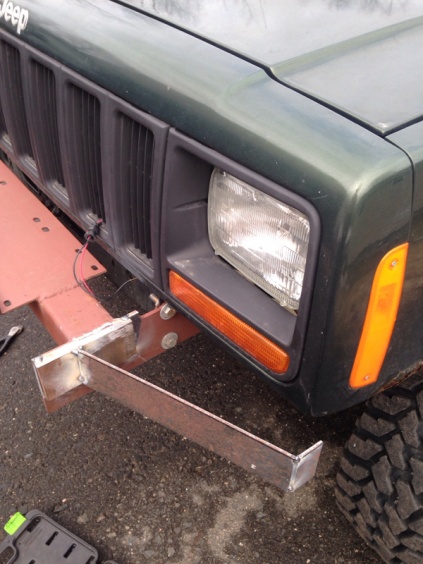

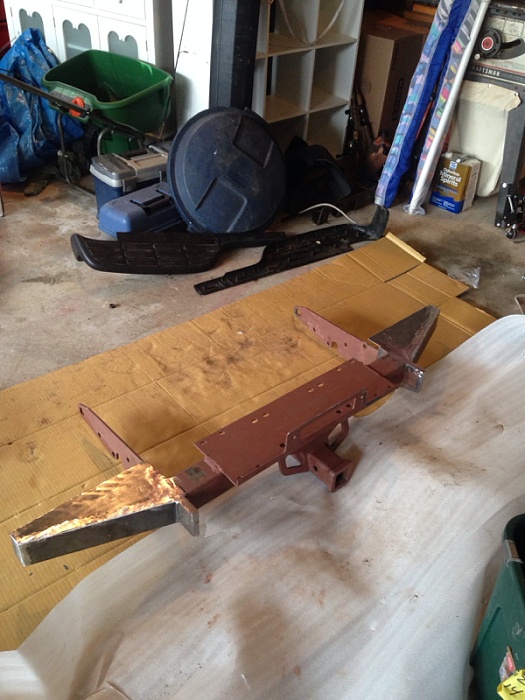

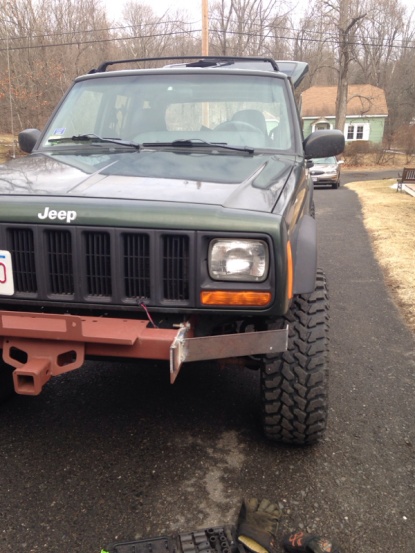

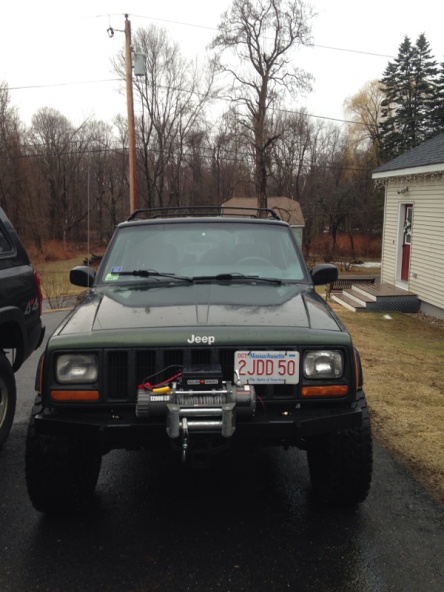

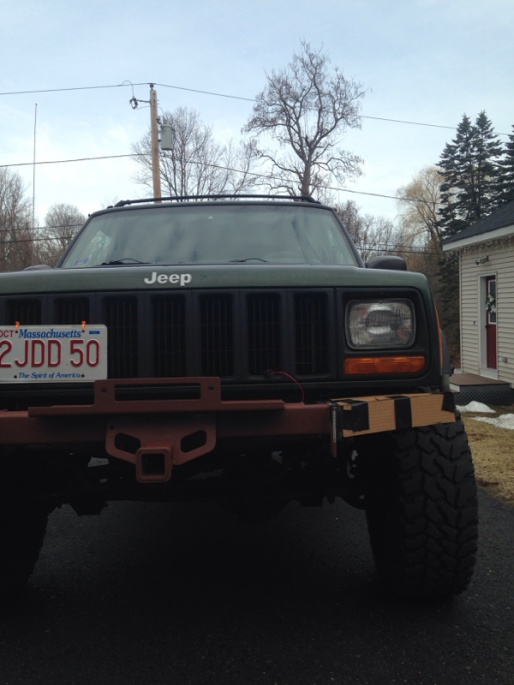

Hey everyone. I finished the winch mount today. I pretty turned it into a bumper. I am pretty happy with the way it turned out. I have yet to drill the holes for the d rings. I am going to wait to do that until I buy a pair of them.

Front reciever and winch mount-image-864453570.jpg



Front reciever and winch mount-image-2091255778.jpg



Front reciever and winch mount-image-219190469.jpg



Front reciever and winch mount-image-1823856014.jpg



Front reciever and winch mount-image-3527027992.jpg



Front reciever and winch mount-image-105574805.jpg



Front reciever and winch mount-image-2884907419.jpg



Front reciever and winch mount-image-3591877700.jpg
I ARE EL1TE is offline
Old 03-30-2014, 07:15 PM
  #7
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

I will add more pictures when the weather is nicer as well.
I ARE EL1TE is offline
Old 03-31-2014, 07:24 AM
  #8
Member

Join Date: May 2013
Location: Martinsburg, IL
Posts: 156
Year: 1997
Model: Cherokee
Engine: 4.0
Default

fantastic job! Love the look for sure
OneArmRedneck is offline
Old 03-31-2014, 10:40 AM
  #9
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

Looks good. I like the receiver up front but I'd have to look into raising it up and moving it back some. Looks like a serious approach angle killer. Other than that, good job.
Lowrange2 is offline
Old 03-31-2014, 02:02 PM
  #10
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

Originally Posted by Lowrange2 View Post
Looks good. I like the receiver up front but I'd have to look into raising it up and moving it back some. Looks like a serious approach angle killer. Other than that, good job.
The receiver mounted underneath is how I got it, I cut up an old truck reciever. I don't think it makes the approach angle too bad, but if I keep hitting things with it, I will move it up and back.
I ARE EL1TE is offline
Old 03-31-2014, 02:31 PM
  #11
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

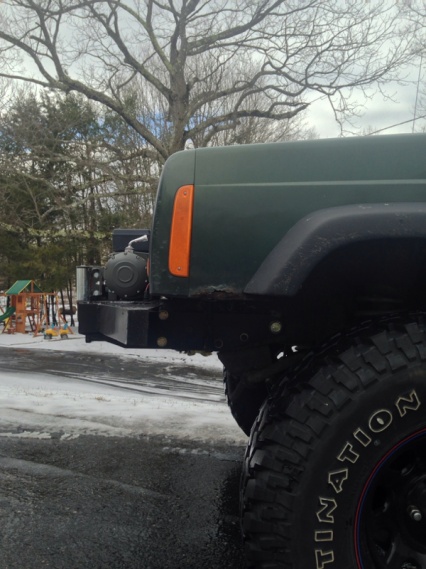

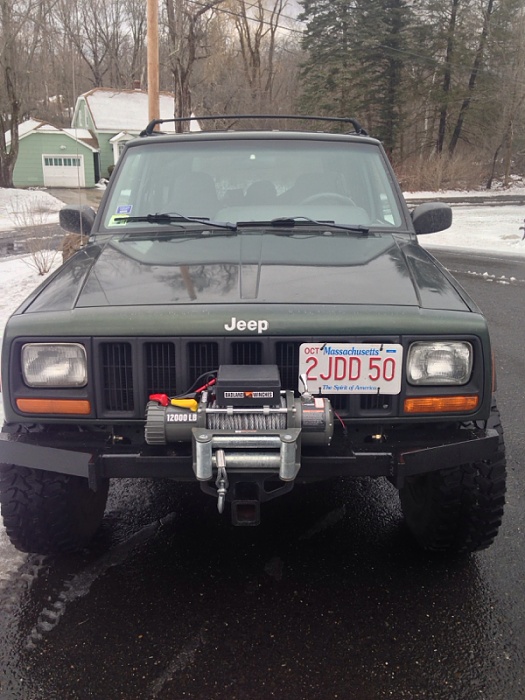

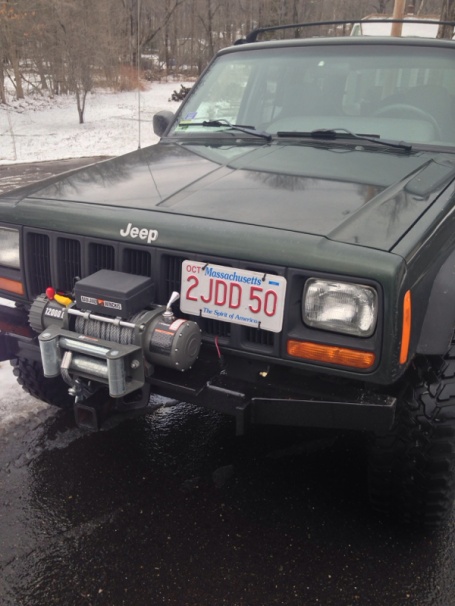

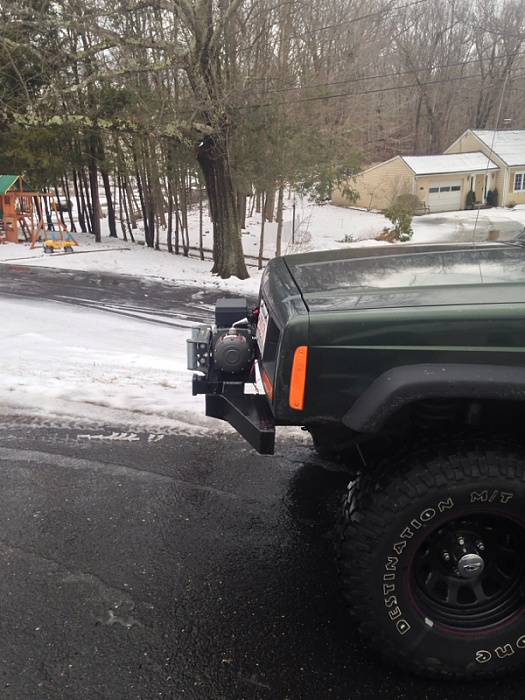

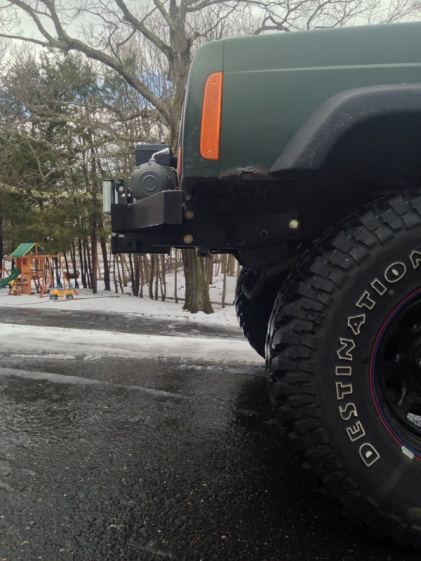

As promised more pictures:


Front reciever and winch mount-image-1785983247.jpg



Front reciever and winch mount-image-1477114597.jpg



Front reciever and winch mount-image-316613187.jpg



Front reciever and winch mount-image-923985957.jpg



Front reciever and winch mount-image-2643284944.jpg
I ARE EL1TE is offline
Old 04-01-2014, 08:59 AM
  #12
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

I guess it's not as bad as it looked in the other pictures.

Then again, I'm biased as I sold a bumper that stuck out about as far as yours and in the process of building a new bumper to improve my approach angle. I mounted the winch where the cross member was.

I'm not finished with it, obviously, but you get the point. It sticks out from the grille by about one inch. I don't have a profile view of it with me.

Name:  20140325_191404_zpse46b0dd5.jpg
Views: 153
Size:  3.66 MB

Then again, if you aren't climbing super steep rocks then you'll never know the difference.

Looks good. The hitch up front is very useful. I had one in my old bumper. I used to move boats all around the yard with it. Makes parking a boat in a tight spot super easy.
Lowrange2 is offline
Old 04-01-2014, 10:24 AM
  #13
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

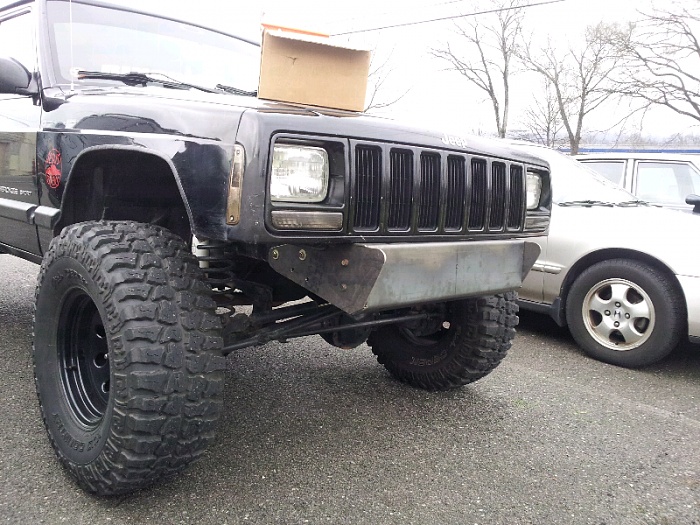

Front reciever and winch mount-forumrunner_20140401_112529.jpg

Mines not finished either but approach angle inspired
HS00XJ is offline
Old 04-01-2014, 01:58 PM
  #14
Seasoned Member
Thread Starter

I ARE EL1TE's Avatar

Join Date: Dec 2012
Location: Taxachusetts
Posts: 353
Year: 1998
Model: Cherokee
Engine: 4.0L H/O
Default

Originally Posted by Lowrange2 View Post
I guess it's not as bad as it looked in the other pictures.

Then again, I'm biased as I sold a bumper that stuck out about as far as yours and in the process of building a new bumper to improve my approach angle. I mounted the winch where the cross member was.

I'm not finished with it, obviously, but you get the point. It sticks out from the grille by about one inch. I don't have a profile view of it with me.

Then again, if you aren't climbing super steep rocks then you'll never know the difference.

Looks good. The hitch up front is very useful. I had one in my old bumper. I used to move boats all around the yard with it. Makes parking a boat in a tight spot super easy.
I did consider mounting the winch where the cross-member is, but i was hesitant to cut it up. I don't do any crazy hill climbs or rocks, so it shouldn't affect me. I wanted the front receiver for three reasons: 1) It was Free. 2) It will allow me to park my dad's camper into tight camping spaces much easier. 3) bullet-proof recovery point. To me, that outweighs the con of the less clearance. Regardless, it is better than the stock bumper. and if I so choose, I can simply cut off the receiver portion if I never use it.

On another note: Does anybody have a solution on what i can do with my front licence plate? I hate just having it zip-tied on to the grille.

Last edited by I ARE EL1TE; 04-01-2014 at 02:00 PM.
