Fab question.
#1
Member
Thread Starter
Join Date: May 2012
Location: WoodinVille
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Fab question.

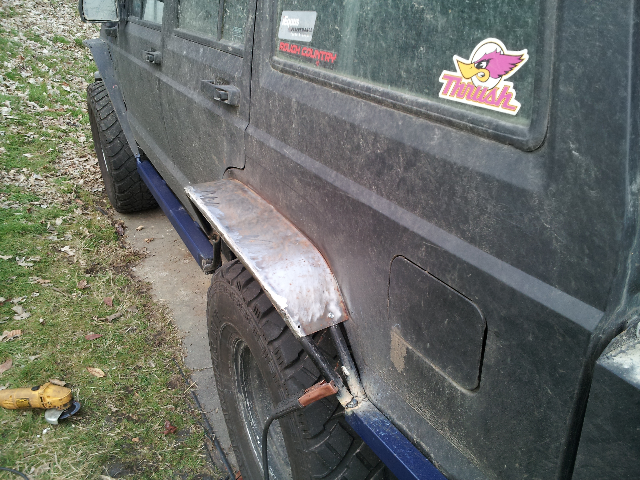

So I'm making my fender flares. And all welds have been ok. But as I'm welding the sheet metal it melts away. I've found a way to weld it. However I'm more then positive that when I go to weld the sheet metal to the body its just going to make holes.
I have the welder as low as I can with wire speed set at 4, on a scale of 1-10.
I know my welder is crap but its all I have. Its a Chicago Electric from Harbor Freight.
Is there a trick to welding the sheet metal to the body? Or any other means?
I have the welder as low as I can with wire speed set at 4, on a scale of 1-10.
I know my welder is crap but its all I have. Its a Chicago Electric from Harbor Freight.
Is there a trick to welding the sheet metal to the body? Or any other means?
#3
Senior Member
Join Date: Dec 2011
Location: Riverside county
Posts: 851
Likes: 0
Received 0 Likes
on
0 Posts
Year: 89' soon to be
Model: Cherokee
Engine: 4.0 HO 167k miles
Same issue here, I'm learning. I tried it on low and it worked for me. On high it was just burning the sheet metal
#4
CF Veteran
Join Date: Sep 2009
Location: Grand Prairie, Texas
Posts: 1,142
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 HO I6
How thick is that sheetmetal? It looks like aluminum foil! Anything smaller than 16g is tough to weld for anyone not experienced, especially with a lower quality welder.
#7
Member
Join Date: Oct 2010
Location: Duluth MN
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
That's SUPER thin, your better of using thicker stuff, then weld more with your wire pointed at your thicker metal and roll it up onto the body. It is gonna be ridiculously hard with that cheap welder, and your gonna want to run the smallest wire you can.
Trending Topics
#8
CF Veteran
Welding thin metal
I have found that the best way to weld thin metal is a technical called stitching were you weld for a very short period and then move to a spot where it is cool enough that you won’t get blow though. Then return back to the other area after it cools of. It also helps so that you can stay on the seam. The other thing that would help would be to tack some metal to back it. That is how we are going to weld my son’s quarter panel on.
#9

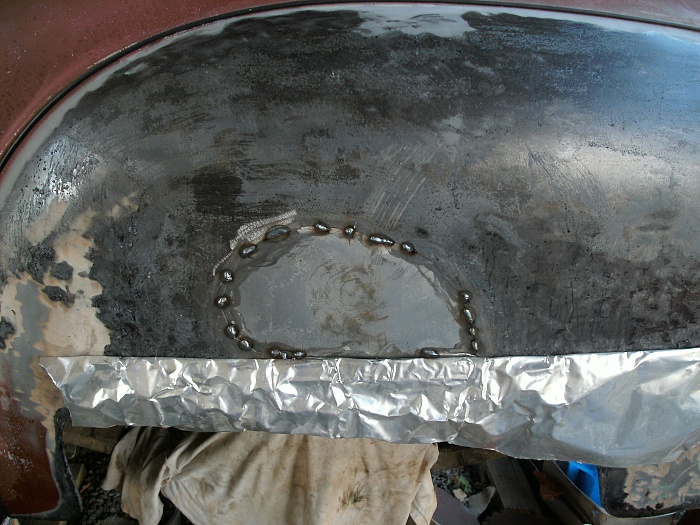

I start with my patch panel on the back side of the repair area.
If my welder burn through a little, I add a little more wire speed.
Too much wire speed, I would get too much build up, and more
grinding to do later.
I start at the centers, and spot weld in an outward direction,
criss-cross pattern. I go a slow pace, and often dab with a cold
wet cloth to keep the area cool.
After spot welding, and some time for the panel to cool down,
I fill in with more welds, and cooling, so to not distort the panel.
Thin medals are difficult to weld. I try to use the same thickness
as my panel, or a thicker patch panel..
I clamp on angle braces also to help to not get warpage...
If my welder burn through a little, I add a little more wire speed.
Too much wire speed, I would get too much build up, and more
grinding to do later.
I start at the centers, and spot weld in an outward direction,
criss-cross pattern. I go a slow pace, and often dab with a cold
wet cloth to keep the area cool.
After spot welding, and some time for the panel to cool down,
I fill in with more welds, and cooling, so to not distort the panel.
Thin medals are difficult to weld. I try to use the same thickness
as my panel, or a thicker patch panel..
I clamp on angle braces also to help to not get warpage...
#11
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
I have found that the best way to weld thin metal is a technical called stitching were you weld for a very short period and then move to a spot where it is cool enough that you won’t get blow though. Then return back to the other area after it cools of. It also helps so that you can stay on the seam. The other thing that would help would be to tack some metal to back it. That is how we are going to weld my son’s quarter panel on.
#12
Senior Member
Join Date: Jun 2012
Location: Cuyahoga Falls
Posts: 634
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0l
What is stitch welding, from what I seen when welding sheet metal, looks like you just do spot welds in the gap between the pieces
#13
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
With thin gauges instead of running one long steady bead, you make a short bead, then move down a little, repeat. Then go back to end of first bead, repeat process over again. Kinda like looking at the stitching on your clothes. Notice the gaps between the stitches? Now imagine going back and filling those gaps. That's stitch welding.
#14
Member
Thread Starter
Join Date: May 2012
Location: WoodinVille
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Thanks for the tips. I had a chance to play with it today and it did good. Increased wire speed with stitch welds. Still have a little grinding to do but at least it didnt melt thru. I'll get it done tomorrow and post pics.
My Harbor Freight welder is not as bad as I thought.
Dont get me wrong first chance I get it'll be replaced with a Gas welder.
My Harbor Freight welder is not as bad as I thought.
Dont get me wrong first chance I get it'll be replaced with a Gas welder.
#15
Newbie
Join Date: Jan 2013
Location: Los Angeles, Ca
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Welding
Are you using a shielding gas (argon/co2?) or flux wire. The shielded method mig is very clean and you get more control. As the others said you want to do spots no more that 1/4 or less, keeping the tip moving from one area of the panel to the opposite area. This method will keep your warp age low,also keep a hammer dolly handy to keep the metal where it should be as you weld. I was a body man for 12 years as well as a auto body instructor. Your project looks good!
