Got it bolted on today! Was actually kind of a pita! If I were to do another one I would weld as much as possible while still bolted to the Jeep. Then brace it 6 ways to Sunday when I took it off to finish weld. Things shifted quite a bit from the welding.

Was dark by the time I finished. I did take it for a quick drive and omg what a difference! I thought my Jeep was pretty tight and solid before but now it’s like a bank vault, the doors even close with a thud!

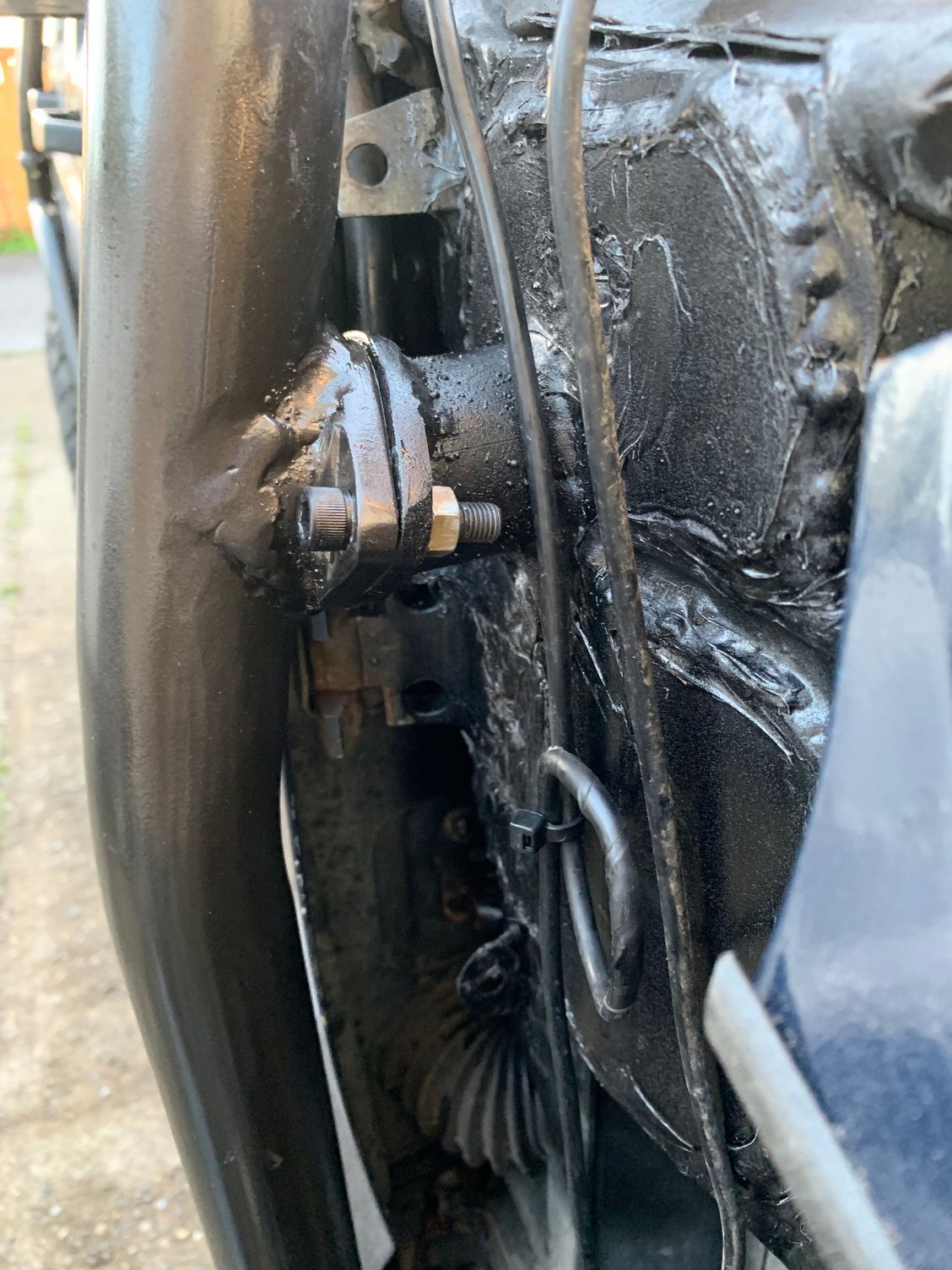

I didn’t want zip ties around the outer bars where they would catch and break off against trees and such. These little brackets are made buy making a couple of built up spot welds, then spanning them with some 1/8” steel rod welded on top. Makes an easy bracket to zip tie wires to.

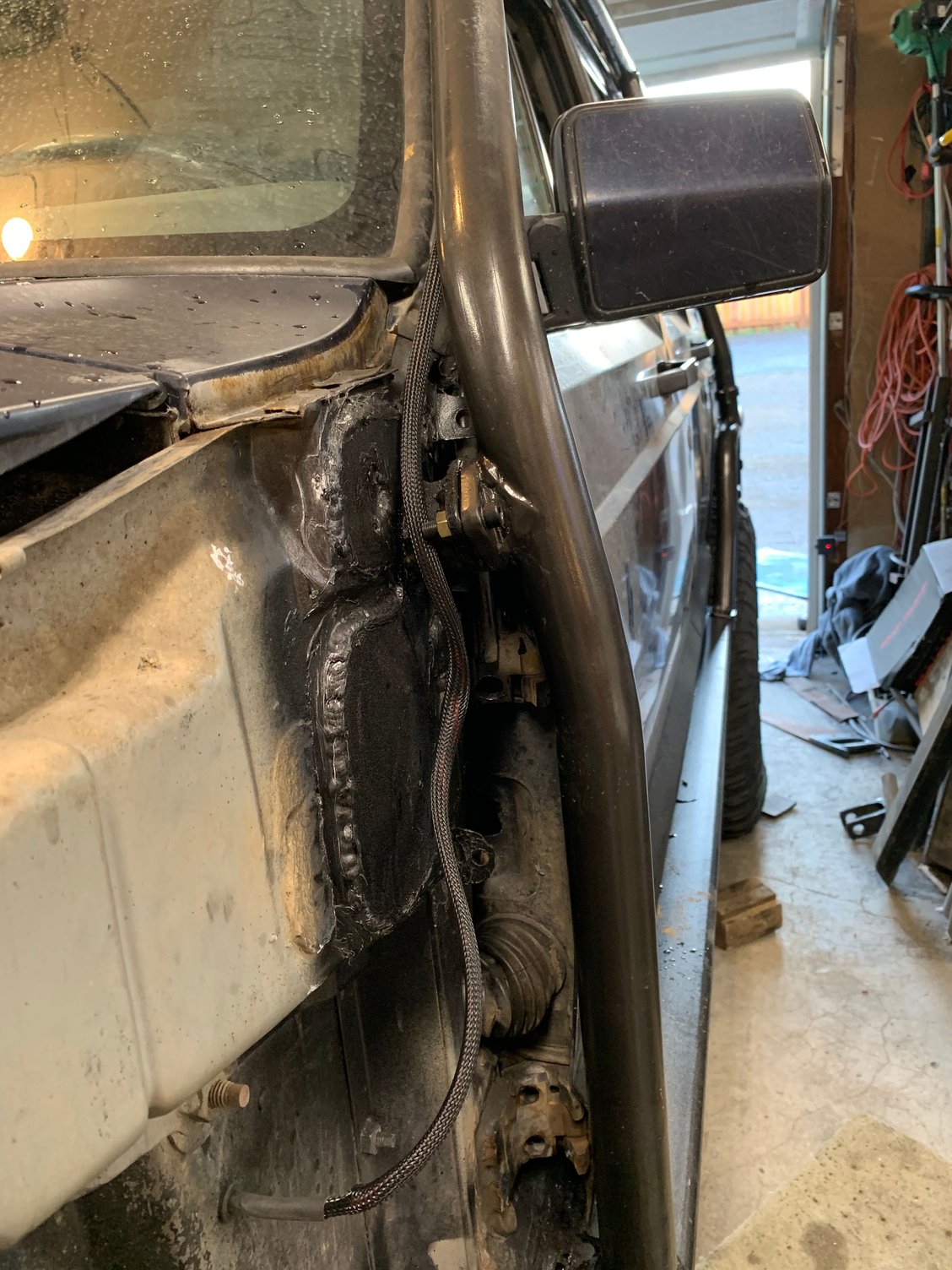

I ran the CB antenna wire down the “A” pillar and drilled a hole with a grommet into the kick panel area.

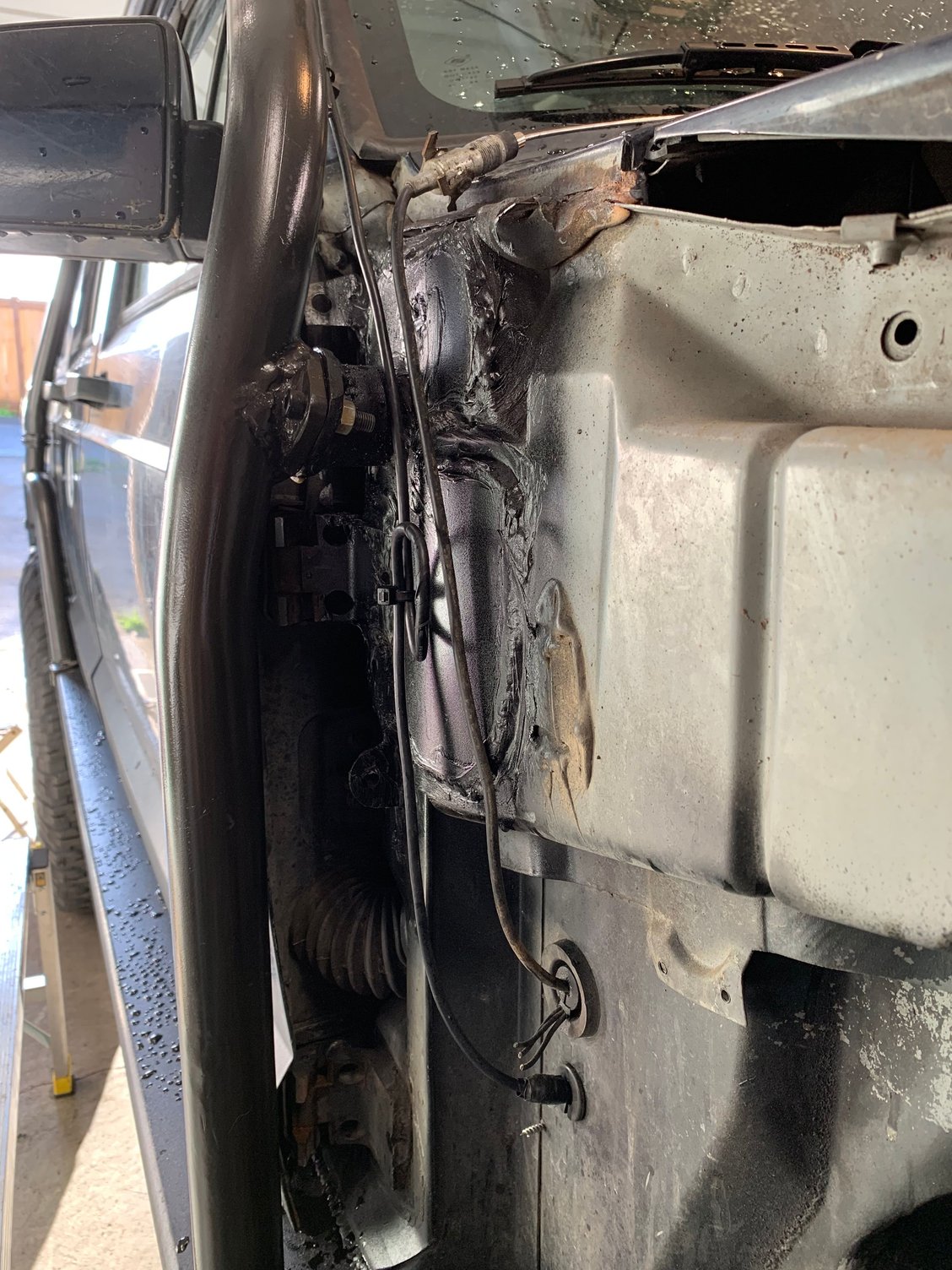

Same thing on the drivers side for the light bar wiring.

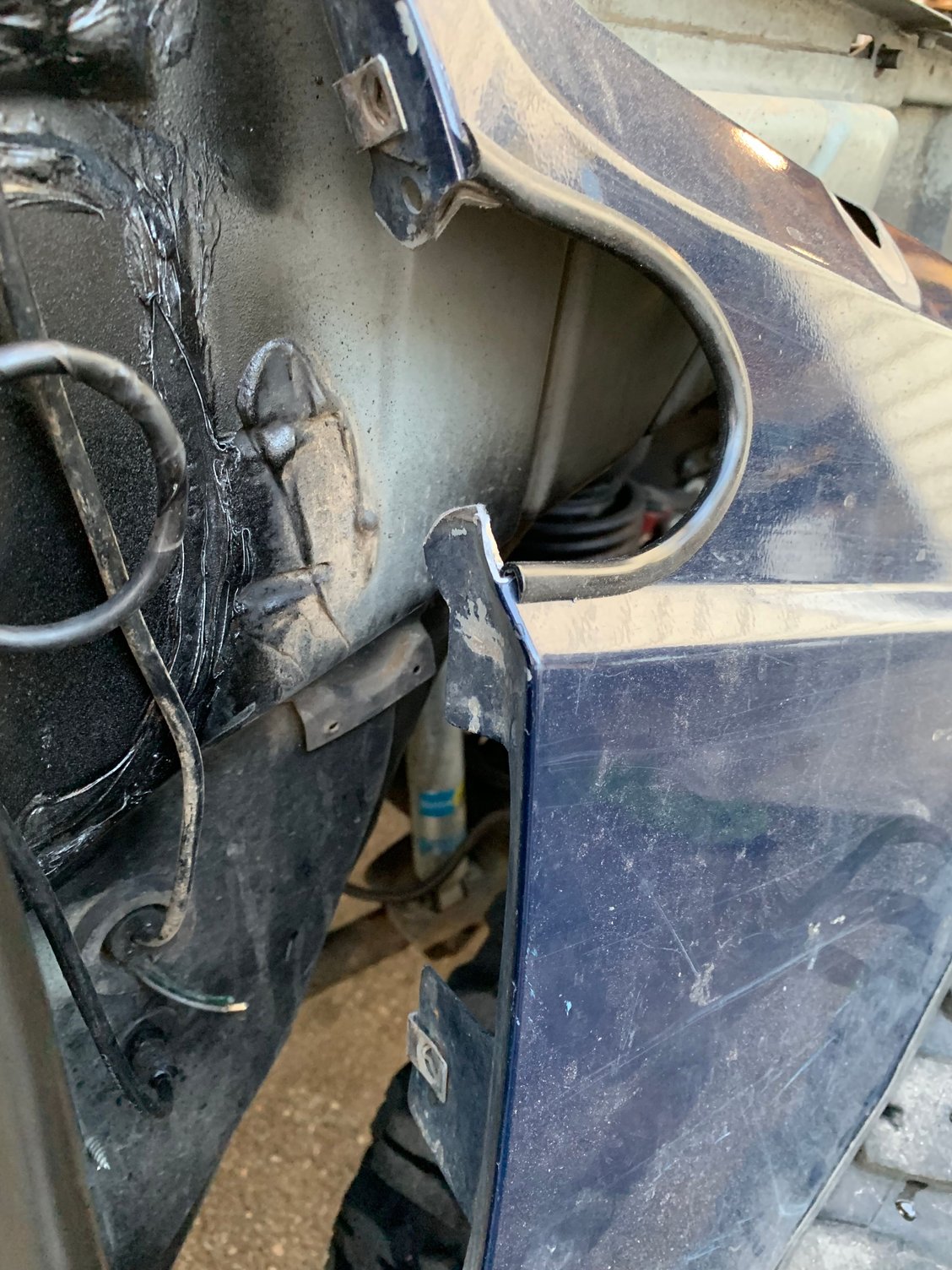

The factory fender mounts near the doors require you to unbolt the fender then pull it outboard to clear the brackets. I moved the nutclips from the brackets to the fenders. Then I bent the original brackets rearward a bit.

Now I can slide the fender in from the front, behind the “A” pillar bar. Then install the bolts just like normal.

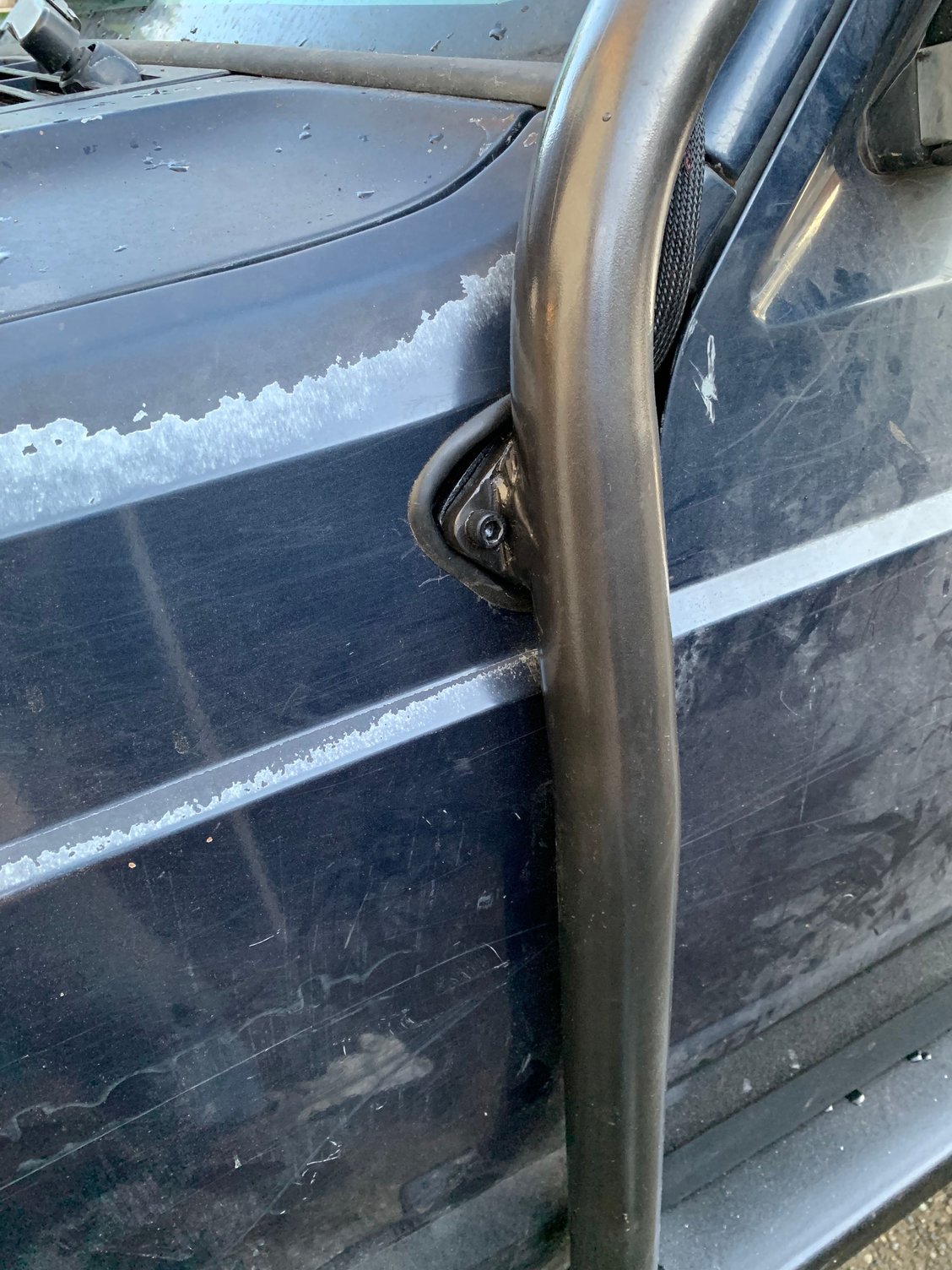

I notched the fender for the firewall mounts then lined the cut out with door edge trim. Used the heat gun to help the trim bend around the tight bends.

The wires from the cb antenna and light bar go in at the cut out.

I’ll get some better pictures tomorrow in the daylight.

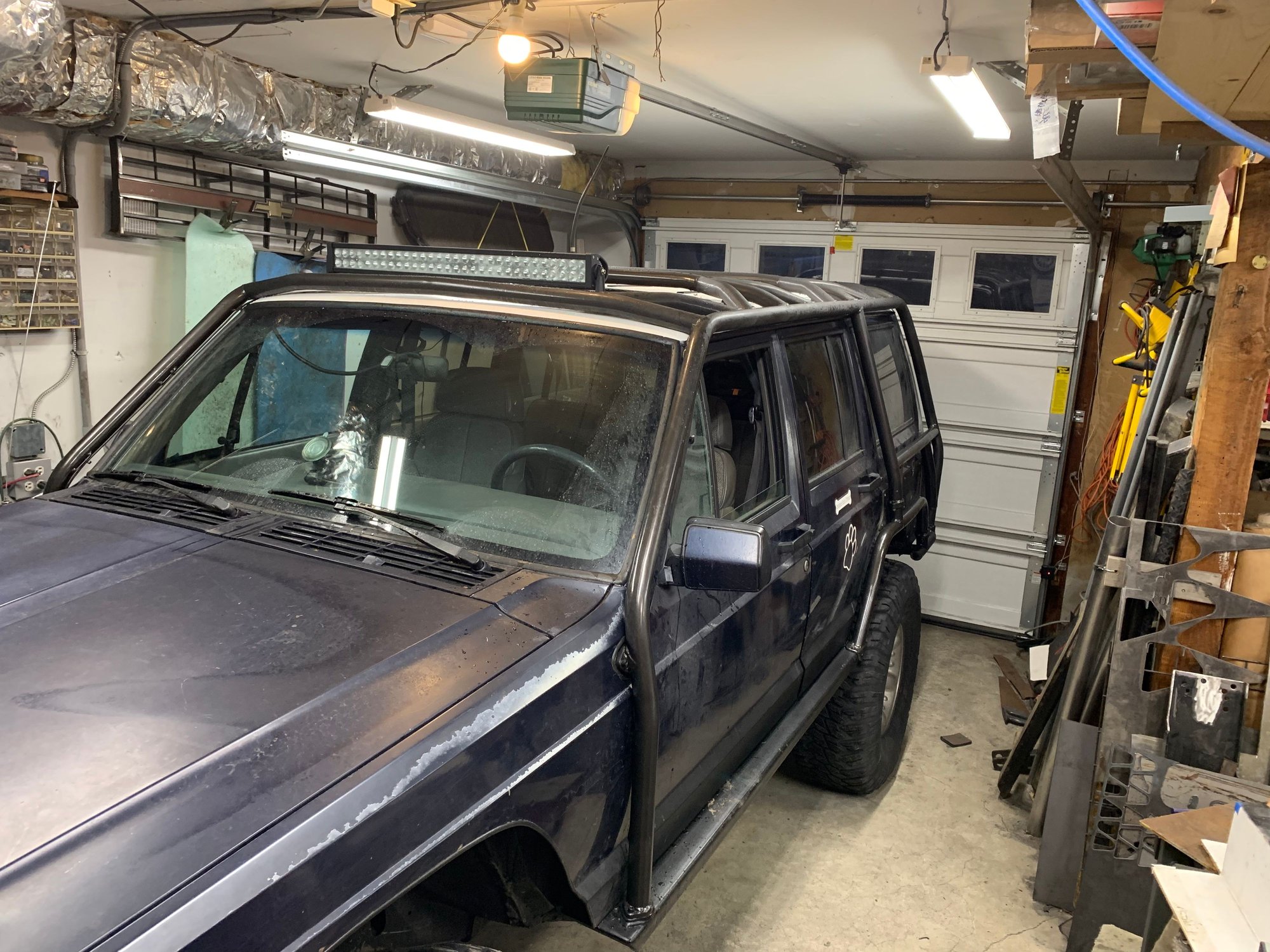

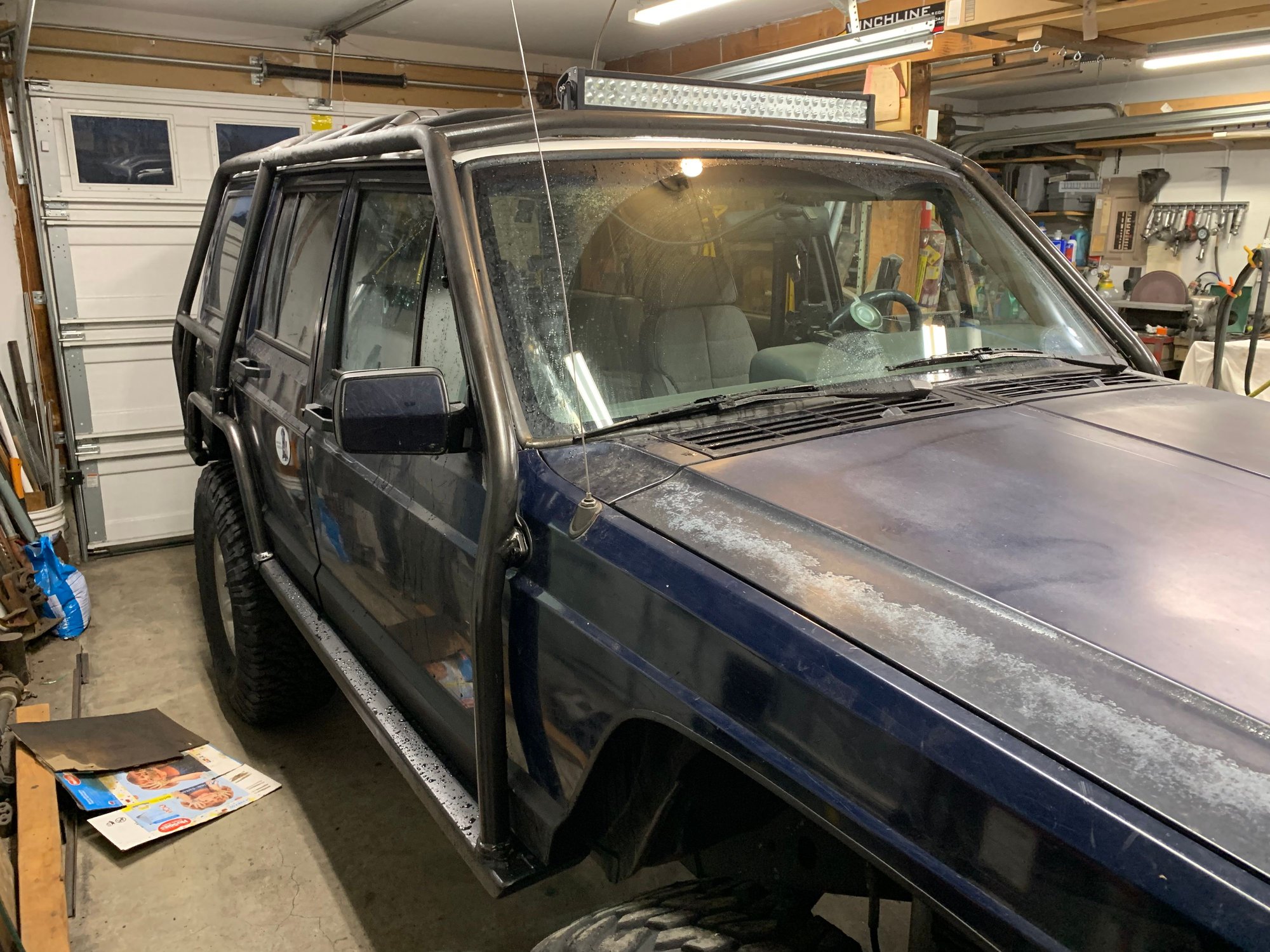

Here’s some better pics of the finished project. I painted the roof white to help keep the heat out.
