Custom front Diff Cover
after thinking about it for the past 2 days i've decided to try making a Diff cover skid plate/cover for my dana 30...

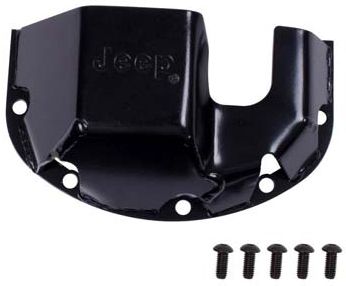

still in the design faze but this is where i started

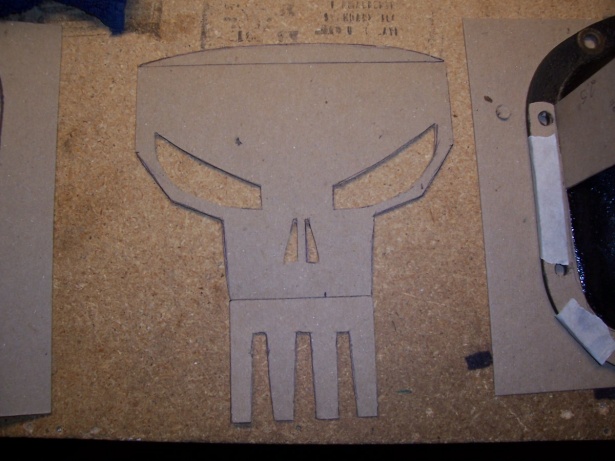

some really thin cardboard/construction paper i snagged from work... we use as dividers for our packaging
really want to run some type of skull for a main cover....

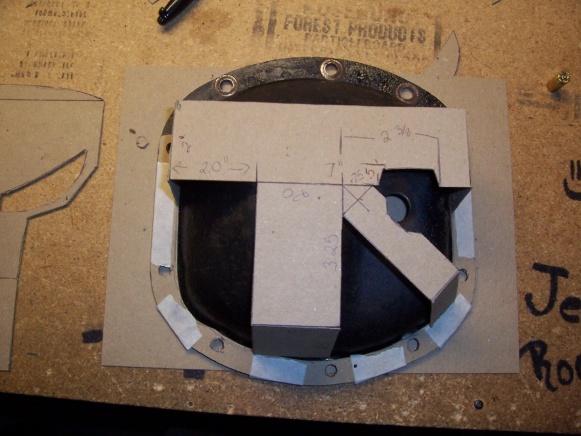

all the structure for the cover

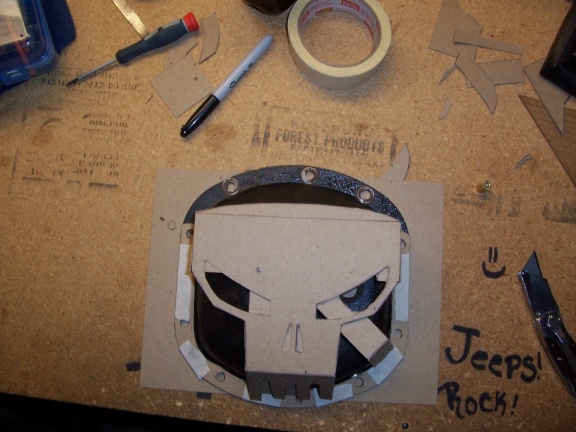

then attach the skull to the front

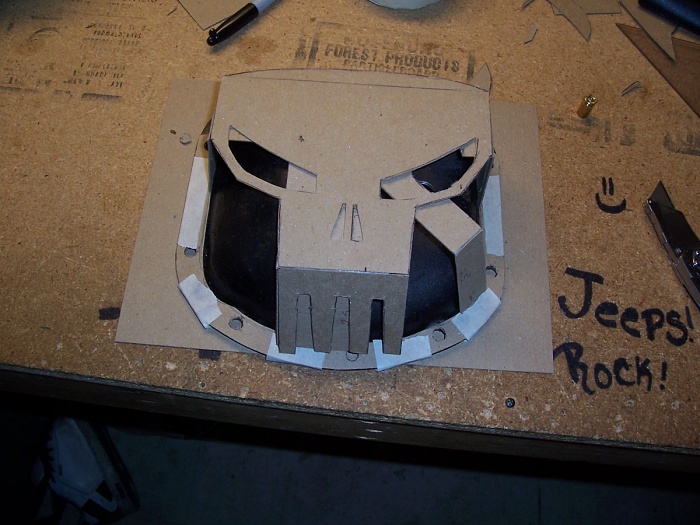

and then there you have it..... maybe some more metal here and there, but just a basic design for now..... i made the eyes so that you can stick a socket extension through the eye-hole to loosen the drain plug
i know there's a bad angle to see the fill plug hole but the skull wasn't fully centered..
will prolly start cutting out pieces tomorrow
still in the design faze but this is where i started
some really thin cardboard/construction paper i snagged from work... we use as dividers for our packaging
really want to run some type of skull for a main cover....
all the structure for the cover
then attach the skull to the front
and then there you have it..... maybe some more metal here and there, but just a basic design for now..... i made the eyes so that you can stick a socket extension through the eye-hole to loosen the drain plug
i know there's a bad angle to see the fill plug hole but the skull wasn't fully centered..
will prolly start cutting out pieces tomorrow
11-16-2010, 07:13 PM
#2
Senior Member
Join Date: Mar 2010
Location: Hampton, Virginia
Posts: 660
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: none other
very nice. i really like the punisher looking skull for the cover. cant wait to see it actually done. might have to steel that idea. ok maybe ill craft something of my own though. what size you thinking of making it out of?
11-16-2010, 08:44 PM
#3
CF Veteran
Thread Starter
Join Date: Jun 2009
Location: Michigan
Posts: 2,140
Received 291 Likes
on
240 Posts
Year: 1987 MJ, 1998 XJ, 1973 J2000, 89 waggy
Model: Comanche (MJ)
Engine: 4.0L H.O
lol yea when i thought skull the Punisher was the first thing that came to mind haha
but i was checking out other diff covers on ebay and warn and quadratec and they look like they're made out of pretty thin metal... like 1/8th or 3/16ths so i'm prolly gonna stick right around there.... i may get some steel rod and add it in there a lil bit
i know these are more press formed than welded pieces like a puzzle but i'm sure i'll be good....
i've got a few more ideas for covers so i may have some others in the future also
but i was checking out other diff covers on ebay and warn and quadratec and they look like they're made out of pretty thin metal... like 1/8th or 3/16ths so i'm prolly gonna stick right around there.... i may get some steel rod and add it in there a lil bit
i know these are more press formed than welded pieces like a puzzle but i'm sure i'll be good....
i've got a few more ideas for covers so i may have some others in the future also
11-21-2010, 11:59 AM
#5
CF Veteran
Thread Starter
Join Date: Jun 2009
Location: Michigan
Posts: 2,140
Received 291 Likes
on
240 Posts
Year: 1987 MJ, 1998 XJ, 1973 J2000, 89 waggy
Model: Comanche (MJ)
Engine: 4.0L H.O

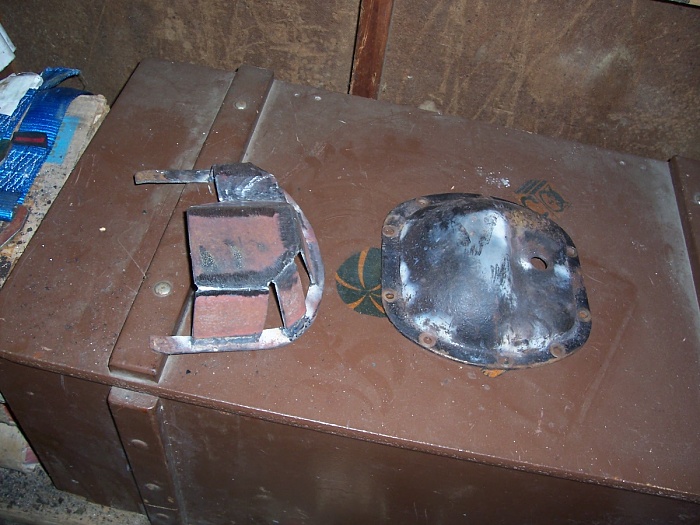

ok so i did a few designs and decided to start with something fairly simple.... nothing to intense or crazy, this is what i ended up with
still need to drill the holes for the bolts but this is it

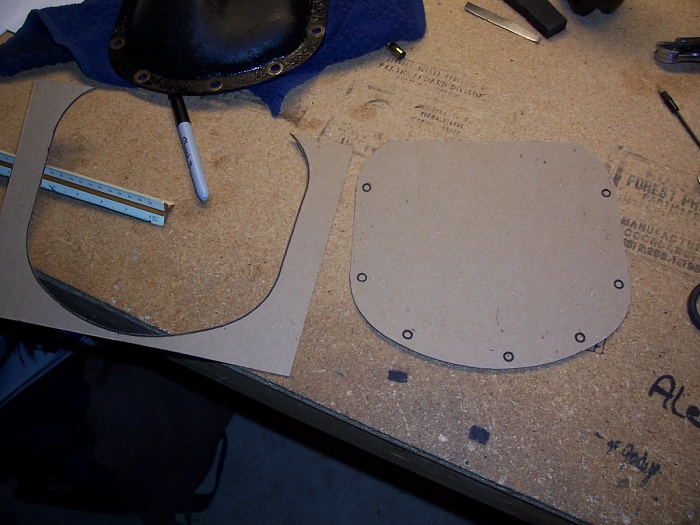

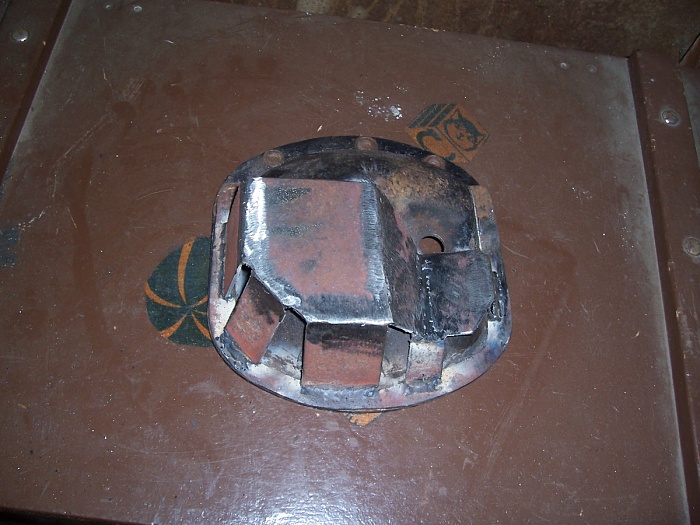

used an old diff as a rough template

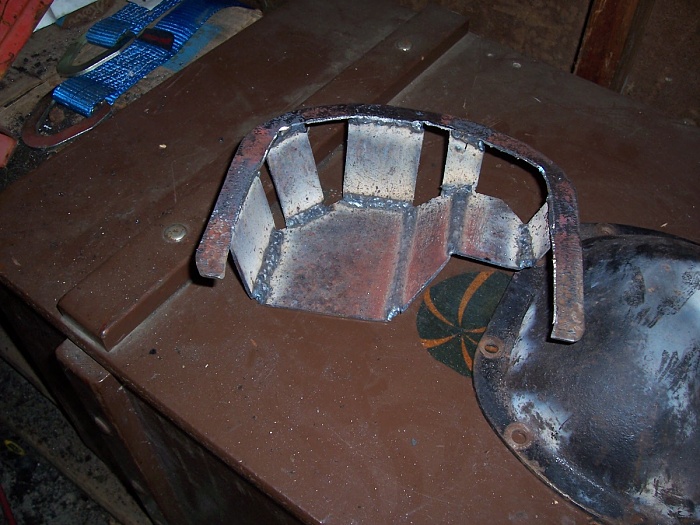

after finish welding to face side, flipped it over and double seamed the inside

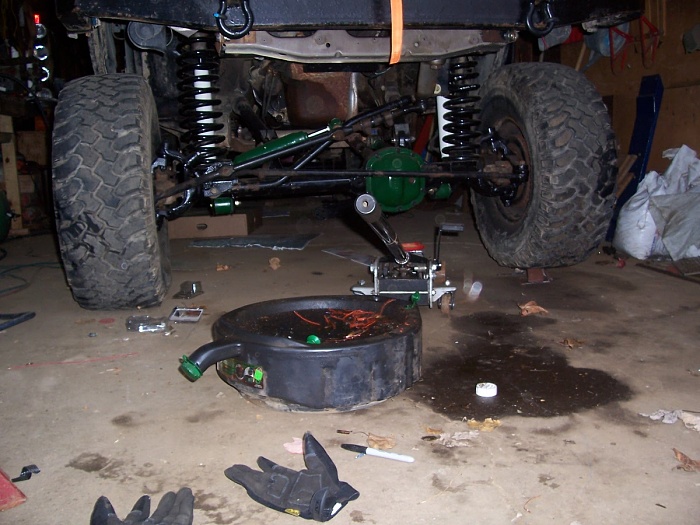

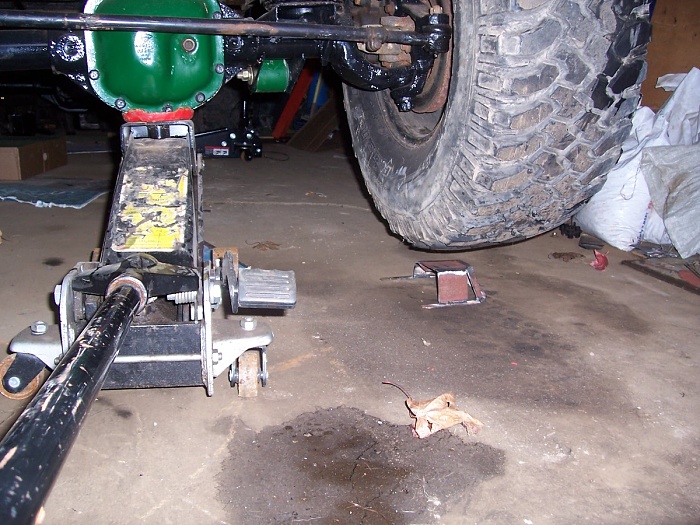

figured id see how weight load would affect it...
