Comp cut

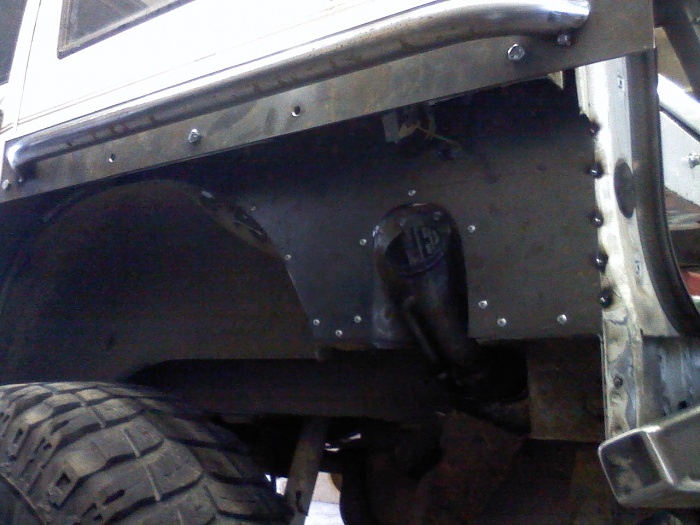

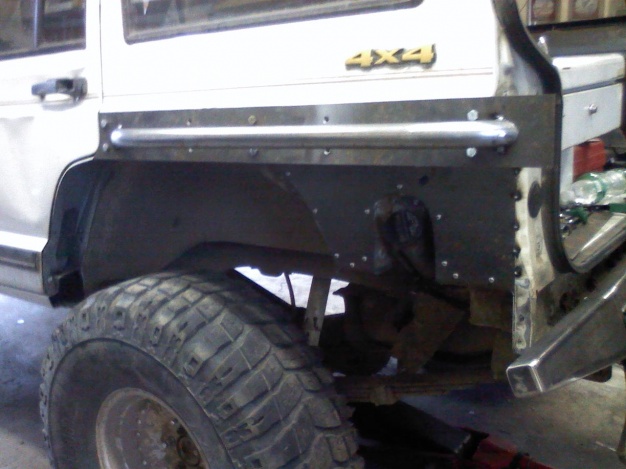

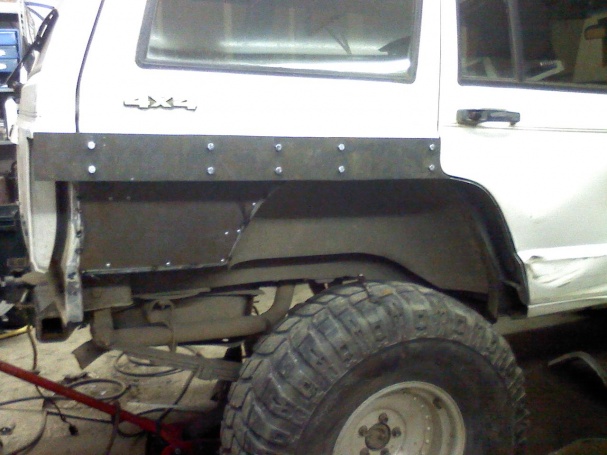

work in progress still going to build taillights into the armor and maybe build a bumper that ties into the armor. I'm also going to cut out the rockers and weld in sliders
#2
CF Veteran
Join Date: Jan 2011
Location: Virginia
Posts: 1,635
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Man im really digging that comp cut. Most I see are just the lower part of the quarter fender. I like how you went all the way up and added a rock/tree slider. It looks bad ***. If I ever comp cut that will be the rout I will take. Thanx for the visual image.
Last edited by aquickmopar; 10-18-2011 at 06:39 PM.
#3
Former Sponsor
Join Date: May 2010
Location: meriden Ct
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
please dont take this the wrong way, but whats the reason to comp cut, and leave the inner fenders? usually its to move the wheel back, but your obviously not doing that.
#5
Cherokee Forum Vendor
Thread Starter
Join Date: Aug 2011
Location: Tukwila Wa
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
im going to use round tube and brace down to the inner fender for more support for the slider bar. and it was just like the way it looks. it will look better when its done.
#6
Junior Member
Join Date: Oct 2011
Location: Conway Arkansas
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
Post some pics when ya finished, iv been thinking bout doing that but the way the inner fender well and the slider will tie in together is what I'm looking for. I need a 110 volt welder tho. By the way how much clearance did you gain with that cut.
Trending Topics
#8
Cherokee Forum Vendor
Thread Starter
Join Date: Aug 2011
Location: Tukwila Wa
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i should get some more work done on it after work tomorrow. i measured down 4inches from the body line and cut so im not really sure how much clearance i gained
#11
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Are you planning on redoing the fender wells or just leaving them? Most cut them out and fab new ones otherwise you get the clearance from the body but not the fender wells.
#12
Cherokee Forum Vendor
Thread Starter
Join Date: Aug 2011
Location: Tukwila Wa
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
how far does it push the axle back if you flip the springs?
in going to do the fender wells when i do a 4 link. i just needed more tire clearance for now the 35's were rubbing and i need to take the over load out because it sits about an inch higher in the back so it would have rubbed bad.
in going to do the fender wells when i do a 4 link. i just needed more tire clearance for now the 35's were rubbing and i need to take the over load out because it sits about an inch higher in the back so it would have rubbed bad.
#13
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Spring flip moves it 6" back so you need a new drive shaft and have to move the fuel tank. New shock mounts and you would have to redo the fender wells.
#14
Cherokee Forum Vendor
Thread Starter
Join Date: Aug 2011
Location: Tukwila Wa
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
i didn't get much done tonight just welded up the tube. should get more done tomorrow.
i'm just gonna leave the axle where it is it's moved back an inch with the u-bolt eliminators i built.
i'm just gonna leave the axle where it is it's moved back an inch with the u-bolt eliminators i built.
