coil spacer blueprint

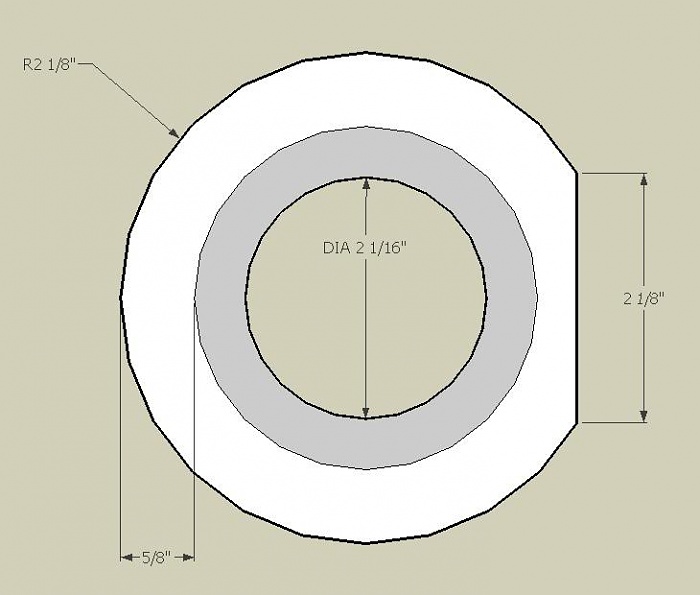

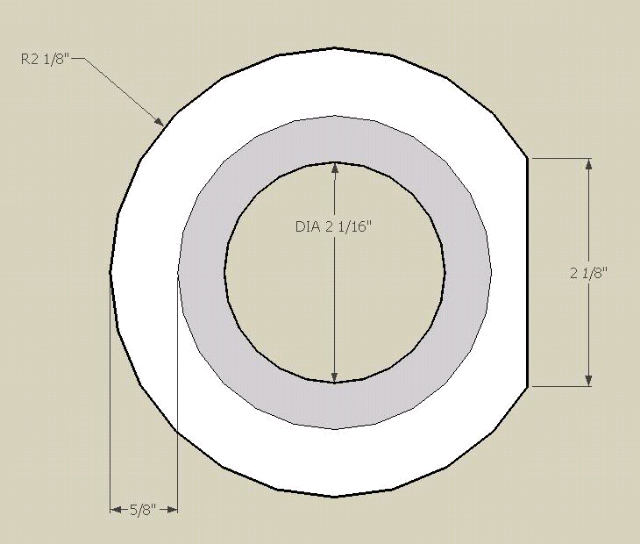

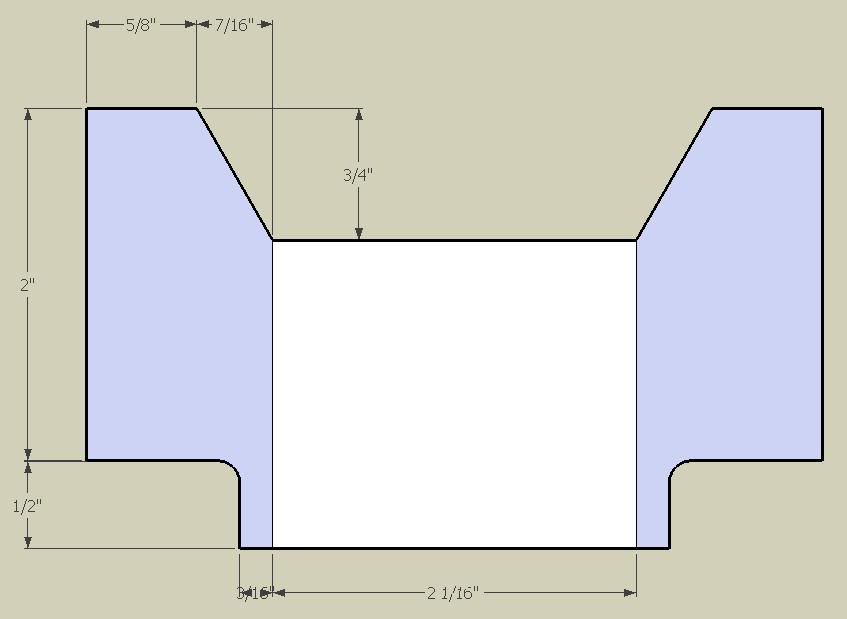

i cant remember where i got this but i have had it for awhile and made quite a few sets of spacers from these plans. my buddy just asked me for a pair so i thought i would post it up if any of you other guys would like to use it. i usually make these from ny-oil or uhmw, but i have made crude ones with steel pipe that was just this od. this is for a 2'' spacer but you could make any size you want just alter height. ive made from 1/2'' thick to about 5''(not the safest!) lol. enjoy!
Trending Topics
#8
Senior Member
Join Date: Oct 2011
Location: Racine, Ohio
Posts: 706
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.7
I am wanting to make a set of these and this is the first drarft design I've seen. Does anyone know if this is the same size everything for a WJ. Only reason I ask is because the WJs are a lot different on things and hard to find answers to because not as many people try to tackle the WJ.
BTW This is awesome info for spacers.
BTW This is awesome info for spacers.
#10
Senior Member
Join Date: Oct 2011
Location: Racine, Ohio
Posts: 706
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.7
Originally Posted by Trev1006
Not sure if the wj is the same. Have used this on MJ,xj, and tj coils
#12
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: Montpelier, Ohio
Posts: 2,401
Likes: 0
Received 0 Likes
on
0 Posts
Year: 92
Engine: 4.0
No logical reason I dont think, the ones you buy have that flat spot. Its usually where the mfg pits their name. I have a pair that say tereflex on them right there. I have made them with it and without it.
#15
CF Veteran
Join Date: Sep 2010
Location: Warsaw, IN
Posts: 2,844
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000,1990,1999
Model: Cherokee
Engine: 4.0
Originally Posted by Trev1006
That doesn't look lime a blueprint to me, where are the mes? Lol.
