bumper progress
!!!!!!!!
03-02-2010, 09:18 PM
#6
CF Veteran
Thread Starter
Join Date: Jan 2010
Location: Indianola IOWA
Posts: 2,059
Likes: 0
Received 1 Like
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0

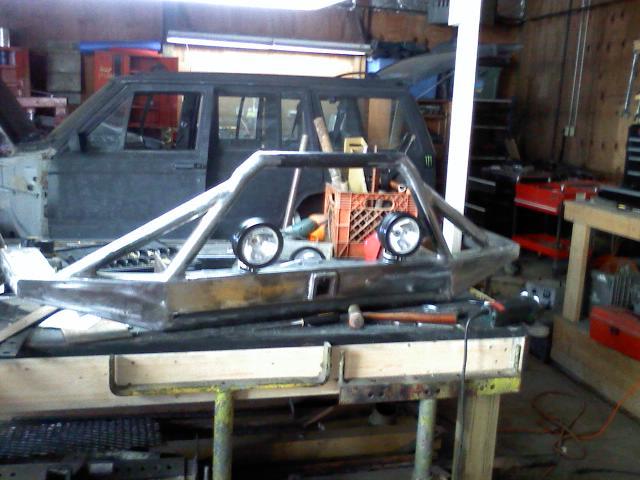

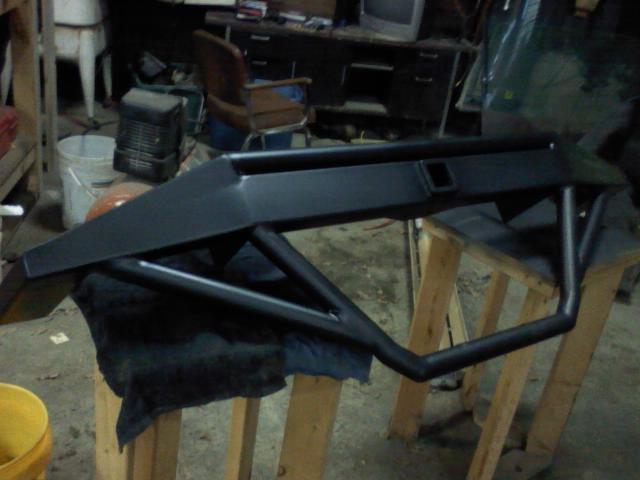

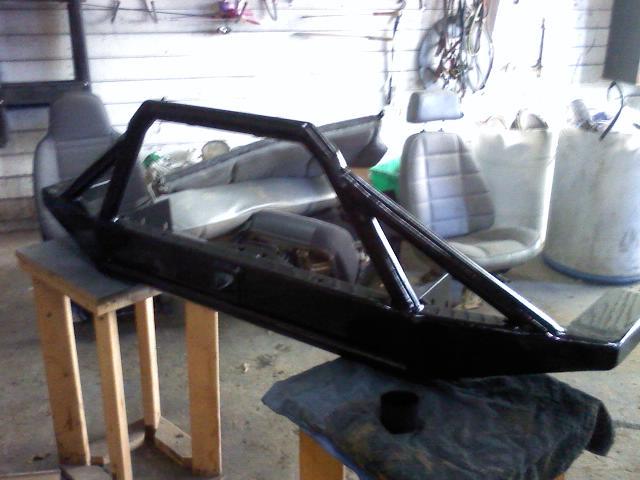

Do you mean the round tubing undernieth? im cheap and instead of buying metal i use what i have. just so happened i had some 2x4 3/16s. i started build and soon relized it looked retarded small. i cut the sides at an angle, flipped the cutoof piece around and re welded it. threw the tube in as filler

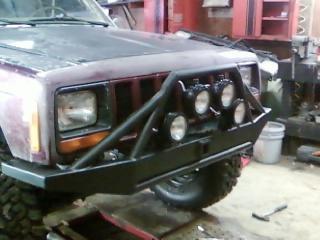

mounting brackes are 1/4 with some 1/4 45 degree gusetry. right now i have the factory tow hook plates modified to except 1/2 grade 8 hard ware. so it ties back into the unibody using the stock hook plates. I didnt tie all the way back with the bumper because eventually i am going to plate entire unibody rails with 3/16s. I think the three 1/2 grade 8 bolts will work for now.
mounting brackes are 1/4 with some 1/4 45 degree gusetry. right now i have the factory tow hook plates modified to except 1/2 grade 8 hard ware. so it ties back into the unibody using the stock hook plates. I didnt tie all the way back with the bumper because eventually i am going to plate entire unibody rails with 3/16s. I think the three 1/2 grade 8 bolts will work for now.
Trending Topics
03-03-2010, 07:19 AM
#9
Member
Join Date: Oct 2009
Location: NASHUA NH
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0

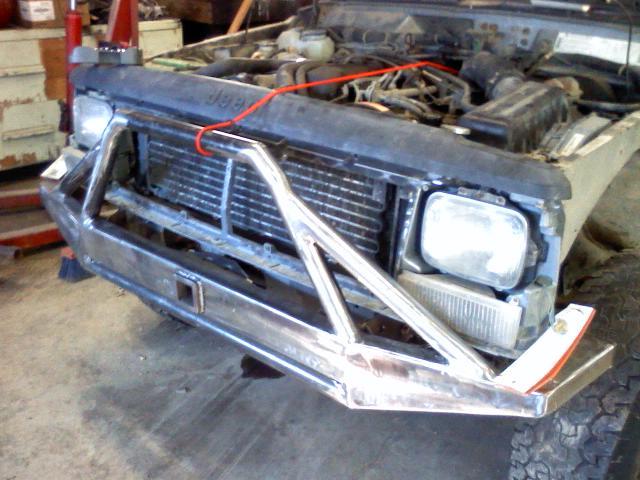

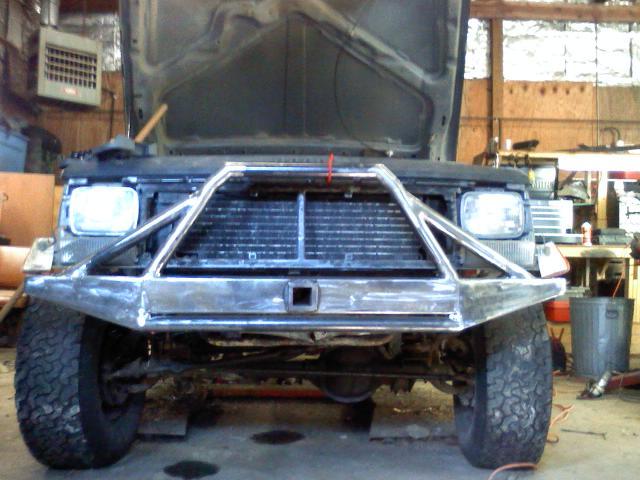

I like the tube work on the top of the bumper as well. I think it looks better with the cut and welded sharp bends then the rounded bends from a tube bender. The sharp bends seem to fit the XJ a little better.
Nice work.
Nice work.
03-03-2010, 05:49 PM
#15
Senior Member
Join Date: Feb 2009
Location: Roswell, NM
Posts: 850
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 L

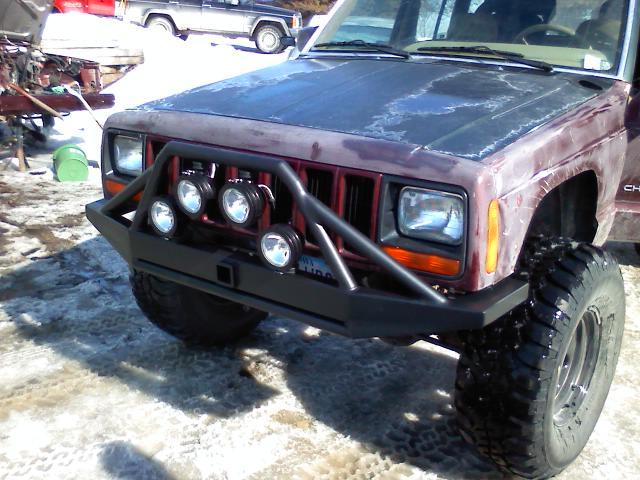

Sick bumper! But what ya gonna do bout front license plate? I'm assuming you have to have one in the state you live in...might I suggest building a removable bracket for your receiver for it?
