Building a tow bar for my ZJ

Old 05-24-2014, 10:36 PM
  #1
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default Building a tow bar for my ZJ

Welded up some 2" receiver for the front of my jeep.






Name:  IMG_1430_zpsee16ace4.jpg
Views: 172
Size:  96.4 KB
krispyone is offline
Old 05-24-2014, 10:38 PM
  #2
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Bolted them on.


Name:  IMG_1442_zpse8e508ee.jpg
Views: 132
Size:  64.2 KB
krispyone is offline
Old 05-24-2014, 10:39 PM
  #3
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Sorry about the HUGE pics. I'm new.
krispyone is offline
Old 05-24-2014, 10:41 PM
  #4
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

I got 3 bolts on each side. There is really Nothing to bolt to on the front of these things.






Name:  IMG_1438_zps66756976.jpg
Views: 117
Size:  40.8 KB
krispyone is offline
Old 05-24-2014, 10:43 PM
  #5
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Trial fit.


Name:  IMG_1445_zps21a39050.jpg
Views: 133
Size:  77.7 KB
krispyone is offline
Old 05-24-2014, 10:44 PM
  #6
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Add some rattle can and done....




Name:  IMG_1451_zps3c4f02c8.jpg
Views: 89
Size:  80.5 KB
krispyone is offline
Old 05-24-2014, 10:47 PM
  #7
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Now I just have to build the bar it self. I'm still thinking about that one....
krispyone is offline
Old 06-23-2014, 11:02 PM
  #8
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Had a little time off. So I started back up on this thing.

Name:  IMG_1528_zps9caf825c.jpg
Views: 113
Size:  94.6 KB
krispyone is offline
Old 06-23-2014, 11:06 PM
  #9
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Name:  IMG_1531_zps942057e0.jpg
Views: 97
Size:  75.6 KB
krispyone is offline
Old 06-23-2014, 11:07 PM
  #10
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Name:  IMG_1532_zps54fe4065.jpg
Views: 114
Size:  89.7 KB
krispyone is offline
Old 06-23-2014, 11:07 PM
  #11
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Name:  IMG_1533_zps25d62b4d.jpg
Views: 96
Size:  91.9 KB
krispyone is offline
Old 06-23-2014, 11:10 PM
  #12
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Now I have the receiver parts built I need to buy a hitch and make the A-Frame..




Name:  IMG_1538_zps4355927f.jpg
Views: 119
Size:  84.3 KB
krispyone is offline
Old 06-23-2014, 11:13 PM
  #13
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

Name:  IMG_1537_zpsced29ba4.jpg
Views: 112
Size:  75.7 KB
krispyone is offline
Old 12-17-2014, 06:16 PM
  #14
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

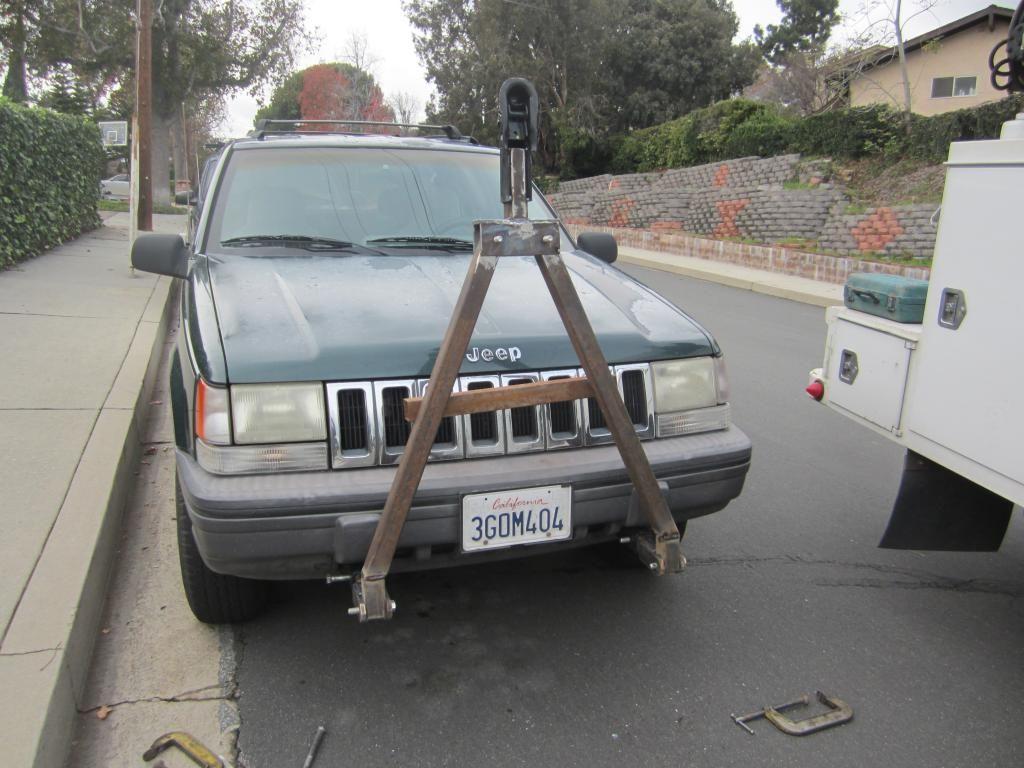

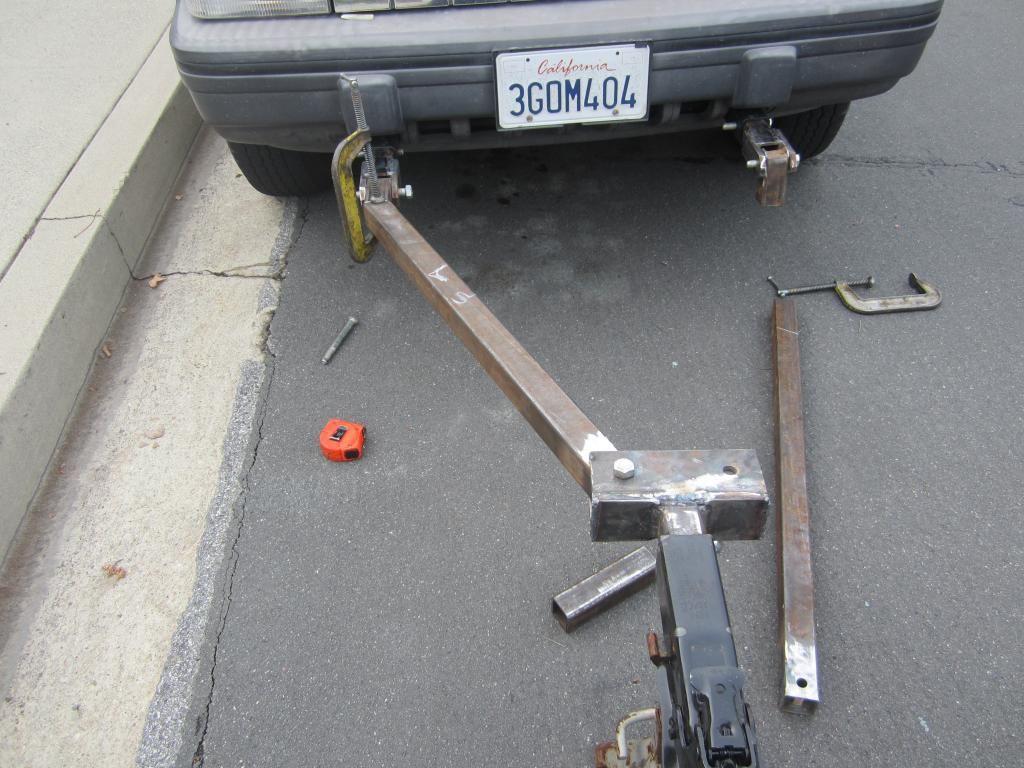

Finally I have some time to finish the tow bar.

I did most of it at the shop, But I didnt know the angles. So I got it kinda put together and I will finish it at work.

Its getting there.





[IMG]

[/IMG]

Last edited by krispyone; 12-17-2014 at 06:20 PM.
krispyone is offline
Old 12-17-2014, 06:25 PM
  #15
Senior Member
Thread Starter

Join Date: Sep 2013
Location: La Crescenta CA
Posts: 671
Year: 1994
Model: Grand Cherokee
Default

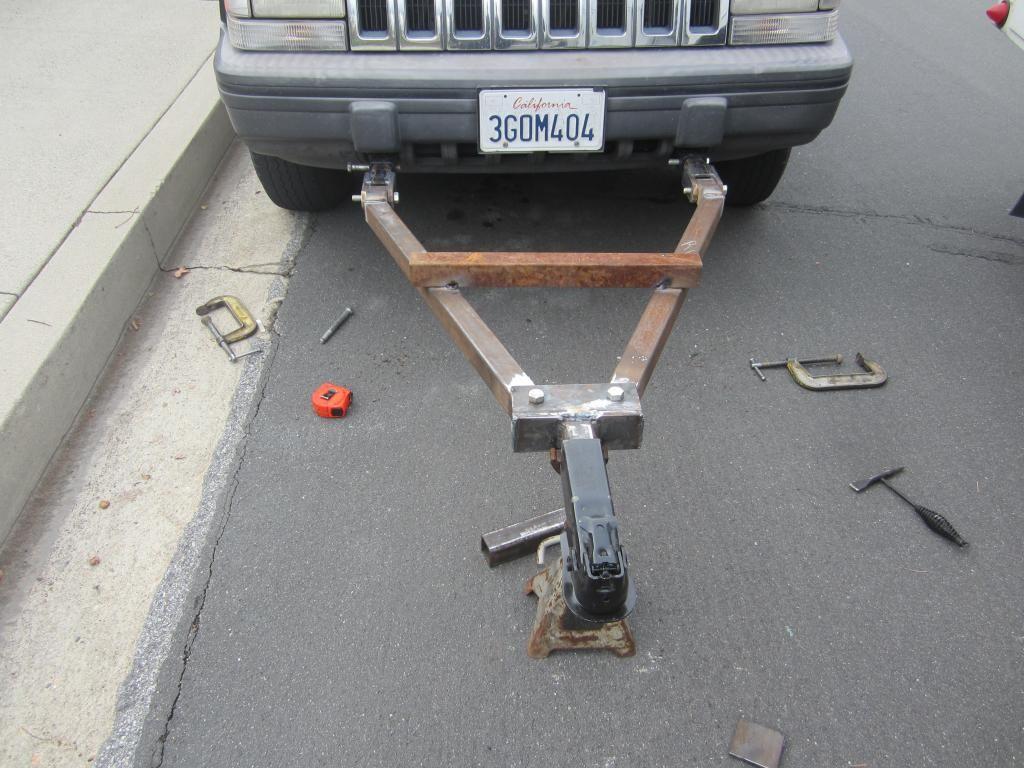

The cross bar is temp. I will take it to work and finish welding. I want to add a gusset where the angle is. It might be a little long, But I wont know that untell I tow it with the motorhome.
