Booty-fabbed Nutstrips

Old 12-11-2014, 07:26 PM
  #1
Junior Member
Thread Starter

ModularKnight's Avatar

Join Date: Dec 2013
Location: Central Pennsylvania
Posts: 42
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
Default Booty-fabbed Nutstrips

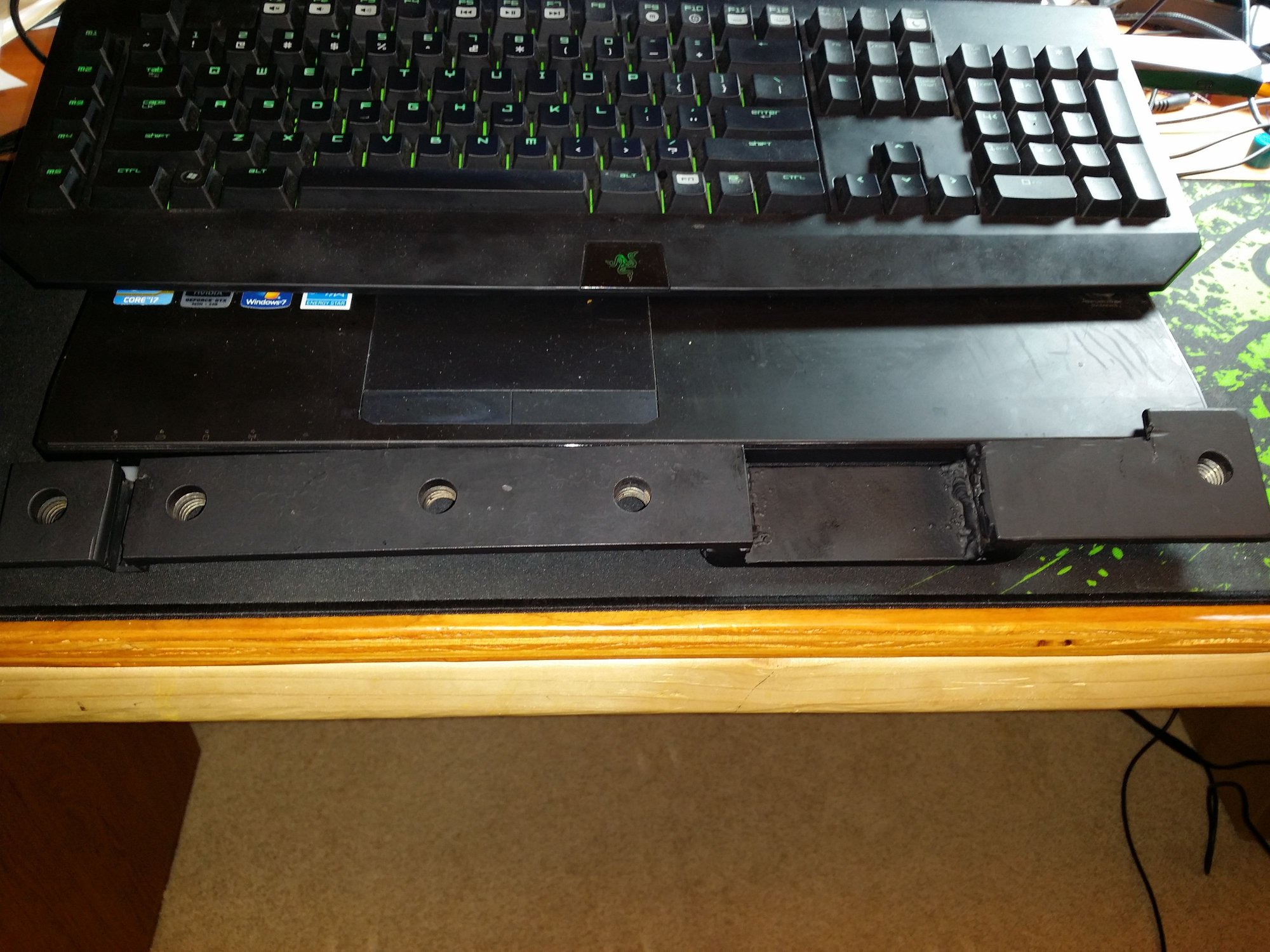

So I bought a 2" hitch off Craigslist for $50, and couldn't really justify buying a set of nut strips for the same price. So, I built my own for free

I ended up using 3' of 3ga 2" wide steel, 1' of 1/2" solid square stock, 4" of 1/2" square tubing, and 10 1/2" nuts.

I don't have a bender of any sort, so I used the square tubing (with one side cut off) for the small "arch" and the square stock, along with extra 3ga, for the large "arch". I know my welds aren't pretty, but the whole thing stood up to me jumping on the middle with a cinderblock under each end.

Took me about an hour and a half, including measuring, marking, cutting, welding, grinding, and painting.

If any of y'all would like to see a writeup, I'd be happy to make one.
















please excuse my bare feet and messy floor
ModularKnight is offline
Old 12-12-2014, 07:25 AM
  #2
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Likes: 0
Received 1 Like on 1 Post
Year: 1993
Engine: 4.0
Default

Looks damn good to me. I'm going to have to build something similar when I build my rear bumper in the near future.
Lowrange2 is offline
Old 12-12-2014, 07:58 AM
  #3
Junior Member

96xjHUNTER's Avatar

Join Date: Nov 2014
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

These look better than the nut strips smittybilt sends out with their bumpers.
96xjHUNTER is offline
Old 12-12-2014, 08:48 AM
  #4
Junior Member
Thread Starter

ModularKnight's Avatar

Join Date: Dec 2013
Location: Central Pennsylvania
Posts: 42
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
Default

lol thanks guys. Want an opinion: I ran out of wire as I was welding on the last nut, and only got one of the six sides of it down. Do you think that'll be enough, or would I be better off wire brushing the paint off that area and finishing it proper?
ModularKnight is offline
Old 12-12-2014, 11:30 AM
  #5
Junior Member

96xjHUNTER's Avatar

Join Date: Nov 2014
Posts: 74
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by ModularKnight View Post
lol thanks guys. Want an opinion: I ran out of wire as I was welding on the last nut, and only got one of the six sides of it down. Do you think that'll be enough, or would I be better off wire brushing the paint off that area and finishing it proper?
I'm sure six would be decent as there is three other nuts on that side. But if the amount of work compared to the piece of mind would make me just go ahead and finish the other sides.
96xjHUNTER is offline
Old 12-14-2014, 05:39 PM
  #6
CF Veteran

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 4,712
Likes: 0
Received 3 Likes on 3 Posts
Year: 1998 Classic (I'll get it running soon....) and 96 (just purchased) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by 96xjHUNTER View Post
the amount of work compared to the piece of mind would make me just go ahead and finish the other sides.

Agreed, except.... it would give you peace of mind.


Very nice work!
BlueRidgeMark is offline
Old 02-09-2015, 07:35 PM
  #7
Senior Member

kissthis66's Avatar

Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0L i6
Default

Not to high jack but had question. What exactly do these nut strips do/bolt to? And are they worth replacing when installing a new off road bumper?
kissthis66 is offline
Old 02-10-2015, 08:58 AM
  #8
Junior Member

Join Date: Apr 2014
Location: Bismarck, ND
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
Year: 1986
Model: Cherokee
Engine: 3.4l, 5.0 TBI, Megasquirt III ECU
Default

Originally Posted by kissthis66 View Post
Not to high jack but had question. What exactly do these nut strips do/bolt to? And are they worth replacing when installing a new off road bumper?
It's to creat more surface area on the inside of the "frame" rail and so that your bolts don't pull sheet metal when tightening/putting stress on them.
Venture is offline
Old 02-19-2015, 09:19 PM
  #9
Senior Member

Northwoods Snowman's Avatar

Join Date: Nov 2010
Location: Cloquet, MN
Posts: 976
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 Ltd.
Model: Cherokee
Engine: 4.0L I6
Default

Looks good. That's about as stout as I made mine. You've got issues if those pull through! I have the factory hitch, but when I had to remove it to install my lift I mangled the crap out of the flimsy OEM nut strips trying to get the hitch off. Don't think I'll have that problem with 1/4 stock! You shouldn't have any problem with yours either.
Northwoods Snowman is offline
Old 02-20-2015, 12:00 AM
  #10
kgm
CF Veteran

kgm's Avatar

Join Date: Oct 2013
Location: Denver
Posts: 1,589
Likes: 0
Received 0 Likes on 0 Posts
Year: 99
Model: Cherokee
Engine: 4.0
Default

Sure hope my stock ones hold. Carry a motorcycle pretty often, ha.
kgm is offline
Old 02-20-2015, 05:28 PM
  #11
CF Veteran

motorcharge's Avatar

Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

It's easier to just weld the nuts to the bumper mounts and use flat stock on the outside to sandwich the frame rail. Far less measuring and cutting.
motorcharge is offline
Old 04-19-2015, 01:08 PM
  #12
Junior Member
Thread Starter

ModularKnight's Avatar

Join Date: Dec 2013
Location: Central Pennsylvania
Posts: 42
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
Default

Update after 2 months of using these guys: holding out well. Since putting on that hitch I pulled out two f150s and towed two 650cc bikes about 1500 miles. Took off the hitch to repaint it this weekend and pulled out the strips to check out the inside of the frame rail. Couldn't see any marks or indentations from them, so I guess they're doing their job
ModularKnight is offline
