body work tips
#2
Senior Member
Join Date: Nov 2011
Location: Tampa, FL & DC/MD infrequently
Posts: 758
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Originally Posted by bloddy mud
What would be the best way to fill this hole I got sheet metal
#3
Senior Member
Thread Starter
Join Date: Aug 2012
Location: Goshen Ohio
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
Ok. Ya I thought of that to. Just going to the salvage yard and get a cutout and punch rivets into it. That's the worst part besides the rockers. I think I may be able to touch up the other side with some fiberglass resin. I like that stuff better than bondo
#4
CF Veteran
Well, if you ever plan on trimming your fenders, now is the time to do it. No point in welding up a bunch of sheet metal and complex contours if you plan on trimming. Beyond that, I agree with WW, you'll make your life much easier if you can harvest a donor panel from somewhere rather than fabbing from raw sheet.
#5
Member
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Well, since you asked for the "best" way.
Cut out the corroded section and replace it with a section that is not.
Pop rivets could be used, I suppose, but it really should be welded in place for a proper repair and to minimize filler.
Cut out the corroded section and replace it with a section that is not.
Pop rivets could be used, I suppose, but it really should be welded in place for a proper repair and to minimize filler.
#6
Senior Member
Thread Starter
Join Date: Aug 2012
Location: Goshen Ohio
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
Originally Posted by Bruce in Montana
Well, since you asked for the "best" way.
Cut out the corroded section and replace it with a section that is not.
Pop rivets could be used, I suppose, but it really should be welded in place for a proper repair and to minimize filler.
Cut out the corroded section and replace it with a section that is not.
Pop rivets could be used, I suppose, but it really should be welded in place for a proper repair and to minimize filler.
#7
Member
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
I did a lot of bodywork back-in-the-day. Try to cut your existing piece out an inch or two past the rust in all directions. Use it as a template on your donor panel. Try for an exact fit with no overlapping edges....you'll cuss and fight it less.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Aug 2012
Location: Goshen Ohio
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
Ok. Ya any tips would be greatly appreciated. I need to Lear. This trait. I got my rockers both sides the very bottom of tear quarter is getting soft both sides an the two rear finders to do. The driver side rear fender is the worst of it all. I want to learn this stuff I plan on keeping my xj for a while
#9
Senior Member
Join Date: Nov 2011
Location: Tampa, FL & DC/MD infrequently
Posts: 758
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L I6
Originally Posted by Bruce in Montana
I did a lot of bodywork back-in-the-day. Try to cut your existing piece out an inch or two past the rust in all directions. Use it as a template on your donor panel. Try for an exact fit with no overlapping edges....you'll cuss and fight it less.
#10
Senior Member
Join Date: Oct 2011
Location: new iberia
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I'd start with a grinder and a nice flapper disc take all paint and rust off and see what it looks like after you might just need a lil bondo and a good paint job after that but you can't check out the damage untill you clearly can see what kinda damage but if there's holes, yea I'd try to cut a section out another jeep cut the same section out of yours than tack it all the way around grind bondo and paint and I'd paint like the hole section rear quarter panel like such
#12
Senior Member
Thread Starter
Join Date: Aug 2012
Location: Goshen Ohio
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
Originally Posted by twistedunibody01
I'd start with a grinder and a nice flapper disc take all paint and rust off and see what it looks like after you might just need a lil bondo and a good paint job after that but you can't check out the damage untill you clearly can see what kinda damage but if there's holes, yea I'd try to cut a section out another jeep cut the same section out of yours than tack it all the way around grind bondo and paint and I'd paint like the hole section rear quarter panel like such
#13
Senior Member
Thread Starter
Join Date: Aug 2012
Location: Goshen Ohio
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: I6
Originally Posted by twistedunibody01

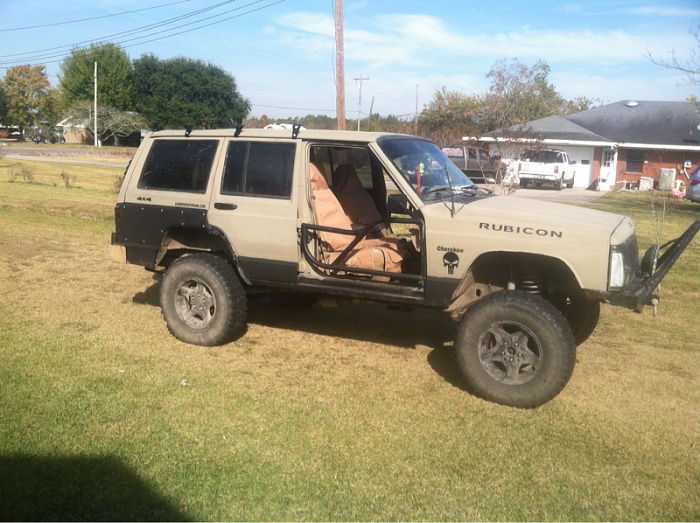

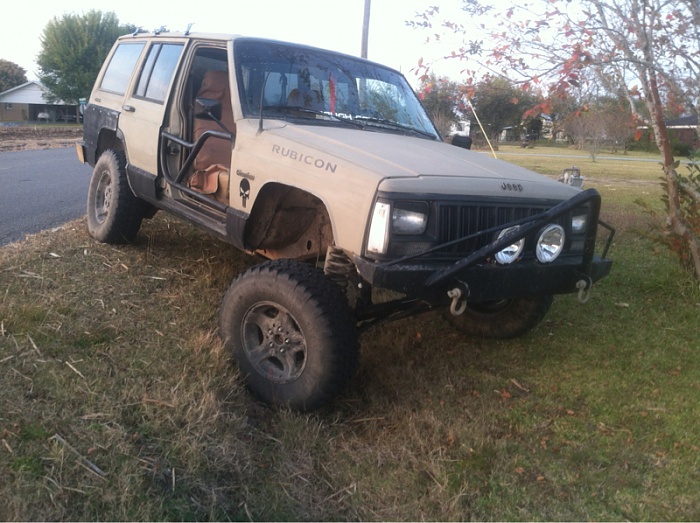

This is always an option
