Fabrication & builders section. All fabrication posts go here.
XJ/MJ/ZJ/WJ Only projects go here. Questions belong in modified tech.

Another Fender Cut

Thread Tools

Search this Thread

Old Dec 7, 2010 | 12:31 AM
  #1
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default Another Fender Cut

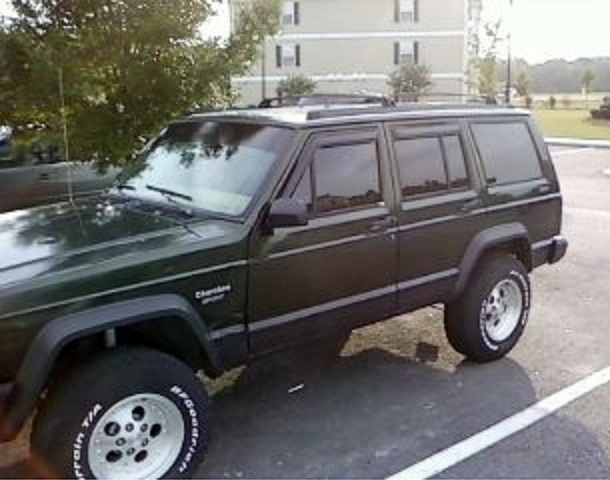

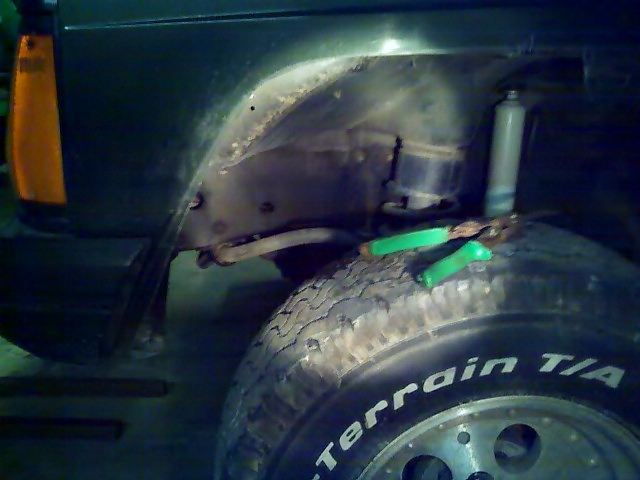

I know it's probably getting old, but I cut my fenders out just a while ago and had to share it. I started out using a cutting wheel grinder, then I'd use the tin snips and cut a straight line to the grinder cut and section it off. It was really easy to do. Then I put black weather stripping along the cut and gave it a clean look (picked it up from Advance Auto for like 10 bucks). It comes in black or chrome, whichever you prefer. As of right now, I did not cut the back, I've only got three pics of the front (before, during and after). The first few are with my 30" BFG All-Terrains and some junk "chrome" rims but in a day or two I'll have new ones up with new black rims and 33" Swampers. Got any questions or suggestions on how to do the rear fenders holler at me! Oh and sorry for quality of pictures, took em with my phone. Enjoy!
Attached Thumbnails Another Fender Cut-jeep.jpg   Another Fender Cut-fender-cut.jpg   Another Fender Cut-fender-cut-final-800x640-.jpg
Reply
Old Dec 7, 2010 | 12:54 AM
  #2
01erionracing's Avatar
Member

Joined: Oct 2010
Posts: 197
Likes: 0
Model: Cherokee
Default

Looks good.
Reply
Old Dec 7, 2010 | 11:14 PM
  #3
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

thanks bud
Reply
Old Dec 8, 2010 | 04:15 AM
  #4
stumanarama's Avatar
Junior Member

Joined: Mar 2009
Posts: 52
Likes: 0
Model: Cherokee
Default

I never get tired of fender cut threads. Make sure you document how you go about doing the rear. And how big a lift is that? 2?
Reply
Old Dec 8, 2010 | 05:04 AM
  #5
j-rod's Avatar
Senior Member

Joined: Sep 2010
Posts: 603
Likes: 0
From: Farmington WV
Year: 1996
Model: Cherokee
Engine: 4.0
Default

how much lift do you have? doesnt look like you cut enough to clear 33's.

as for the rear...cut and fold. like this.


This is for the rear. Make your slices between the pinch welds. Pinch welds are easy to identify once you take the flares off. If you can not see them. Run some sandpaper around the wheel well and they will appear.


Reply
Old Dec 9, 2010 | 07:51 AM
  #6
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

yea its a two inch. we put the tires up to it after we cut and I got room. So after the cut and fold in the back, do I have to weld anything or what did you do?
Reply
Old Dec 9, 2010 | 04:20 PM
  #7
j-rod's Avatar
Senior Member

Joined: Sep 2010
Posts: 603
Likes: 0
From: Farmington WV
Year: 1996
Model: Cherokee
Engine: 4.0
Default

nope no welding needed.

I cant tell from the pics but youll probably have to cut more after you put 33s on. especially at a turn you might rub.

I cut my fronts all the way back and through the fender mounting bolt on the bottom. mine tuck just right now with 4.5"
Reply
Old Dec 9, 2010 | 11:06 PM
  #8
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

just got em on a little while ago. no scrub, thank Jesus! haha but yea, imma do the rear fender thing later on. thanks a lot for the help man
Reply
Old Dec 10, 2010 | 11:26 AM
  #9
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

heres the jeep with the new rims and tires guys. as you can see, the back is kinda tight so I gotta cut that when I get the time
Attached Images
Reply
Old Dec 13, 2010 | 02:09 PM
  #10
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

i got the rear fender cut this past weekend. took off the flares, sanded up to find the pinch welds, cut of the lip, then started cutting in between the pinches. pretty easy, make sure to wear safety glasses, i didnt think i needed them but then i ended up with metal shavings in my eyes. also helps to have someplace warm, trying to cut straight while shivering is pretty hard work. but anyway, after about ten or twelve cuts, i folded back all the metal and hammered it in. rubber mallet works great for this! some paint chipped, but im going to get a new paint job anyway. so after all this i put the tires back on and it looks awesome. no scrub at all and i've got 33's on a 2" budget lift! here's the finished product in the rear. enjoy!
Attached Images
Reply
Old Dec 16, 2010 | 11:54 PM
  #11
adamk's Avatar
CF Veteran
15 Year Member

Joined: Aug 2010
Posts: 1,220
Likes: 0
From: Greensboro
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Looks good. I see you're in Monroe? I was outside last Saturday replacing the hub assembly. I went from wearing a t-shirt and jeans to it snowing right after I finished that afternoon. Talk about the weather here....haha
Reply
Old Dec 16, 2010 | 11:58 PM
  #12
m_gainey's Avatar
Thread Starter
Member

Joined: May 2009
Posts: 120
Likes: 0
From: Monroe, NC
Year: 1996
Model: Cherokee
Engine: 4.0 L 242 High-Output I6
Default

oh tell me about it! the roads were frozen here today and I ended up sliding straight off the road to avoid a car stopped in the middle of the road at the bottom of a hill. people do not think at all! thank the lord for mud tires or i wouldve been done for! haha

Last edited by m_gainey; Dec 16, 2010 at 11:59 PM. Reason: rephrase wording
Reply
Old Dec 17, 2010 | 12:35 AM
  #13
adamk's Avatar
CF Veteran
15 Year Member

Joined: Aug 2010
Posts: 1,220
Likes: 0
From: Greensboro
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Yea man. I made the trip back to Raleigh for the holidays sense I'm done with school for this semester and there were cars all over the place.
Reply
Old Dec 17, 2010 | 12:59 AM
  #14
FPEfabrication's Avatar
Newbie

Joined: Dec 2010
Posts: 20
Likes: 0
From: alabama
Model: Cherokee
Engine: 4.0
Default

my DD is sitting on 6inchs of lift with 33's and they tuck perfect with no rub non cut fenders lol
Reply
Old Dec 17, 2010 | 07:17 AM
  #15
j-rod's Avatar
Senior Member

Joined: Sep 2010
Posts: 603
Likes: 0
From: Farmington WV
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I just dont see you wheeling it mch with 2" lift and 33's. not much room for travel in the suspension without rubbing.
Reply
