Old May 8, 2018 | 08:25 PM
Share
  #31
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Painted the lower body area that’s getting covered & the back side of the boat side plate.

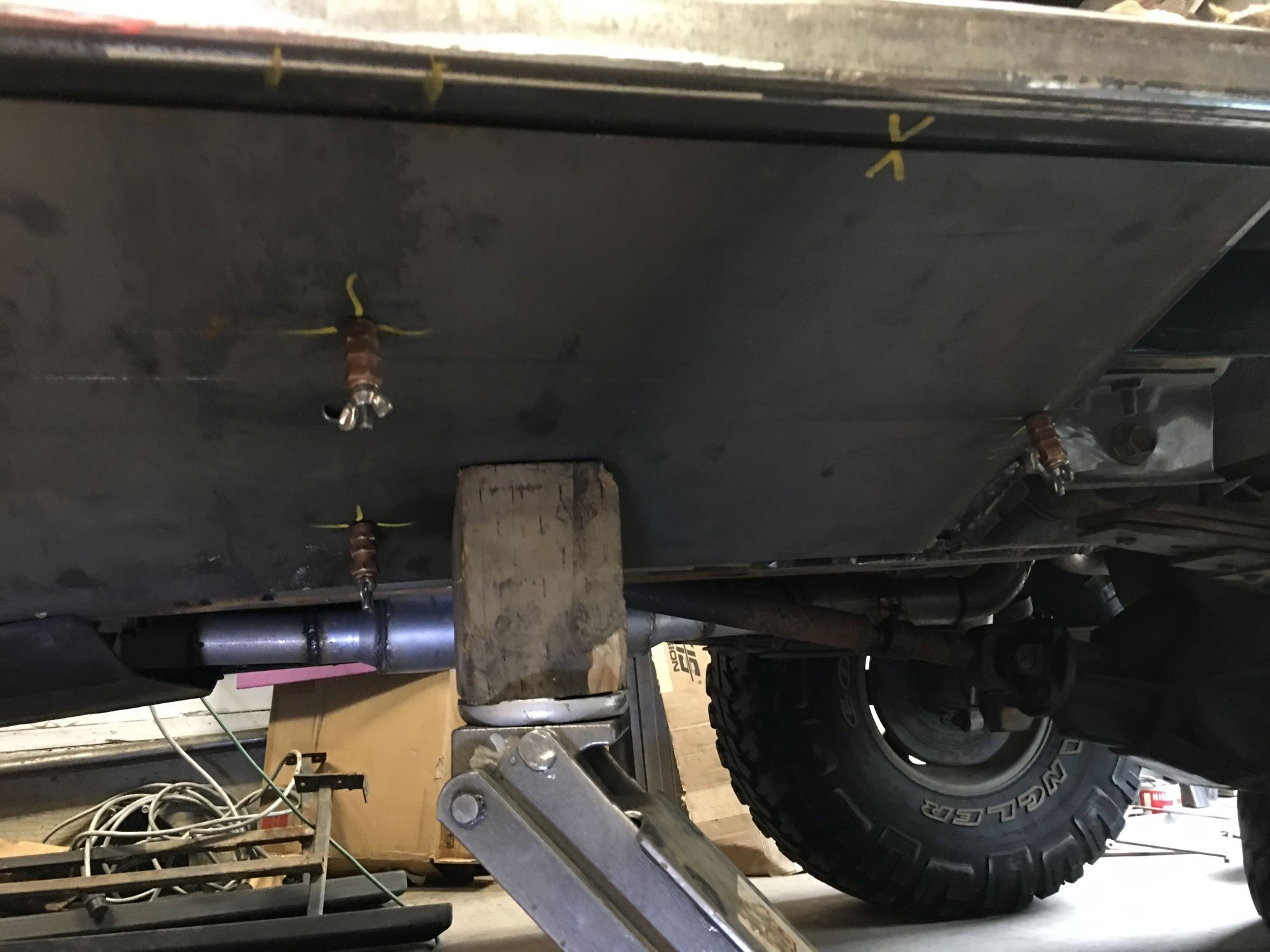

Used a jack to flex the plate into position.

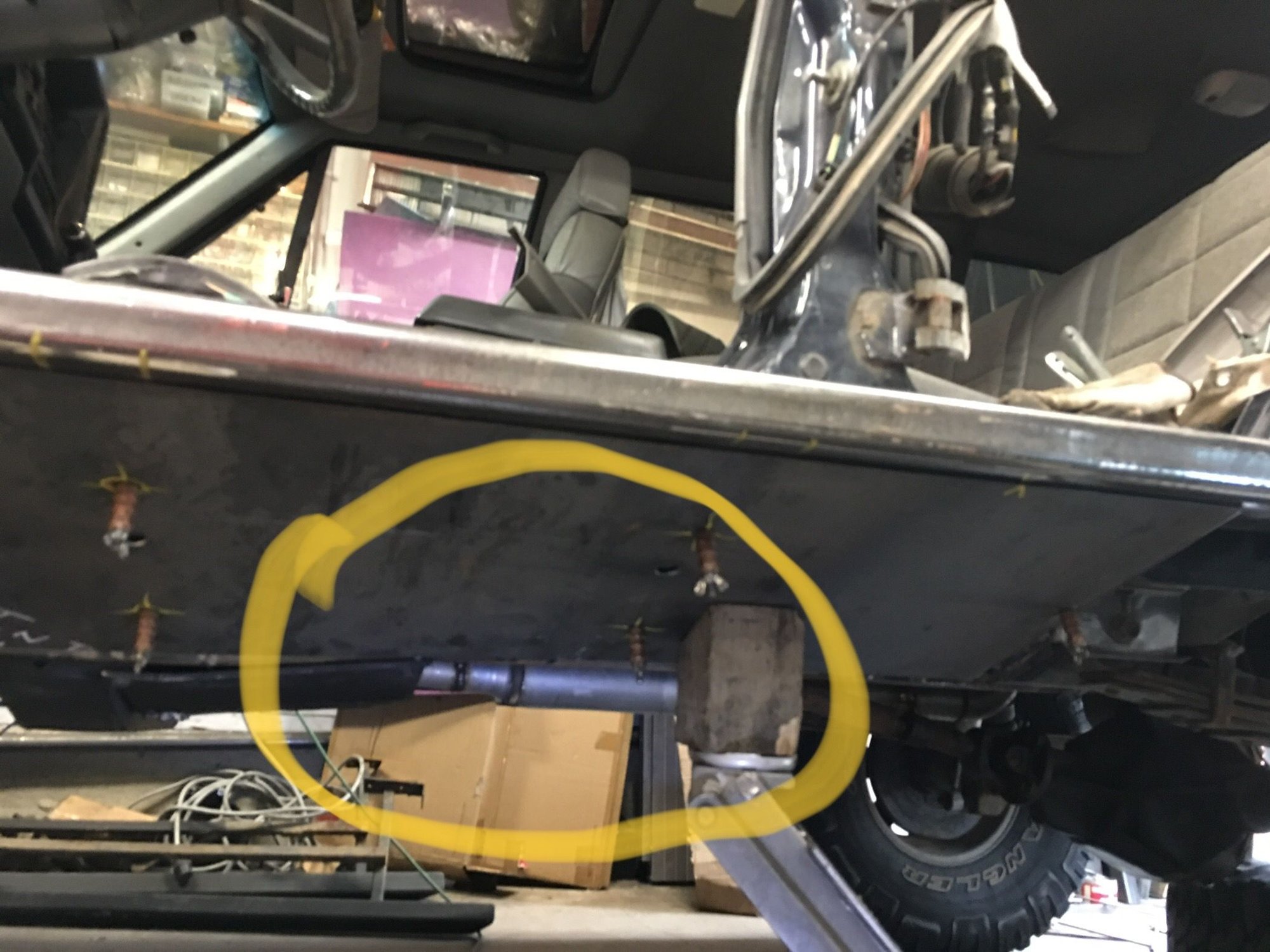

Here you can see where the plate flexes and why the tie ins are different front and rear. Make sure to grind smooth the welds at the bottom of where the tie ins and frame meet. I also had to smooth up a couple of welds from my frame stiffeners. I wouldn’t suggest doing this whole mod until after ya put in frame stiffeners, would be a major pita to weld to the thin “frame”.
Reply
0
Old May 8, 2018 | 11:40 PM
Share
  #32
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default

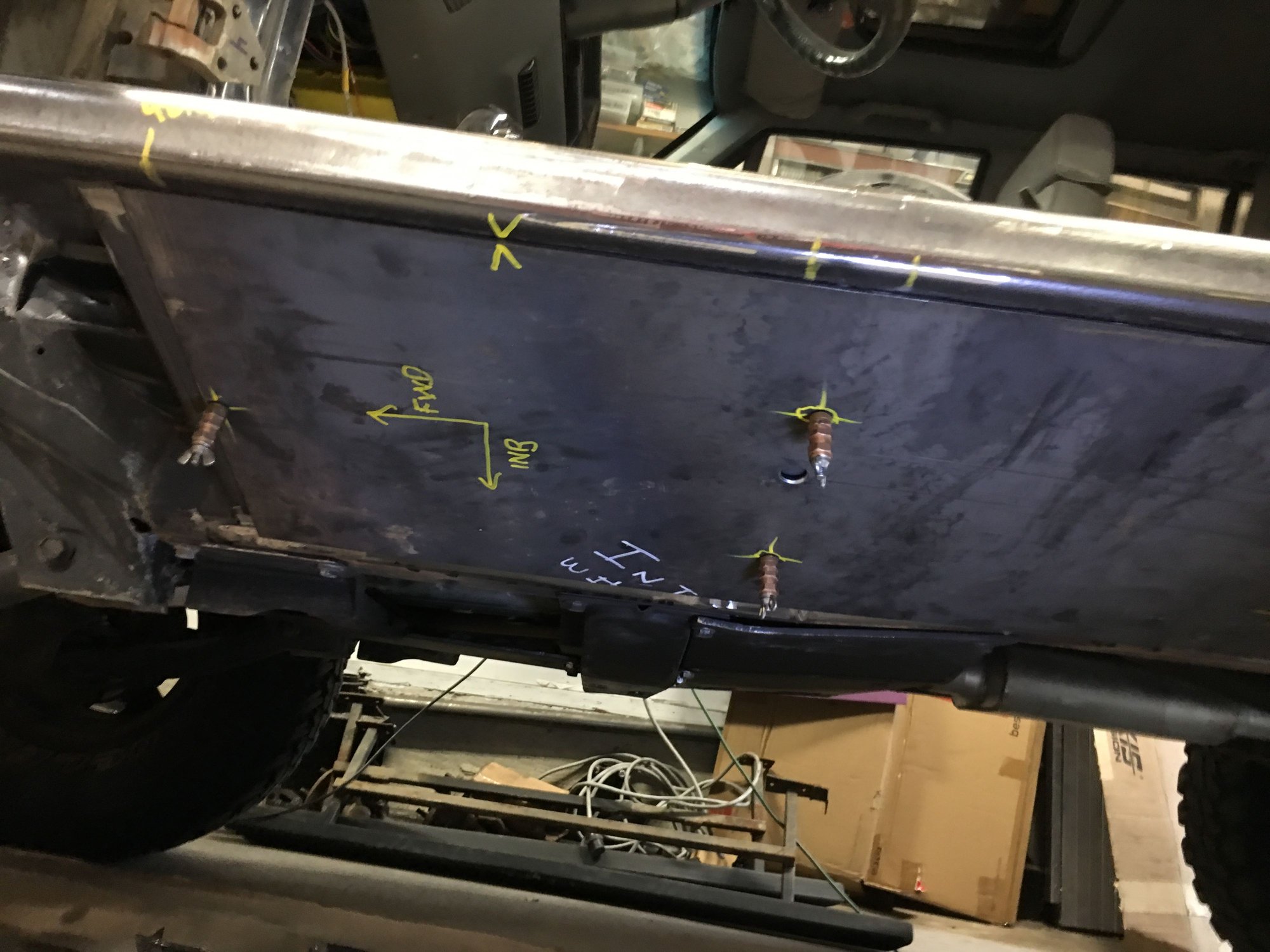

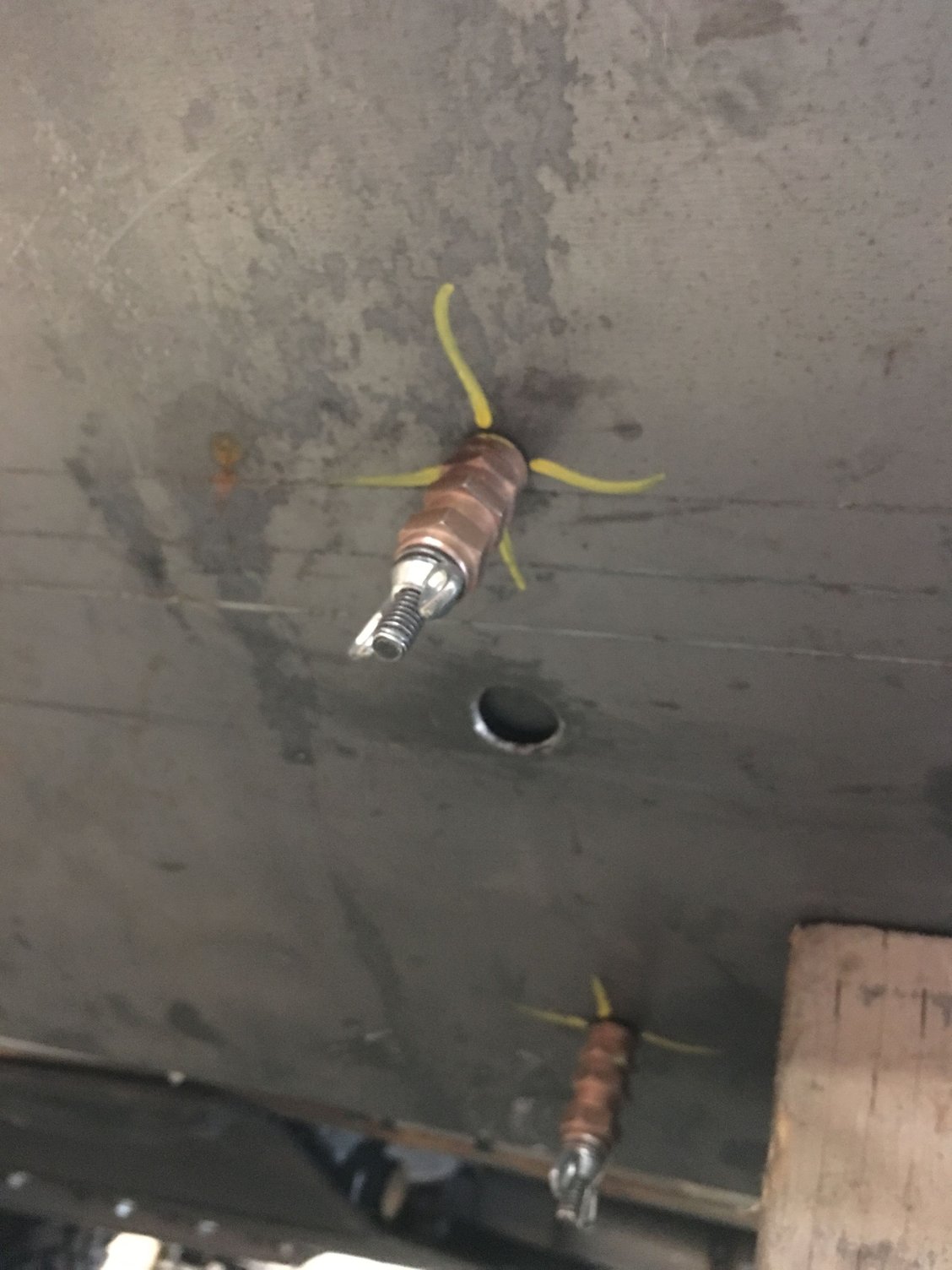

This is the 1” hole I drilled to plug weld to the tie ins.
I used a jack to push the plate against the tie in
Then plug welded it. Do these first to get your plate to contour correctly.
Reply
0
Old May 8, 2018 | 11:43 PM
Share
  #33
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default

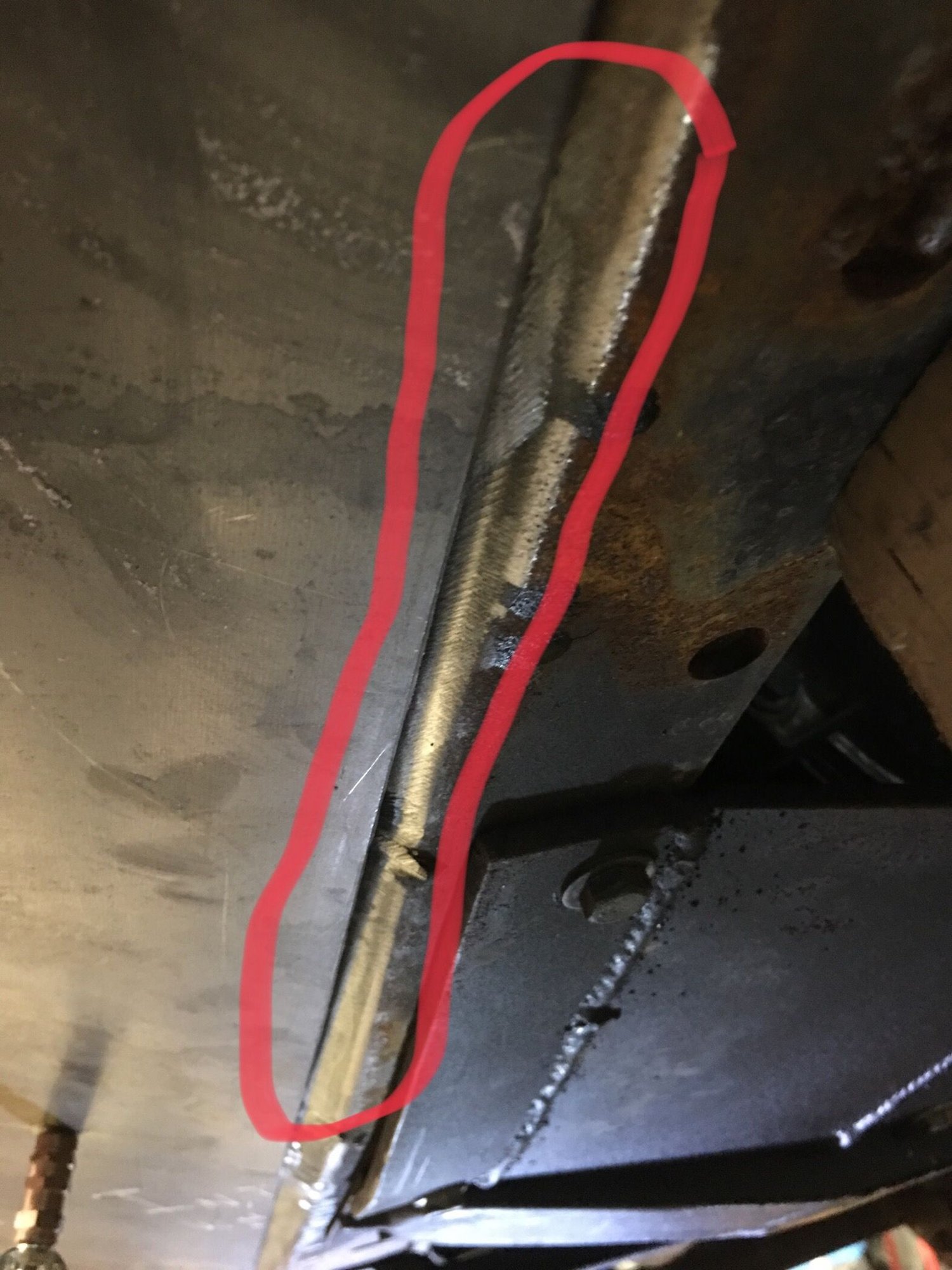

Here’s that 3/16-1/4” overlap on the frame. You can see how the frame has a beveled contour in this area. The overlap should add a tremendous amount of strength here.
And all welded in 👍
Reply
0
Old May 8, 2018 | 11:48 PM
Share
  #34
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Next I didn’t like this area all open and exposed. Plus I wanted to reinforce the spring mount to.

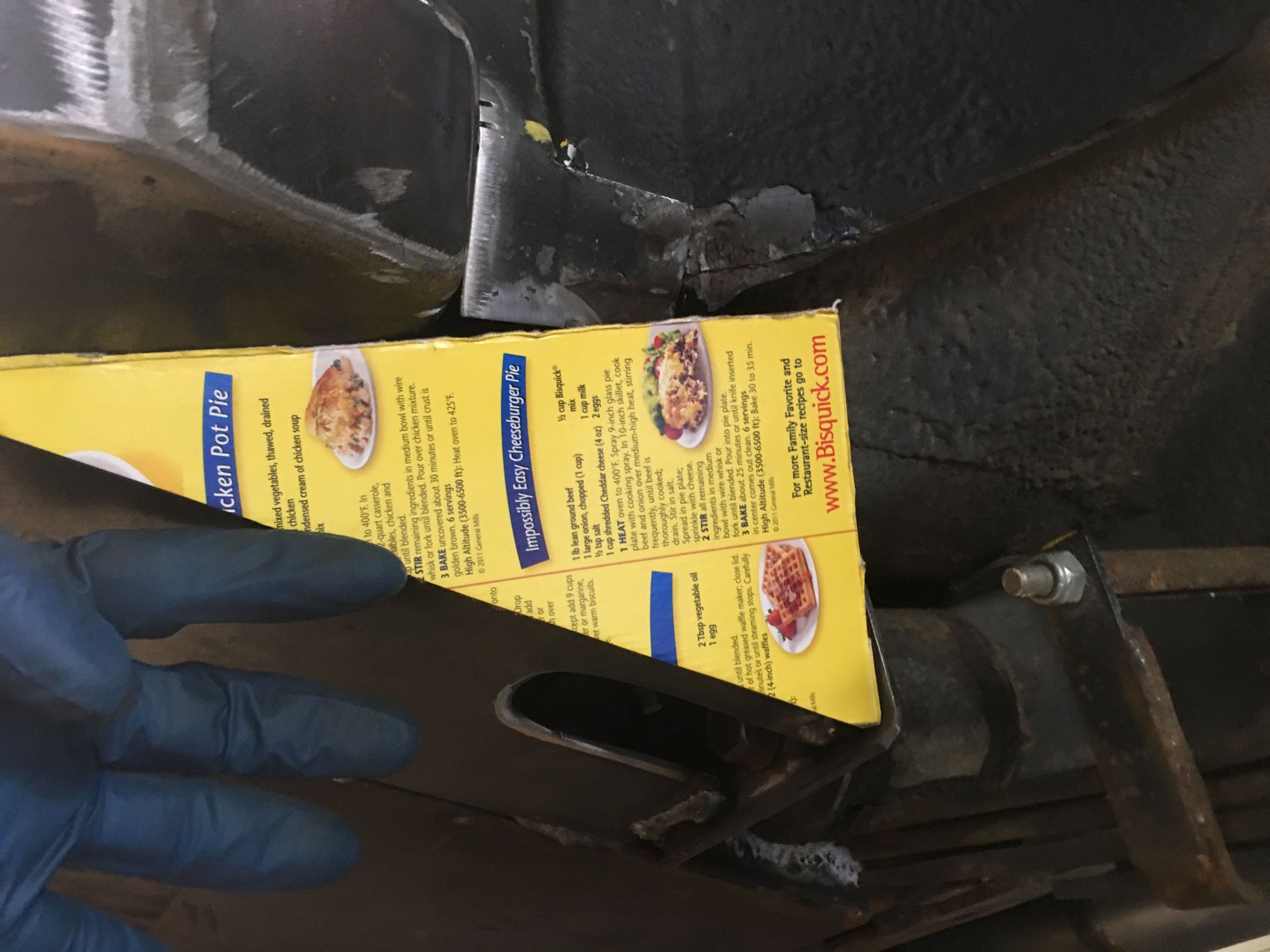

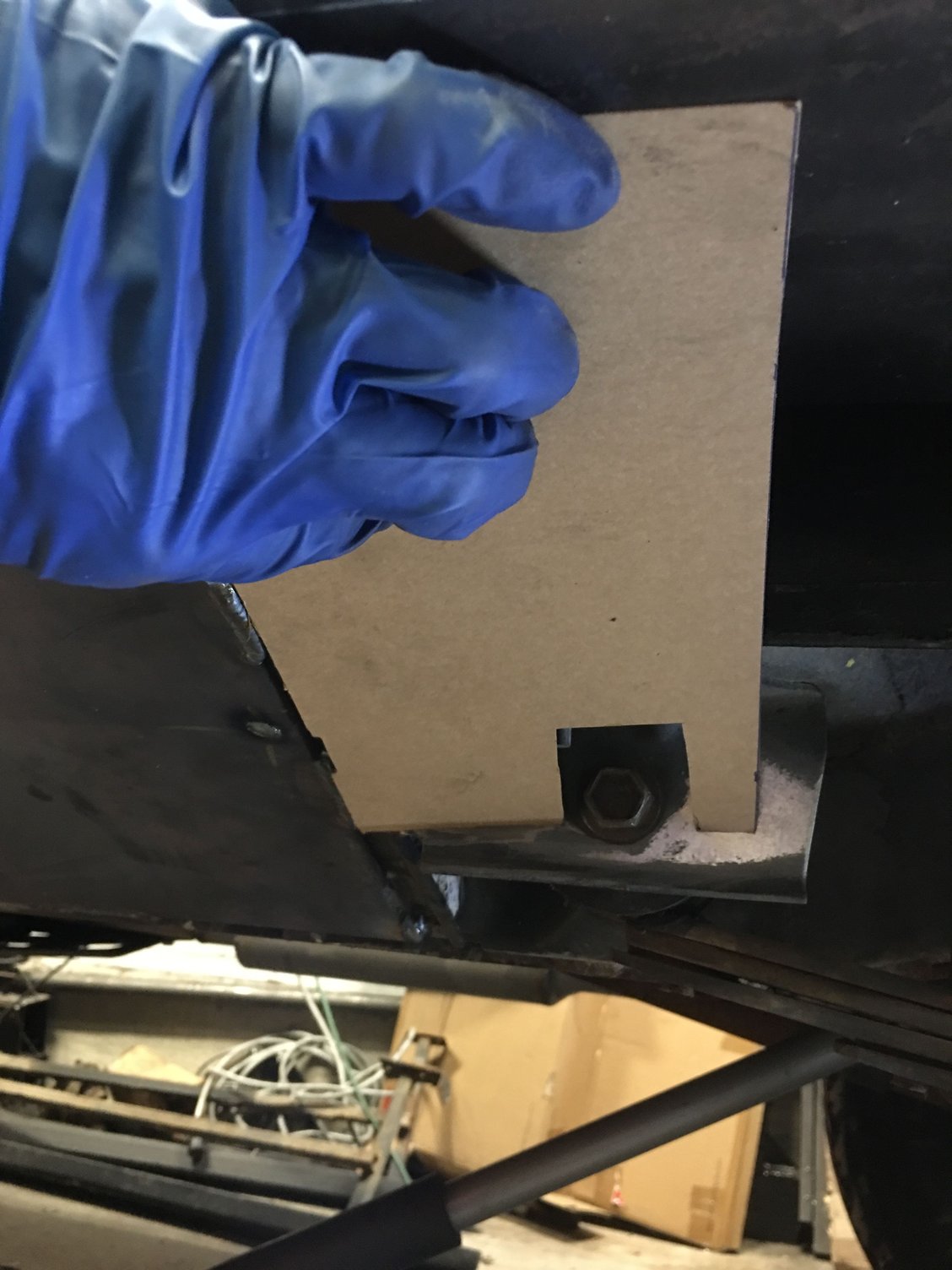

Used the latest CAD design software 😋

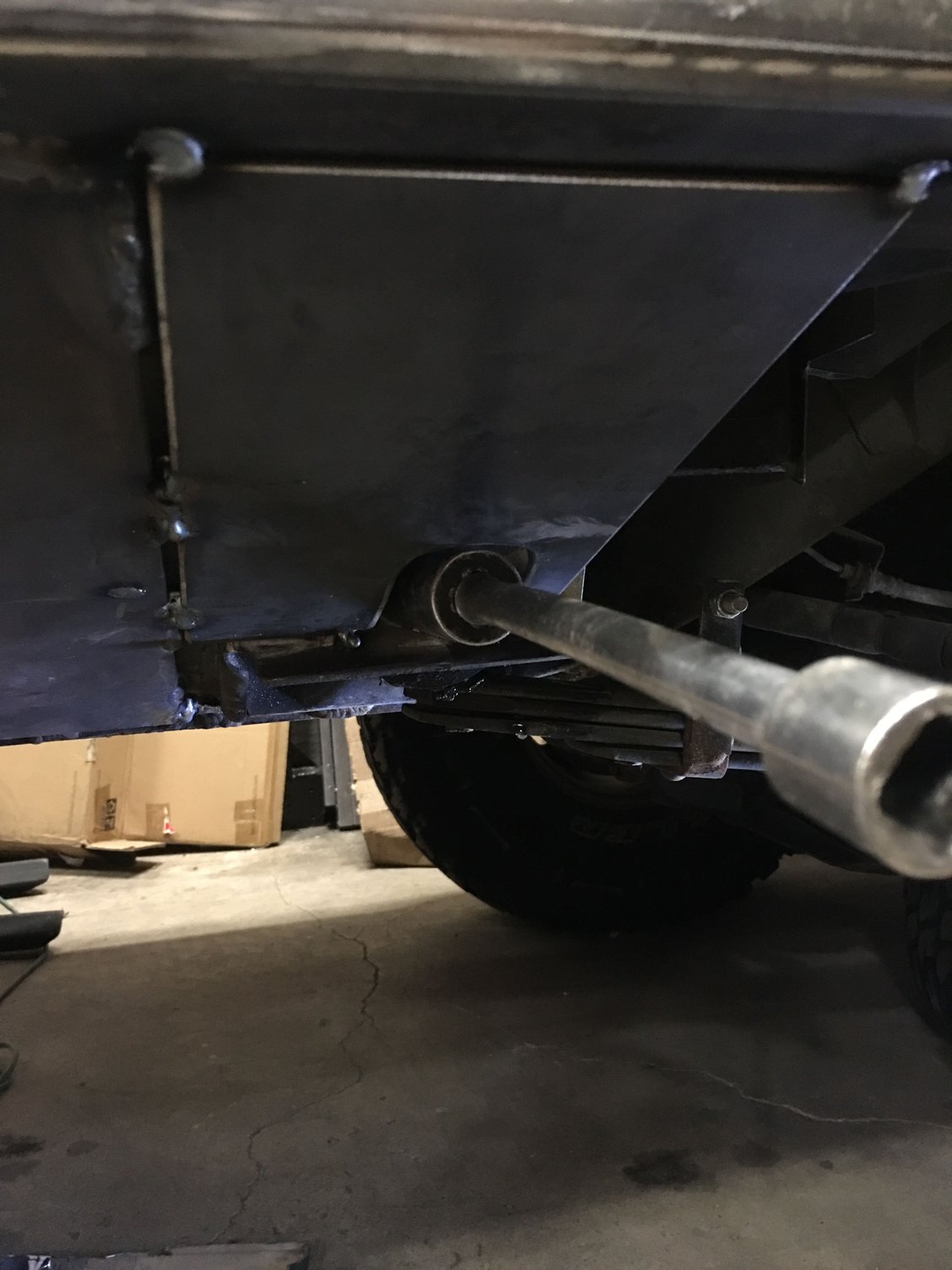

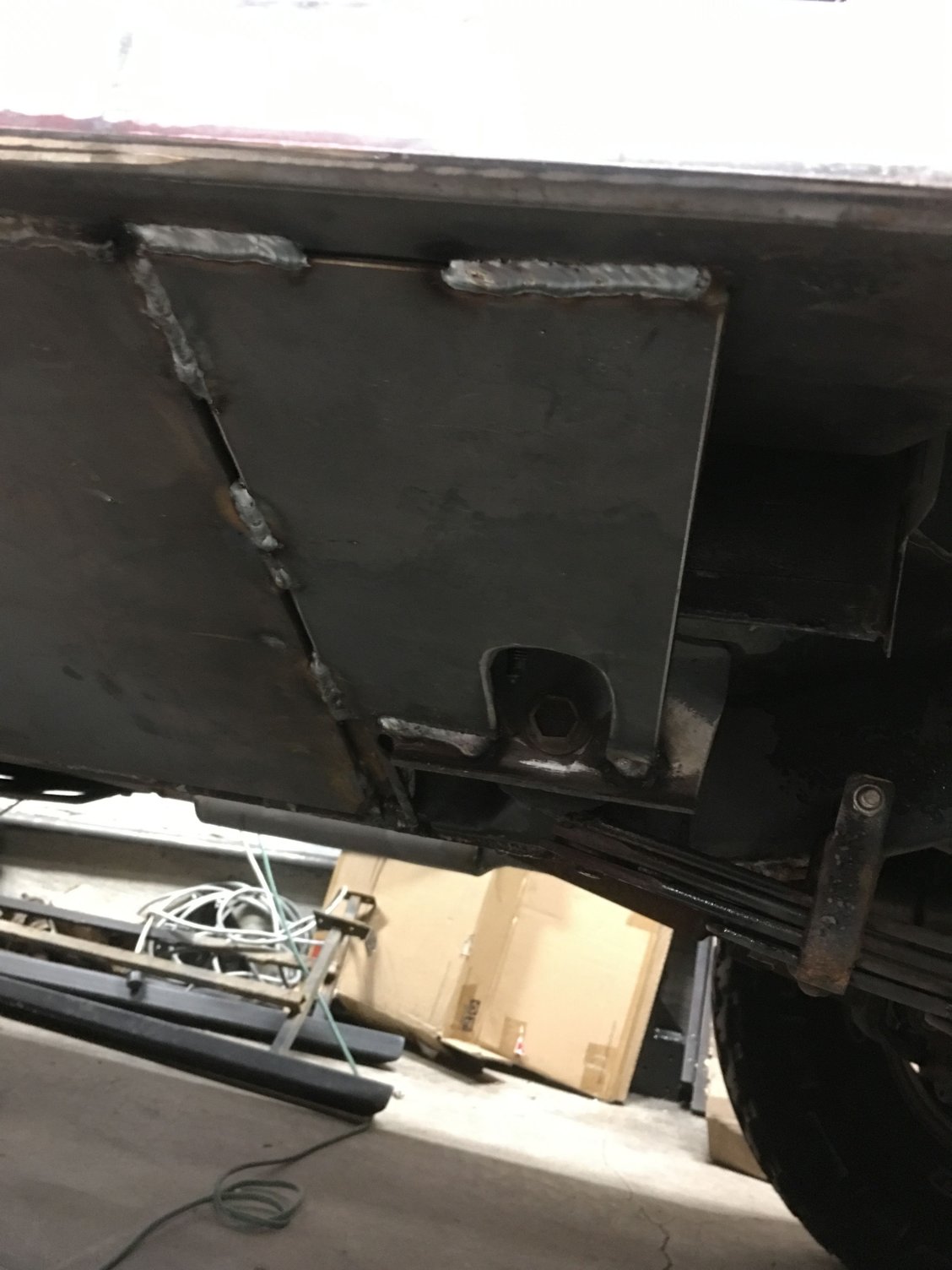

Plasma cut a 3/16” piece and tacked it in. Grab a deep 13/16” socket and make sure you can access the bolt before ya weld it in.
When welding this you’ll want to keep the spring bushing cool. I used a spray bottle before and after welding.
Reply
0
Old May 9, 2018 | 07:18 PM
Share
  #35
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default

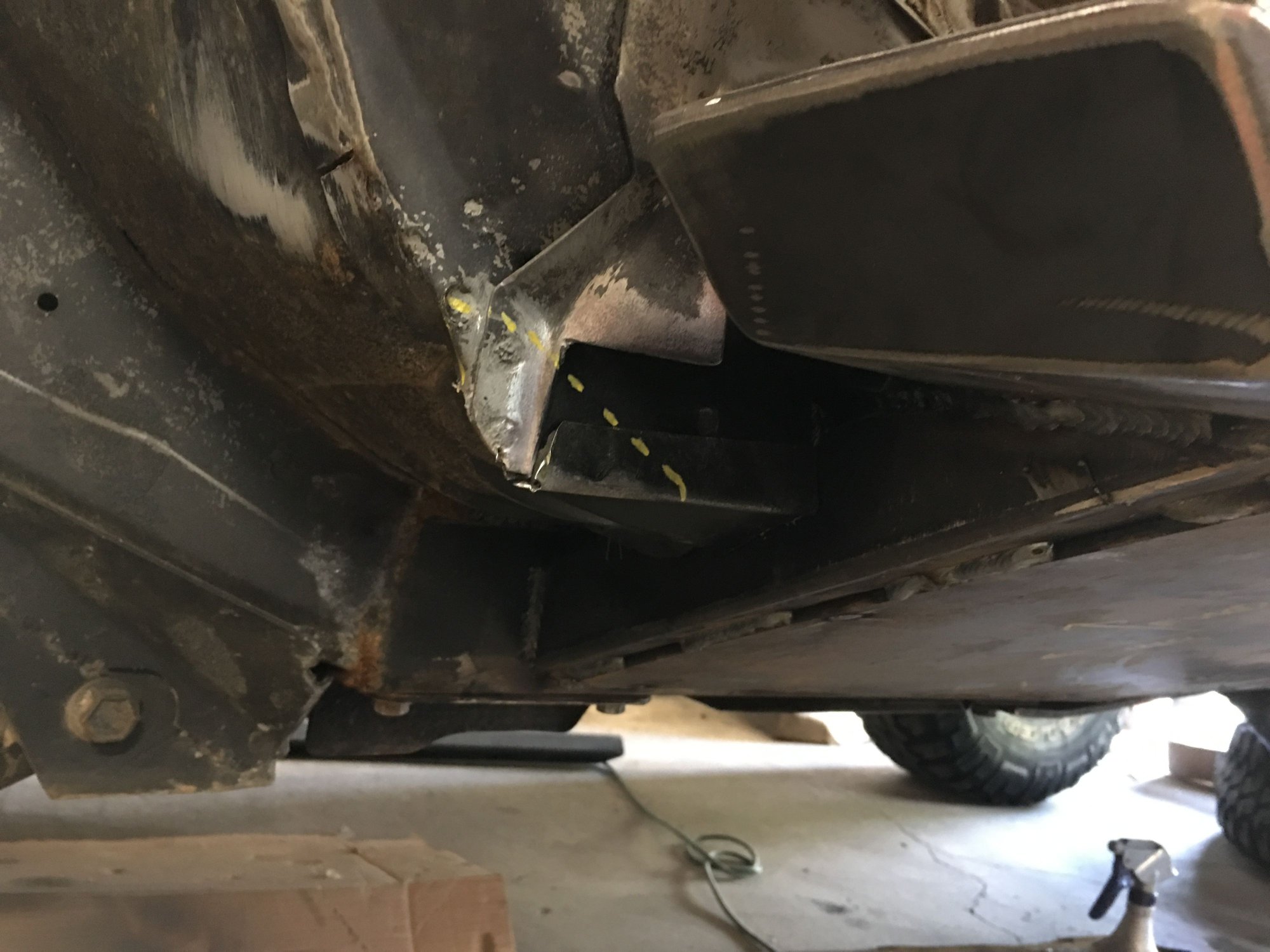

Now to fill the end gaps. Here’s the rear one.
I cut this out and folded the inner fender back.
More hi tech cad work 😋

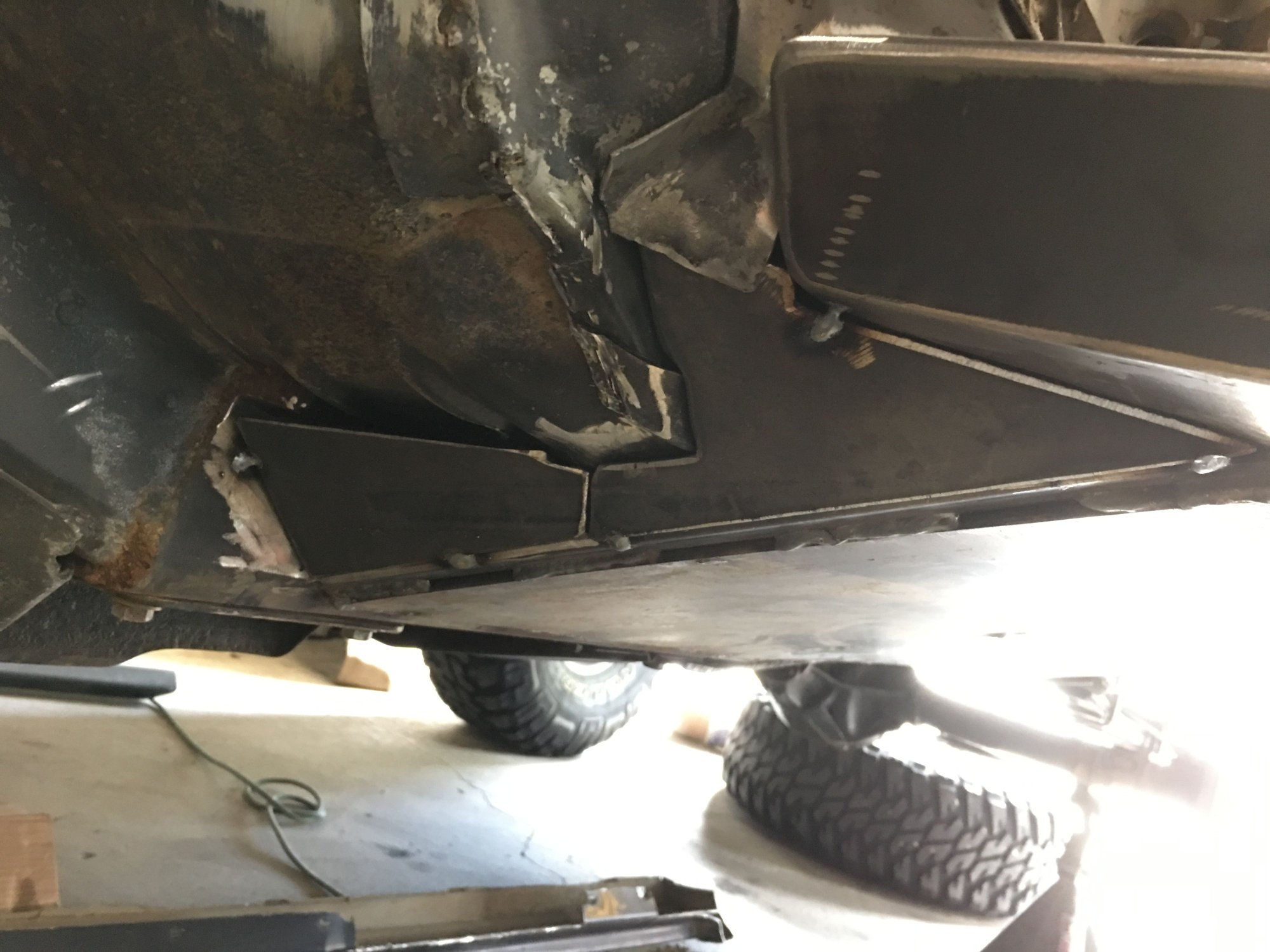

Got it tacked in then final welded. That spring perch is fully reinforced now 👍
Up front I cut just a little lower than this line
Then folded it over.
Made a template
Pieces tacked in.
Then welded in. I used seam sealer to fill in the gaps and prep for paint.
Reply
0
Old May 9, 2018 | 07:31 PM
Share
  #36
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
I ground the welds fairly smooth so things don’t hang up on them. Then primered the bare metal.
A couple coats of bed liner and it’s looking pretty good! I’ll probably put one more coat on while I do the doors.
How the rear turned out.
And the front. Next time I’d probably put the tie in flush with the end of the plate but this’ll work. Now to get the doors done 😋
Reply
0
Old May 10, 2018 | 06:59 AM
Share
  #37
mikebravo's Avatar
mikebravo
Member

Joined: Nov 2016
Posts: 217
Likes: 5
From: KTUL
Year: 1996
Model: Cherokee
Engine: 4.0
Default
Should have made some drainage holes. Are you planning on running no doors or hacking the doors up?
Reply
0
Old May 11, 2018 | 01:23 PM
Share
  #38
unidentifiedbomb's Avatar
unidentifiedbomb
CF Veteran

Joined: May 2011
Posts: 6,098
Likes: 250
From: DE
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default
****
Reply
0
Old May 11, 2018 | 05:56 PM
Share
  #39
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Originally Posted by mikebravo
Should have made some drainage holes. Are you planning on running no doors or hacking the doors up?
moisture will be able to drain out by the frame, not much room for it to get in. I’m running doors, just cutting the bottom. That’s next as soon as I can get some time away from work 🙄
Reply
0
Old May 12, 2018 | 06:48 AM
Share
  #40
bad_idea's Avatar
bad_idea
CF Veteran
5 Year Member

Joined: Apr 2016
Posts: 1,820
Likes: 60
From: Pasquotank, NC
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Outstanding work. I like the attention to detail and the thorough documentation with good pics.

What kind of work do you do? I assume something in the fabrication industry. If I had to guess, I would say you probably work at the shipyard up there (I noticed you labeled the plate inboard on the bottom of plate).
Reply
0
Old May 12, 2018 | 04:09 PM
Share
  #41
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Currently I’m a locomotive engineer, but I also was an auto mechanic and worked at Boeing. So trains, planes & automobiles has been my career path 😂. Learned a lot at Boeing on fabrication and locating parts. Thanks for the kind words 👍
Reply
0
Old May 15, 2018 | 03:36 AM
Share
  #42
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default

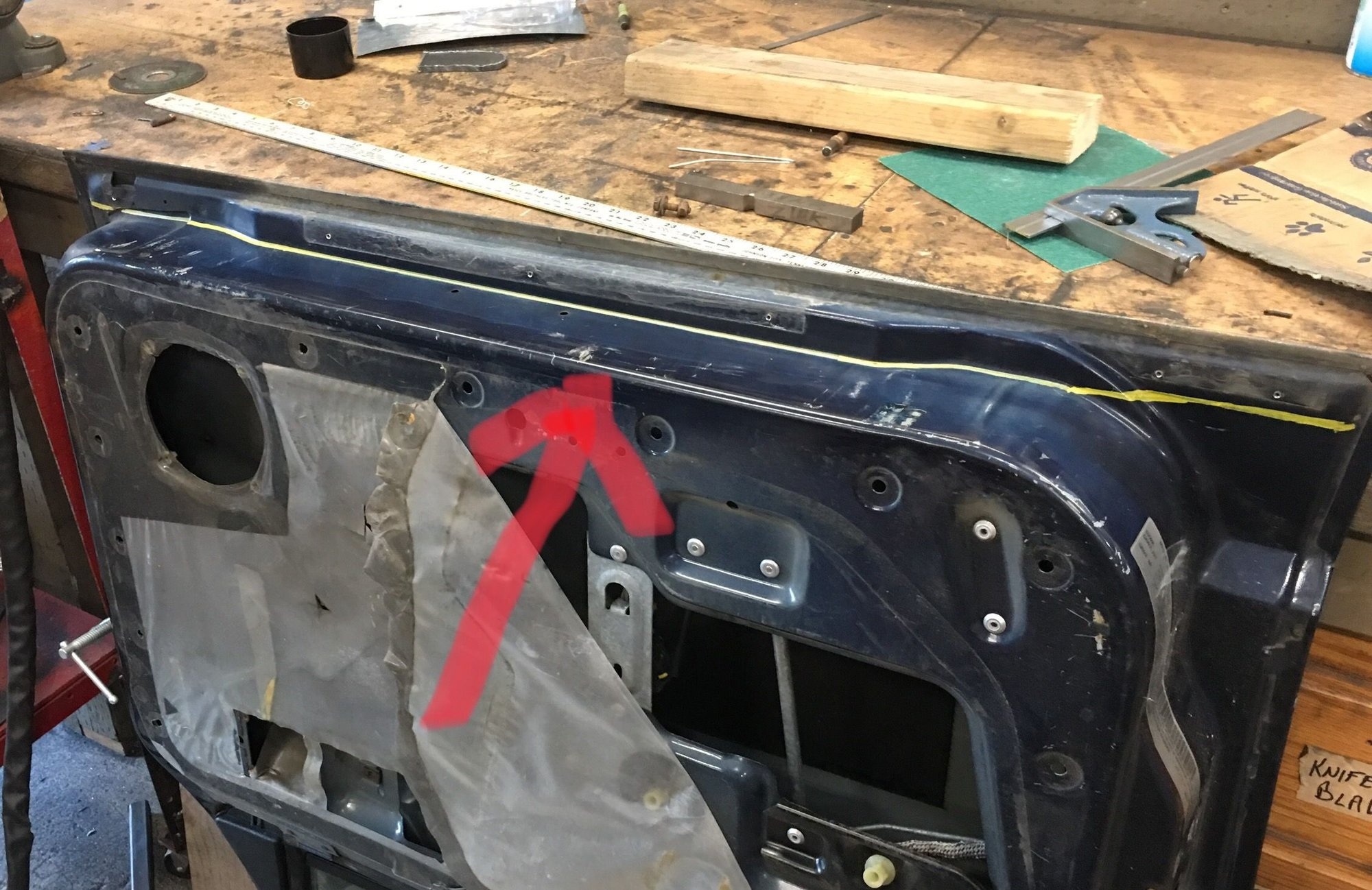

Now for the doors. I cut along the yellow line, flush with the bottom. Cut just the inside panel for now.

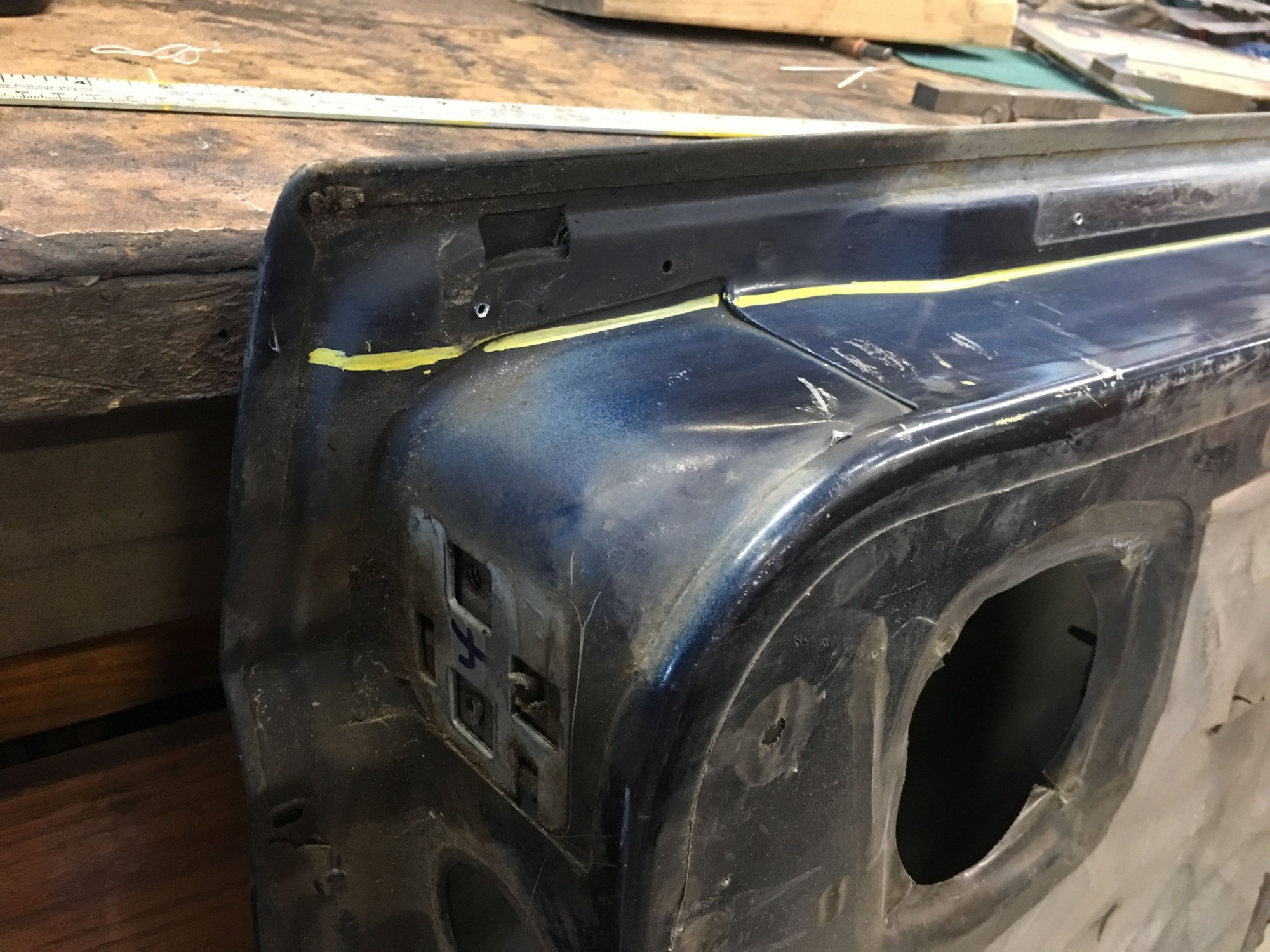

The ends are a pain to get the line level.

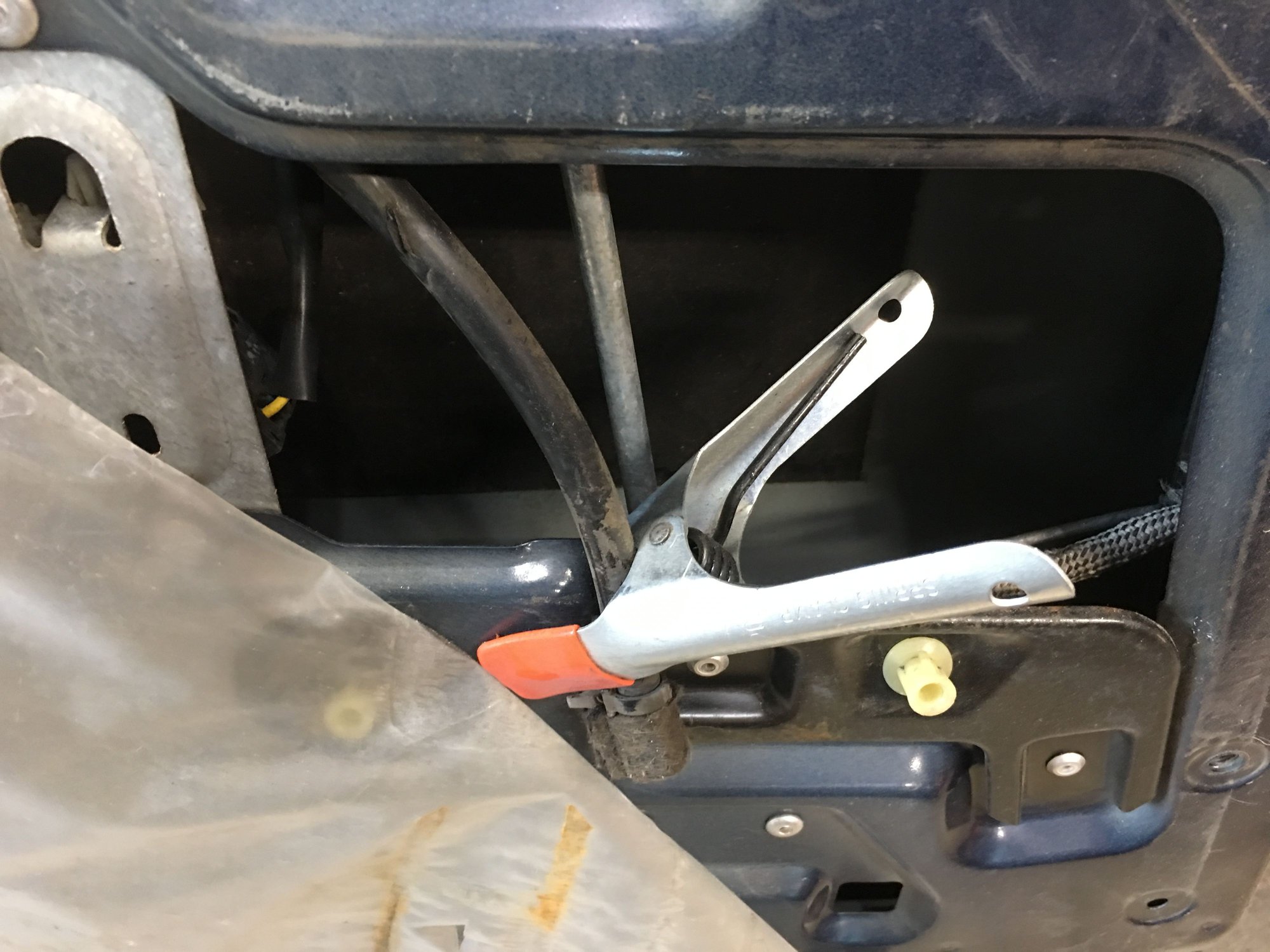

Before cutting, move the window regulator tube thingy so it doesn’t get cut.
Reply
0
Old May 15, 2018 | 03:43 AM
Share
  #43
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
Cut the inside panel

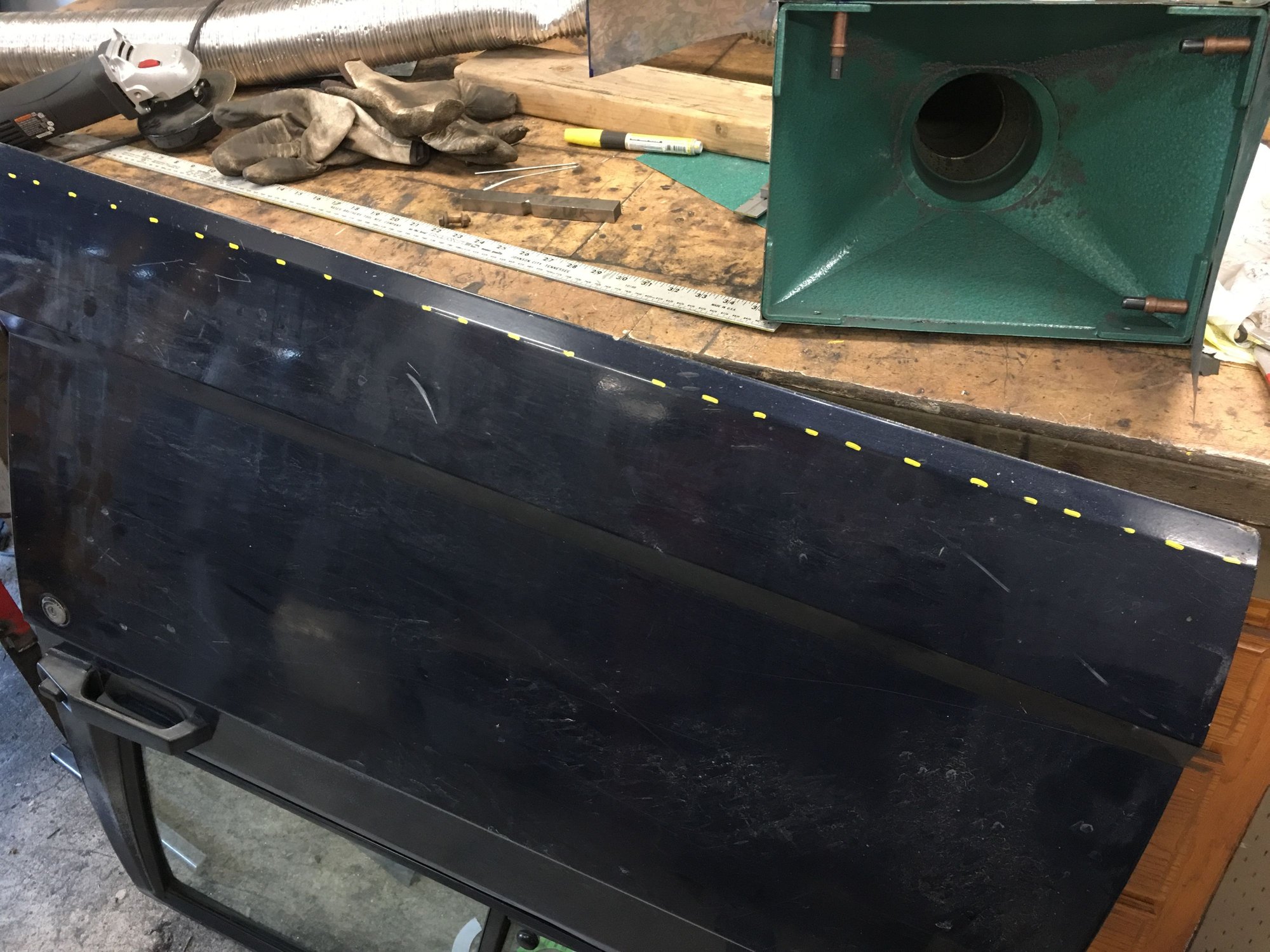

Then along the dotted line which is the body line about an inch from the bottom of the door.
Like this. Cut thru both panels on the ends.

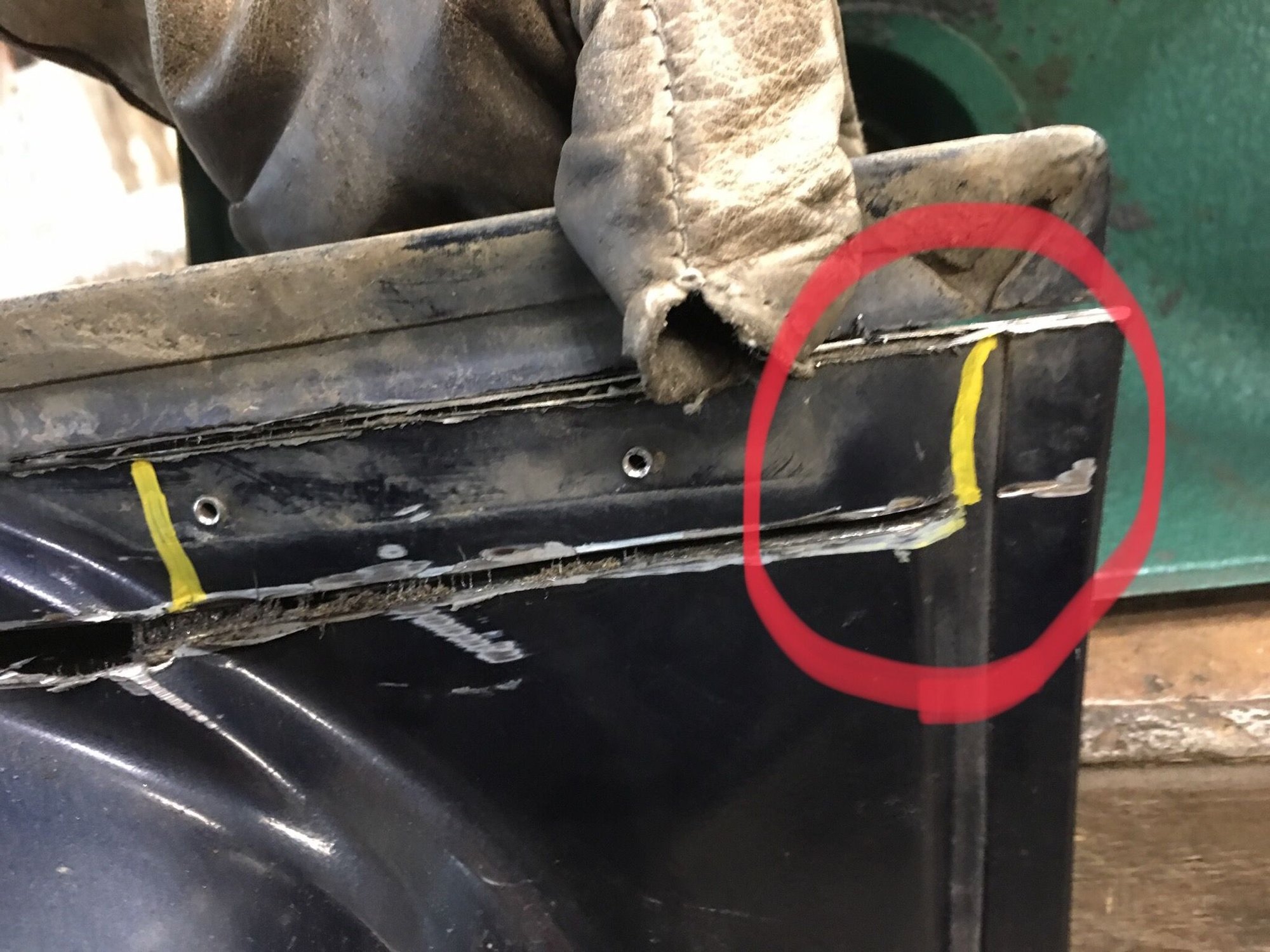

Then cut at the ends here and
Here.
Comes out looking like this.
Reply
0
Old May 15, 2018 | 03:50 AM
Share
  #44
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default

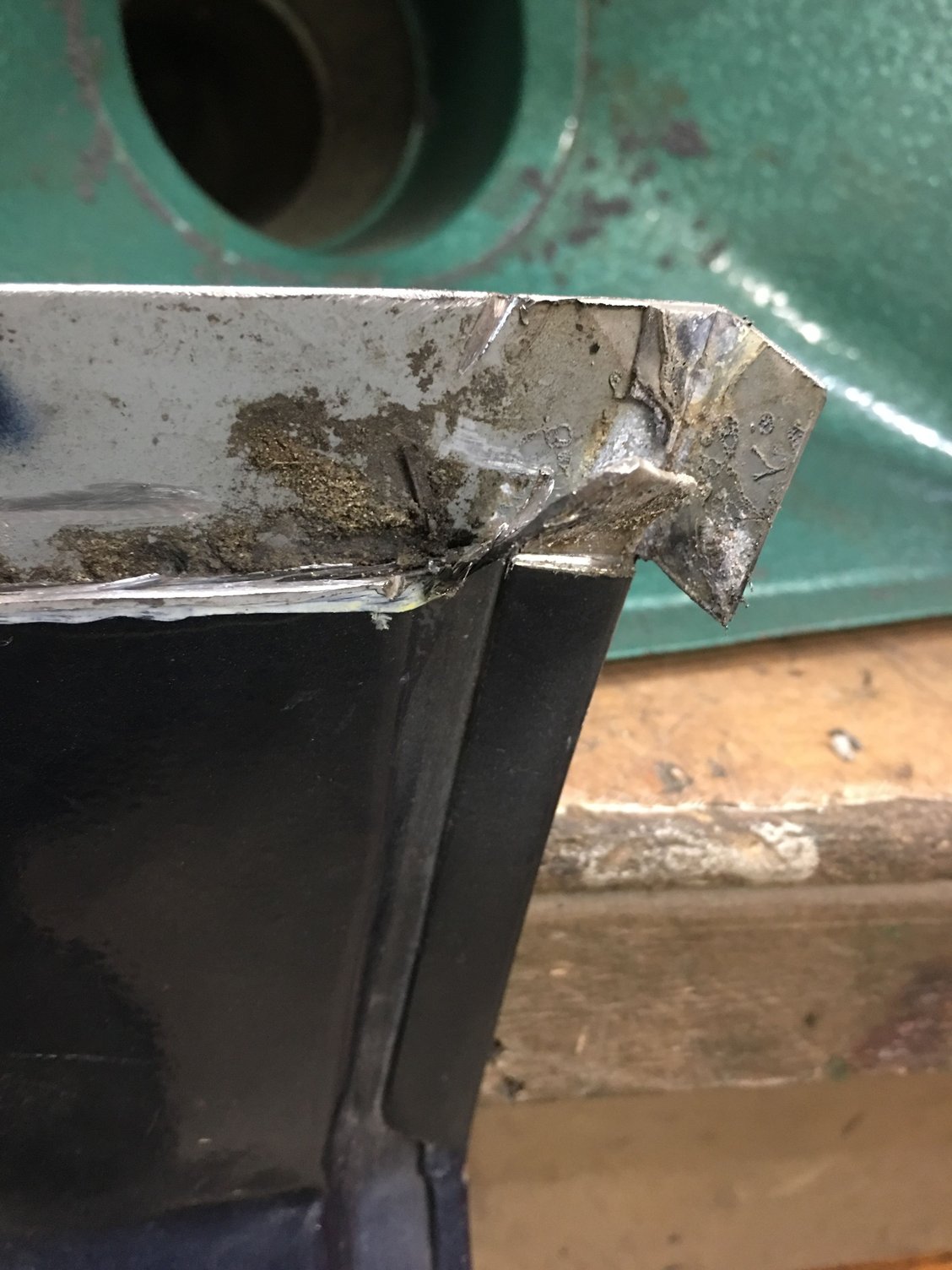

On the ends is this door edge area.

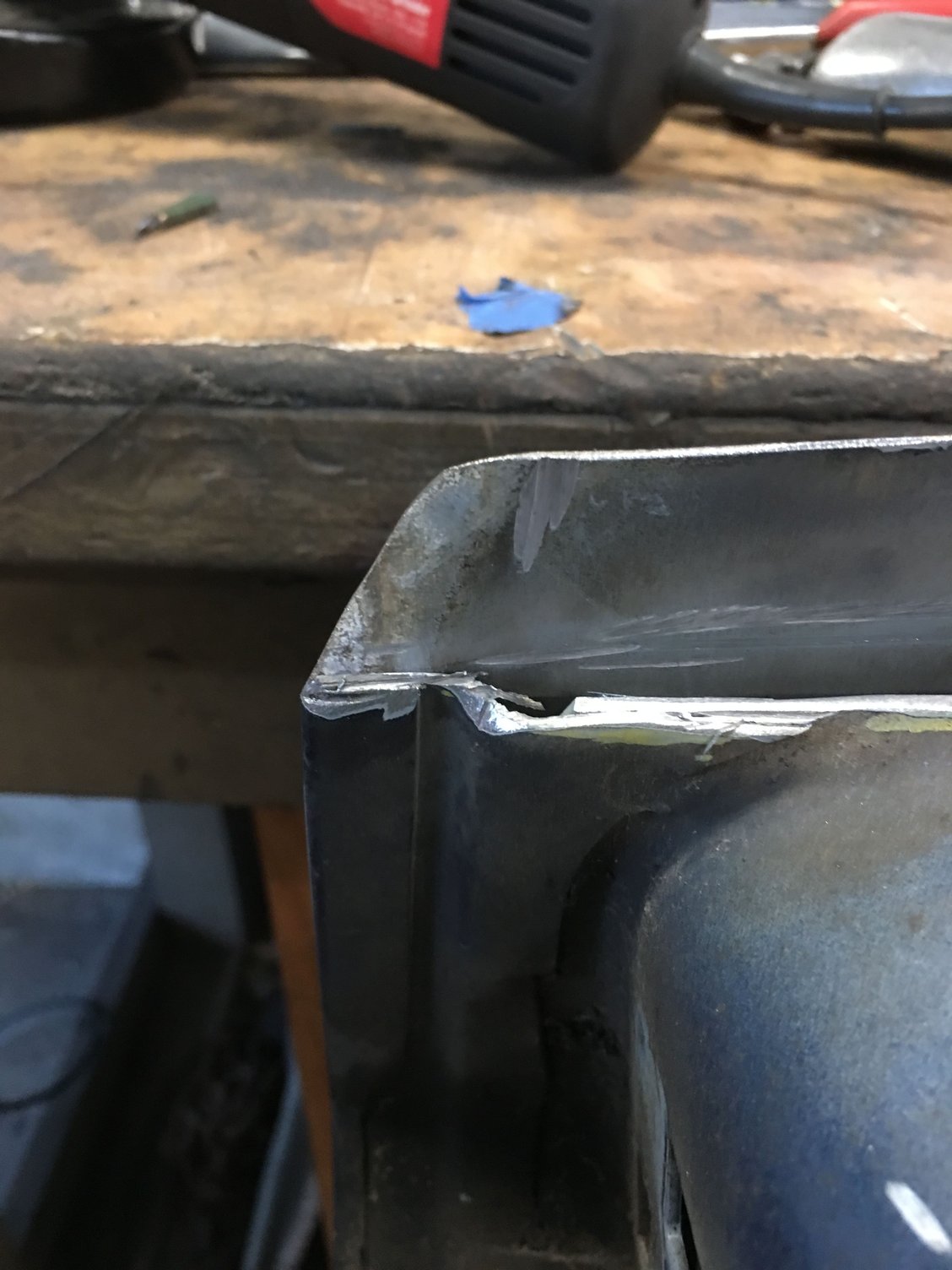

Carefully cut the inner panel.
Then clean it up like this.
I cleaned off the paint for welding.

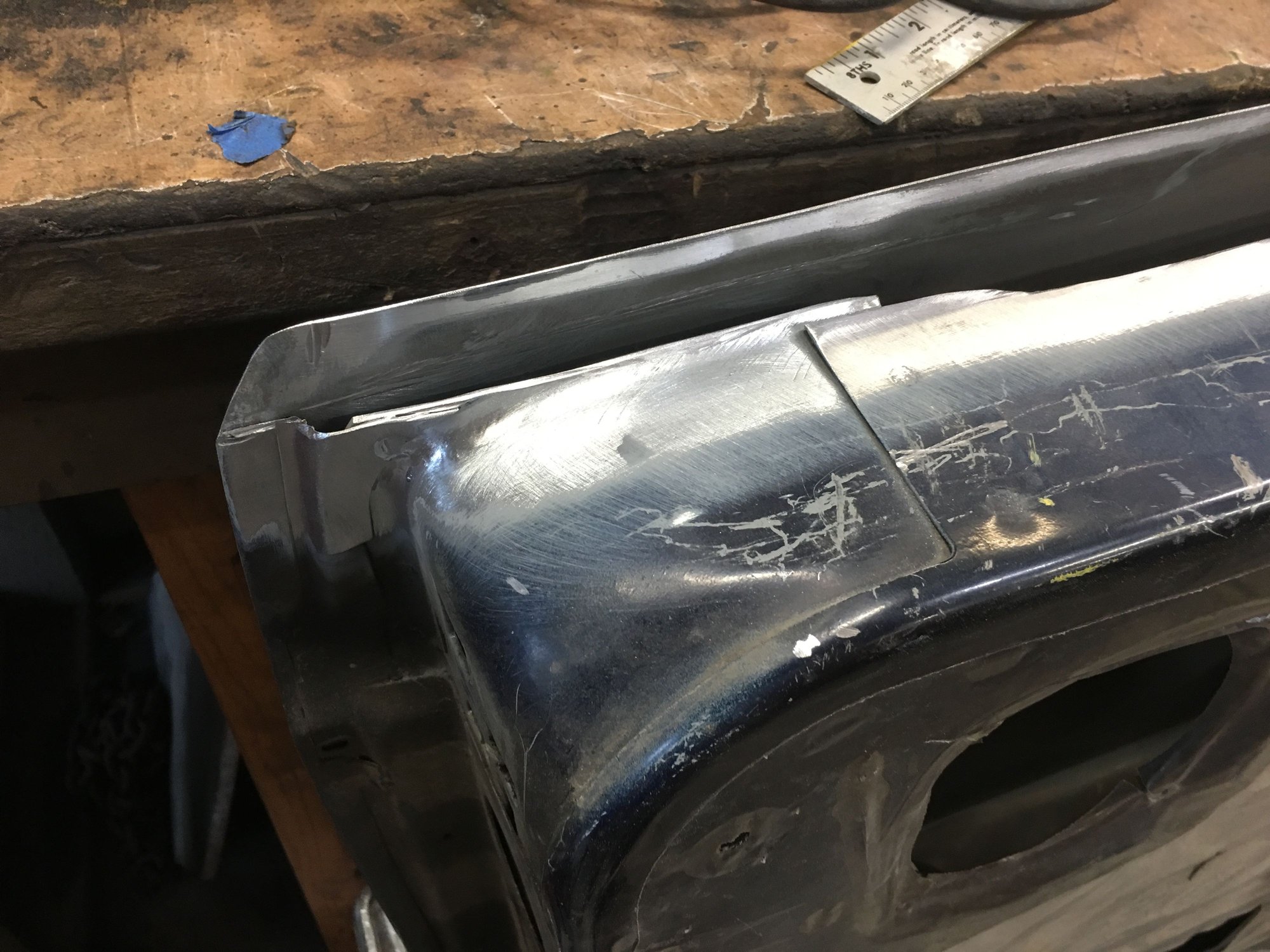

Take your time and get the ends level with the rest.
Like this.
Reply
0
Old May 15, 2018 | 04:04 AM
Share
  #45
Baddad's Avatar
Baddad
Thread Starter
Seasoned Member

Joined: Feb 2013
Posts: 302
Likes: 22
From: Seattle
Year: 1990
Model: Cherokee
Engine: 4.0
Default
I made these patches out of heavy gauge sheet metal, 16ga I think.

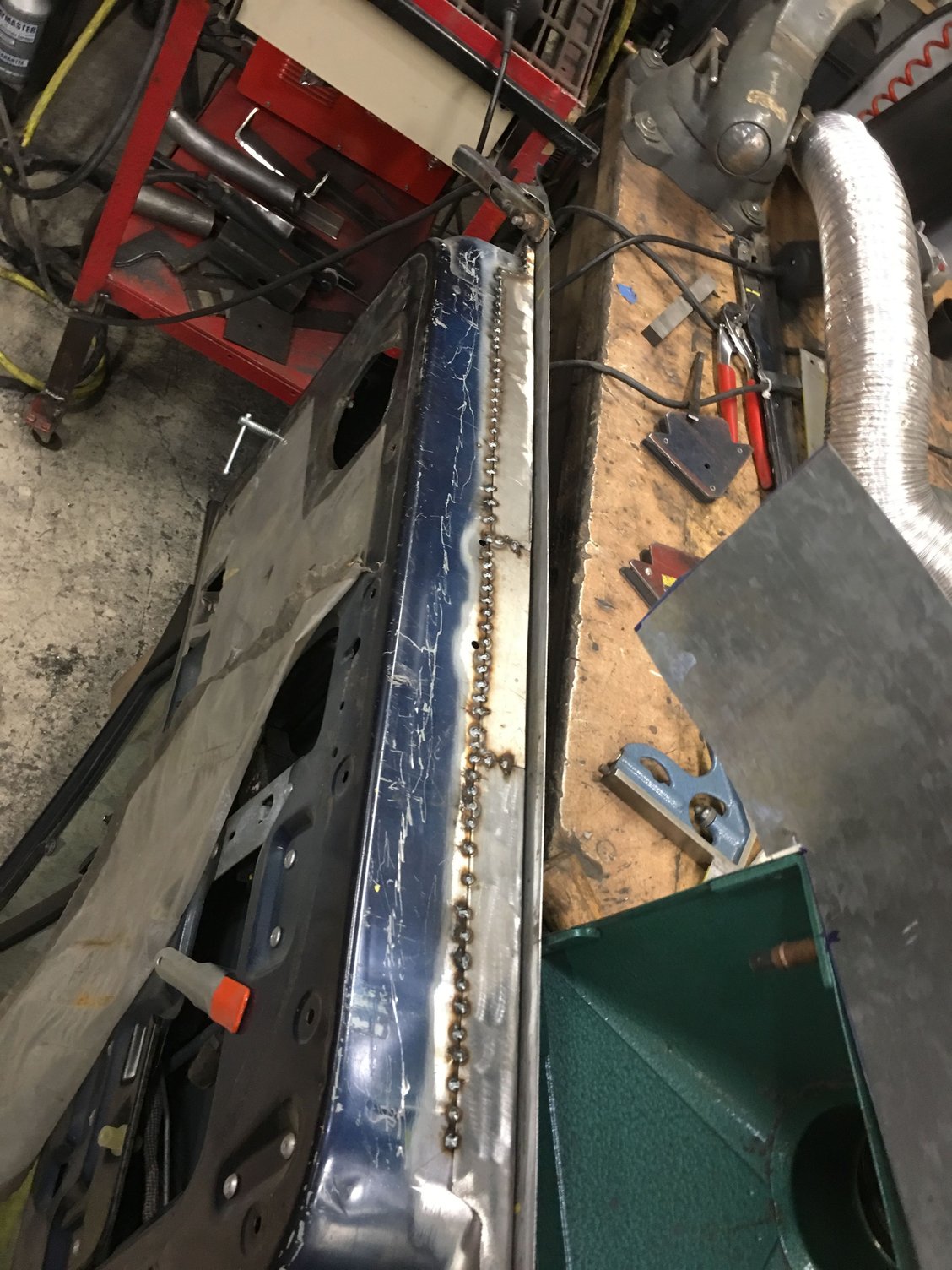

Tacked then in.
A lot of tack welds 😋

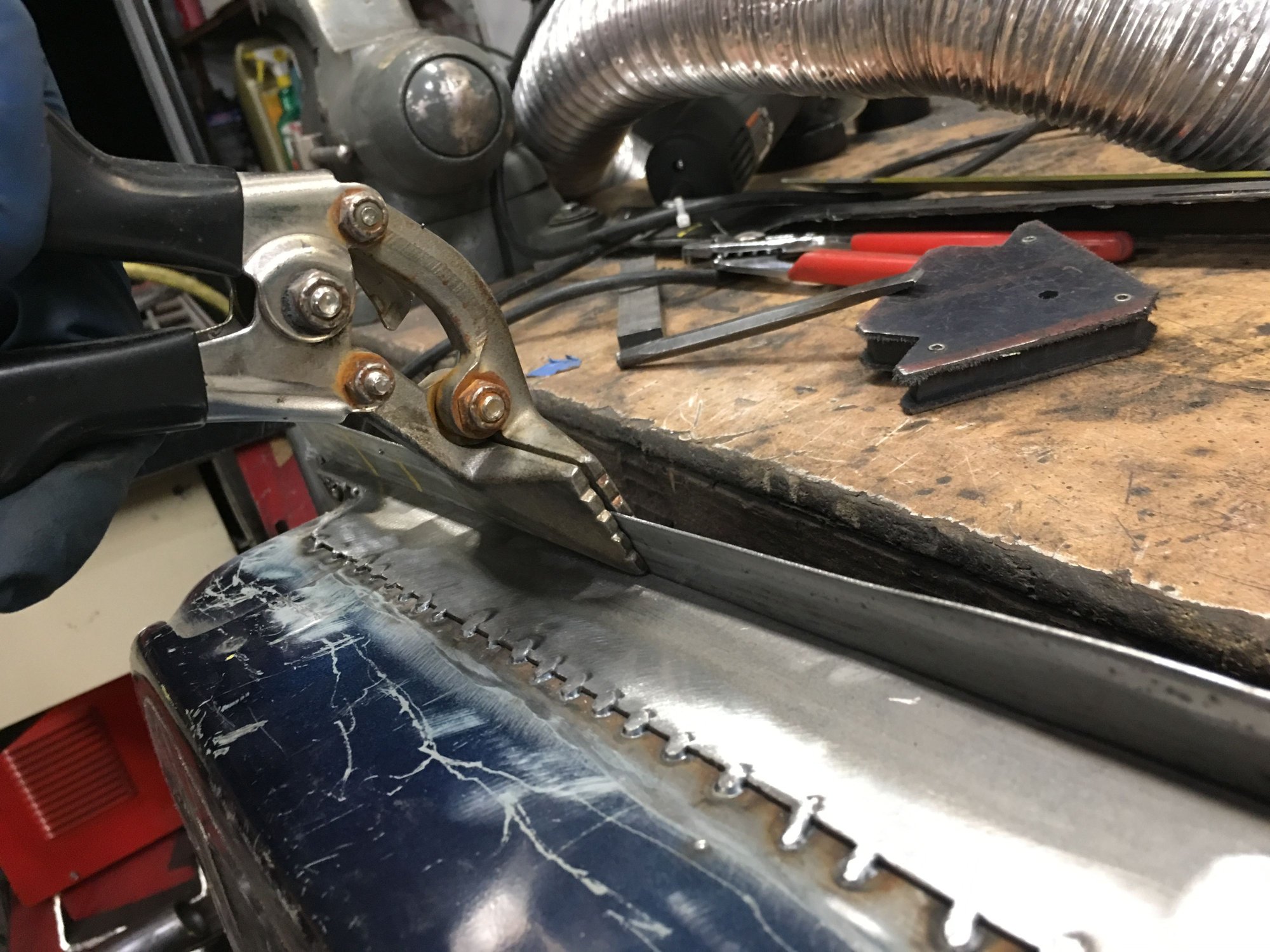

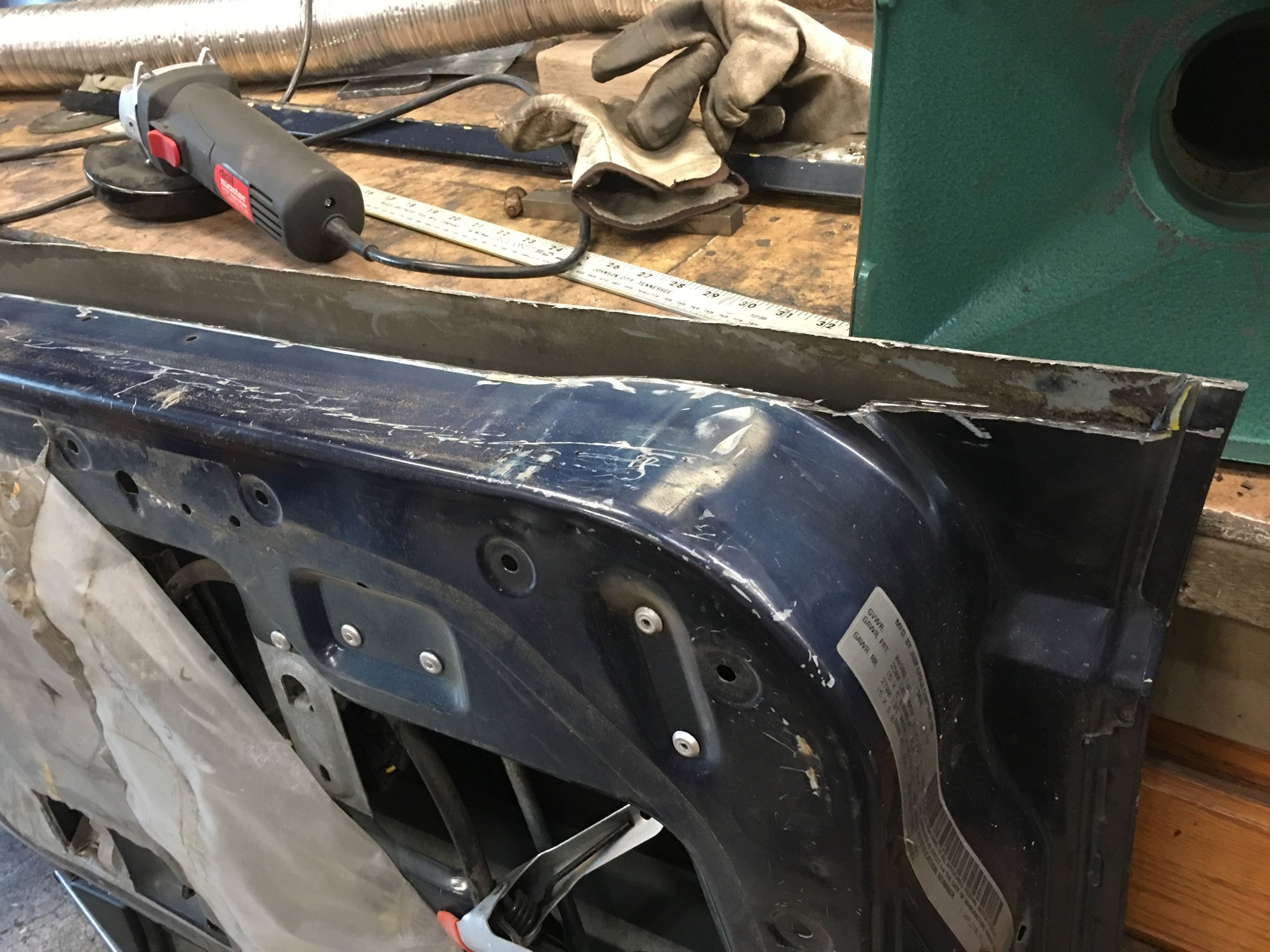

Cleaned up the welds, then started bending the lip over.

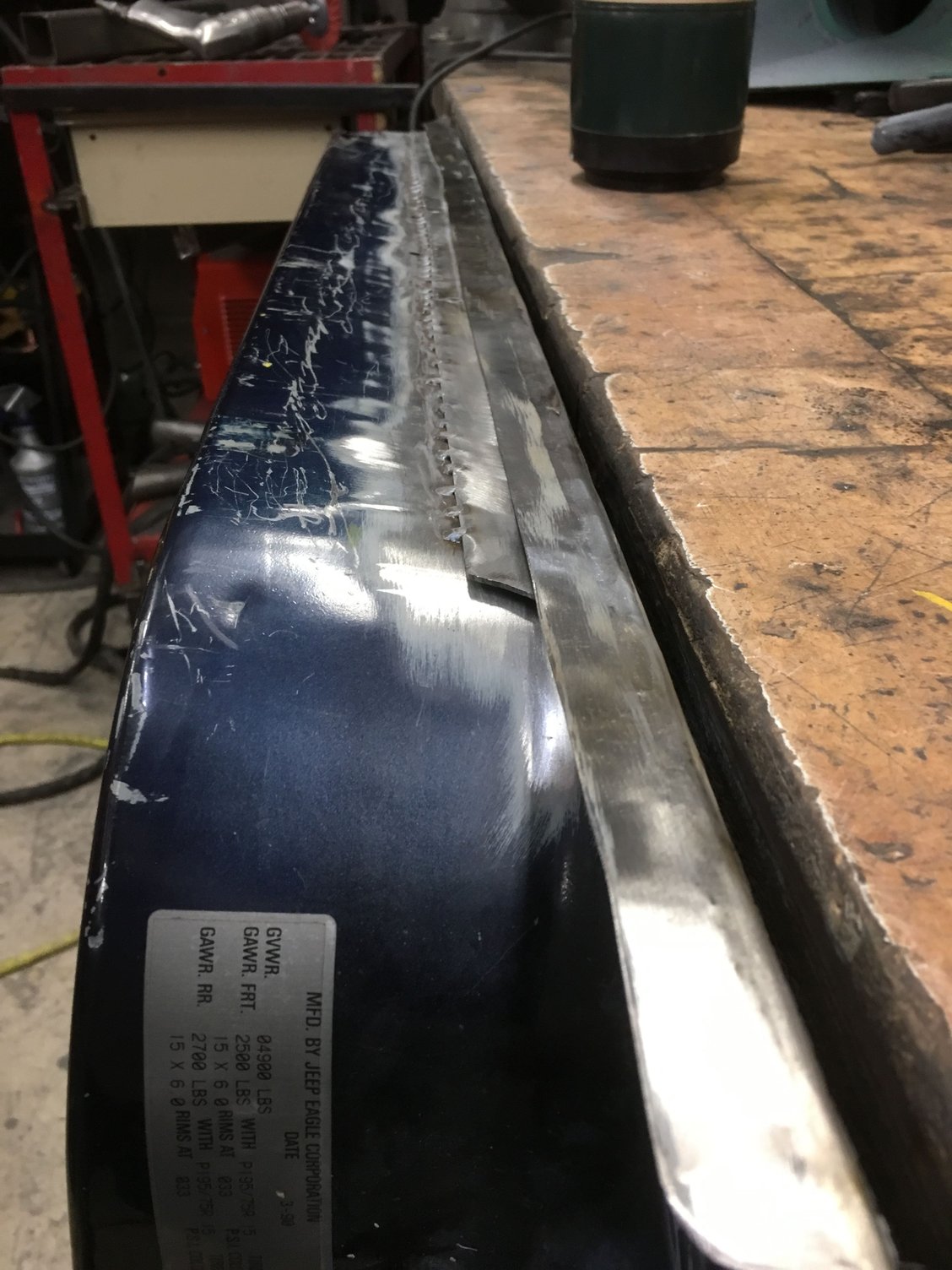

Got it pretty flat.

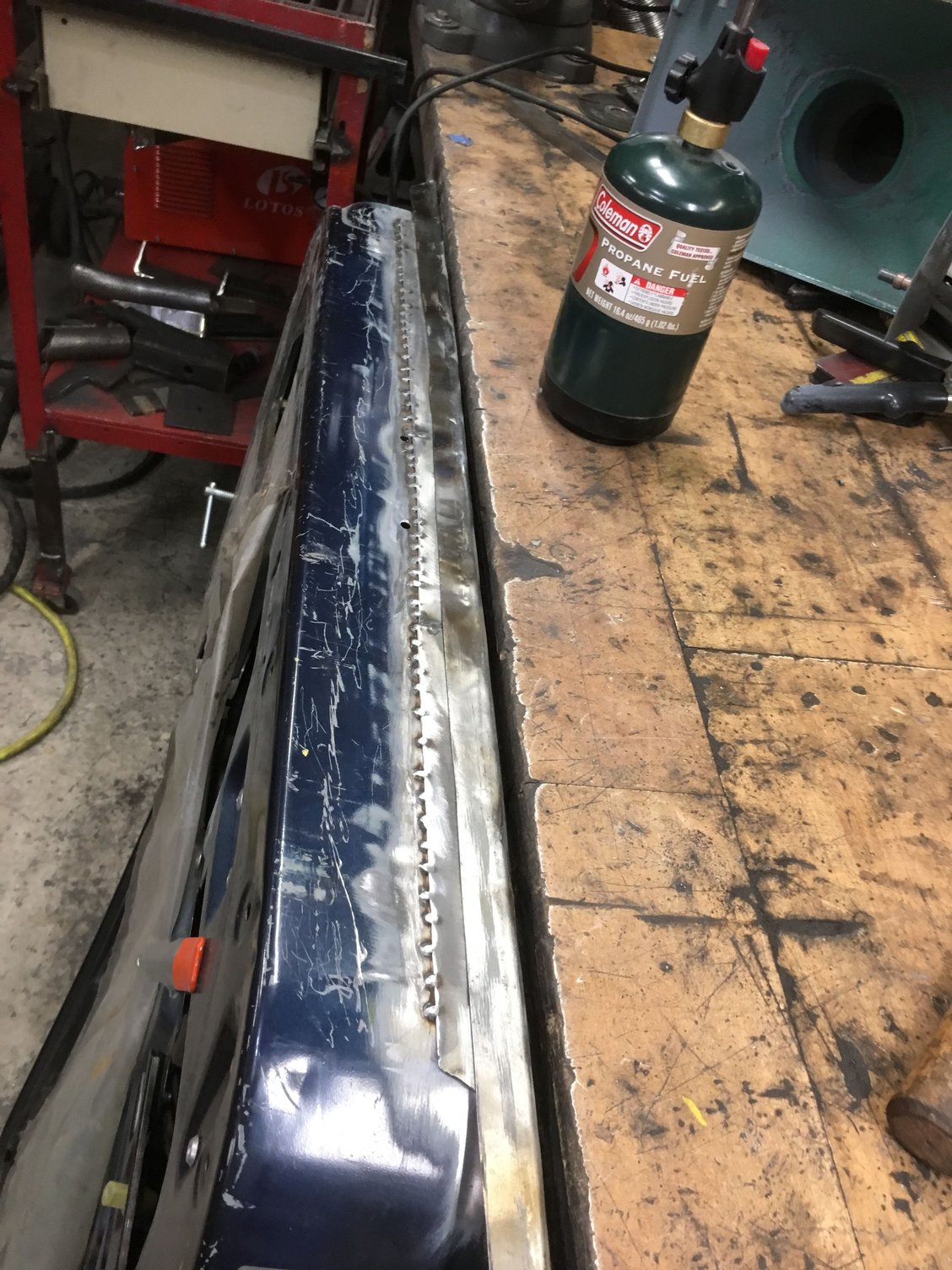

To get a good, tight edge I heated up the sheet metal with a propane torch till it just started to turn color, then tapped it over with a hammer.

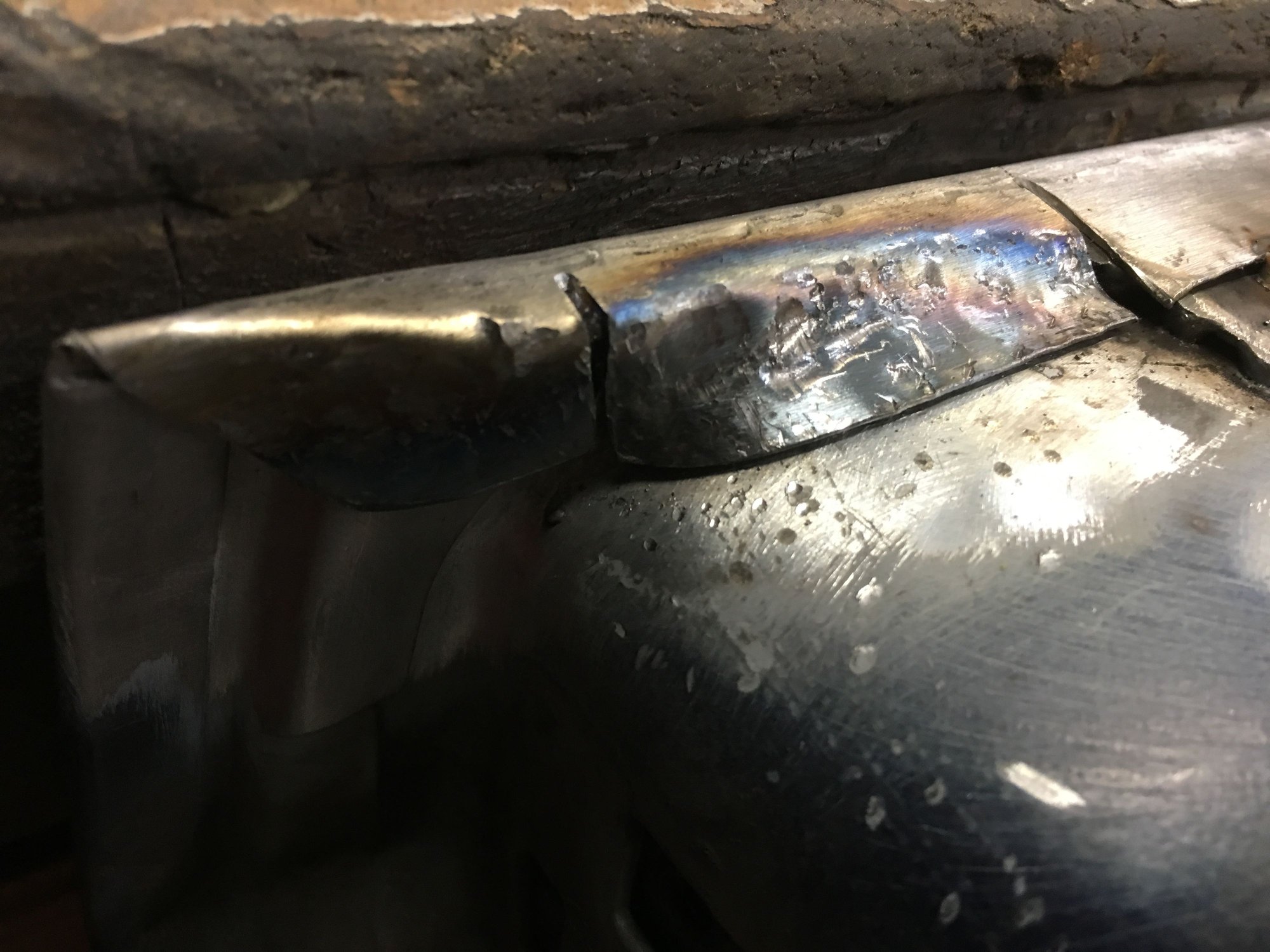

The ends I heated to and worked into shape with a sharp tipped hammer.

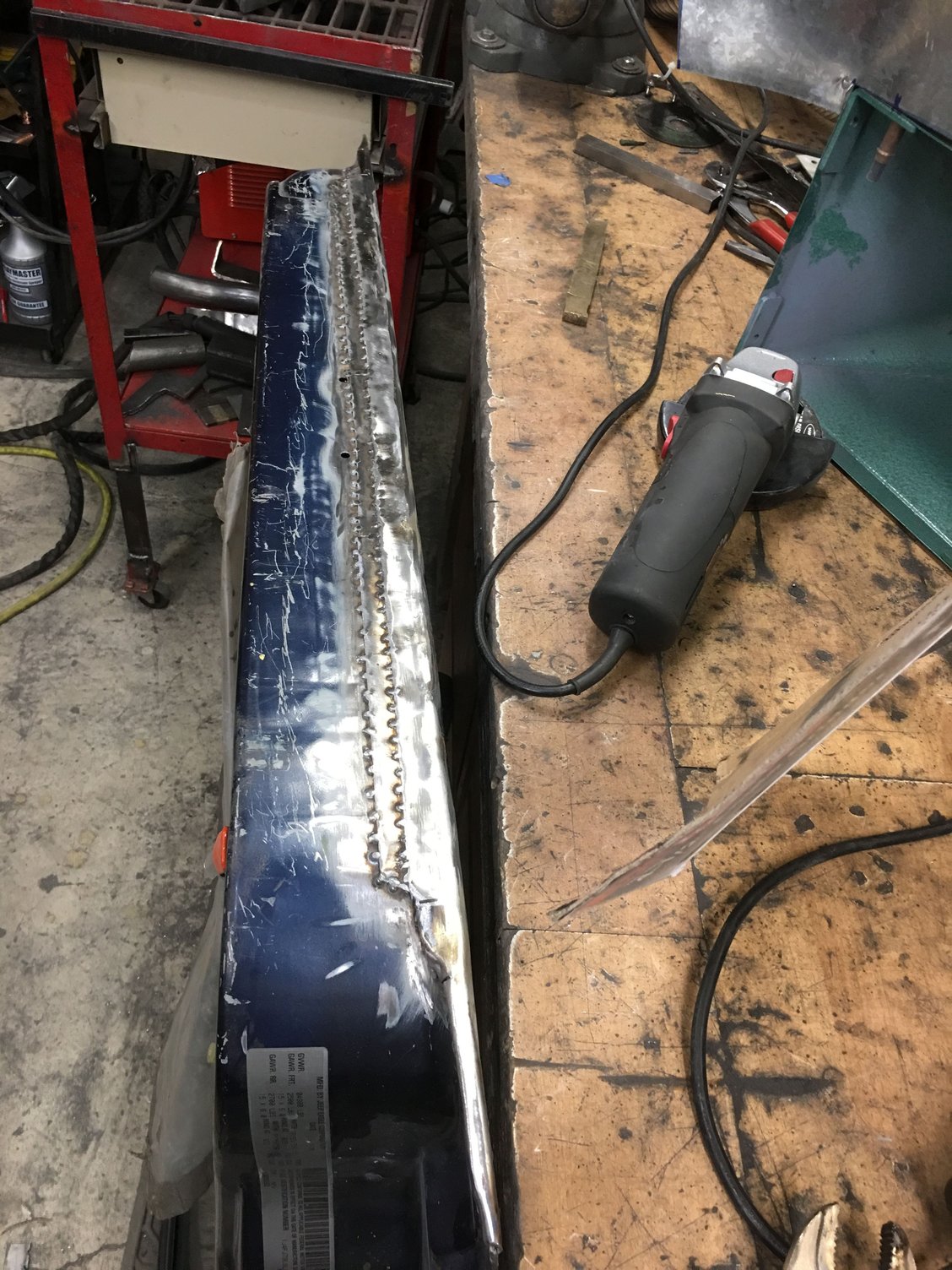

A bunch more tack welds.

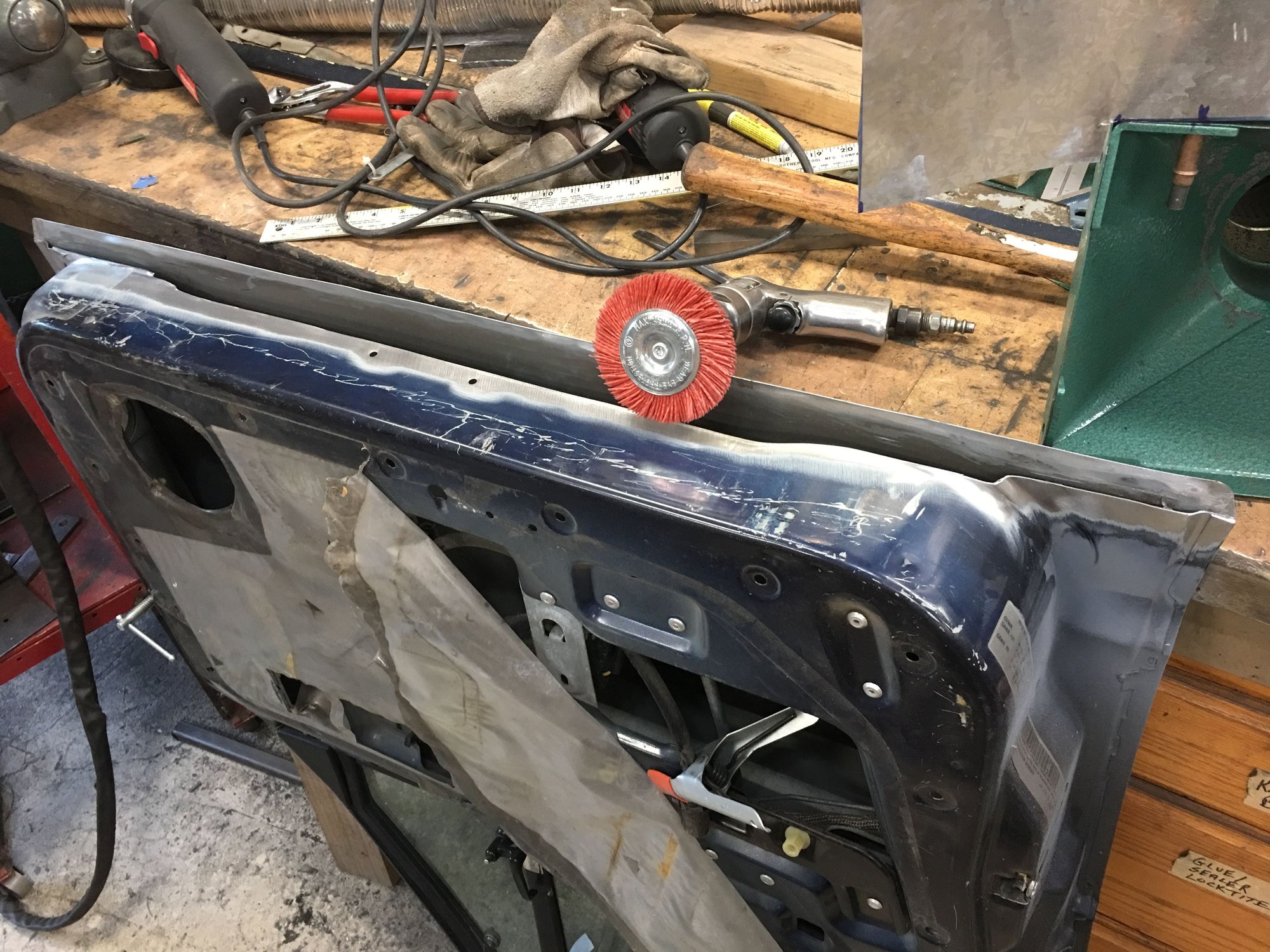

A little clean up grinding

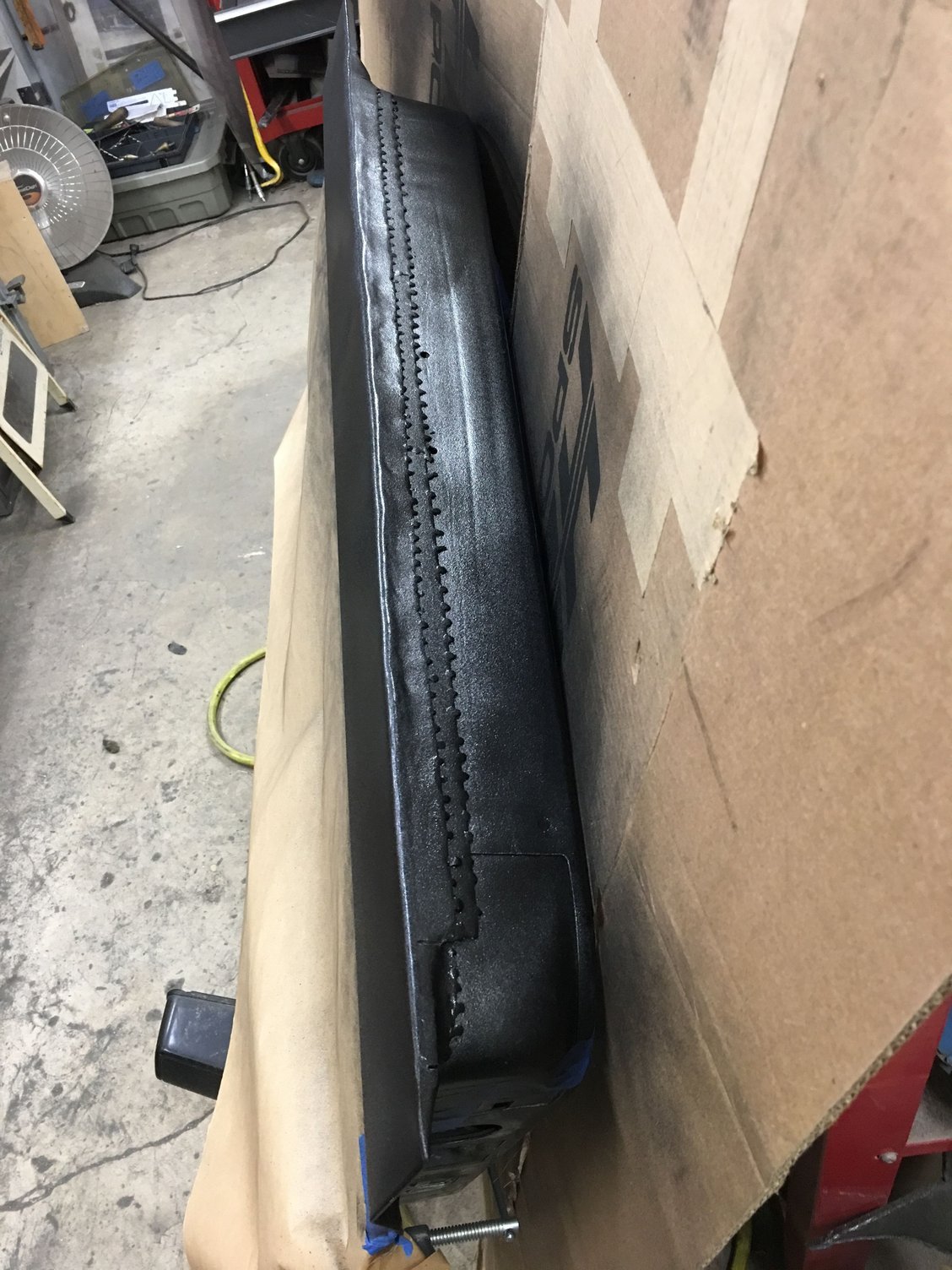

And a couple of coats of bedliner and it’s done 👍 Now repeat 3 more times...
