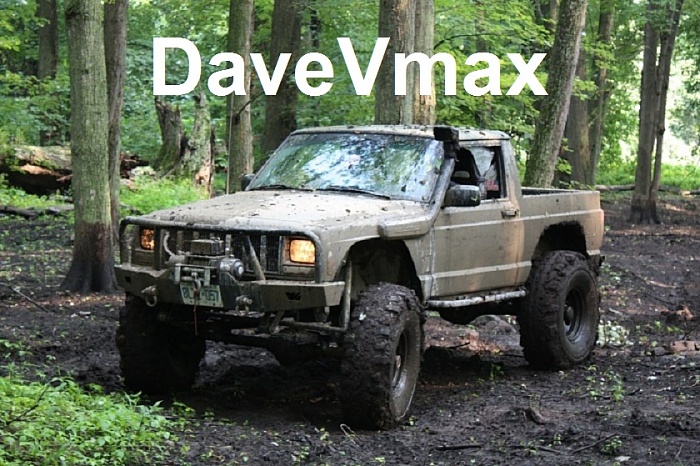

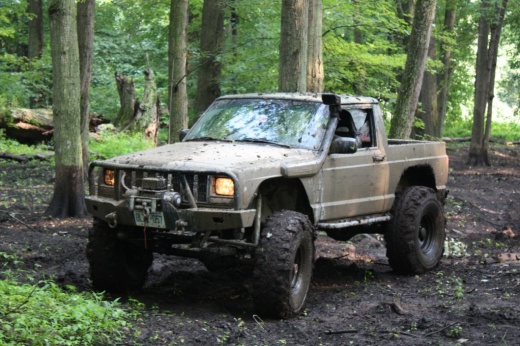

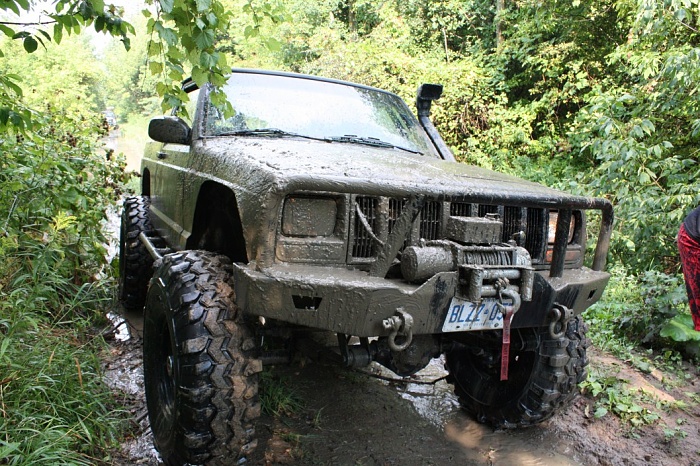

This is my 1998 cherokee 2 door sport

Engine: 2003 4L out of TJ

trans: AW4

t-case: 231/231 twin stick

mods: Full leaf spring conversion(total 9" lift), chopped back(and completed properly), tubbed to fit the tires, 38" super swamper TSL, plated unibody rails, roll cage, Warn rock crawler front bumper, custom tube rear bumper, Bilstein 5150 shocks, Ford 9" rear(spooled) with HP44 front, 231/231 twin stick T-Case w/ slip yoke eliminator, high steer, dakota steering box, safari snorkel, trans cooler, engine oil cooler, gas tank skid, titan winch, custom welded in rock rails, honda RSX leather seats.... painted flat army green

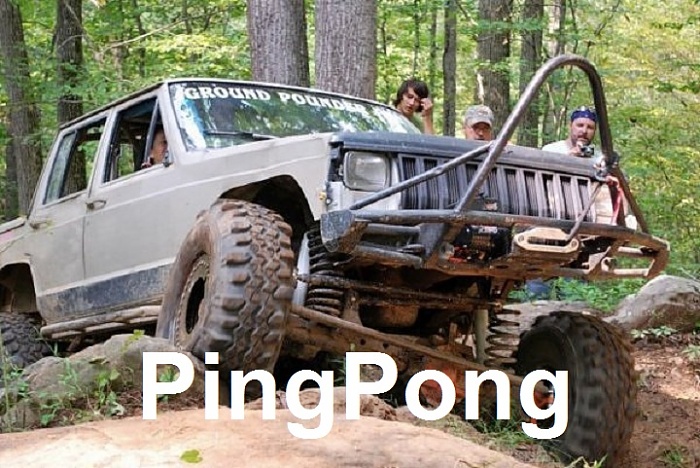

87 XJ Limited Chop Top
Drivetrain
4.0
AX15 (98 TJ external slave)
231/231 Doubler Box 4 rocks kit clocked flat A/A SYE Twin sticked using cables
Home made driveshafts

Front Axle
73 ford hpd44 T&T truss
Arb 5.13's
Nitro Shafts w/300M Ujoints
Reid Chevy Knuckles
Waggy spindles and Brake stands
Solid drive flanges
Solid High steer arms
ARB Diff cover

Rear Axle
73 Ford 9"
Detriot 5.14
T&T UBE's
Barnes 4wd Disc brak brackets
Barnes 4wd Pinion guard
3/4 chevy calipers, with 89 rotors.
Dutchman alloy shafts with 6x5.5 bolt pattern


Suspension
RK 3 link
Rusty's 808 coils
RE HD trac bar Custom 1.5 trac bar Flex joint both ends
Steering is 3/4 Heim joints with 1.5x.25 tubing

Rear is a bastard pack with JKS shackle

Tires
36x12.5x15 TSL Bias Ply W/ custom tire grooving
Soft 8 cragars, w DIY 32 bolt Beadlocks


Misc
10 gallon RCI fuel cell e200 fuel pump
Battery relocated to the rear, 200amp battery kill switch
8pt roll cage with seat mounts built into cage
Toyota Cellica seatsw/4pt RCI harness
Custom tube flat skid
Proto fab copied tube bumper w/8XRC sythetic winch
Copied AJ rock Rails
Hood Pins
Chevy 3/4 brakes
78 grand MarQuis master cylinder.

Chapel trail at Oak Ridge Sept 2&3 2011...
Front was unlocked just to see if I can do it


V-ditch on Bobs Creek trail

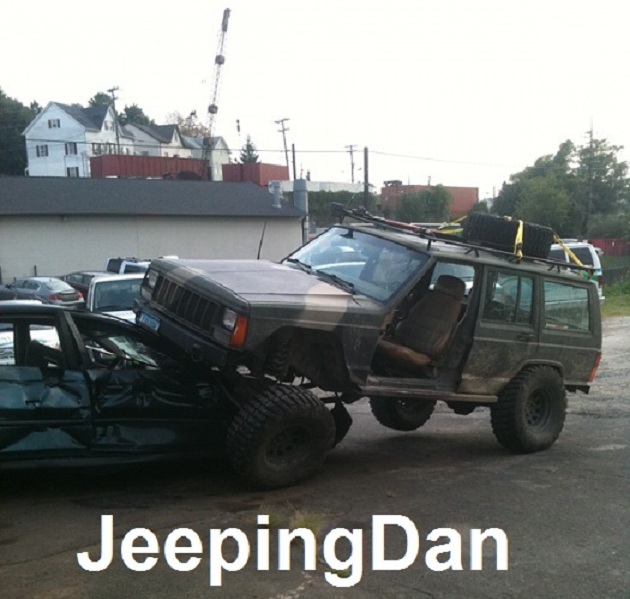

87 XJ

4.0L that runs daily on 87 octane
ZJ tie rods
Durango box
AX15 NP231 AA SYE
Spicer U-Joints no cheapy stuff
98 D30 axle shafts
D30 C8.25
D30 lock rite by Richmond gear
RC 6.5 LA Suspension
Dick Cepek Crushers 33.12.50-15
OBA
Custom built Bumpers made by Dan
Custom Armored D30 cover by Dan
Custom Armored oil pan by Dan
Box tube slides welded in place of old rockers
Wrangler 4x4 shifter
Micro lock E-brake locks front wheels
Custom built center console
A cool Crome steering wheel and sound bar above front seats.
Awesome Pioneer deck that picks up a whopping 3 radio stations on a good day.
Rubber ducky radio antenna.
Cobra cb radio. "trail purpose only.. I don't chatter with truckers"
Cooling system updated to 94 with CSF 3 row radiator and toggle electric fan.
Removable doors obviously.

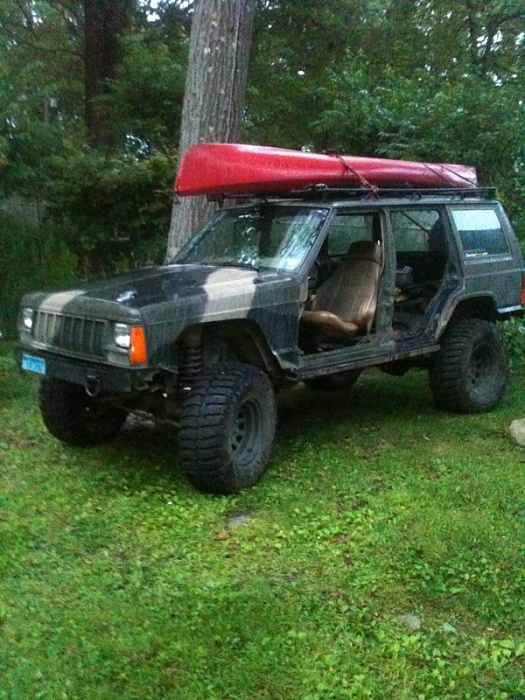

High lift jack mounted on roof. Kayak is there on the weekends.



Best of luck to you all!



Dam hard call this month



X2



Not for me. Maybe I missed something, but i dont see how it's going the way it is. That 2 door chop is killer.



Dang, 2 tough months in a row. Pat, you got mine this month.



Another tough month!



^^true that!!



Tough month! Great builds.



Thanks man... Daves rig is clean.. I totally expect to lose this month.



Yea nice 2 door that's for sure. Total landslide this month!

We are toast! Lol



No bueno.

You know where my vote went.



All really awesome rigs, but I gotta give it to my fellow 97+
Shortbed Comanche?
