Spark Plug Problem
#1
Newbie
Thread Starter
Join Date: Nov 2010
Location: Selden, Long Island, NY
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Grand Cherokee
Engine: 4.0
Spark Plug Problem
Any hints on how to get around the air compessor to pull #1 spark plug from a 4.0 98 Grand Cherokee. Do I have to remove the air compressor or does someone have a better idea.
#2
Senior Member
Join Date: Dec 2010
Location: Norman, OK
Posts: 698
Likes: 0
Received 2 Likes
on
2 Posts
Year: 95
Model: Grand Cherokee
Engine: 4.0
Sorry, but this is easy work( plugs on a 4.0L. I was pretty sure you can do it without special tools. If you dont have a universal joint, or a spark plug socket with a built in universal joint, you might want to buy one or the other.
#3
Junior Member
Join Date: Oct 2010
Location: Bethlehem P.A.
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: v 6
Every spark plug socket I have has a fitting for a wrench.I would put a short extension to hold the socket centred on the plug and break the plug loose with the wrench.
I have not tried it yet my self but thinking about that is how I would approach it. Good luck.
I have not tried it yet my self but thinking about that is how I would approach it. Good luck.
#4
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
It's not rocket sergery, just use a universal or a wobble sparkplug socket. Well worth having for future use if you need to buy one.
#5
Newbie
Thread Starter
Join Date: Nov 2010
Location: Selden, Long Island, NY
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Grand Cherokee
Engine: 4.0

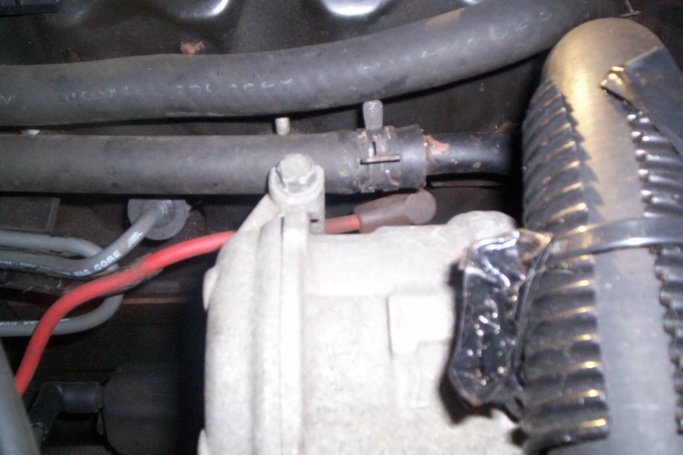

Thanks for the input, it's the first plug up front and the air comp. is right in front of it where the spark plug socket won't fit between the valve cover and air comp.
looks like i'm going to have to remove the air comp. really didn't want to do that but I guess there is no other way.
looks like i'm going to have to remove the air comp. really didn't want to do that but I guess there is no other way.
#7
CF Veteran
Join Date: May 2008
Location: Bristol,Pa
Posts: 5,188
Likes: 0
Received 6 Likes
on
6 Posts
Year: 94
Model: Cherokee
Engine: 4.0L
My 98 4.0 ZJ simply needs a spark plug socket and 6" extension. It's a straight shot.
Have you tried to get a socket/ext on it.. or just concerned from looking at it?
Have you tried to get a socket/ext on it.. or just concerned from looking at it?
Trending Topics
#8
Newbie
Thread Starter
Join Date: Nov 2010
Location: Selden, Long Island, NY
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Grand Cherokee
Engine: 4.0
The sparkplug socket will not fit between the valve cover and air comp. i can't even get to the sparkplug wire it's that tight. I don't think the sparkplug alone has the room to fit between.
I just thought someone else had this problem and had a better idea.
I just thought someone else had this problem and had a better idea.
#9
97 Grand Cherokee - these are all the same.
Same problem. Yes, the wire is hard to get at. Yes, it is not straight in, but it all took about 2 minutes. Could be the size drive too. Using a 3/8 or 1/2? I used a 3/8 separate socket and knuckle, not the combo pic'd above.
Last edited by Snowbucks; 02-08-2011 at 08:03 AM.
#10
CF Veteran
Join Date: May 2010
Location: New Hampshire
Posts: 1,013
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Yup, 3/8 universal with socket on mine also. Once the wire boot is removed, I drop the socket down onto the plug, pop on the universal to the socket and attach the extension and thats it. These 4.0's are all the same so you don't have to spend 20 minutes to release your belt tensioner, undo bolts and move your compressor and replace it all when your done. Way overkill
