service manual
#3
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
While I was at it, i copied this.. might be useful.
The 1991-’98 cylinder head gaskets used on the 4.0L are a composition gasket. This gasket should be installed dry. Do not use sealing compound.

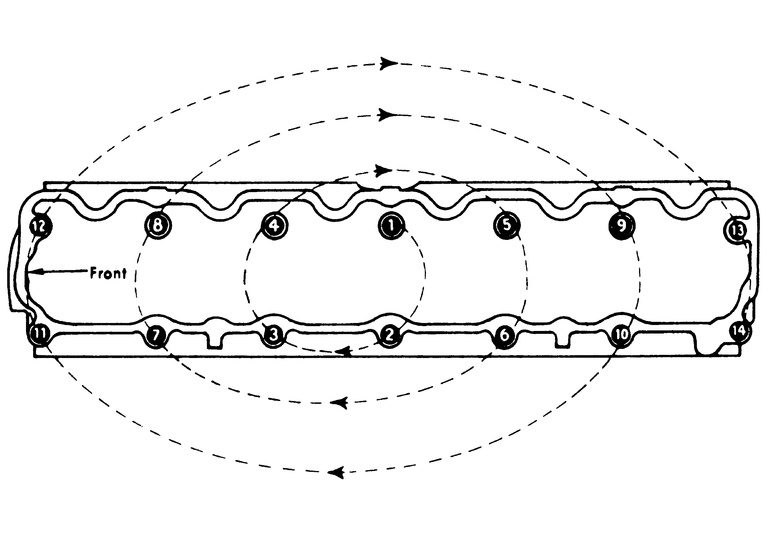

Install the cylinder head and bolts. The threads of bolt No. 11 must be coated with Loctite® 592 sealant before installation. Tighten the bolts in 3 steps, using the correct sequence:
1. Tighten all bolts to 22 ft. lbs. (30 Nm).
2. Tighten all bolts to 45 ft. lbs. (61 Nm).
3. Retighten all bolts to 45 ft. lbs. (61 Nm).
4. Tighten bolts 1 through 10 in sequence to 110 ft. lbs. (150 Nm).
5. Tighten bolt 11 to 100 ft. lbs. (136 Nm)
6. Tighten bolts 12 through 14 to 110 ft. lbs. (150 Nm)
(Rocker arm bolts to 21 ft/lbs)
NOTE: Cylinder head bolts should be reused only once. Replace the head bolts which were previously used or are marked with paint. If head bolts are to be reused, mark each head bolt with paint for future reference. Head bolts should be installed using sealer.
The 1991-’98 cylinder head gaskets used on the 4.0L are a composition gasket. This gasket should be installed dry. Do not use sealing compound.
Install the cylinder head and bolts. The threads of bolt No. 11 must be coated with Loctite® 592 sealant before installation. Tighten the bolts in 3 steps, using the correct sequence:
1. Tighten all bolts to 22 ft. lbs. (30 Nm).
2. Tighten all bolts to 45 ft. lbs. (61 Nm).
3. Retighten all bolts to 45 ft. lbs. (61 Nm).
4. Tighten bolts 1 through 10 in sequence to 110 ft. lbs. (150 Nm).
5. Tighten bolt 11 to 100 ft. lbs. (136 Nm)
6. Tighten bolts 12 through 14 to 110 ft. lbs. (150 Nm)
(Rocker arm bolts to 21 ft/lbs)
NOTE: Cylinder head bolts should be reused only once. Replace the head bolts which were previously used or are marked with paint. If head bolts are to be reused, mark each head bolt with paint for future reference. Head bolts should be installed using sealer.
#4
Senior Member
Join Date: Nov 2011
Location: Tallahassee, FL
Posts: 596
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
As well as you should use SAE 30 oil to lube the threads of the head bolts to get an accurate torque reading, just did my head twice on my 2001 4.0, first time for the head gasket, then once again when I pulled it back apart to replace the cam bearings due to poor oil pressure.
Bryan
Bryan
#5
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
info
thats awsome guys i was wondering about the position of that number 11 bolt. I am trying to find a manual on ebay .i also am looking for the position of the piston rods .as to where they should point to with the 544 casting going to the front of the block? becouse i dont see a arrow on the rods just on the pistons .but they were off the pistons and dont know?
#6
Senior Member
Join Date: Nov 2011
Location: Tallahassee, FL
Posts: 596
Likes: 0
Received 7 Likes
on
7 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
thats awsome guys i was wondering about the position of that number 11 bolt. I am trying to find a manual on ebay .i also am looking for the position of the piston rods .as to where they should point to with the 544 casting going to the front of the block? becouse i dont see a arrow on the rods just on the pistons .but they were off the pistons and dont know?
In regards to the Bolt 11 placement - it is in the diagram above, it is the front right bolt as you are facing the jeep.
Bryan
#7
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
thats awsome guys i was wondering about the position of that number 11 bolt. I am trying to find a manual on ebay .i also am looking for the position of the piston rods .as to where they should point to with the 544 casting going to the front of the block? becouse i dont see a arrow on the rods just on the pistons .but they were off the pistons and dont know?
Trending Topics
#8
Newbie
Thread Starter
Join Date: Nov 2011
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
squirt hole
thanks got it squirt hole facing cam and the big casting544 faces front .thanks has any one had a issue with clearanse for the thicker timing chain ,my cover hits the sproket bolt .my old chain was thinner with a thick washer.can i take washer of to compensate for the double row timing chain?
#10
Member
Join Date: Oct 2011
Location: Indianapolis Indiana
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 5.2
Best manual I've seen is the dvd download at http://www.tradebit.com/G/manuals Tradebit.com $7.95 took about 10minutes to download and covers 93,94,and 95s. As good as any dealers' manual I've ever seen. I've not found anything this manual does not cover. I don't know how to make a link out of it so I'll put it at the end again.. .. Just saying,
http://www.tradebit.com/G/manuals
Well what do you know it worked... LOL
http://www.tradebit.com/G/manuals
Well what do you know it worked... LOL
Last edited by 94zjdriver; 01-13-2012 at 11:42 PM.
#11
CF Veteran
Join Date: Aug 2011
Location: Blue Springs, MO
Posts: 1,031
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L Laredo
thanks got it squirt hole facing cam and the big casting544 faces front .thanks has any one had a issue with clearanse for the thicker timing chain ,my cover hits the sproket bolt .my old chain was thinner with a thick washer.can i take washer of to compensate for the double row timing chain?
The stuff for head bolt #11 is Locktite 592 or equiv.
