Leaking trans?
#1
Junior Member
Thread Starter
Join Date: Feb 2017
Location: Charlotte NC
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee(ZJ)
Engine: 5.2
Leaking trans?
So I have a leak in between my trans and my tc I attached pics of the trans numbers the tc numbers and the leak. Just wondering what you guys think is the problem is the the rear seal on the trans or what and how hard is it to change? It is a slow leak so no real worries yet but I don't want to let it get out of hand if it can be easily fixed!
#2
Beach Bum
Although I cannot see the pictures (forum issue) I may be able to help.
I also had a large leak between the 242 transfer case and 42re transmission on my 2000 Grand.
There is a channel in the mating surface of the two units that will allow fluid to drain if there is a bad seal.
I mistakenly bought a rear output seal for the transmission. But the 42re has an extension housing that holds the overdrive. The leaking seal mounts to the extension housing and then the transfer case input shaft slips into that seal when the two units are mated.
The job involves removing driveshafts and transfer case.
I can likely provide a part number once confirmed what transmission and TC you have. Early production in 1993 had the AW4. The 42re replaced it in late 1993.
I also had a large leak between the 242 transfer case and 42re transmission on my 2000 Grand.
There is a channel in the mating surface of the two units that will allow fluid to drain if there is a bad seal.
I mistakenly bought a rear output seal for the transmission. But the 42re has an extension housing that holds the overdrive. The leaking seal mounts to the extension housing and then the transfer case input shaft slips into that seal when the two units are mated.
The job involves removing driveshafts and transfer case.
I can likely provide a part number once confirmed what transmission and TC you have. Early production in 1993 had the AW4. The 42re replaced it in late 1993.
#3
Senior Member
Welcome to the forum.

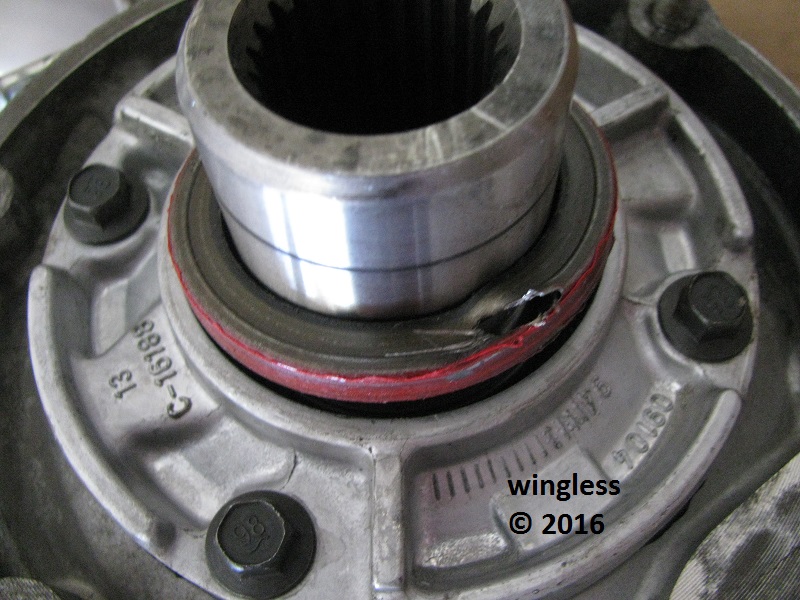

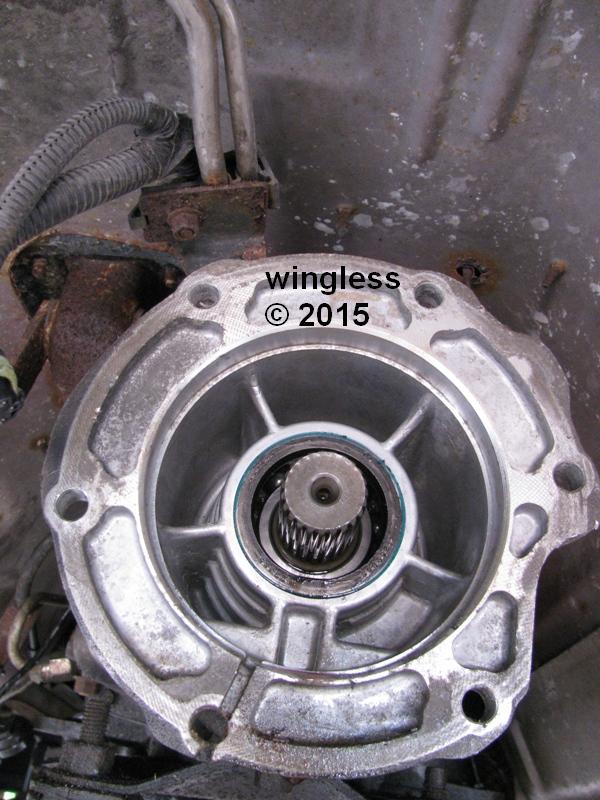

Here are images of the 46RH rear seal and of the removal of the NP249 front seal, like in your vehicle. One or both of those seals is leaking ATF+4 fluid in your vehicle.
Here are images of the 46RH rear seal and of the removal of the NP249 front seal, like in your vehicle. One or both of those seals is leaking ATF+4 fluid in your vehicle.
#4
Junior Member
Thread Starter
Join Date: Feb 2017
Location: Charlotte NC
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee(ZJ)
Engine: 5.2
thanks for the info! On a scale of 1- 10, 1 being don't worry about it and 10 being should have done it yesterday where would you put the need to take care of this?
Last edited by 93GreenGrand; 03-08-2017 at 02:23 PM. Reason: can't seem to type in english today
#5
Senior Member
All the 24 year old seals and gaskets have gotten hard and warrant replacement.
IMO if the transfer case viscous coupler is original, then it will need replacement in the near future. That is a DIY job. Change the VC seals and the transmission seal during that repair.
Get a rebuilt VC off eBay w/ the replacement seals.
The urgency issue is maintaining appropriate fluid levels in the transmission and in the VC. Bad stuff will happen if the level is too low.
At some point the transmission will fail and require rebuild or replacement. Here is my 46RH rebuild topic. The rear seal is part of the transmission rebuild kit.
IMO if the transfer case viscous coupler is original, then it will need replacement in the near future. That is a DIY job. Change the VC seals and the transmission seal during that repair.
Get a rebuilt VC off eBay w/ the replacement seals.
The urgency issue is maintaining appropriate fluid levels in the transmission and in the VC. Bad stuff will happen if the level is too low.
At some point the transmission will fail and require rebuild or replacement. Here is my 46RH rebuild topic. The rear seal is part of the transmission rebuild kit.
#6
Beach Bum
That 46RH looks just like the rear end of my 42RE. The seal I replaced was brittle and the leak was becoming progressively worse.
#7
Junior Member
Thread Starter
Join Date: Feb 2017
Location: Charlotte NC
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee(ZJ)
Engine: 5.2
how about any bolt in replacements like the 231 or something that is not full time 4WD? Looking at the cost of the viscous coupler i can probably find a whole new tc!
