Front bumper mounts for a hd bumper
Ok im an xj owner but this guys wants me to build him a tube style bumper and i need pictures of how to mount a bumper on a wj. Thanks in advanced
#3
Senior Member
Join Date: Jan 2009
Location: Redford MI
Posts: 836
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.0

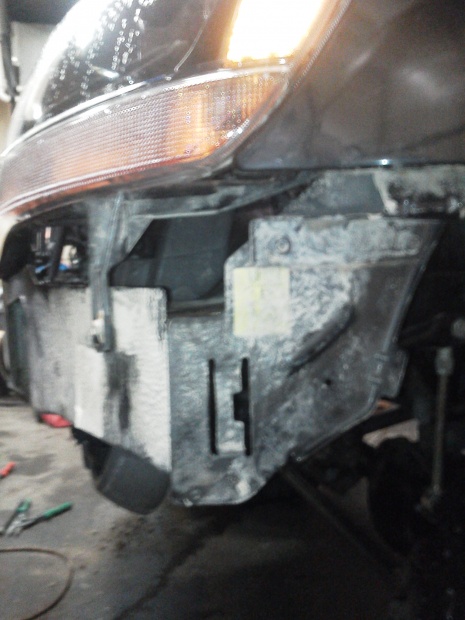

The first pic shows how much is there. This is drivers side and the washer bottle is located here. I picked up a ZJ bottle and relocated it under hood.

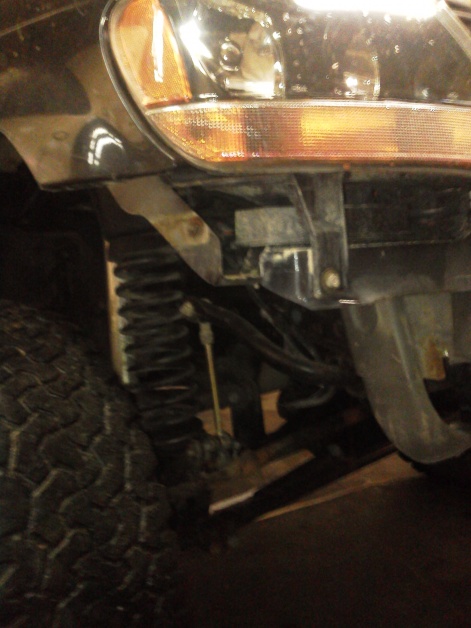

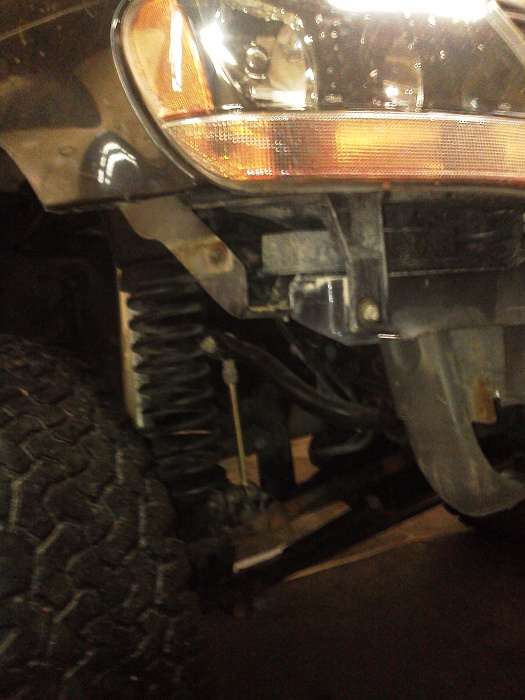

The second pic is pass side after cutting away. This side had the horns, which will also be relocated under hood.

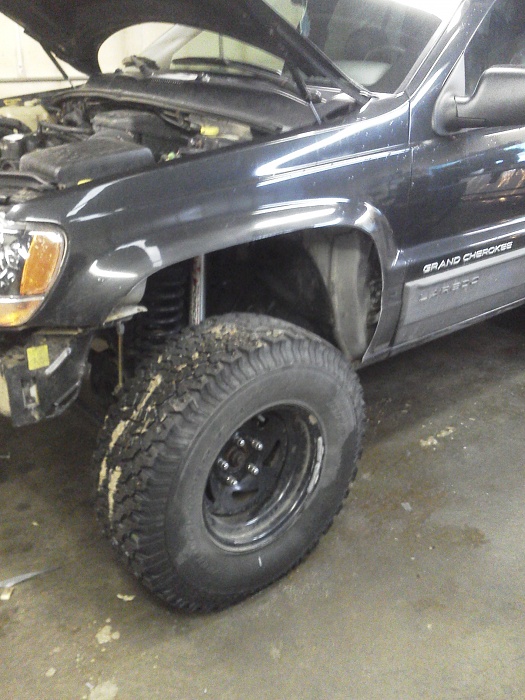

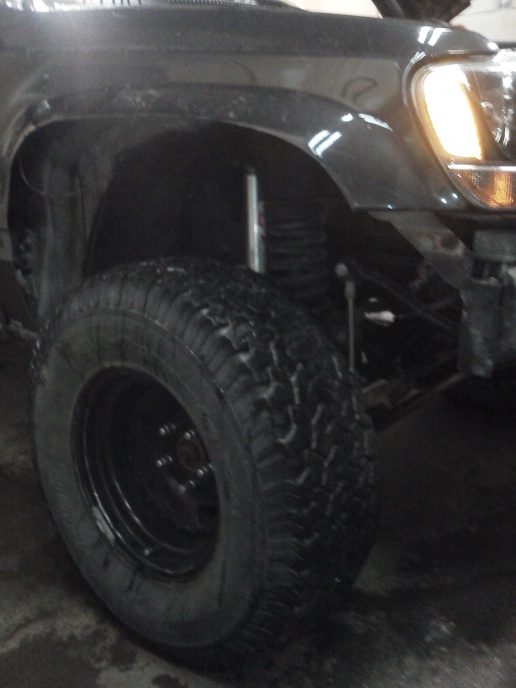

I trimmed my fenders to achieve the room needed for travel. Be sure he understands in order to achieve the look of the bumper you posted cutting is necessary.
Should have some pics of the mounting plates by the end of the month. Sorry so slow but this project is also R&D for the shop. Trying to create something to produce for the WJ customers out there
Last edited by grn99; 02-07-2013 at 08:21 AM.
#4
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Woodlake, Ca
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
That is really diffrent... I dont thonk ill be able to do it then. I was going to put the tubparts all togeter then build mounts when he brings it by for a day... The xj and yj are so simple.
#5
Senior Member
Join Date: Jan 2009
Location: Redford MI
Posts: 836
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1999
Model: Grand Cherokee
Engine: 4.0
May end up being a one off job. Mainly cause it has alot of angles and curves to it. We've had alot of requests for WJ bumpers ,but never one to build off of. Another reason I picked this up.
