D35 Differential gears fell out

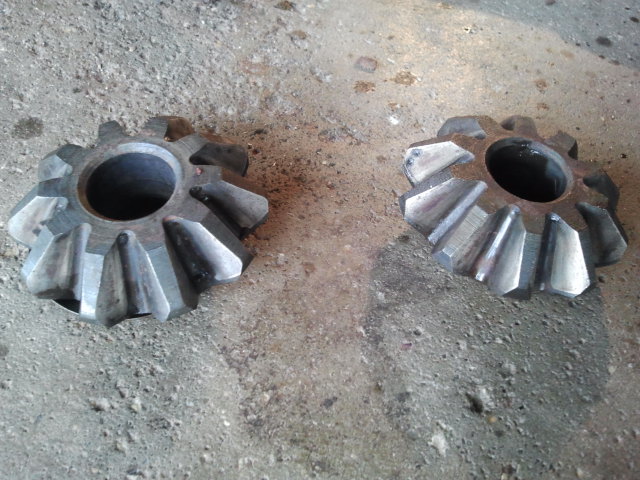

I was replacing my axle bearings and I removed the clips and he axles came out but I accidentally spun the differential and the two smaller gears fell out.
How can I get these back in??
Help!
Thanks!
How can I get these back in??
Help!
Thanks!
#2
Member
Join Date: Jan 2012
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: I 4.0
1. Make sure the thrust washers are on the axle gears and put them back first.
2. To put the other spiders back you also make sure their washers are on the gears and start by placing back in the lower position by using the axle gears to turn it in place.
3. Advance the cross shaft part way to hold there and while putting the upper spider back turn one of the axle gears to "spin" it in place.
2. To put the other spiders back you also make sure their washers are on the gears and start by placing back in the lower position by using the axle gears to turn it in place.
3. Advance the cross shaft part way to hold there and while putting the upper spider back turn one of the axle gears to "spin" it in place.
#3
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Place the gears directly across from eachother while the axle shafts are out, then rotate them into place. make sure the shims are where they belong and in the future always keep the cross shaft in the carrier to keep this from happening again.
#4
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Ohio
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Thanks guys!
I got them back. I noticed if they are not correct, the pin wont go back in. I actually had to put them back in twice!
I put the gasket and cover back on and torqued to 30lbs.
Now, I just need to figure out if I have a Limited slip differential and fill it back up.
Thanks again!
I got them back. I noticed if they are not correct, the pin wont go back in. I actually had to put them back in twice!
I put the gasket and cover back on and torqued to 30lbs.
Now, I just need to figure out if I have a Limited slip differential and fill it back up.
Thanks again!
#5
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Ohio
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0

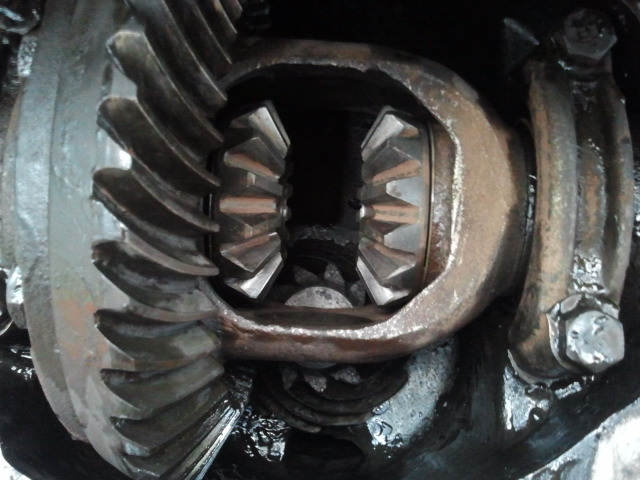

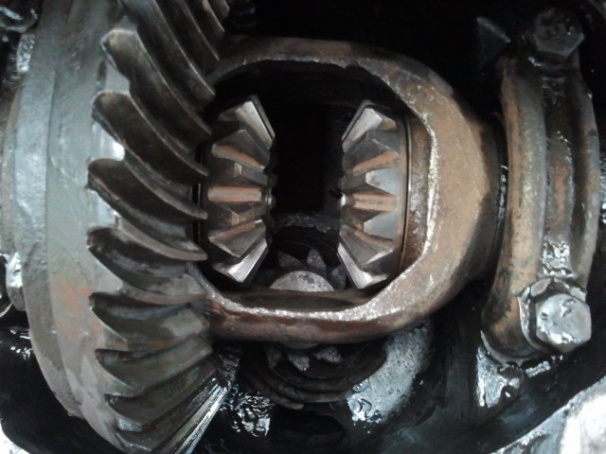

Can anyone tell from these pictures if I have a Limited Slip Differential?
This is the info from my build sheet.
Sales Code Description
ERH 4.0L I6 Power Tech Engine
DGB All 4-Speed Automatic Transmissions
DGKS 4-Spd. Automatic 42RE Transmission
DMEP 3.73 Rear Axle Ratio
DRMP Dana 35C/194MM Rear Axle
I want to make sure I am using the right gear oil.
Thanks!
This is the info from my build sheet.
Sales Code Description
ERH 4.0L I6 Power Tech Engine
DGB All 4-Speed Automatic Transmissions
DGKS 4-Spd. Automatic 42RE Transmission
DMEP 3.73 Rear Axle Ratio
DRMP Dana 35C/194MM Rear Axle
I want to make sure I am using the right gear oil.
Thanks!
#6
Banned
Join Date: Feb 2012
Location: Price ut
Posts: 1,059
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Originally Posted by Jimh64
Thanks guys!
I got them back. I noticed if they are not correct, the pin wont go back in. I actually had to put them back in twice!
I put the gasket and cover back on and torqued to 30lbs.
Now, I just need to figure out if I have a Limited slip differential and fill it back up.
Thanks again!
I got them back. I noticed if they are not correct, the pin wont go back in. I actually had to put them back in twice!
I put the gasket and cover back on and torqued to 30lbs.
Now, I just need to figure out if I have a Limited slip differential and fill it back up.
Thanks again!
Trending Topics
#9
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Ohio
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
Thank a lot guys! What an awesome forum.
I am not afraid to work on my vehicle, but as a new Jeep Owner I was unfamiliar with replacing the bad bearing and leaking seal.
Thanks to this forum I did it... Now I need to change the pinion seal. I found some great info on doing that as well!
I am not afraid to work on my vehicle, but as a new Jeep Owner I was unfamiliar with replacing the bad bearing and leaking seal.
Thanks to this forum I did it... Now I need to change the pinion seal. I found some great info on doing that as well!
#10
Banned
Join Date: Feb 2012
Location: Price ut
Posts: 1,059
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 4.0
Originally Posted by Jimh64
Thank a lot guys! What an awesome forum.
I am not afraid to work on my vehicle, but as a new Jeep Owner I was unfamiliar with replacing the bad bearing and leaking seal.
Thanks to this forum I did it... Now I need to change the pinion seal. I found some great info on doing that as well!
I am not afraid to work on my vehicle, but as a new Jeep Owner I was unfamiliar with replacing the bad bearing and leaking seal.
Thanks to this forum I did it... Now I need to change the pinion seal. I found some great info on doing that as well!
#11
Senior Member
Join Date: Dec 2010
Location: Norman, OK
Posts: 698
Likes: 0
Received 2 Likes
on
2 Posts
Year: 95
Model: Grand Cherokee
Engine: 4.0
Attachment 135531
This is a pic of a LSD it has the ring on the side of the gear and the carrier is more square
This is a pic of a LSD it has the ring on the side of the gear and the carrier is more square
Dana 35 LSD had a square type carrier too and the clutches are hidden behind the carrier on the outer sides of the side gears.
Pic of Dana 35 LSD
#13
MJ>XJ
Join Date: Mar 2009
Location: Griffin, G.A.
Posts: 17,836
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1990
Model: Comanche
Engine: 4.0 I6
Not to do it right no... U could and reuse everything else the same and it would probly be fine for a long tine.... However if were still talkin a dana35 then its not worth the money... Find ya a 97+ 8.25 from another XJ...
#14
Junior Member
Thread Starter
Join Date: Aug 2012
Location: Ohio
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0
You are correct but your pic is of the ford 8.8 and the tone ring on the ring gear has nothing to do with an LSD. The tone ring was used for the speed sensor and/or ABS system. Also another easy was to tell if the 8.8 is an LSD is the "S" spring used between the side gears.
Dana 35 LSD had a square type carrier too and the clutches are hidden behind the carrier on the outer sides of the side gears.
Pic of Dana 35 LSD
Dana 35 LSD had a square type carrier too and the clutches are hidden behind the carrier on the outer sides of the side gears.
Pic of Dana 35 LSD
Also, what fluid would you recommend ? Should I go the synthetic route since I drained and cleaned everything out?
Thanks
