AWD...Help Please
Hi All,
I've only had my first Jeep about two months ago, its a GC AWD 4.0L. What concerns me is that for instance i need to get out a parking space using full lock...well the jeep seems to be in 4WD & starts trying to hop.
Is this normal characteristics on AWD's ???
Thanks Alan...
I've only had my first Jeep about two months ago, its a GC AWD 4.0L. What concerns me is that for instance i need to get out a parking space using full lock...well the jeep seems to be in 4WD & starts trying to hop.
Is this normal characteristics on AWD's ???
Thanks Alan...
#2
Junior Member
Join Date: Apr 2011
Location: Prosperity, SC
Posts: 91
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
normal... depending on which 4WD system you have you should change your fluids accordingly in the TC and front and rear diffs
#3
CF Veteran
Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Originally Posted by smirkymetalhead
Hi All,
I've only had my first Jeep about two months ago, its a GC AWD 4.0L. What concerns me is that for instance i need to get out a parking space using full lock...well the jeep seems to be in 4WD & starts trying to hop.
Is this normal characteristics on AWD's ???
Thanks Alan...
I've only had my first Jeep about two months ago, its a GC AWD 4.0L. What concerns me is that for instance i need to get out a parking space using full lock...well the jeep seems to be in 4WD & starts trying to hop.
Is this normal characteristics on AWD's ???
Thanks Alan...
Part time. To use 4wd all the time you should be in 4full time and you'll be able to turn etc etc. If you are in anything else, 4 part time or 4lo, you'll damage TC and driveline
#4
CF Veteran
Join Date: Sep 2010
Location: Springville, UT
Posts: 1,649
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Grand Cherokee
Engine: 5.2 V8, Dual cold air, dual batts, E-fan, Sanden OBA
I'm guessing you have the NP249 t-case. Your VC is going out. Do some research on it and you will figure out how to go about replacing/fixing it.
#5
CF Veteran
Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes
on
6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
Read this. >->http://www.jeepforum.com/forum/f13/i...upling-818087/
#6
CF Veteran
Doubt he has a 249 with a 4.0 those were behind the v8 only I think not the 4.0,So i'm sure he has the 242 ,and to the OP it's full time 4 not all wheel drive. And to the OP you can tell if you have the 249 or 242 simply by looking the shifter the 249 only has 4hi...N...4o if you got more options than this you have the 242 ...that's what my brothers 96 had with the 4.0
Last edited by 1tonxj; 06-18-2011 at 09:49 PM.
Trending Topics
#8
CF Veteran
#10
CF Veteran
Join Date: Sep 2010
Location: Mercer County, NJ
Posts: 12,692
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Originally Posted by ol"blue
Not that rare in the ZJ actually.
Alan states in his specs (click the icon under his avatar) that his '97 ZJ has the 249 along w/the 4.0 L.
Alan states in his specs (click the icon under his avatar) that his '97 ZJ has the 249 along w/the 4.0 L.
#12
Seasoned Member
Join Date: Apr 2011
Location: Salt Lake City, UT
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Grand Cherokee
Engine: 5.2L V8
Hey u guys: isn't the 249 supposed to hop a little bit when turned fully to the left or right? I've had a mechanic drive my ZJ and he said it was normal. I've had other ZJ owners with 249's says it's normal as well. The 249 is full time 4WD; so isn't it normal to get that 4WD hop?
#13
CF Veteran
Hey u guys: isn't the 249 supposed to hop a little bit when turned fully to the left or right? I've had a mechanic drive my ZJ and he said it was normal. I've had other ZJ owners with 249's says it's normal as well. The 249 is full time 4WD; so isn't it normal to get that 4WD hop?
Probably a little I can't recall if my 95 had much noticeable bind in tight turns , But the early model 249 93-95 is like an open differential in that it will bias torque to the axle with little or no traction , and it has no LO -LOCK in 4lo so in 4lo it's no different than 4-HI ...unlike a 249 with lo lock that in 4-lo the front/rear turm at equal rates all the time like a 231 in 4full time ...this also means a 93-95 249 can be driven on dry pavement in 4-lo as the only difference between 4-hi and 4-lo is the gear reduction .
#15
Junior Member
Thread Starter
Join Date: May 2011
Location: Guernsey, Channel Islands
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 6 Cyl 4.0
Hi All,

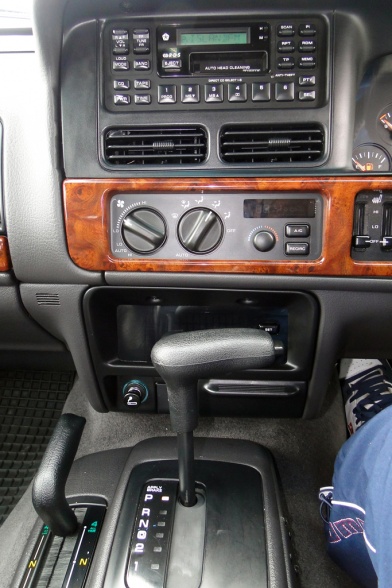

I havnt been scared away just yet Lol. Here a part pick of my lever. Its has Fulltime 4WD - N - 4 LO.
I havnt been scared away just yet Lol. Here a part pick of my lever. Its has Fulltime 4WD - N - 4 LO.
