35" tires, 4"lift?

Old 10-19-2016, 12:19 PM
  #1
Newbie
Thread Starter

Join Date: Oct 2016
Posts: 6
Model: Cherokee
Default 35" tires, 4"lift?

I'm looking for some input regarding installing 35 " tires with a 4" lift. Has anyone done this and any issues with the modifications?

I have already cut the front fenders and will probably need to cut them more. I have 4.56 gears and a d44a rear axel with an Aussie auto locker and a d 30 front with chromally axels and an Eaton E- locker. I did the front drive shaft conversion to u-joint.

I have 33"tires on it now and they work great only a slight rub in the front. The rear is my main concern with cutting the fender well. I have a ton invested in the IRO short arm lift with full belly protection and don't want to spend a ton more converting to a 6" lift. Hoping to gain axle clearance with out more lift.

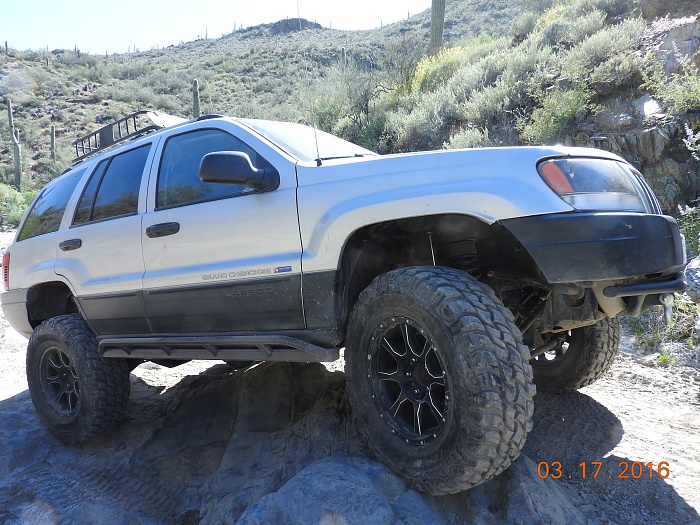

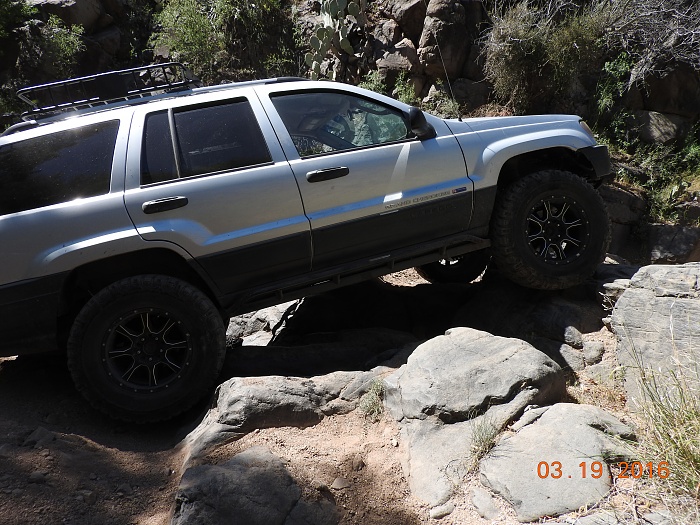

Front fenders were cut after these pics. No pics of cut fender wells yet.
Attached Thumbnails 35" tires, 4"lift?-021.jpg   35" tires, 4"lift?-029.jpg
capsul is offline
Old 10-19-2016, 01:03 PM
  #2
CF Veteran

Jeepin'_Aint_EZ's Avatar

Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Honestly, you're not gaining much more axle clearance throwing 35's under your rig. Seems like a lot of work for minimal gain. I'd stick with your 33's.
Jeepin'_Aint_EZ is offline
Old 10-19-2016, 01:22 PM
  #3
Newbie
Thread Starter

Join Date: Oct 2016
Posts: 6
Model: Cherokee
Default

Originally Posted by Jeepin'_Aint_EZ View Post
Honestly, you're not gaining much more axle clearance throwing 35's under your rig. Seems like a lot of work for minimal gain. I'd stick with your 33's.
Every inch counts! 35's would fill the holes better, looking to do some 3.5 trails and have run into clearance issues.
capsul is offline
Old 10-19-2016, 02:46 PM
  #4
CF Veteran

dave1123's Avatar

Join Date: Nov 2010
Location: Manlius, east of Syracuse, NY
Posts: 11,269
Year: 2000
Model: Grand Cherokee (WJ)
Engine: 4.0L
Default

Going from 33s to 35s will only gain you 1" more ground clearance.
dave1123 is online now
Old 10-19-2016, 07:56 PM
  #5
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,368
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

Those 35s might get into the front lower part of the rear wheel opening if you're running a short arm lift.
Bustedback is offline
Old 10-20-2016, 07:57 PM
  #6
Newbie
Thread Starter

Join Date: Oct 2016
Posts: 6
Model: Cherokee
Default

Originally Posted by Bustedback View Post
Those 35s might get into the front lower part of the rear wheel opening if you're running a short arm lift.
Thanks, I know I'll have to trim the rear fender wells and with fully adjustable upper and lower CA's might have to adjust the rear axel position. I have seen other WJ's with 35's on a 4" lift. I was checking on some input on what they may have encountered with all the modifications. I know 1" doesn't seem like much but in a given off road obstacle I have seen a huge difference if running 35's.
capsul is offline
Old 10-21-2016, 09:45 AM
  #7
Senior Member

Join Date: Mar 2016
Location: AV Kalifornia
Posts: 585
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

with those axels I would think you could go to 37's? or is there a clearance issue going that big?


I have 33's on mine but have stock axles and was told not to go any bigger or I will have problems.
jon-d is offline
Old 10-22-2016, 11:11 AM
  #8
Newbie
Thread Starter

Join Date: Oct 2016
Posts: 6
Model: Cherokee
Default

Originally Posted by jon-d View Post
with those axels I would think you could go to 37's? or is there a clearance issue going that big?


I have 33's on mine but have stock axles and was told not to go any bigger or I will have problems.
37's no way without a 6" lift and even then would need to do some serious fender well trimming, axel trusses and a bunch of other stuff.
capsul is offline
Old 10-22-2016, 08:08 PM
  #9
CF Veteran

dave1123's Avatar

Join Date: Nov 2010
Location: Manlius, east of Syracuse, NY
Posts: 11,269
Year: 2000
Model: Grand Cherokee (WJ)
Engine: 4.0L
Default

Here's an idea. Take a look at the posted lifted WJs and PM the guy who's already got your set-up to see what HE recommends. Most of us love to share!
dave1123 is online now
Old 10-23-2016, 11:41 AM
  #10
Newbie
Thread Starter

Join Date: Oct 2016
Posts: 6
Model: Cherokee
Default

Originally Posted by dave1123 View Post
Here's an idea. Take a look at the posted lifted WJs and PM the guy who's already got your set-up to see what HE recommends. Most of us love to share!
thanks, I'll check it out.
capsul is offline
