242 replacement problem

Old 03-10-2019, 01:50 PM
  #1
Newbie
Thread Starter

Join Date: Mar 2019
Location: Ga
Posts: 16
Year: 1996
Model: Grand Cherokee (ZJ)
Engine: 4.0
Default 242 replacement problem

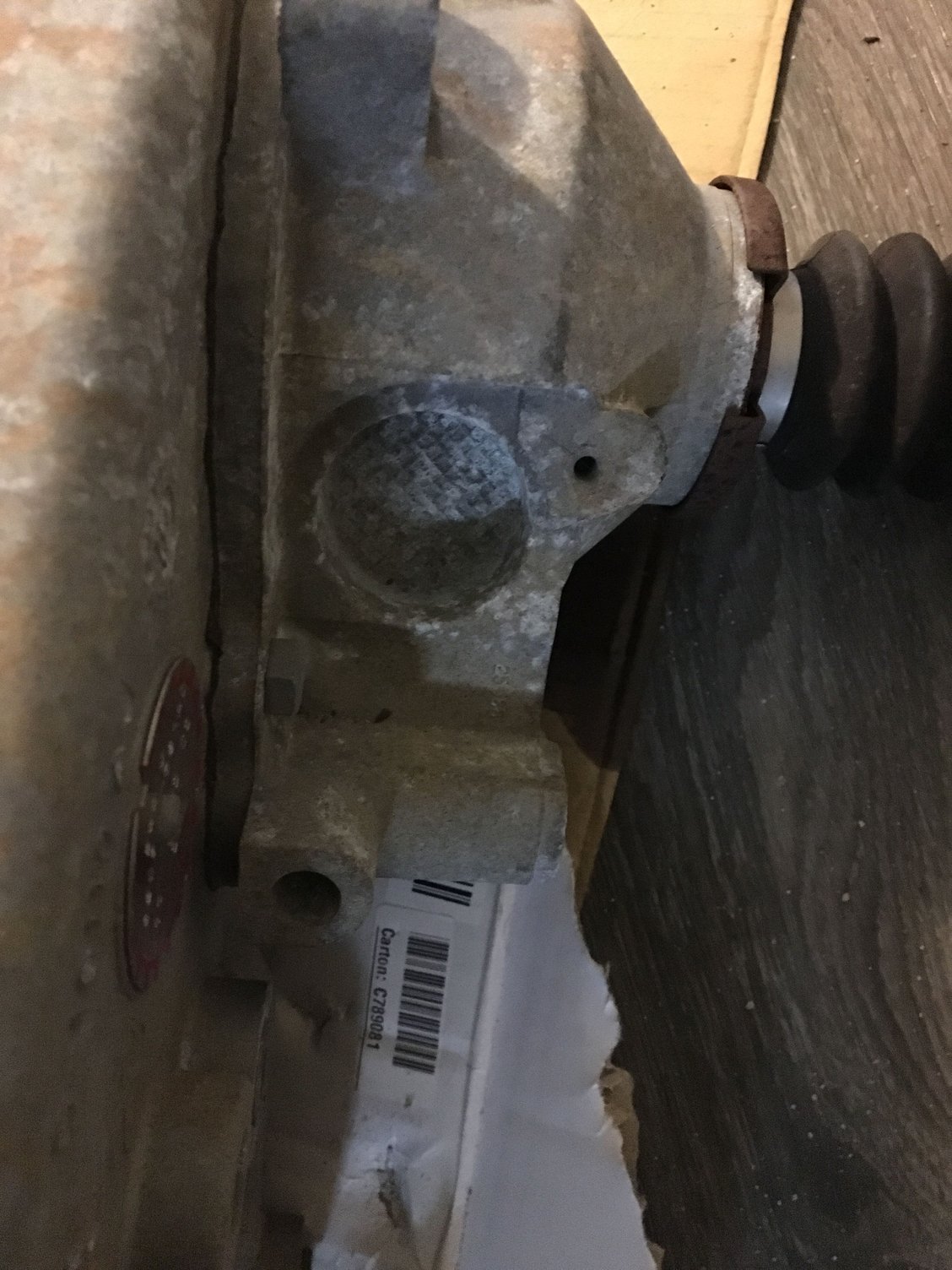

Alright, I just recently bought a 96 Grand Cherokee 4x4 that came with a busted NP242 transfer case in it. I found replacement from a guy, he claimed it was from a 2001 or 2002. I thought Iíd be able to change the sensors out from my old one and bolt it in but I have run into a problem with both sensors. My case has a (I believe it is) Speedo gear/sensor mounted in the rear portion of the case..well the one I got for replacement has a spot for that sensor..but itís blocked off, as in no hole to insert the gear into..thatís my main issue.. the other senor next to the vent tube is just a bit too long on my old one. Iím assuming I have to take them apart and change the output shaft portion of the case from my old one to the new one to make the speedo gear work? Iím new to Jeeps so Iím just trying to get some guidance before I put it in and have to pull it back out, thanks for any help! Also if I do have to change the cases out will the newer one have the gear inside to drive the speedo gear?
