WyoCherokee's half blooded twin. - Jeep Cherokee Forum

Go Back  Jeep Cherokee Forum > Technical Discussion > Jeep Builds
WyoCherokee's half blooded twin. >

WyoCherokee's half blooded twin.

Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

WyoCherokee's half blooded twin.

Old 07-23-2017, 04:31 PM
  #1
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default WyoCherokee's half blooded twin.

Introducing project "half blooded twin"

A 1990 xj Limited......or what's left of it anyways. Interior is gutted. "In prep for rhino line" is what he told us:


Come to find out, he threw away the carpet and the trim because they were "unsaveable". Well at least i have a blank canvas. As if I don't have enough projects.

The ​​​​​​specs:
​​​​4.0
Aw4
Power everything
Leather seats(or what's left of em)

180k miles
New fuel pump and sending unit
Bendix 9 :-(
Dana 35 rear :-(
2"ome rear leafs
2" rough country coils
Brand new​​​​​​ Firestone Mt's 31x10.5x15
Custom made roof rack.
Affordable off road bumpers front and rear

Comes with:
Non c clip Dana 35, housing and shafts only
Arb locker for said Dana 35
Roll cage (never opened, still in package)
Disc brakes for the non c clip 35



As far as plans .....
Find a donor xj with good interior and Chry8.25 and good 30, sell the d35 and arb, sell the roll cage, rhino line the floor, Dutch the bendix 9 for a standard brake system. Do something with the paint...

Last edited by WyoCherokee; 01-15-2018 at 09:17 AM.
WyoCherokee is offline
Old 08-07-2017, 09:58 AM
  #2
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

first major change.... swapped in ZJ steering. no more slop in the steering. just ordered a new stabilizer, and will be picking up some 2nd hand upper and lower control arms. next step is to throw on some rusty's 4.5" coils and lift shackles i found in my parts pile.
WyoCherokee is offline
Old 08-15-2017, 10:54 AM
  #3
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Purchased a set of 746 injectors and a headlight harness, have a lead on a donor 89 XJ. but the guy is terrible about responding backto me. he only wants 400. i told hi i have cash in hand. (not very) patiently waiting to go get it.
WyoCherokee is offline
Old 09-10-2017, 09:30 PM
  #4
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Sooooh this followed me home.....a 94 sport. It will serve as a donor for the interior, fenders and miscillanious. The rest I will part out, and already have a waiting list of folks. Some parts will go to my comanche.....like the header panel and the doors. I also snagged a Ford 8.8 with 3.73s and a tnt truss for it for $200 total. So the 8.8 and truss will go under the half blooded twin.
WyoCherokee is offline
Old 10-14-2017, 08:50 PM
  #5
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Well I've made allot of progress today on the half blood. Got a good chunk of the interior swapped over and cured the very minimal amount of rust.
My obsession
Gutted
Painted any bare metal
Carpet guardian
Rear carpet and trim in
Front carpet in

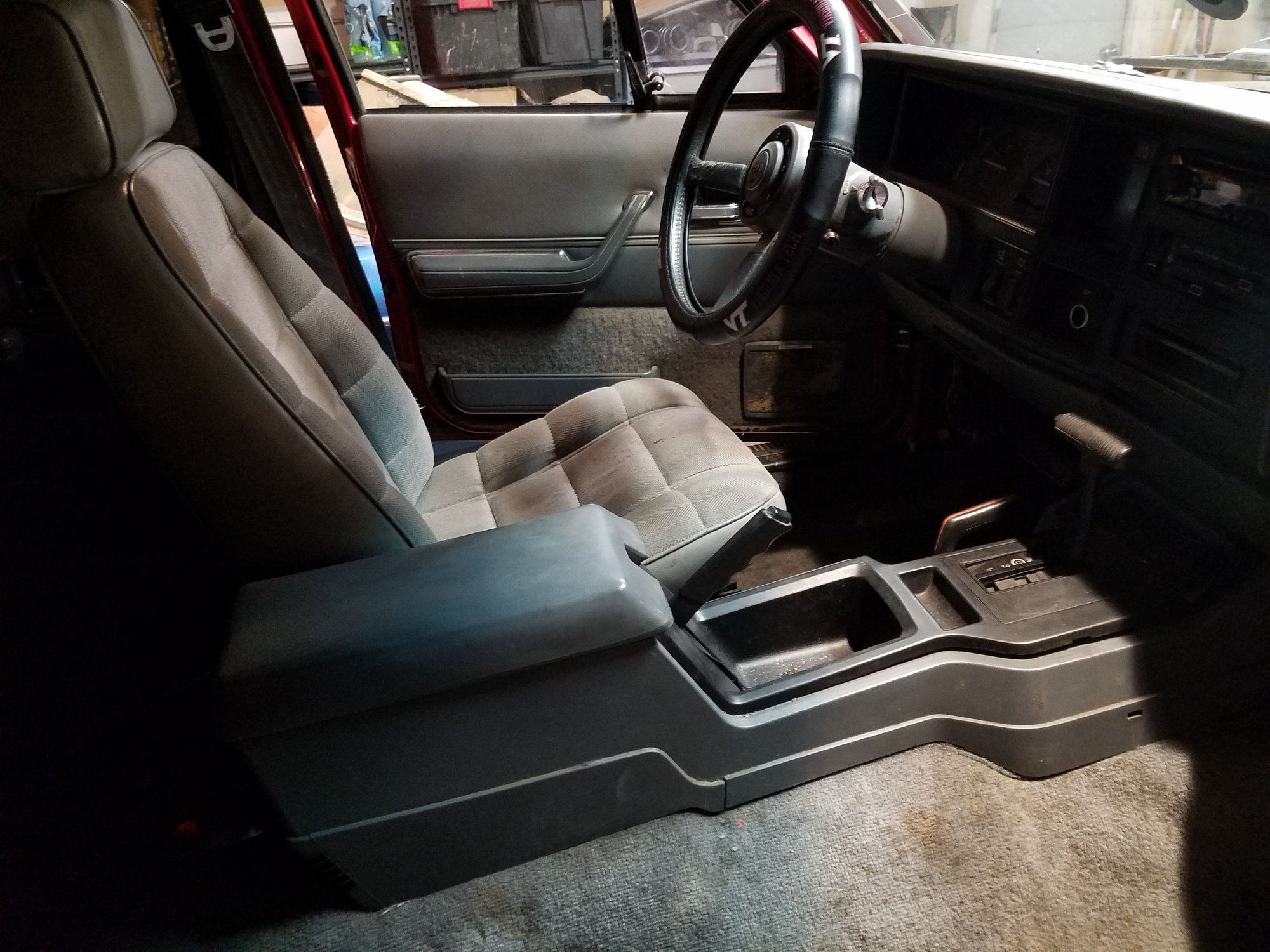

Center console and driver seat in.
WyoCherokee is offline
Old 10-14-2017, 09:45 PM
  #6
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Both seats and all lower trim in. Tomorrow will be the upper trim, and the headliner.


WyoCherokee is offline
Old 10-15-2017, 09:48 PM
  #7
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Got the headliner and upper trim in. I had to lengthen the dome light wire, as the 94 dome light was overbthe back seat, and the 90 was close to the hatch.
WyoCherokee is offline
Old 10-16-2017, 12:21 AM
  #8
Senior Member

cbs_24's Avatar

Join Date: Jun 2014
Location: Eagle River, Alaska
Posts: 925
Year: 1999
Model: Cherokee (XJ)
Default

Nice find man. are you planning on painting it?
cbs_24 is offline
Old 10-16-2017, 08:10 AM
  #9
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Originally Posted by cbs_24 View Post
Nice find man. are you planning on painting it?
Yep...Rustoleum camoflauge green hahaha. I dont have the coin to even do a single stage paint on it. and it will be a pure camping rig, so im not to terribly worried about paint. I still need to tape off the windows and finish the rattle can job. eventually i will probably Grizzly Grip paint it. The MJ will probably get a decent single stage paint job at some point. more so now that it was blue doors and a red body.
WyoCherokee is offline
Old 11-26-2017, 06:52 PM
  #10
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

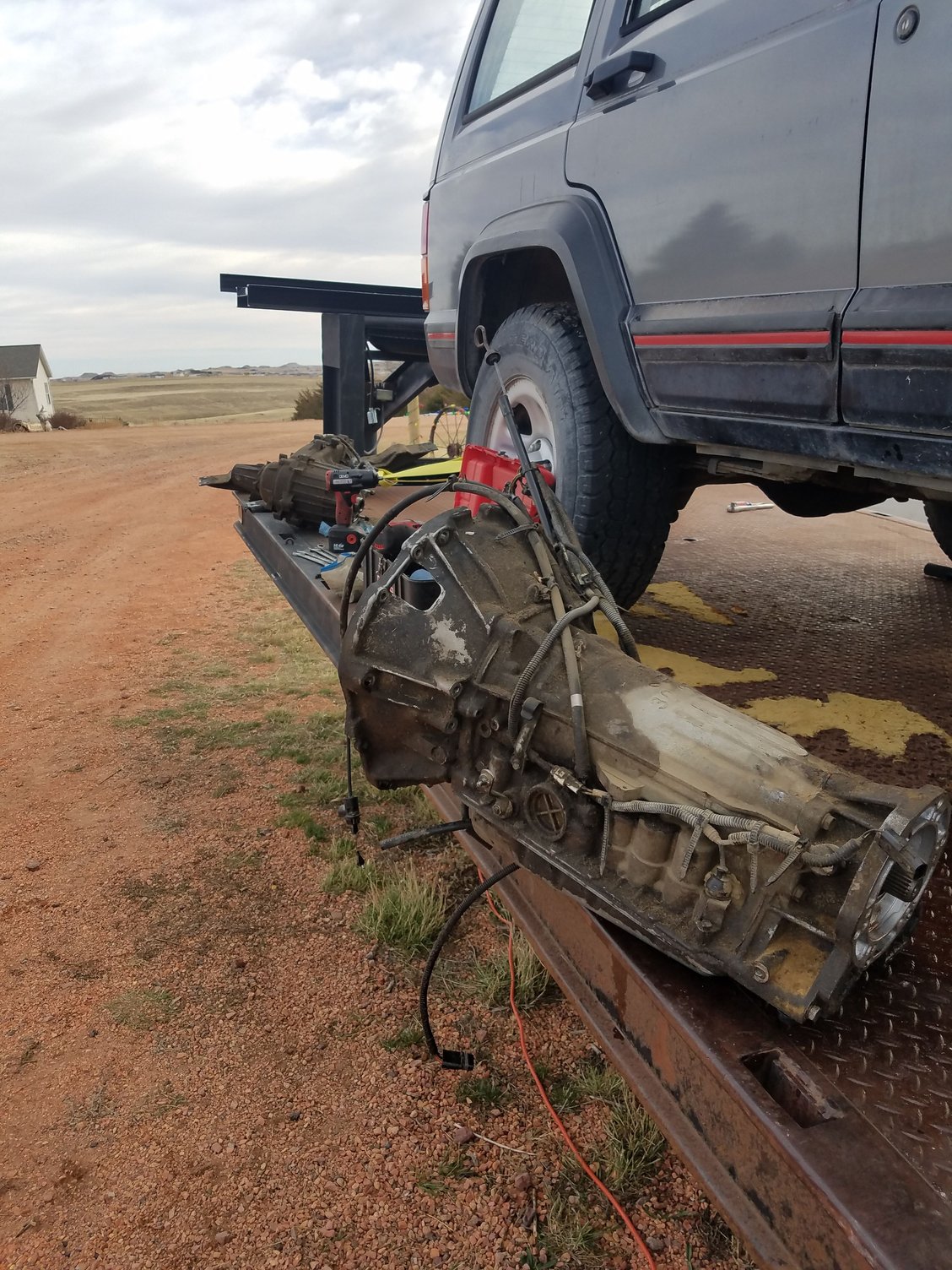

Spent the day stripping the donor xj. Pulled the transfer case, transmission, complete dash, and the fenders. I was originally going to sell the transfer case and linkage to a guy, but during conversation, he decided he wanted to buy the whole thing, of course after i yanked the transfer case and transmission. So I spent the day scavenging what I needed.

WyoCherokee is offline
Old 01-02-2018, 09:52 PM
  #11
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

I snagged the dirtbound crossover steering during black Friday. Looks pretty well put together and identical to cav fab.



WyoCherokee is offline
Old 01-03-2018, 08:24 AM
  #12
Member

OmgNoWai's Avatar

Join Date: Jan 2015
Posts: 137
Model: Cherokee
Default

I love the fact that you have no neighbors. At least what I can tell from the pictures. Our next house will be in the country.
OmgNoWai is offline
Old 01-03-2018, 09:53 AM
  #13
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Originally Posted by OmgNoWai View Post
I love the fact that you have no neighbors. At least what I can tell from the pictures. Our next house will be in the country.
My nearest neighbor is just across the street, but still within 100 yards. next closest house is about 400 yards. I own 5 acres. Rural communities are the best. 1 neighbor plows my driveway in the winter, and i give him Goose Jerky.

Last edited by WyoCherokee; 01-15-2018 at 09:18 AM.
WyoCherokee is offline
Old 01-06-2018, 11:50 PM
  #14
CF Veteran
Thread Starter

WyoCherokee's Avatar

Join Date: Jan 2015
Location: Gillette Wyoming
Posts: 1,273
Year: 1990
Model: Comanche (MJ)
Engine: 4.0
Default

Installed the headlight harness, touched up my rattle can paint job, installed the Dirtbound Steering, M.O.R.E off road steering brace, and the Rubicon Express track bar/brace/bracket assembly and removed the sway bar. Deffinate improvement in steering over the wornout tie rod ends.
Steering box brace

Installing the headlight harness
Got rid of the two-tone green red.

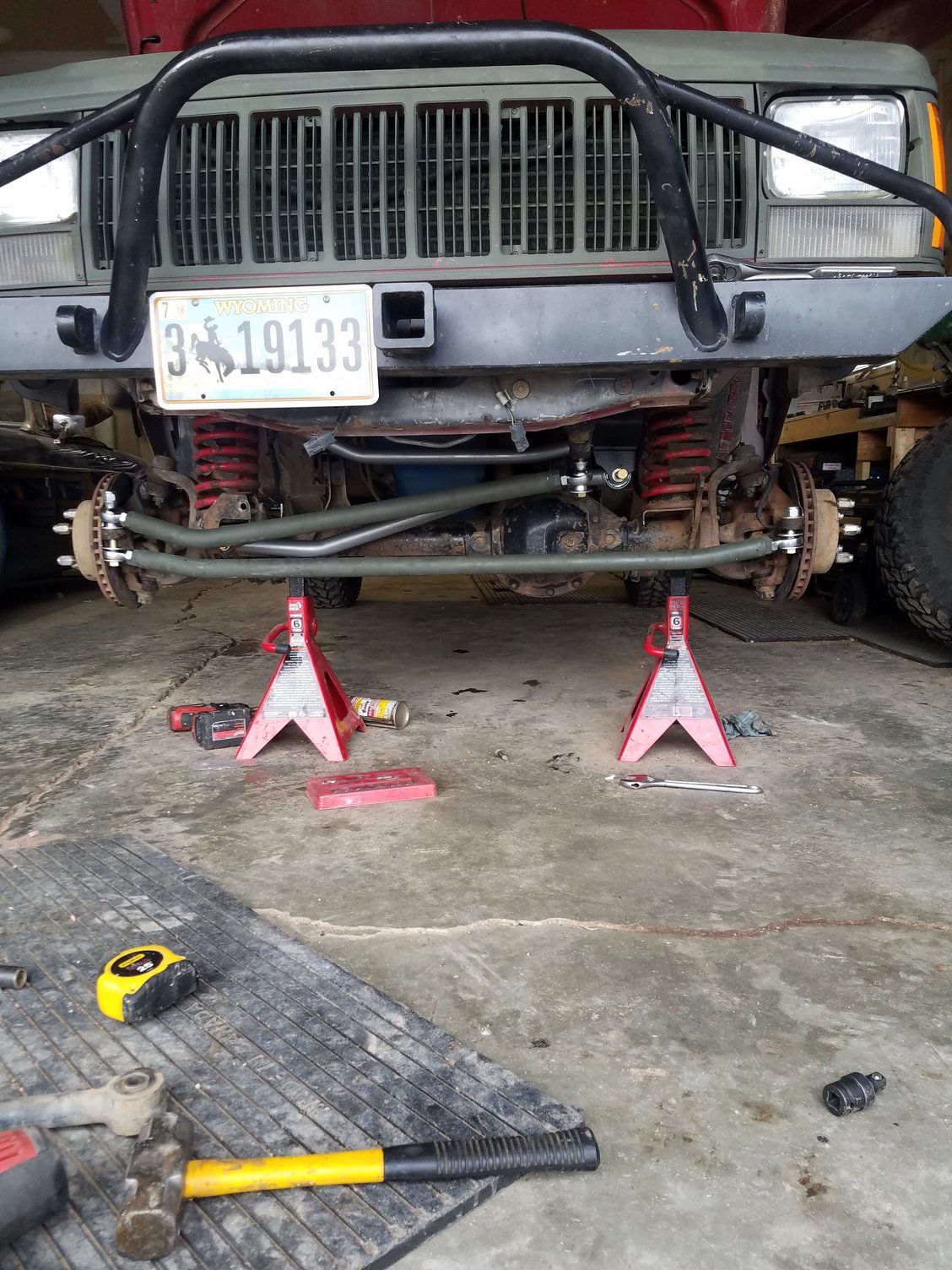

Dirtbound steering and RE track bar setup.
WyoCherokee is offline
Old 01-07-2018, 11:19 AM
  #15
CF Veteran

Join Date: Oct 2017
Posts: 1,382
Model: Cherokee
Default

Nice job!! I still have to get my track bar and brace installed from RE. Along with a bunch of other suspension parts. How do you like the track bar and the steering now? I know you said if feels better but have you taken it for longer drives yet? What size lift did you have on it or do have on it?
XJIrish4x4 is offline
