Default Twisted's Project Lazarus AKA The Brown Badger

----------------------
current state

* The Brown Badger *




------------------------


Whelp... Here we go again, lol.

Had to sell the RHD, so on to the next one!

'92 Sport
4.0/AX15/NP231

It runs great. Its a 5spd. The AC works. Its got manual windows/locks. So thats the good news.

But everything you can see with your eyeballs... is pretty damn ugly, lol. Took a whack to the front right, the paint is beyond dead, carpet and front seats have seen better days, tires are toast, etc etc. So ive got my work cut out for me.






In no hurry on this one, just gonna go through it bit by bit and make a nice driver/weekend toy. We'll see, lol.

Last edited by TwistedWrench; 03-11-2019 at 11:11 PM.
TwistedWrench is offline
Old 07-30-2018, 08:06 PM
  #2
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

Lazarus Punchlist

30/9.5/15 tires
Spare tire Better spare tire
Shift ****
Toss front bumper
Replace fender, header panel, grille, etc.
New headlights

Repair LH front door
Repair or replace LH rear door

Trim fenders
New paint job
Slim aftermarket front bumper
Window tint
Repair or replace driver front seat
Seat covers
Clean or replace carpet

Rebuild front susp/steering
Rear brake rebuild
Bedline lower body
Boostwerks TC kit
New steering wheel
Fix odometer

We'll see how much this list grows.



Already falling in love, so...
EDIT: Add-on/later on list

20gal conv, new fuel pump, 4 hole injectors, timing set
Header, ported TB, hi-flow cat
Leaf springs
Swap d35 for 8.25
Regear to 4.10 or 4.56
31 or 33" tires/15x8 wheels
Hurst shifter
Rear bumper with swing-out
New head unit/better speakers
Build cargo system
Rocker sliders
Front/rear skidplates
Custom center console

Last edited by TwistedWrench; 03-11-2019 at 11:14 PM.
TwistedWrench is offline
Old 08-14-2018, 04:22 PM
  #3
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

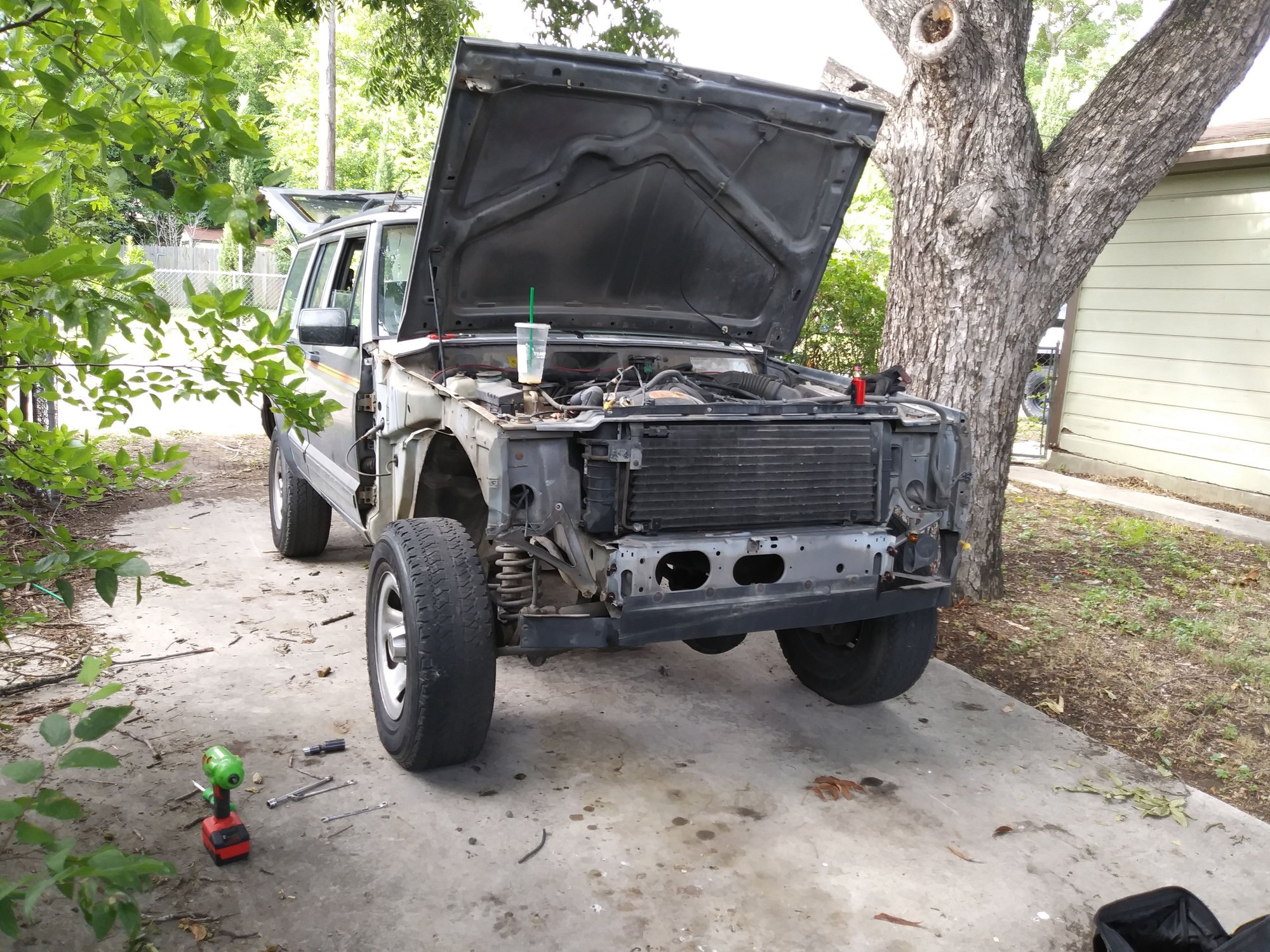

Bit by bit she's getting there.

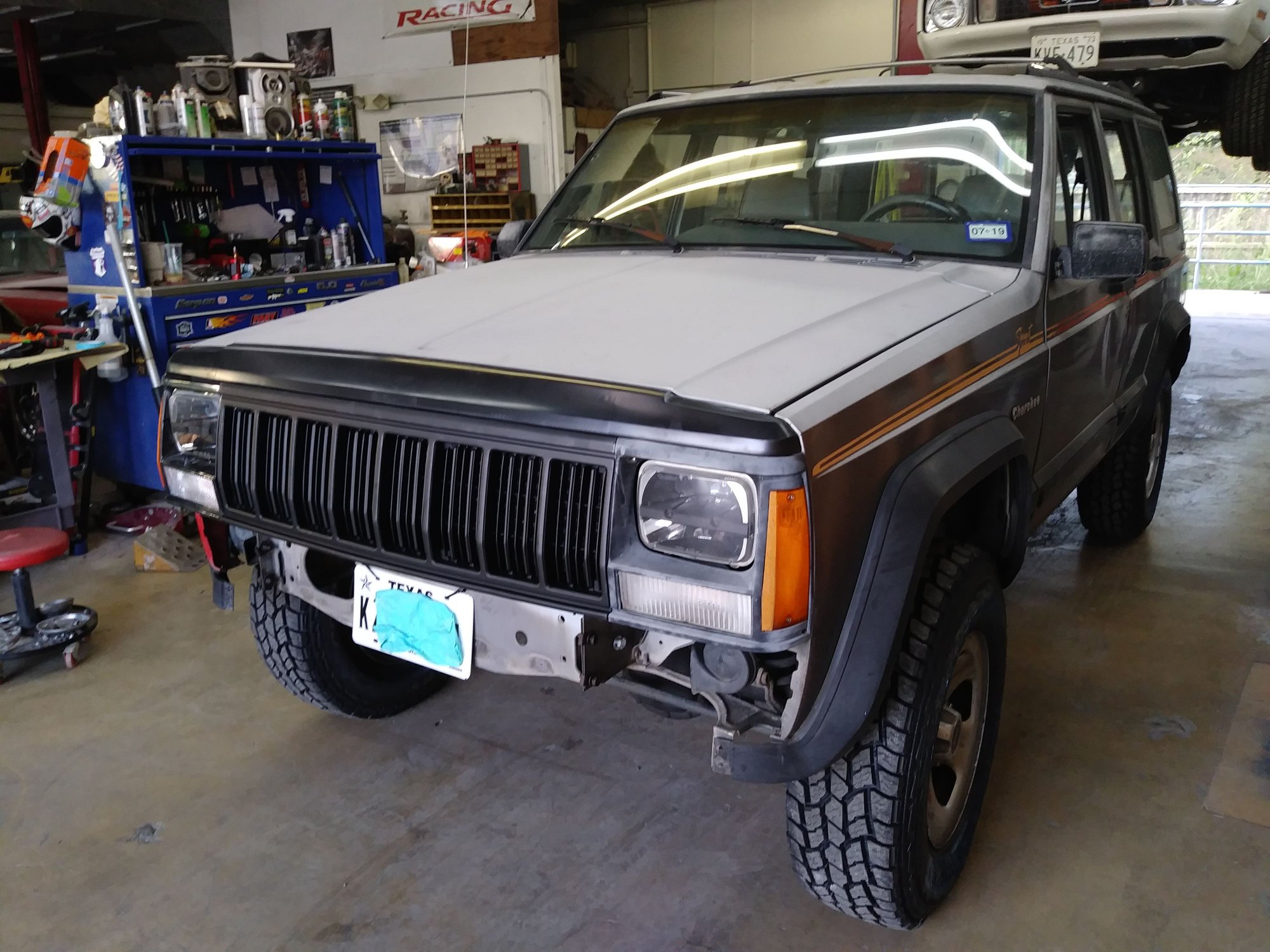

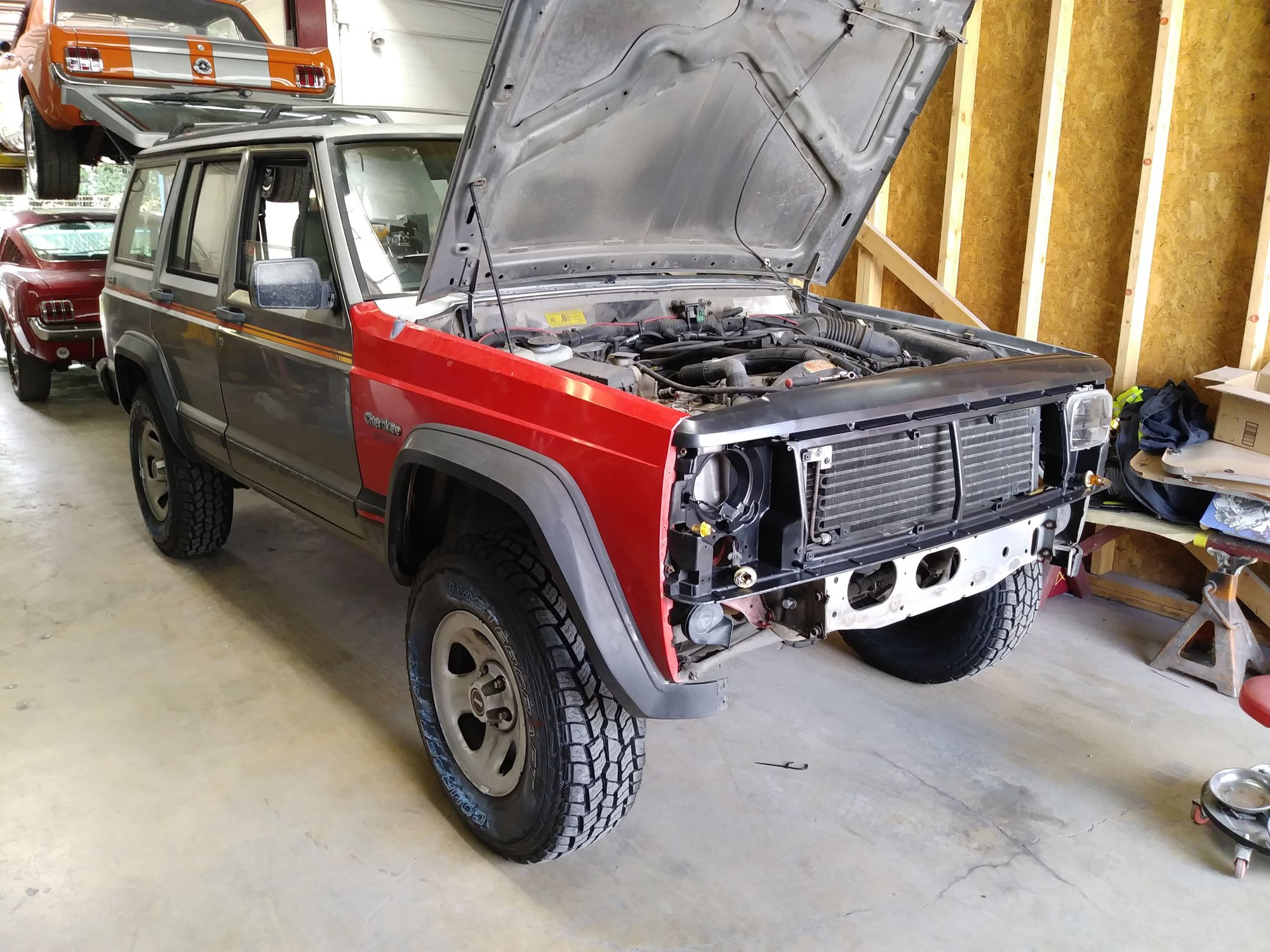

A lack of good available used header panels led me to purchase this one off Amazon. It's kinda meh. It'll do for now at least, if i find a good used one later i may replace it. We'll see how it looks after some tweaking/adjusting, and everything is painted.


After running 33s & 31s, these 30x9.5s look tiny, lol. If they grow on me, cool. If not ill regear and go bigger... and so it begins.

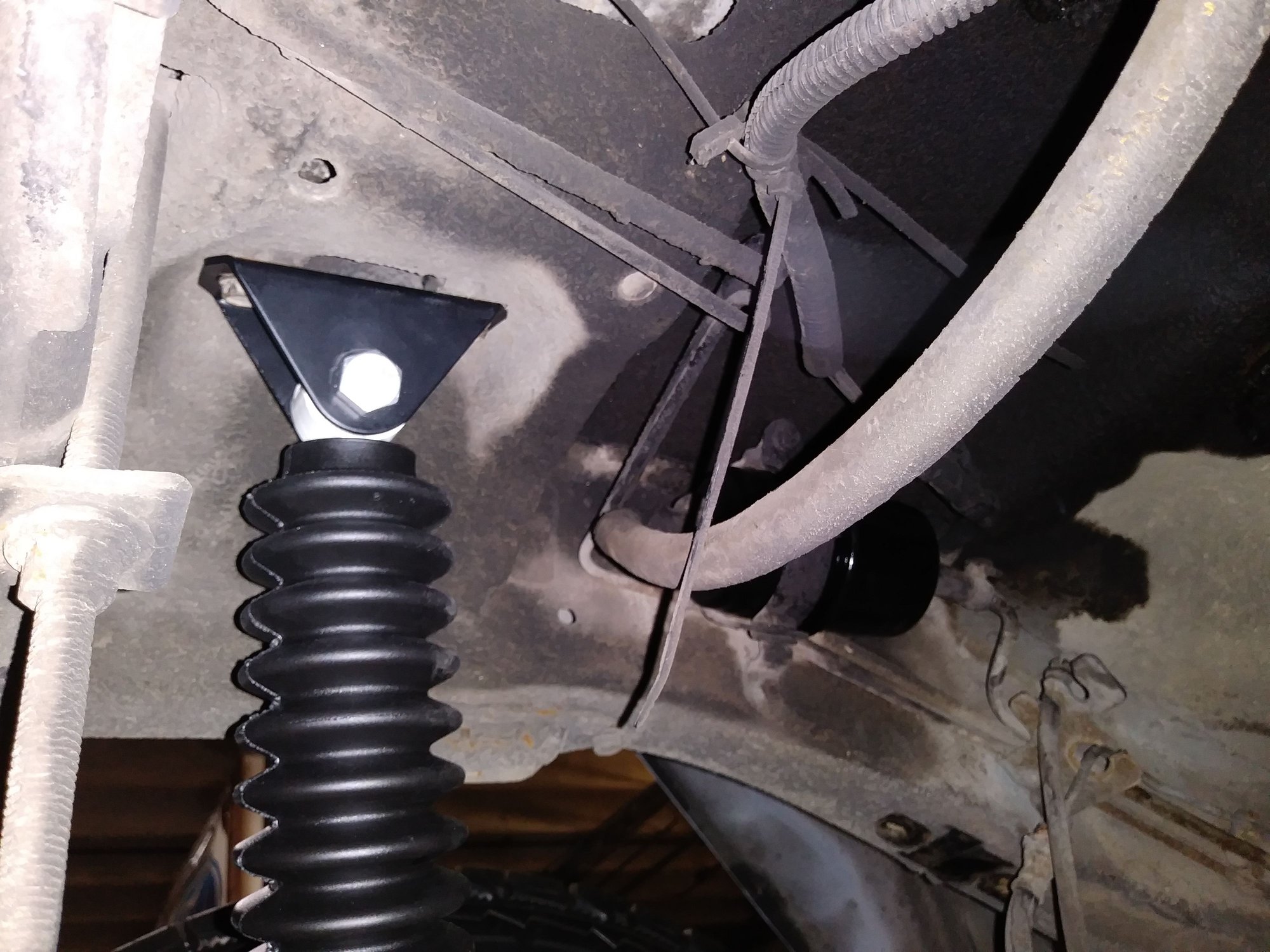

Had a nightmare of a time changing out the rear shackles.




But finally got that done, threw in some BPEs and ES9000s out back. Bit by bit.

Last edited by TwistedWrench; 09-10-2018 at 04:23 PM.
TwistedWrench is offline
Old 08-28-2018, 03:28 PM
  #4
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

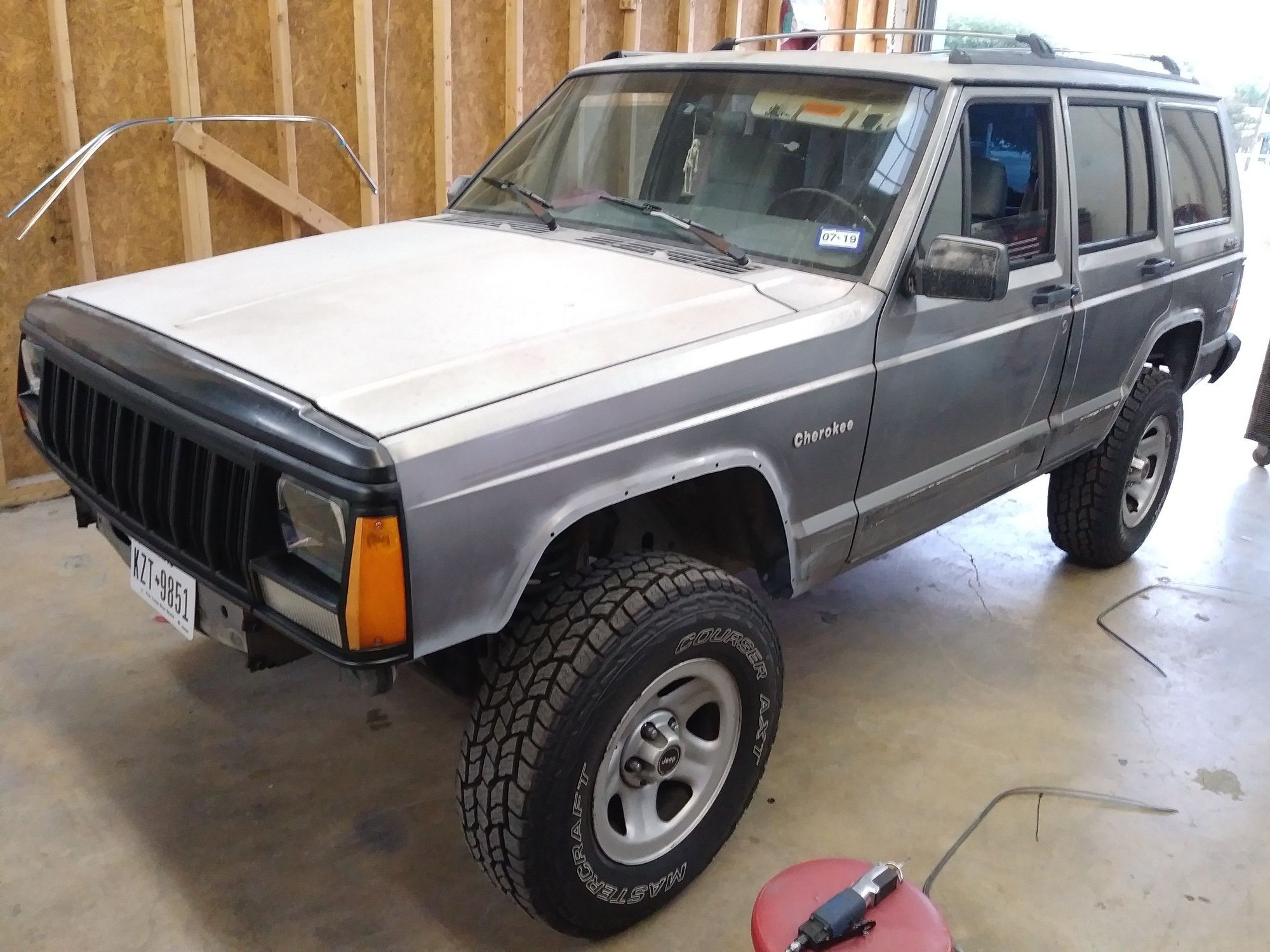

Current state. She's slowly getting there, lol. I've had a slew of jeeps with different kinds of aftermarket wheels... but never the classic, basic D-windows. So those are in her near future. They'll be painted to match the XJ though, right now im really leaning towards '18 Wrangler "Gobi" color.


Bumper is on order, gonna be starting on the bodywork shortly.
TwistedWrench is offline
Old 08-31-2018, 11:28 AM
  #5
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,969
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I hope u took measurements before u sold the RHD
XJwonders is online now
Old 08-31-2018, 11:43 AM
  #6
Senior Member

Join Date: Feb 2011
Location: orrville ohio
Posts: 819
Year: 1994
Model: Cherokee
Engine: 4.0
Default

sweet ride!!


1992 = no airbags...., we die like real men !
tinytrax78 is offline
Old 08-31-2018, 07:44 PM
  #7
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

Originally Posted by XJwonders View Post
I hope u took measurements before u sold the RHD
LOL i meant to PM you, mustve forgotten man. Not sure if any other versions of the RHD(postal, etc) are different, but the cables were the same on mine as the LHD. Battery, starter, etc all in the usual location.
TwistedWrench is offline
Old 08-31-2018, 07:47 PM
  #8
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

Originally Posted by tinytrax78 View Post
sweet ride!!


1992 = no airbags...., we die like real men !
Thanks man. Hell yeah, no airbags, auto trans, power windows, locks, seats or mirrors. Bare bones stripper jeep.

Love it!
TwistedWrench is offline
Old 08-31-2018, 09:48 PM
  #9
Senior Member

CRLAMBERTJR's Avatar

Join Date: Feb 2018
Location: Kentucky
Posts: 534
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L I-6
Default

Lookin good ! I like the narrower tires,,,
CRLAMBERTJR is offline
Old 09-05-2018, 05:33 PM
  #10
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

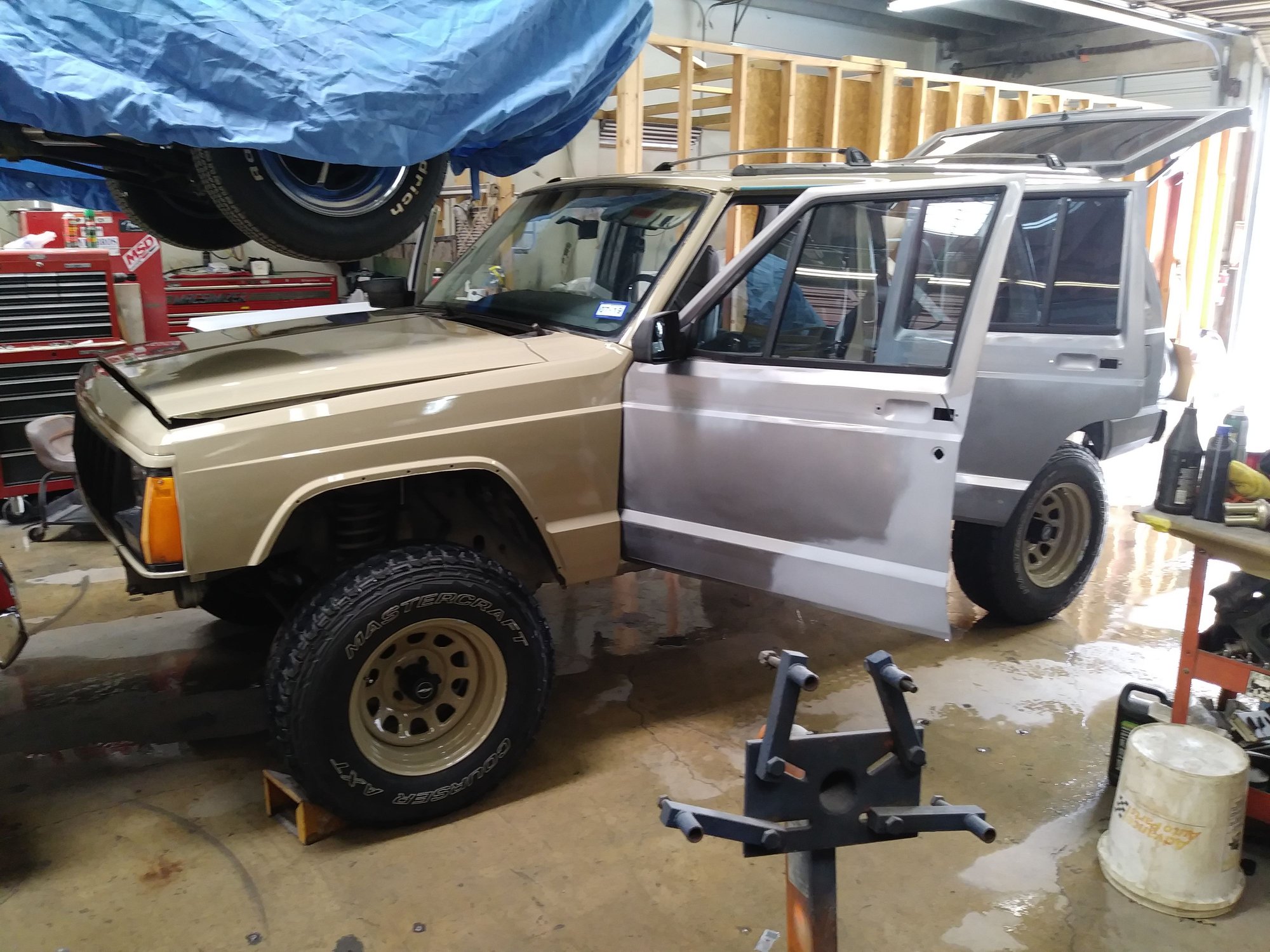

Making progress, slowly but surely!

Roof, jambs, and front clip are done.



Got the new wheels painted to match, probably swap those on tomorrow.


TwistedWrench is offline
Old 09-07-2018, 07:08 PM
  #11
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

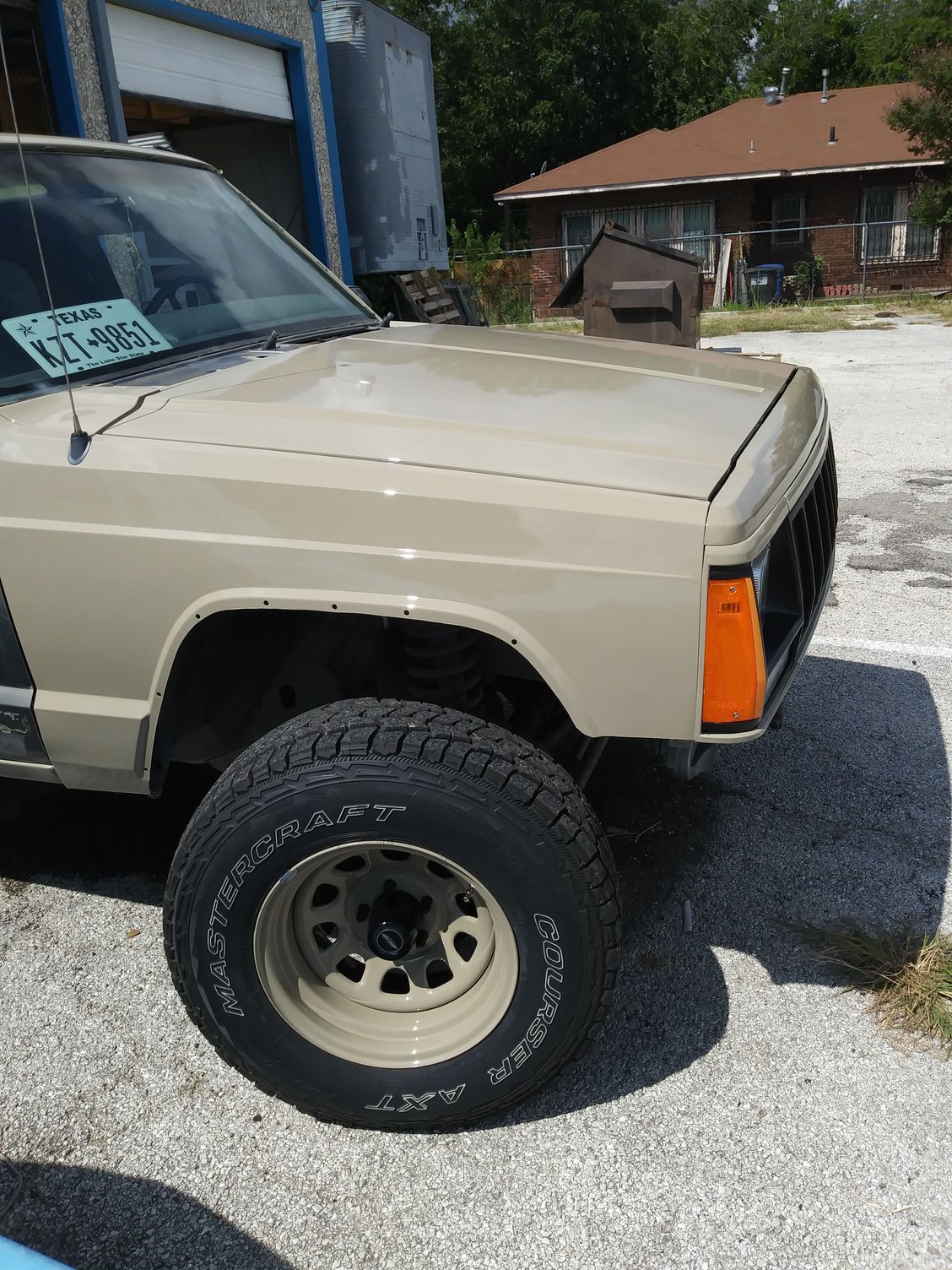

Got the new rollers mounted, super happy with it. Her personality is starting to take shape now!




All thing equal, im hoping to wrap up the paint/bodywork this weekend. Cant wait to see her all one color, lol.
TwistedWrench is offline
Old 09-08-2018, 05:38 PM
  #12
CF Veteran

Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,593
Year: 1990
Model: Cherokee
Engine: 4.0
Default

You covered the front plate in earlier posts and forgot to in these latest pics.

Jeep is looking good so far.
bad_idea is offline
Old 09-09-2018, 07:30 PM
  #13
CF Veteran

cleenrob's Avatar

Join Date: Jul 2012
Location: San Antonio, TX
Posts: 4,093
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

diggin the color matched wheels
cleenrob is offline
Old 09-09-2018, 08:02 PM
  #14
Seasoned Member

4BangerDanger's Avatar

Join Date: Dec 2015
Location: Knoxville, TN
Posts: 434
Year: 1993
Engine: 2.5L
Default

Nice work. What is your process when painting? I will be eventually painting mine and I've never painted a car before. Yours looks great!
4BangerDanger is offline
Old 09-09-2018, 08:40 PM
  #15
CF Veteran
Thread Starter

TwistedWrench's Avatar

Join Date: May 2015
Location: San Antonio, TX
Posts: 1,470
Year: 1992
Model: Cherokee
Engine: 4.0L H.O.
Default

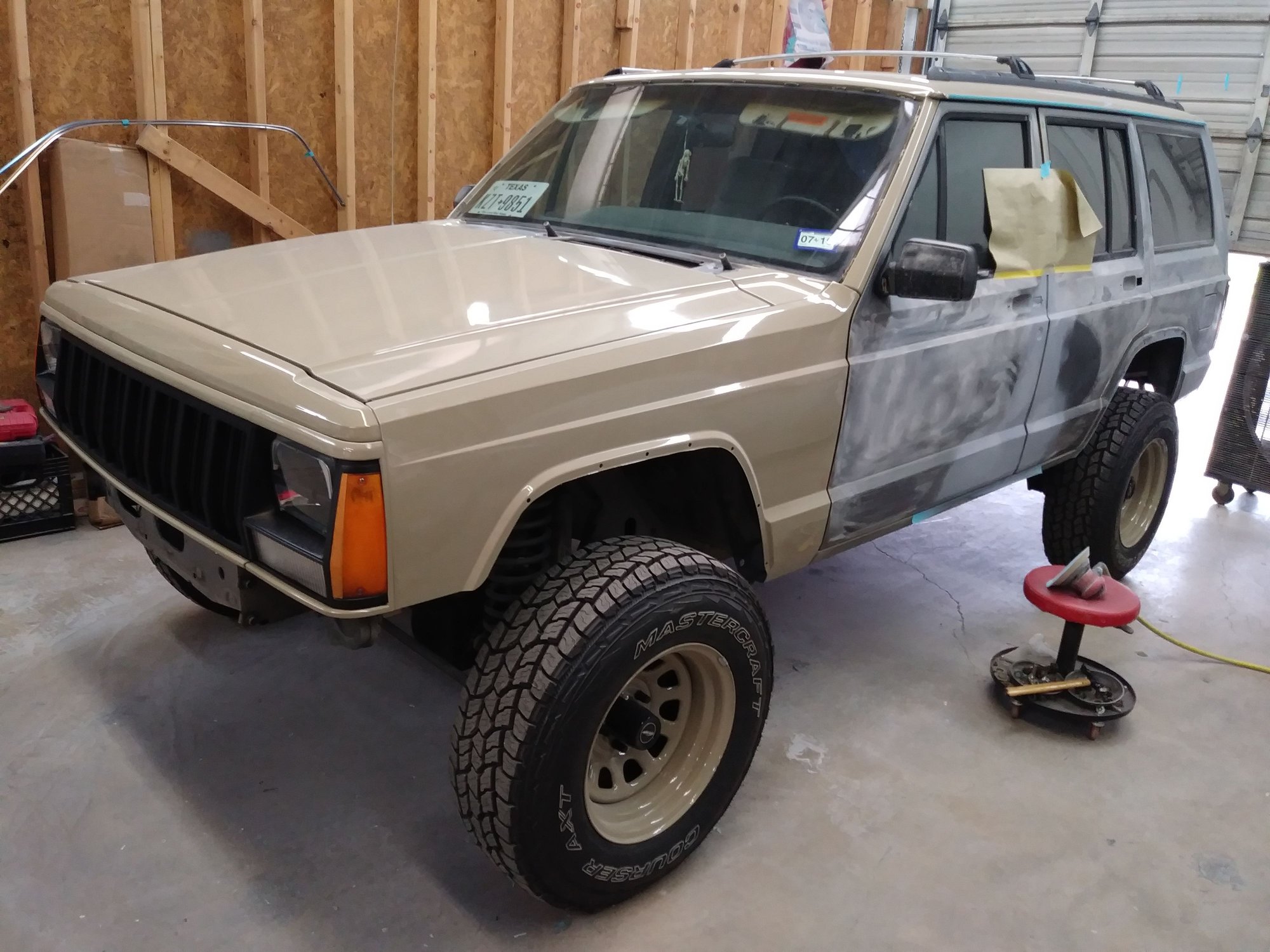

Thanks guys, im pretty stoked at how she's coming together.

My process? Lol, well compared to my usual paintjobs...


...this one is a walk in the park!

Bang out the major dents, finish with glaze. DA the crap out of it with 220, then 320, then 400. Tight-sand anywhere the DA cant get.



Wash it. Wash it again. Wash it one more time. Once its 100% spotlessly clean, wash it again. Hose out the bay(paintbooth is occupied).

Letting her drip dry overnight, paint going down in the morning!

Tuck 14ga wire under the rubber window moldings(creates a gap for the paint to get behind the rubber, prevents tapelines). Backtape the jambs, wipe it down with prekleeno. Plastic of what im not painting. Wipe it down with tack rags.

Its a jeep, gonna do jeep things in it, so just a single stage paint.

Dust coat.

2 wet coats.

When its all done, colorsand and buff the hood, other high-vis areas. Later as i get bored enough, i can go back and rework some of the little dings i didnt feel like ****ing with right now, lol.
TwistedWrench is offline
