Sienna Pearl 01 XJ
07-24-2015, 06:57 PM
#31
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
Engine and transmission are in and bolted up. I still have to deal with the shift linkages, get a radiator and there is a plug or two to connect.
07-25-2015, 04:14 PM
#32
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
Brackets for the coil rail should be done today. Wiring is all connected. I broke a fuel injector plug and a wire on another one is frayed. I set the cam position sensor and timing. Getting really close to completion.
07-30-2015, 04:46 PM
#33
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
The XJ is alive again! Here is a link for the youtube video. Started on the second turn. Video is right after revved to 2500
Last edited by kcirwilliams; 07-30-2015 at 04:49 PM.
07-30-2015, 07:58 PM
#34
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
I did a final update on the rebuild price list. I didn't include the alternator or exhaust because it wasn't really part of the "rebuild" but if you want to count it the overall total was somewhere around $1800ish. I'm glad that's all done with so I can start on the good stuff.
Future plans are:
ZJ Tie rod/ends
3" lift w/full leaf (mine are inverted)
31x10.50s on 15x8 D Windows
Bedline headliner board
Replace a/c components (compressor seized, delete pulley currently in)
I'm sure that the list will grow and I'll never be "done" but that's how it has been with all my Jeeps.
Future plans are:
ZJ Tie rod/ends
3" lift w/full leaf (mine are inverted)
31x10.50s on 15x8 D Windows
Bedline headliner board
Replace a/c components (compressor seized, delete pulley currently in)
I'm sure that the list will grow and I'll never be "done" but that's how it has been with all my Jeeps.
Last edited by kcirwilliams; 08-01-2015 at 09:10 AM.
08-25-2015, 07:29 PM
#35
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
The Cherokee is about 100 miles in on the rebuild.
Started Herculiner on the headliner today
Started Herculiner on the headliner today
Last edited by kcirwilliams; 08-25-2015 at 08:01 PM.
08-26-2015, 04:35 PM
#36
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
Headliner is in! It smells bad but looks great. It color looks uneven in the pictures but in person color and texture is even throughout the entire headliner. Mirrors are getting recovered in a black leather material.
07-08-2017, 09:12 PM
#38
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap

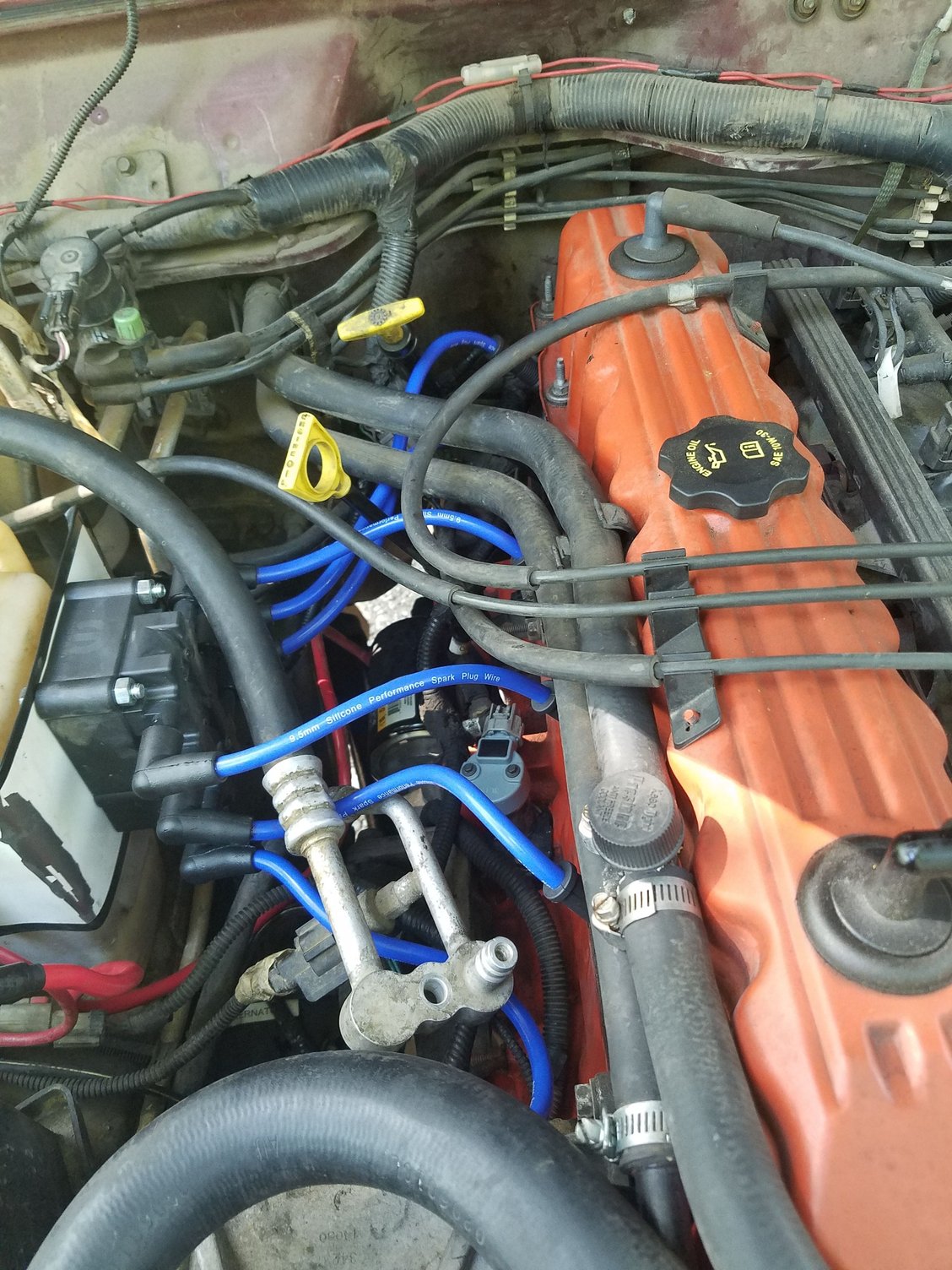

My 73 c10 project ate all of my lift budget, but I did just do the Viper coil mod and it's working good so far
12-09-2017, 11:53 AM
#40
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
Update:

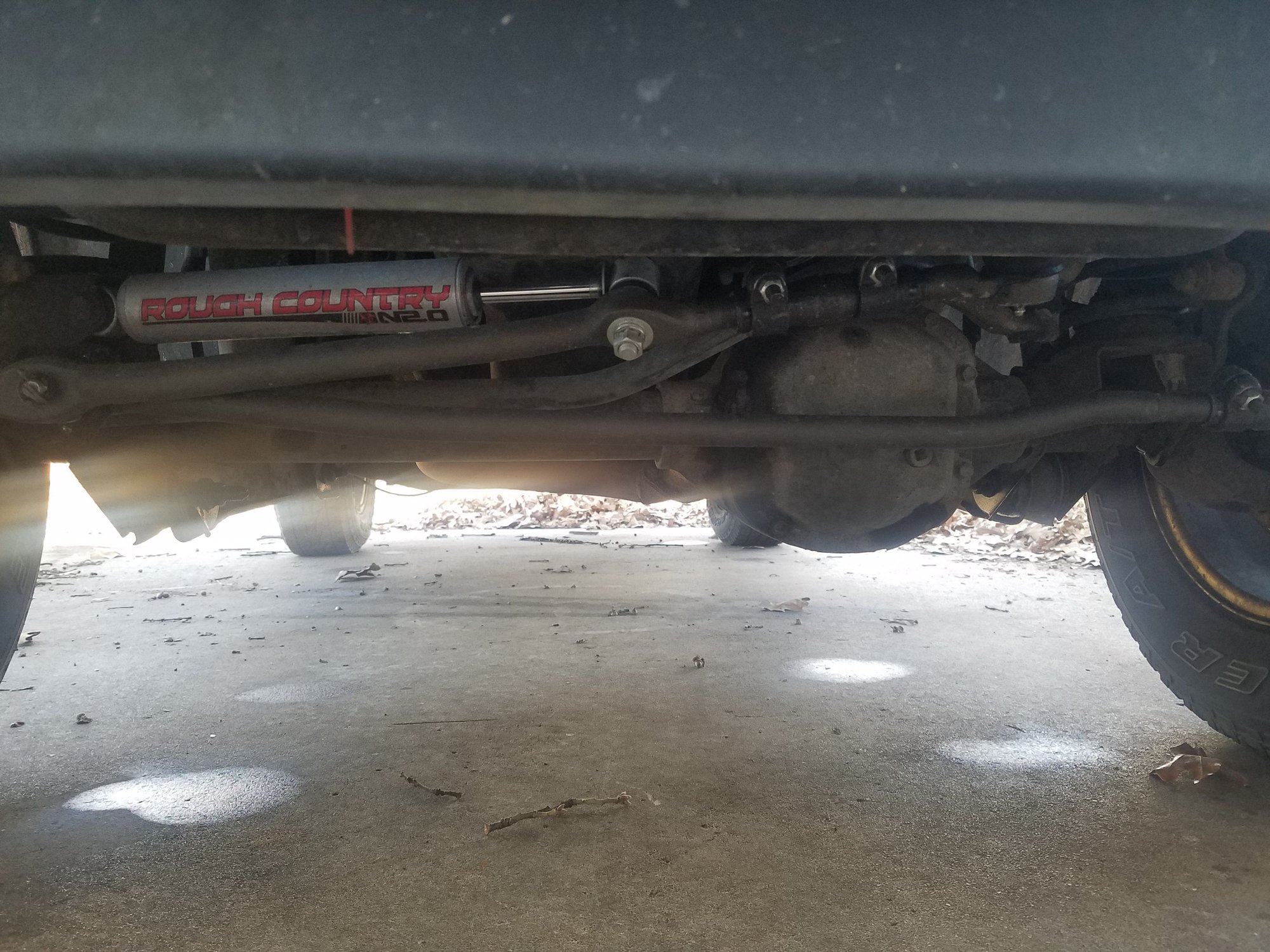

I had a bit of a sensor issue that is now resolved. Replace cam and crank sensors now it's back to normal. I replaced my bent tie rod with a new ZJ set up and put a new rough country stabilizer on it. Rough Country 3" lift is ordered and on it's way
I had a bit of a sensor issue that is now resolved. Replace cam and crank sensors now it's back to normal. I replaced my bent tie rod with a new ZJ set up and put a new rough country stabilizer on it. Rough Country 3" lift is ordered and on it's way
12-10-2017, 03:47 PM
#43
Junior Member
Thread Starter
Join Date: Apr 2014
Location: MO
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: Rebuilt 4.0 w/0630 Head swap
It's an Airtex 5C1103 coil. You'll also need to make a patch cable from a mopar p/n 68061344AA. It was around $140 for everything including plug wires
