You have the option of 1st only or leave it like stock and 1-2.



Did you choose just first or 1-2?



Or how do you have the option of running with just 1st or 1-2? Does it depend what spring you use?



I asked them to make it do just 1st only, but 1-2 still functions normally for some reason... It does hold 1st in low range though.. Weird. Lol.
I honestly don't know.. Probably has to do with which springs and ***** are put in. I know there were left-overs in the box when they were done.



When in low and you shift to 3rd does it get 2nd and the 3rd or just 3rd? Sorry for the to many questions



1st, 2nd, and 3rd



so it does not shift to 2nd un till you shift to 3rd and that how it gets second?



I am working on a controller now so that with the stock shift lever, you flip only one switch (manual - auto) and then your stock shifter will be-- 12 position is 1st gear, 3position is 2nd gear and OD position is 3rd gear. No other switches or levers to use or needed.



If you have the shift kit set up to lock in 1st gear in the 1-2 position, you will need to move the selector to 3 to get it to shift into 2nd gear.
^^that. lol.



Have you figured up what the compression ratio is at that pressure?

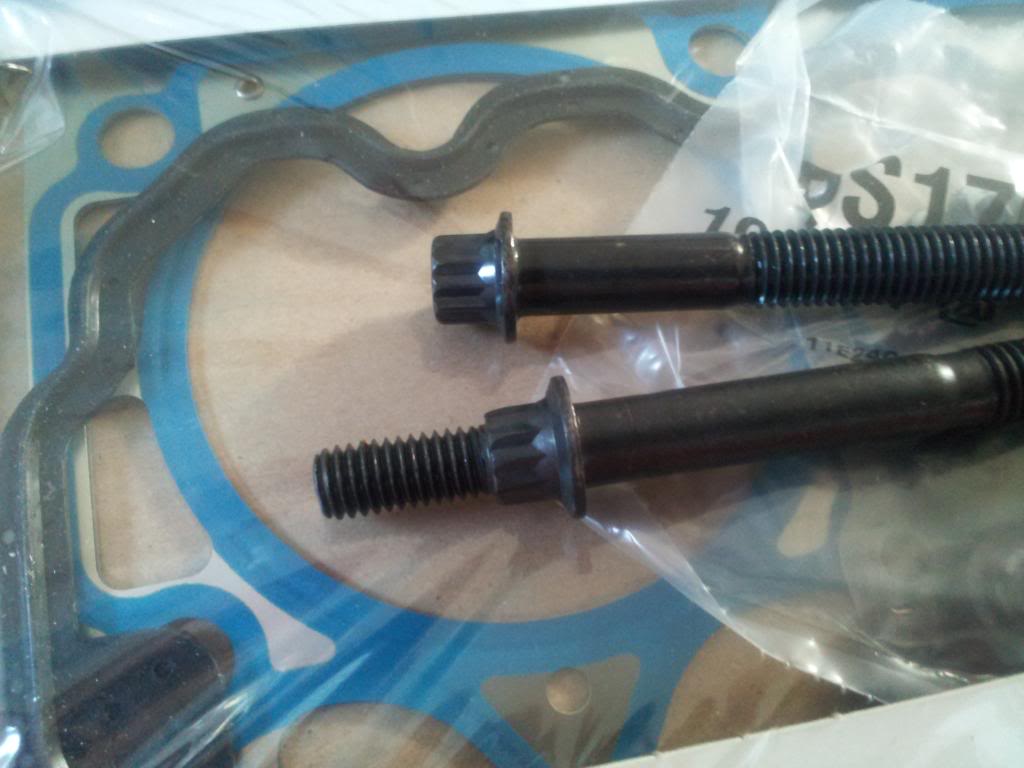

It probably just popped the gasket between cyl three and four. Pull the head, have it decked, through a good high mil gasket and some ARP studs in and rock out. (you'll have to trim the fire wall to run the studs because the head wont slip on other wise... just an FYI). But I'm sure the motor is fine.



Effective CR which is static + added boost for 8.75 + 12.5 lbs boost is 12.0:1. Thank goodness for the poor flowing head and cam which don't allow for that much filling. Your point is well taken. Between 3 and 4 maybe, but it seems to have popped into a water passage as it pressurized the cooling system and blew off the lower radiator hose.



Once the seal is broken, pressure will seep under the gasket. 3 and 4 are always the culprit on the 4.0. I've done upwards of 20 head gaskets on these things. It's a long afternoon job. So hop to it.



Wrong... mine was 5-6 AND 1-2... 3-4 were the only two that were still good lol



It is almost time.....



Any new updates?
