Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

project flipper!!

Old 08-07-2012, 12:36 PM
  #16
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

Originally Posted by bmikes
Roll cage today!! here's the plans!
Looks good. Are you going to make it or are you having someone make it
ccooper1234 is offline
Old 08-07-2012, 12:44 PM
  #17
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Me and my buddy are making it together. He's got a tube bender and some other equipment at his shop so we're working there
bmikes is offline
Old 08-08-2012, 01:13 PM
  #18
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Day two of the cage build! Yesterday we.got all the pieces cut out and i bent all the ones that needed to.be bent. So now we're tacking it all in and making little adjustments, then we'll finish burnin her in
bmikes is offline
Old 08-08-2012, 11:31 PM
  #19
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Well... Im frustrated :/ we got the back end of the cage done. And i really like how the back end of the cage turned out. But the front we were having problems getting stuff lined up, my bends were right a bunch a stuff wasn't right. So we decided to quit for the day and get back at it some other time.. But there's like $180 worth of dom that's wasted :/

project flipper!!-2012-08-08-17.55.29.jpg



project flipper!!-2012-08-08-17.55.19.jpg
bmikes is offline
Old 08-10-2012, 06:57 PM
  #20
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Alright, well i got my tail lights all wired up again! The last two days before work i took apart the wiring harness that runs to the back and go rid of all the wires i don't need anymore, like for the wiper motor and stuff. And when i chopped the top i accidently cut the wires that lead to the passenger side tail light so i had to splice those wires in again. But instead of running them right across the 'tailgate' area, i sliced them further back in the wiring where the back seat used to be!

I got a rear view mirror on today, (since i don't even know where mine want when i rolled it) and then went to the jy and got a drivers mirror!

So now with my lights and mirrors im finally street legal again! so i drove her to work today

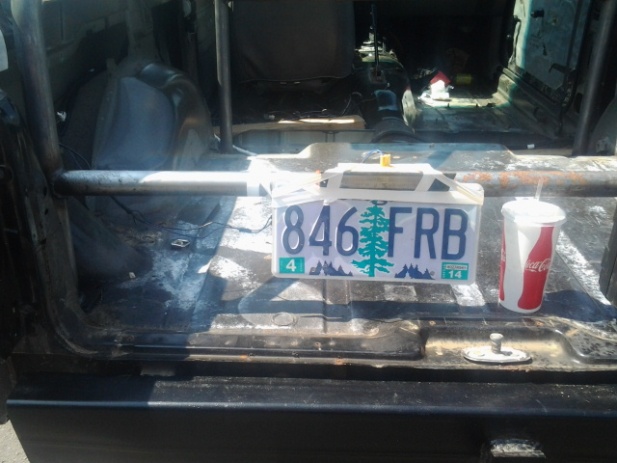

i got to work about 30 minutes early so i also sliced in a little lightbulb to illuminate my rear license plate at night

Ps, this little light is definitely not permanent, its just for a couple days. But for like 15 minutes of work i don't think its half bad if it keeps me from getting pulled over

project flipper!!-2012-08-10-13.18.13.jpg
bmikes is offline
Old 08-10-2012, 06:59 PM
  #21
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

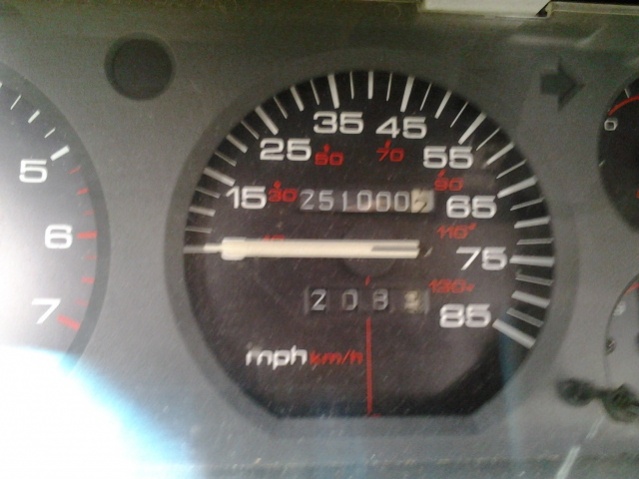

Oh and i also hit a mile stone today

project flipper!!-2012-08-10-11.27.12.jpg

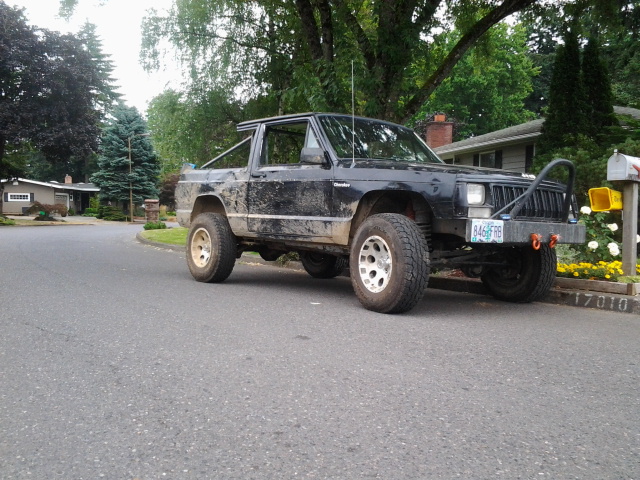

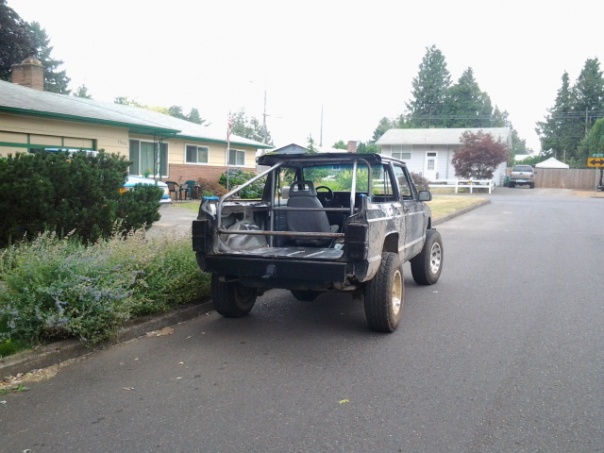

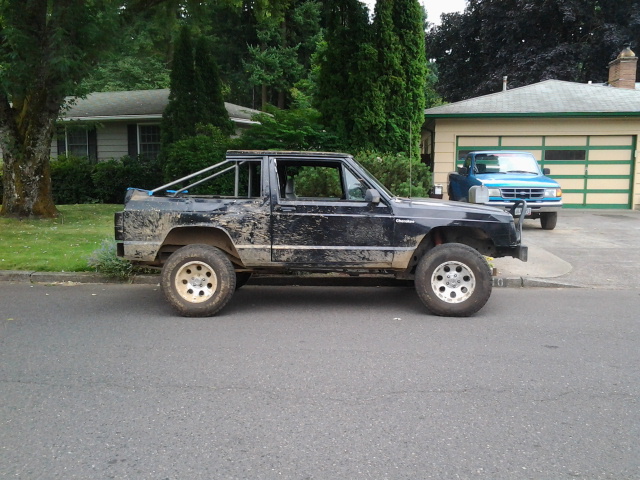

Here is what she looks like today

project flipper!!-2012-08-10-11.00.29.jpg



project flipper!!-2012-08-10-11.00.12.jpg



project flipper!!-2012-08-10-11.00.01.jpg
bmikes is offline
Old 08-10-2012, 08:16 PM
  #22
CF Veteran

ccooper1234's Avatar

Join Date: Oct 2011
Location: South Mills, NC
Posts: 1,812
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

You planning on bed lining the interior
ccooper1234 is offline
Old 08-10-2012, 11:28 PM
  #23
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Originally Posted by ccooper1234
You planning on bed lining the interior
Yessir, once i get it all done fabbing up the interior ill bedline it
bmikes is offline
Old 08-12-2012, 04:00 PM
  #24
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

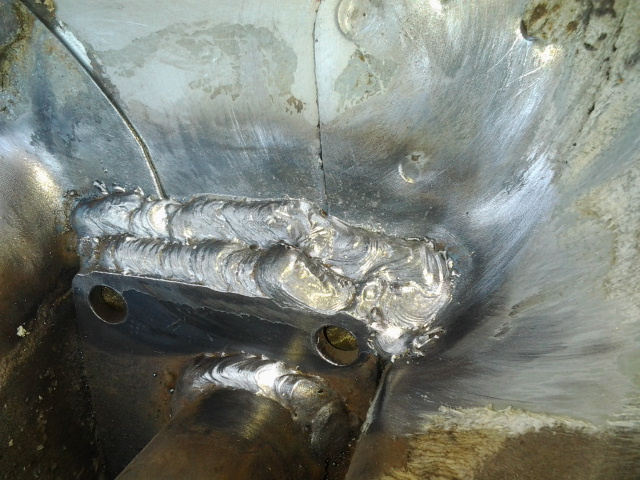

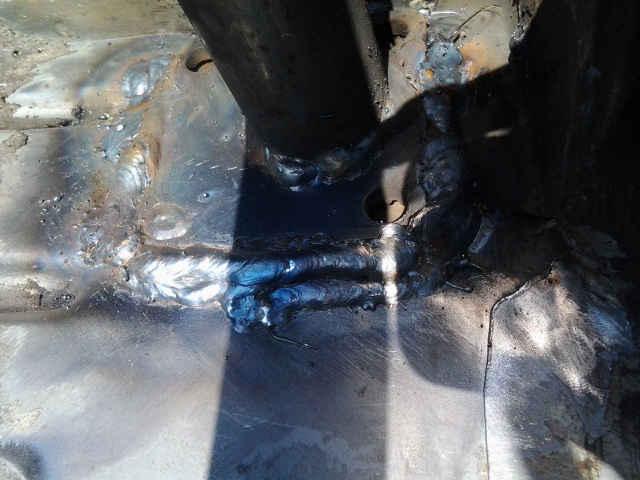

I got a little done today, welded the pad ( 'c' pillar) feet to the floor. Tomorrow ill work on the frame stiffeners and tying those feet to it
Attached Thumbnails project flipper!!-2012-08-12-13.11.06.jpg   project flipper!!-2012-08-12-13.10.47.jpg
bmikes is offline
Old 08-12-2012, 04:03 PM
  #25
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

Oh, and just a tip for anyone reading, the fill plug on the ax-15 is a 24mm. it took me forever to find the right wrench/socket for it. I ended up using a 24mm socket, cause i don't have that size wrench :/
bmikes is offline
Old 08-15-2012, 11:27 PM
  #26
Newbie

fitrider250's Avatar

Join Date: Jul 2012
Location: Santa Rosa California
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L highoutput
Default

Hey so if i wer to build my own cage someday. wear do u mount it and weld it?? I never really under stood how to mount a cage to Ur body!?!?
fitrider250 is offline
Old 08-28-2012, 12:51 AM
  #27
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

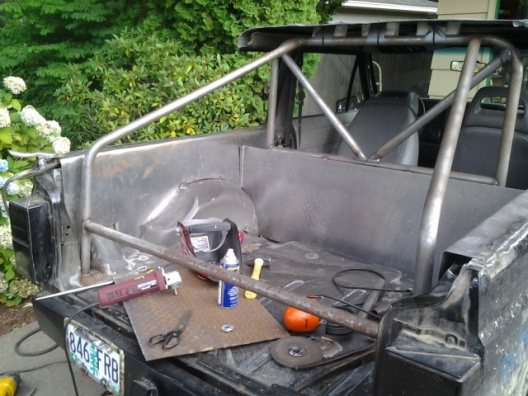

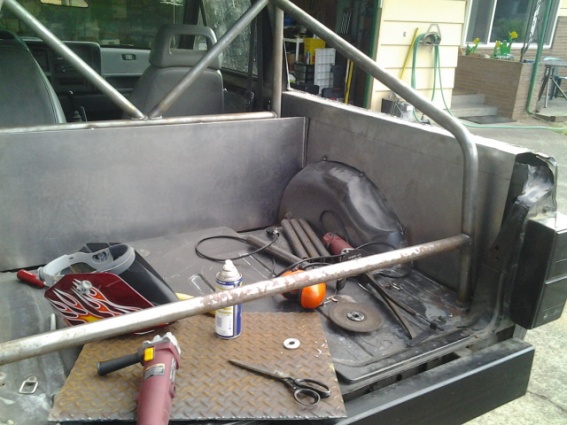

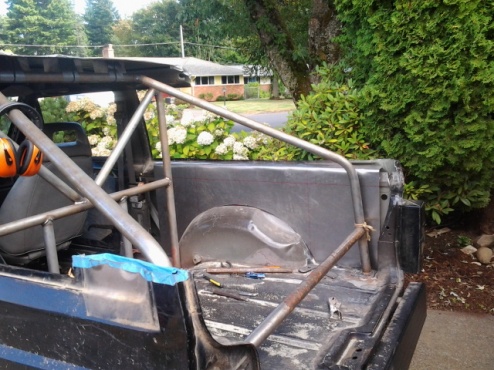

Hey guys, so I've been slacking on posting new updates in.here, but.here's some pictures of the most recent work i got done today!

project flipper!!-2012-08-27-19.08.16.jpg



project flipper!!-2012-08-27-19.08.10.jpg



project flipper!!-2012-08-22-12.42.08.jpg



project flipper!!-2012-08-27-19.08.02.jpg



project flipper!!-2012-08-27-18.17.14.jpg

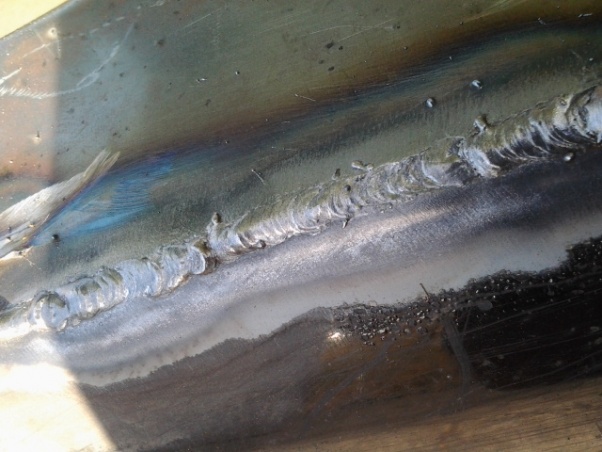

Tryin to weld 18ga sheet metal onto the body metal sucks!!



project flipper!!-2012-08-27-15.42.52.jpg

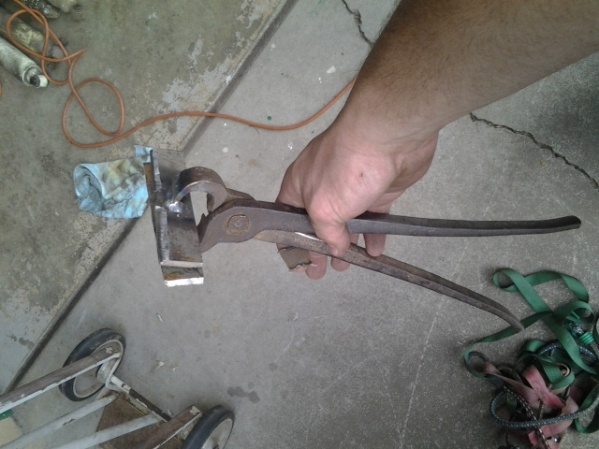

These are my sheet metal benders. I tried harbor fright ones but they can't.bend 18 ga... Maybe 24! but anyways, they are old horse shoe nail clippers! I ground down the point where they.came together and welded in two pieces of 3/8 stock i had around. They work real good!
bmikes is offline
Old 08-28-2012, 01:13 AM
  #28
Member

Dagostino480's Avatar

Join Date: Jan 2012
Location: Alta Loma, CA
Posts: 128
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 inline 6
Default

the mid section of the cage, is that bar high enough to attach a 5point harness to?
Dagostino480 is offline
Old 08-28-2012, 10:43 AM
  #29
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

No, that bar is all the way.behind the back seat. One i get the money to buy the seats ill fit them in and make a bar for.the harnesses
bmikes is offline
Old 08-29-2012, 01:38 AM
  #30
Senior Member
Thread Starter

bmikes's Avatar

Join Date: Mar 2012
Location: gresham
Posts: 517
Likes: 0
Received 0 Likes on 0 Posts
Year: 1993
Model: Cherokee
Engine: inline 6 4.0 ho
Default

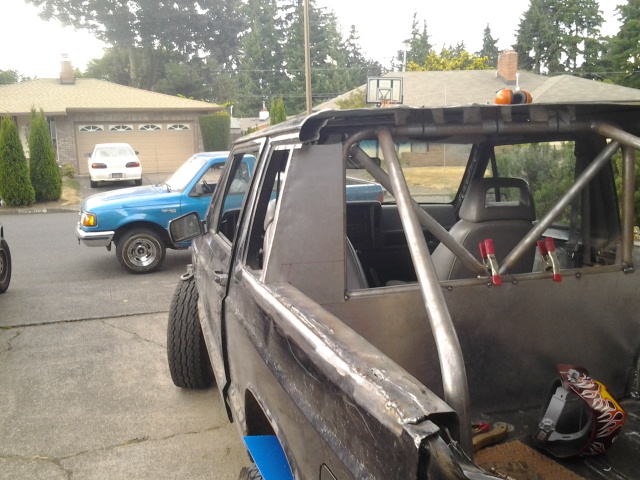

More pictures from today!
Attached Thumbnails project flipper!!-2012-08-28-17.28.05.jpg
bmikes is offline
