Project DARTH VADER

Thread Tools

Search this Thread

Old 04-19-2013, 09:23 PM
  #31
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

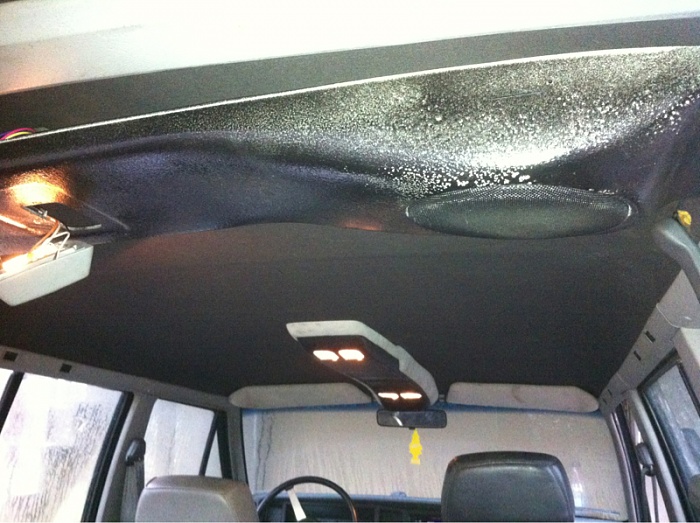

Finally recovered my head liner and installed my zj overhead console and sound bar
Old 04-19-2013, 09:26 PM
  #32
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

Heres some pics

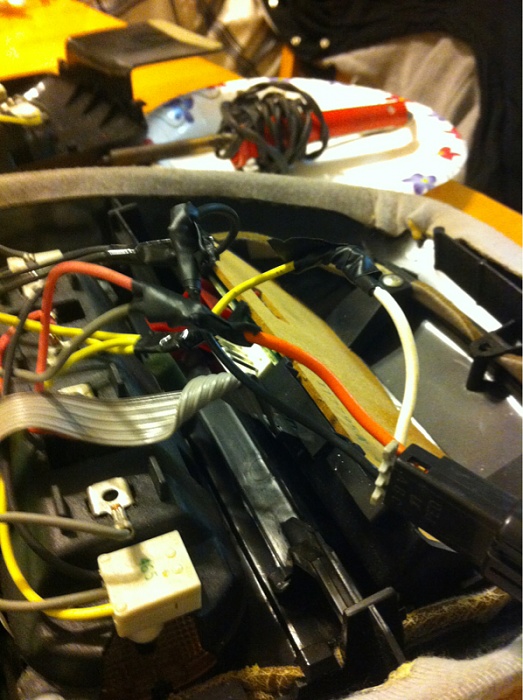

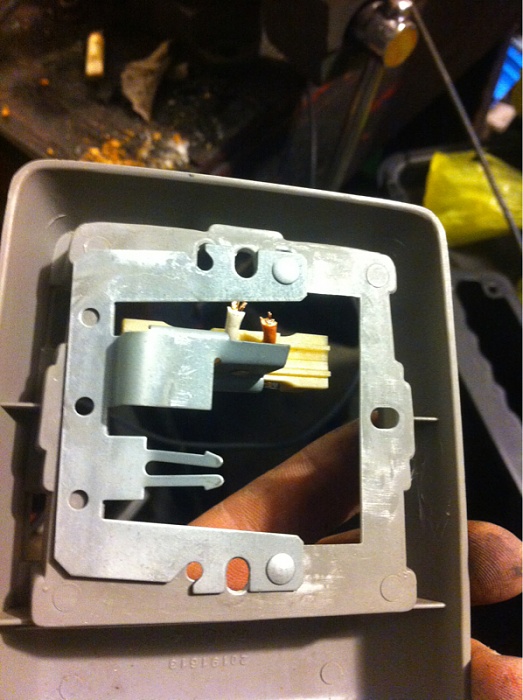

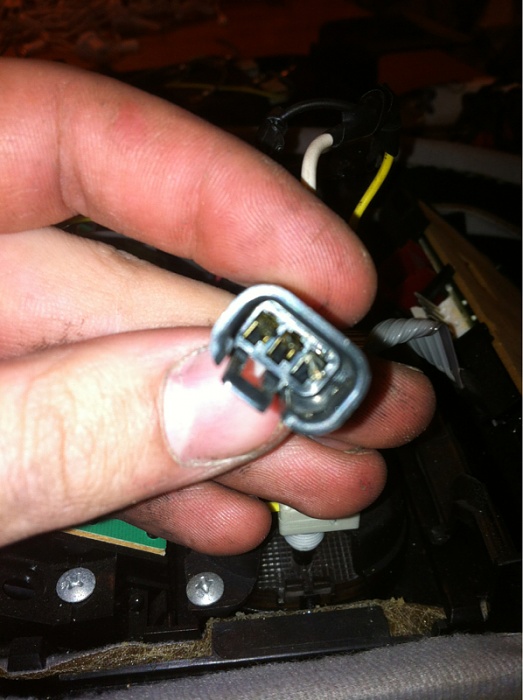

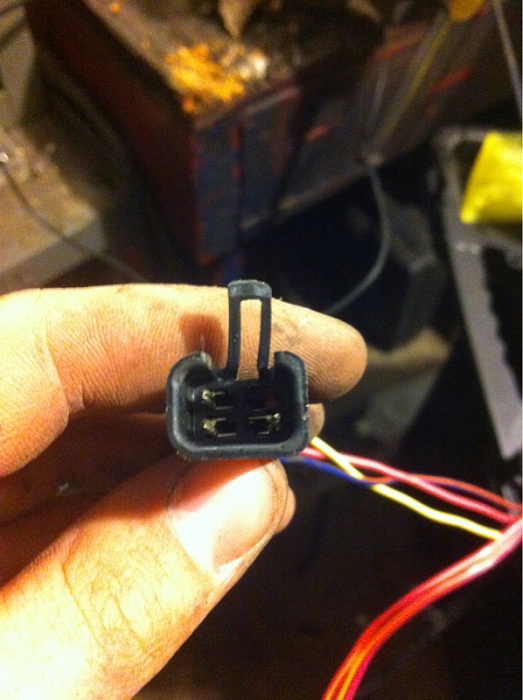

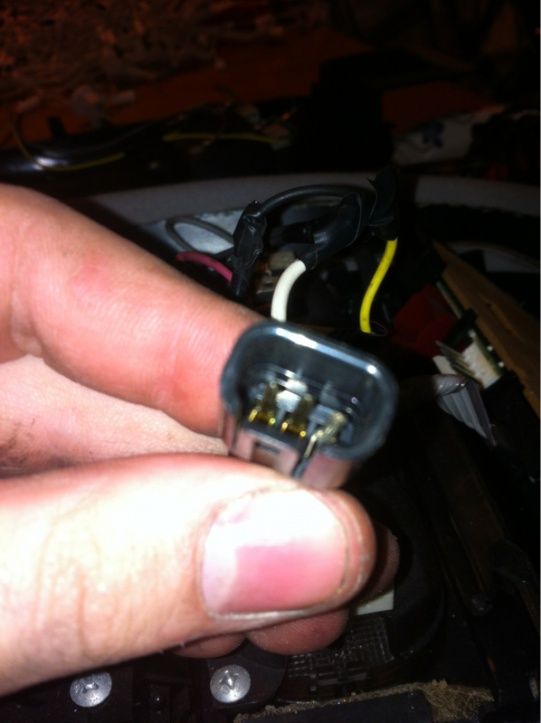

I simply depined and repined the factory connecter to accept the zj console so spliced or electrical tape needed eventually i will get the temp and other stuff working
Attached Thumbnails Project DARTH VADER-image-3586374349.jpg   Project DARTH VADER-image-3960221552.jpg   Project DARTH VADER-image-2857361497.jpg   Project DARTH VADER-image-2670171999.jpg   Project DARTH VADER-image-2657696248.jpg

Old 04-19-2013, 09:28 PM
  #33
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

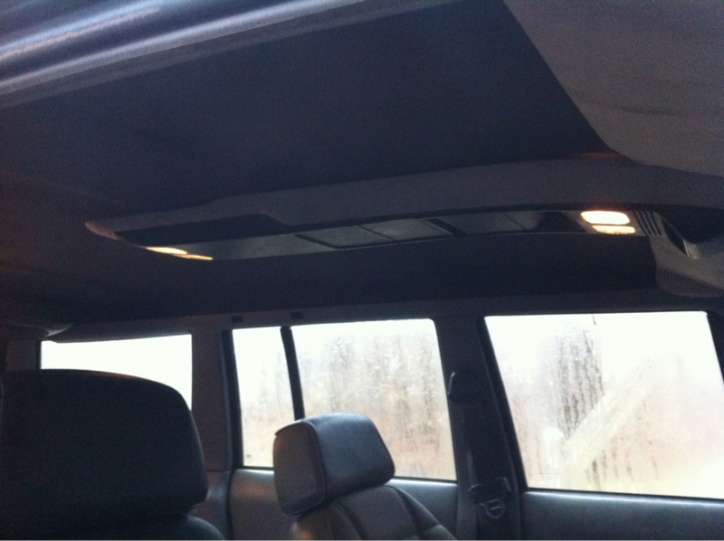

Looks factory just how i like it!
Attached Thumbnails Project DARTH VADER-image-4072521309.jpg   Project DARTH VADER-image-1844036398.jpg
Old 04-21-2013, 09:29 PM
  #34
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

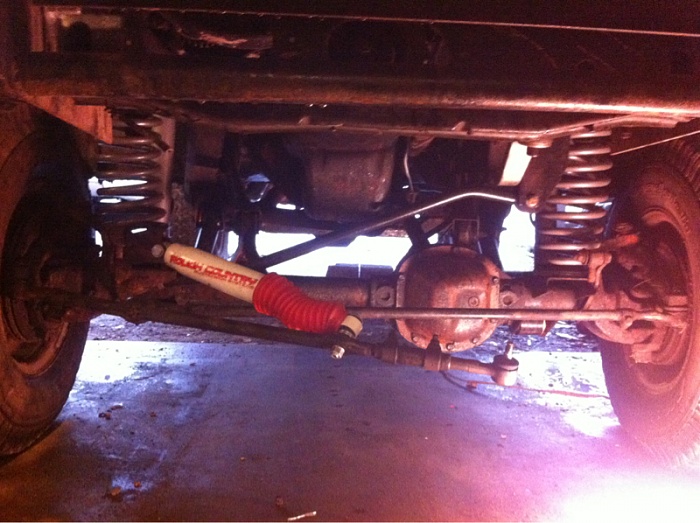

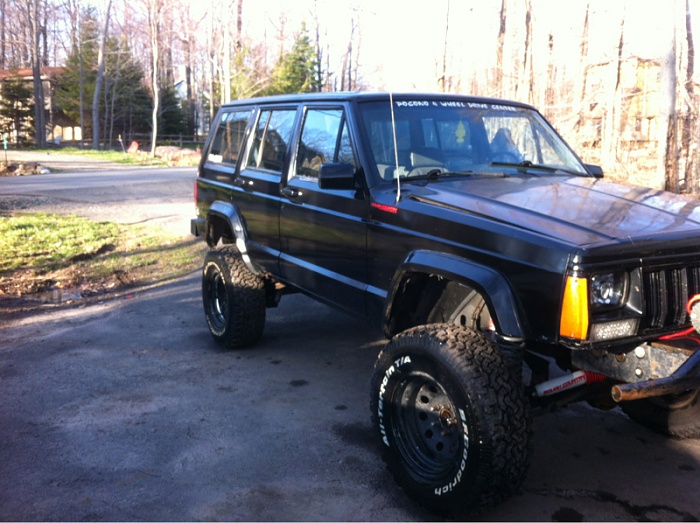

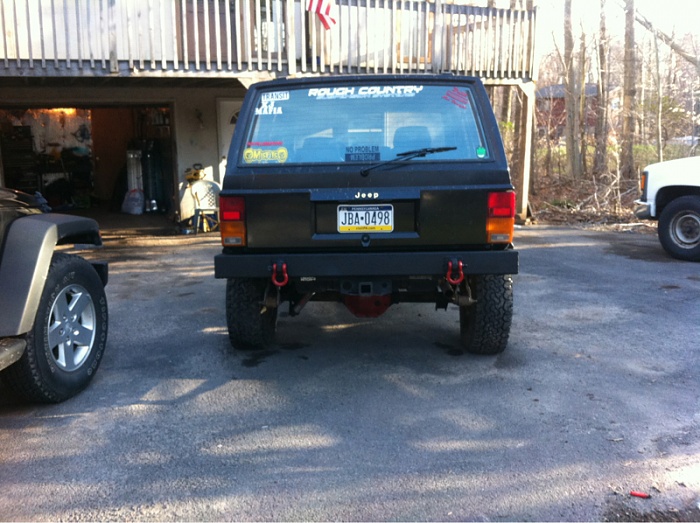

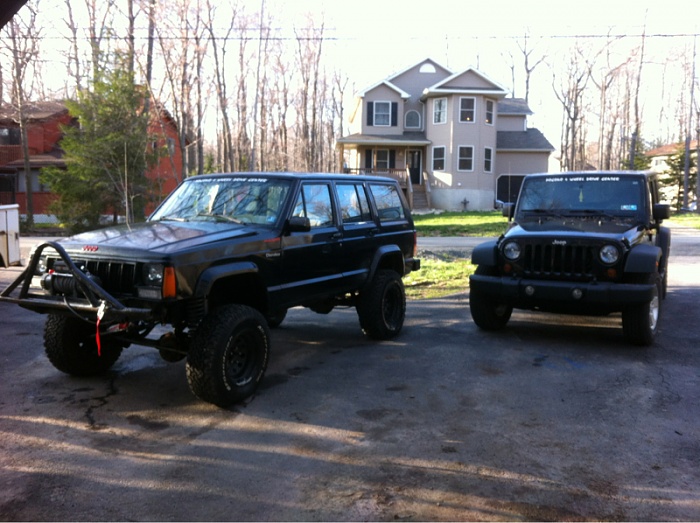

More progress got around to installing my rubicon express drop pitman arm

Also washed her for the first time in probably 3 years!
Attached Thumbnails Project DARTH VADER-image-1303982631.jpg   Project DARTH VADER-image-3596490150.jpg   Project DARTH VADER-image-744537899.jpg   Project DARTH VADER-image-1192579126.jpg   Project DARTH VADER-image-1615136161.jpg

Old 05-31-2013, 10:05 PM
  #35
Seasoned Member

Stanley's Avatar

Join Date: May 2013
Location: Las vegas
Posts: 341
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0l straight 6
Default

Awesome build man! What's the difference between a short arm and a long arm?
Old 06-01-2013, 10:48 AM
  #36
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

Originally Posted by Stanley
Awesome build man! What's the difference between a short arm and a long arm?

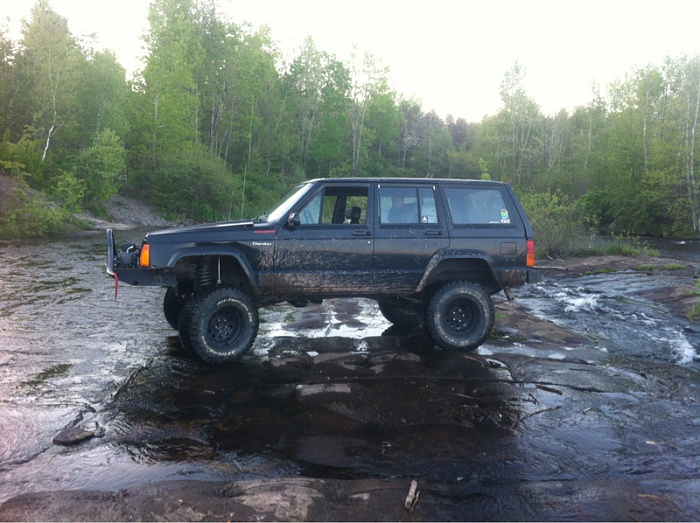

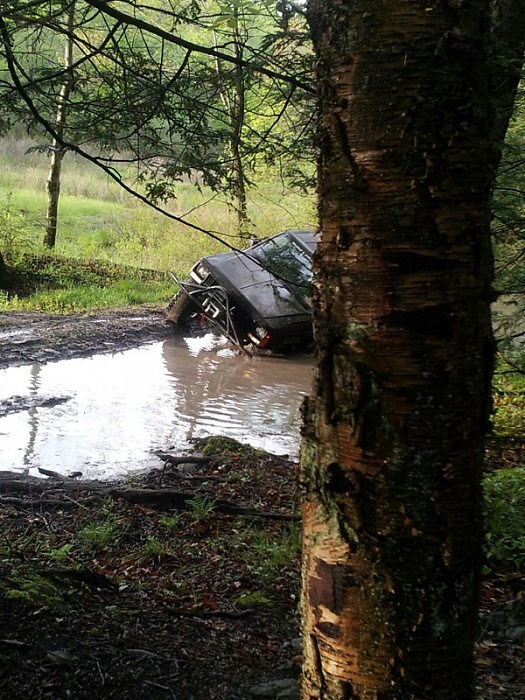

Long arms take the lcas from being close to the axle to under the transfer case and have the upper control arm as almost a 4 link suspension. But here are some new pics!
Attached Thumbnails Project DARTH VADER-image-2363917076.jpg   Project DARTH VADER-image-3711025878.jpg   Project DARTH VADER-image-4294905392.jpg
Old 06-14-2013, 11:17 PM
  #37
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

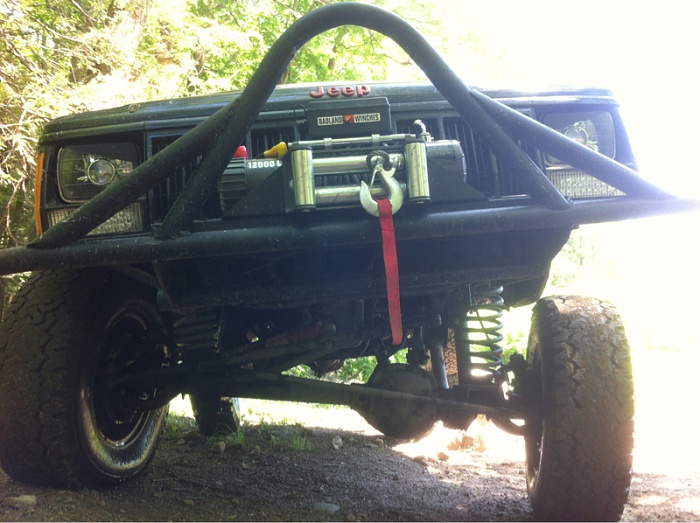

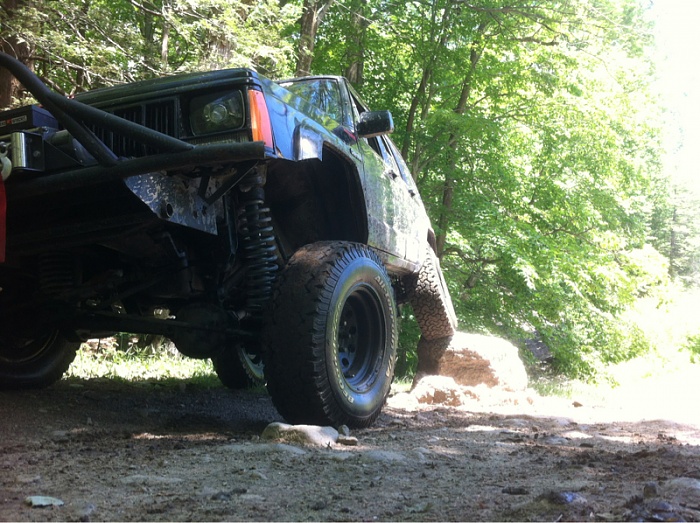

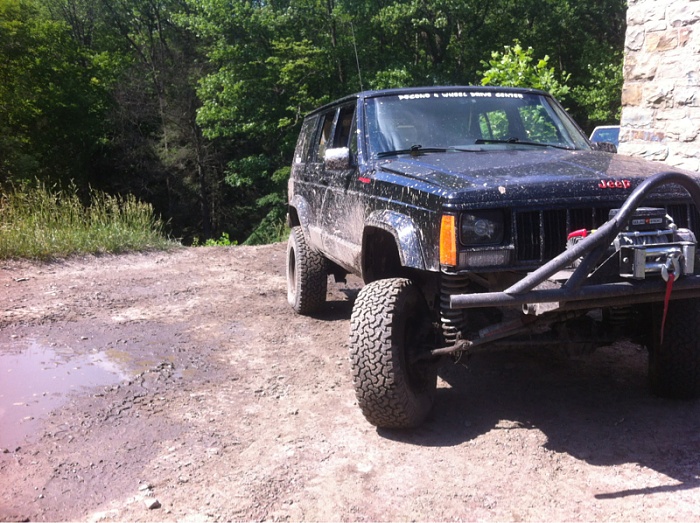

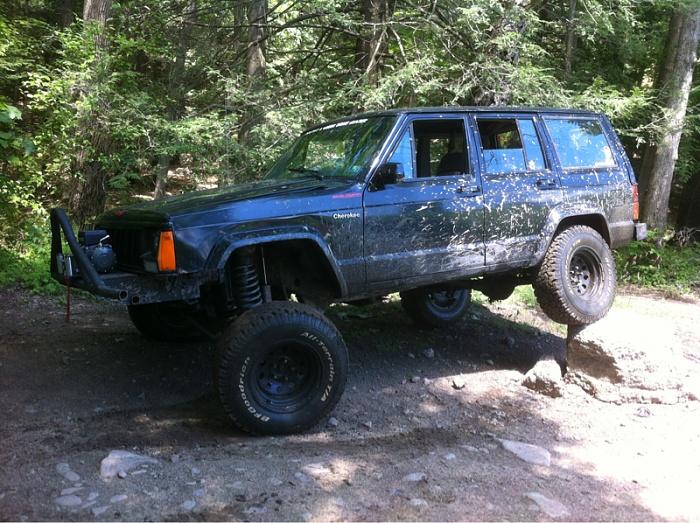

Well winch works great i had to winch my buddys tj outta of a huge ditch close to tipping havnt had time to do any time of work to her and now the tranny is whining after the last wheeling trip but more pics!!
Attached Thumbnails Project DARTH VADER-image-3459079198.jpg   Project DARTH VADER-image-1744412196.jpg   Project DARTH VADER-image-534661938.jpg   Project DARTH VADER-image-1661880264.jpg   Project DARTH VADER-image-3391363670.jpg


Last edited by xj_mafia570; 06-15-2013 at 09:53 AM.
Old 06-15-2013, 01:15 AM
  #38
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default



video from when i had to winch out 3 weeks ago
Old 06-15-2013, 01:35 AM
  #39
Member

XJMichael's Avatar

Join Date: Apr 2013
Location: Pasadena, Ca
Posts: 199
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 v6
Default

Originally Posted by xj_mafia570
MORE updates i finally finished my front led turn signals and its a super cheap simple mod and i know every one who ones a jeep loves cheap mods

so here we go

when i worked at NAPA i knew how to get my hands on alotta cool **** so i found these made by Trucklite

you can get them from your local napa for about $20 each they have 3 plugs on the back one for power one for the turn or stop and one for ground so its plug and play

then i split the lens its really easy, i just used a razor blade and it came off

then you simply put the leds in the casing and clue it back up i used a combo of automotive clear epoxy and a hot glue gun

and here you go

simple clean and cheap!

just need an led flasher and ill be set

in a matter of 3 hours is mounted the winch, bolted in head lights and mounted my led turn signals

it took a little long because every ****ing screw that held the turn signal lenses broke in the stupid fiberglass bezel

i still need to wire the winch and mount the rollers but could not resist putting it on!

finally put my other tire back on after i slashed it 3 months ago on my limited

not bad for only being stock about a month ago with no floors

next is the long arm and a few other mods
That milk doesn't look too good
Old 06-15-2013, 01:37 PM
  #40
Member
Thread Starter

xj_mafia570's Avatar

Join Date: Sep 2012
Location: Poconos PA
Posts: 244
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 DUHHHH!
Default

Originally Posted by XJMichael

That milk doesn't look too good
Lol its actually home made italian salad dressing
