Project 91 xj "green bean"
What's up jeep family! I guess it's time I start the thread for my jeep build.
So I bought a 92 xj with hopes of building a trail rig.... well this jeep turned out to be a terrible purchase on my part, but ya live and learn. However there was some good things about this jeep.
The good:
- Dana 44 rear axle thats Lincoln locked 😂.
- had 4 35 km2's with minimal wear.
- had a front drive shaft that can be used for an sye
The bad:
-had a terrible lift, 3" coil spacers and leaf spring blocks.
-the motor runs but not good at all

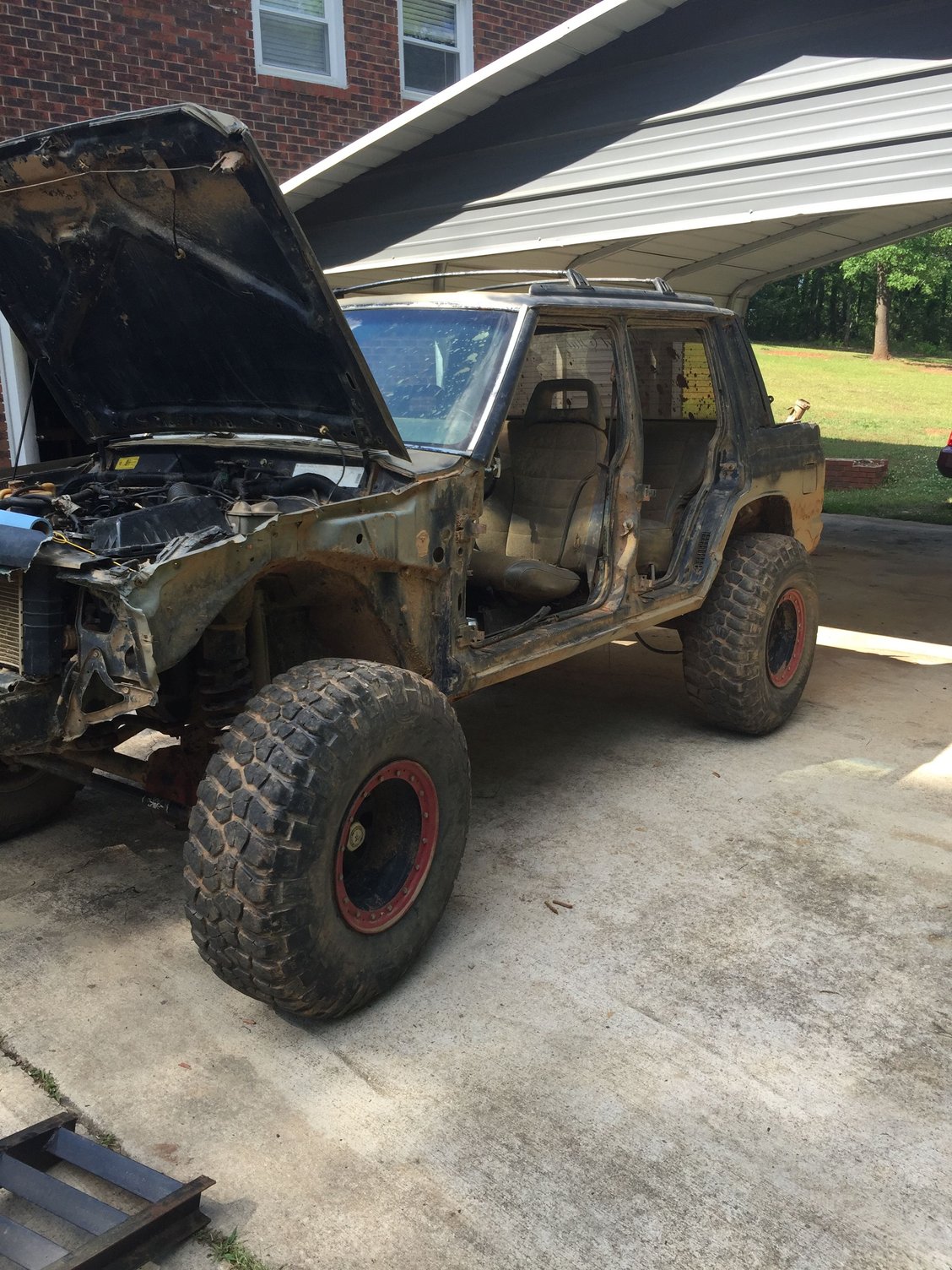

So here it is

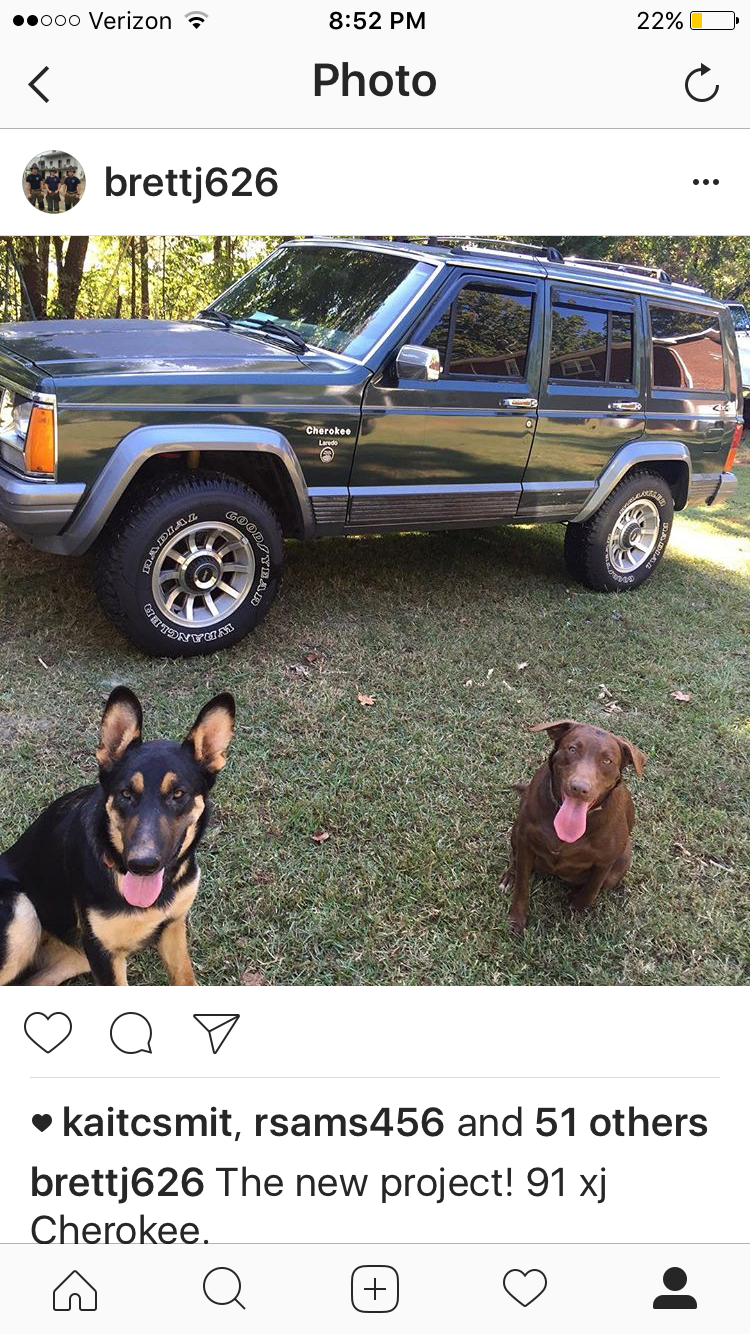

So then after I realized I wouldn't be able to do much with this jeep I stumbled across another one and picked it up for 500$. It's a 91 xj perfect interior runs and drives smooth however it does have a terrible oil blown by issue.
So I bought a 92 xj with hopes of building a trail rig.... well this jeep turned out to be a terrible purchase on my part, but ya live and learn. However there was some good things about this jeep.
The good:
- Dana 44 rear axle thats Lincoln locked 😂.
- had 4 35 km2's with minimal wear.
- had a front drive shaft that can be used for an sye
The bad:
-had a terrible lift, 3" coil spacers and leaf spring blocks.
-the motor runs but not good at all
So here it is
So then after I realized I wouldn't be able to do much with this jeep I stumbled across another one and picked it up for 500$. It's a 91 xj perfect interior runs and drives smooth however it does have a terrible oil blown by issue.
#2
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
My plans for this jeep is to build the heck out of it. But I must also say I'm a broke firefighter and don't have unlimited funds to put into this jeep.
Even though it's gonna be a while for all of this here are my plans for the future
-Dana 44 front and rear
-4 link suspension
-roll cage
Maybe one day even a v8 swap, but that would happen when I have one tons
Ive already done a lot of work so I'll go ahead and show y'all what I've done so far.

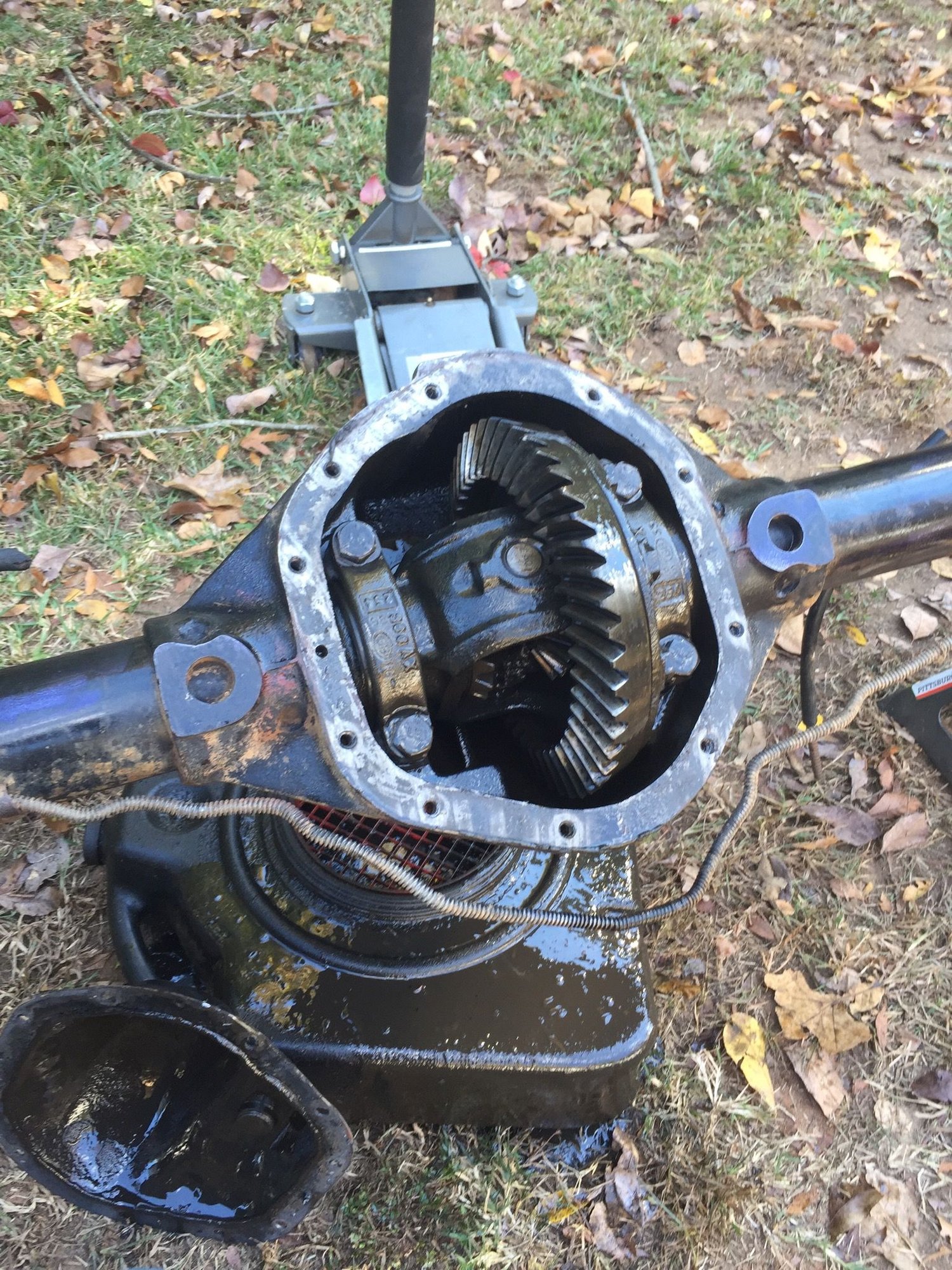

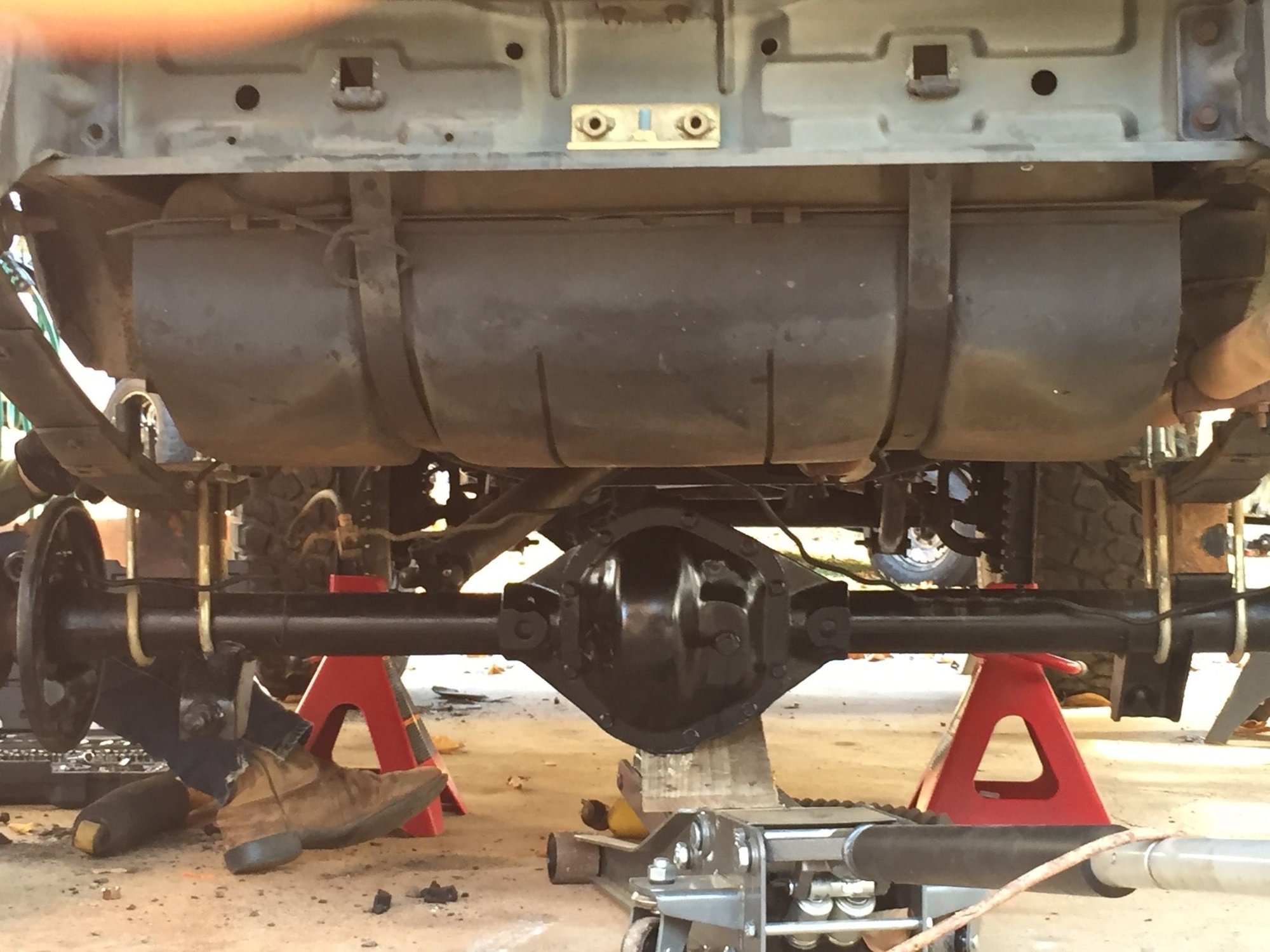

So the first thing I did was swapped the Dana 44 from the old jeep to the new one. That involved cleaning up the axle and installing a new complete brake drum assembly.

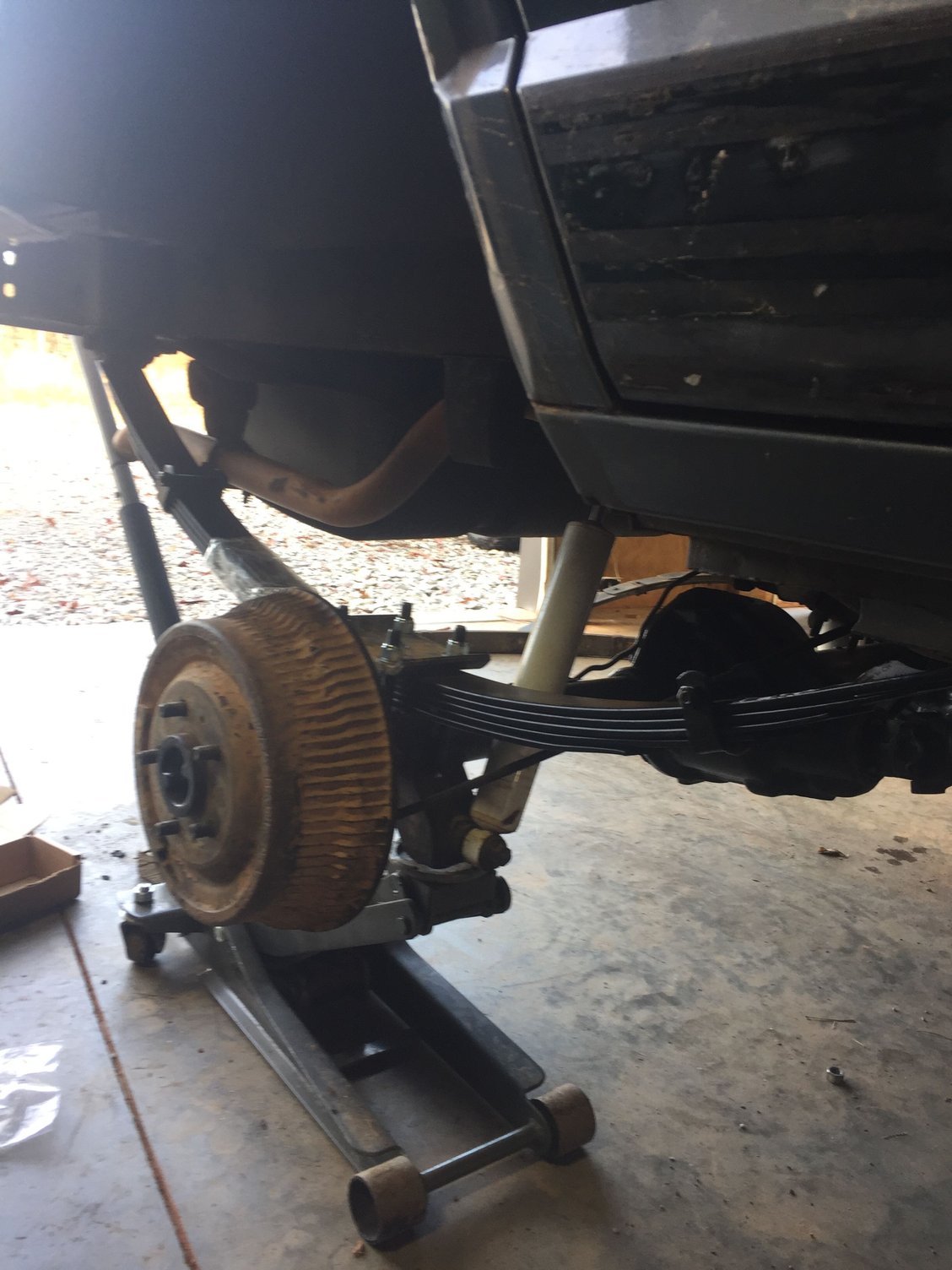

Drum brake are a PITA!
As ya can see I swapped the "crappy lift" from the 91 to the newest jeep I bought just for the heck of it. That's why those leaf springs blocks are back there.
Even though it's gonna be a while for all of this here are my plans for the future
-Dana 44 front and rear
-4 link suspension
-roll cage
Maybe one day even a v8 swap, but that would happen when I have one tons
Ive already done a lot of work so I'll go ahead and show y'all what I've done so far.
So the first thing I did was swapped the Dana 44 from the old jeep to the new one. That involved cleaning up the axle and installing a new complete brake drum assembly.
Drum brake are a PITA!
As ya can see I swapped the "crappy lift" from the 91 to the newest jeep I bought just for the heck of it. That's why those leaf springs blocks are back there.
#3
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Next I went ahead and trimmed the fenders. Since I'm running 35's I know they'll have to be trimmed.

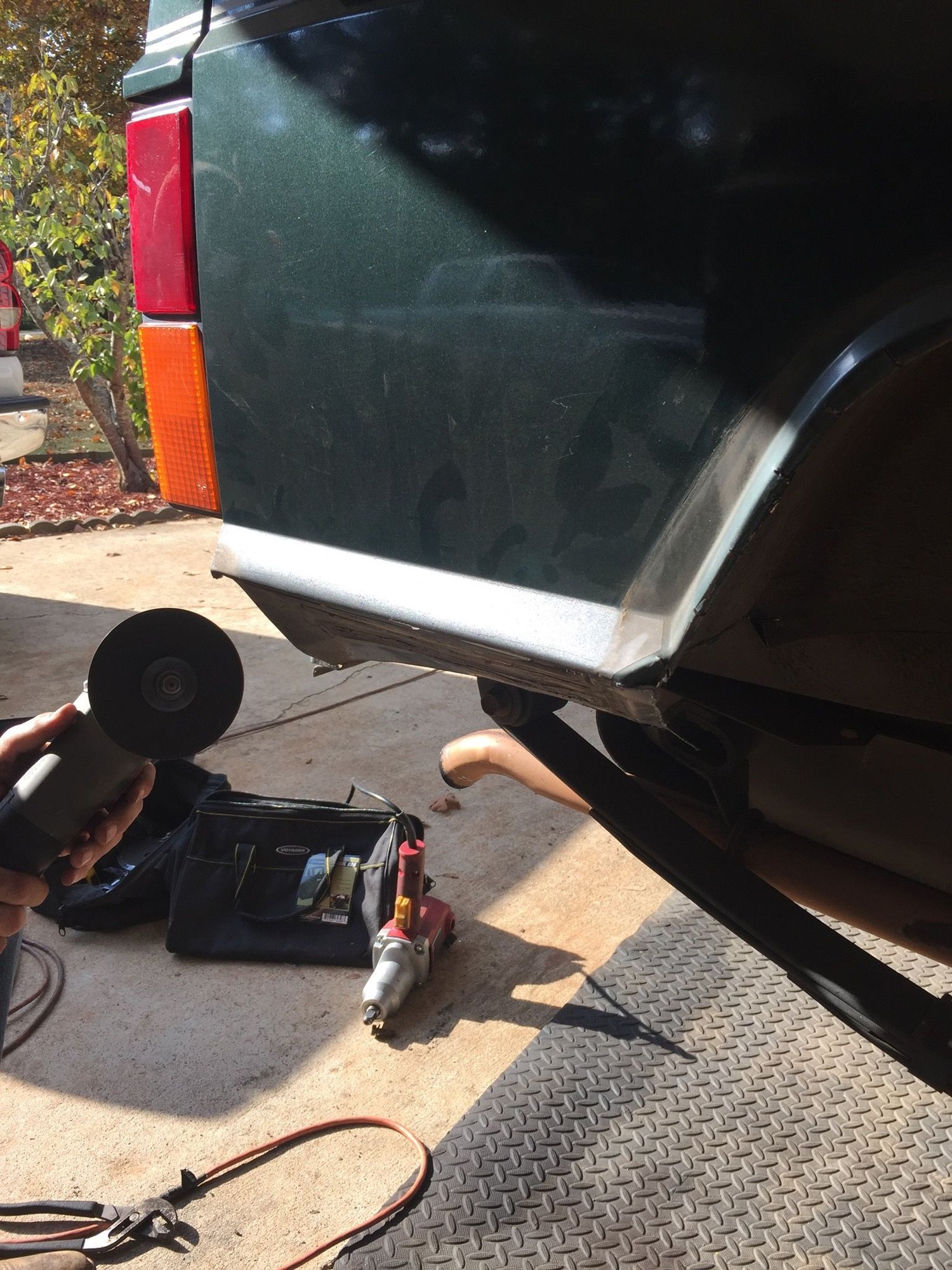

I did the cut and fold on the rear, also did the cut and fold with the rear quarter panels.
This turned out pretty good! All that's left with it is tack welding the quarter panel up.

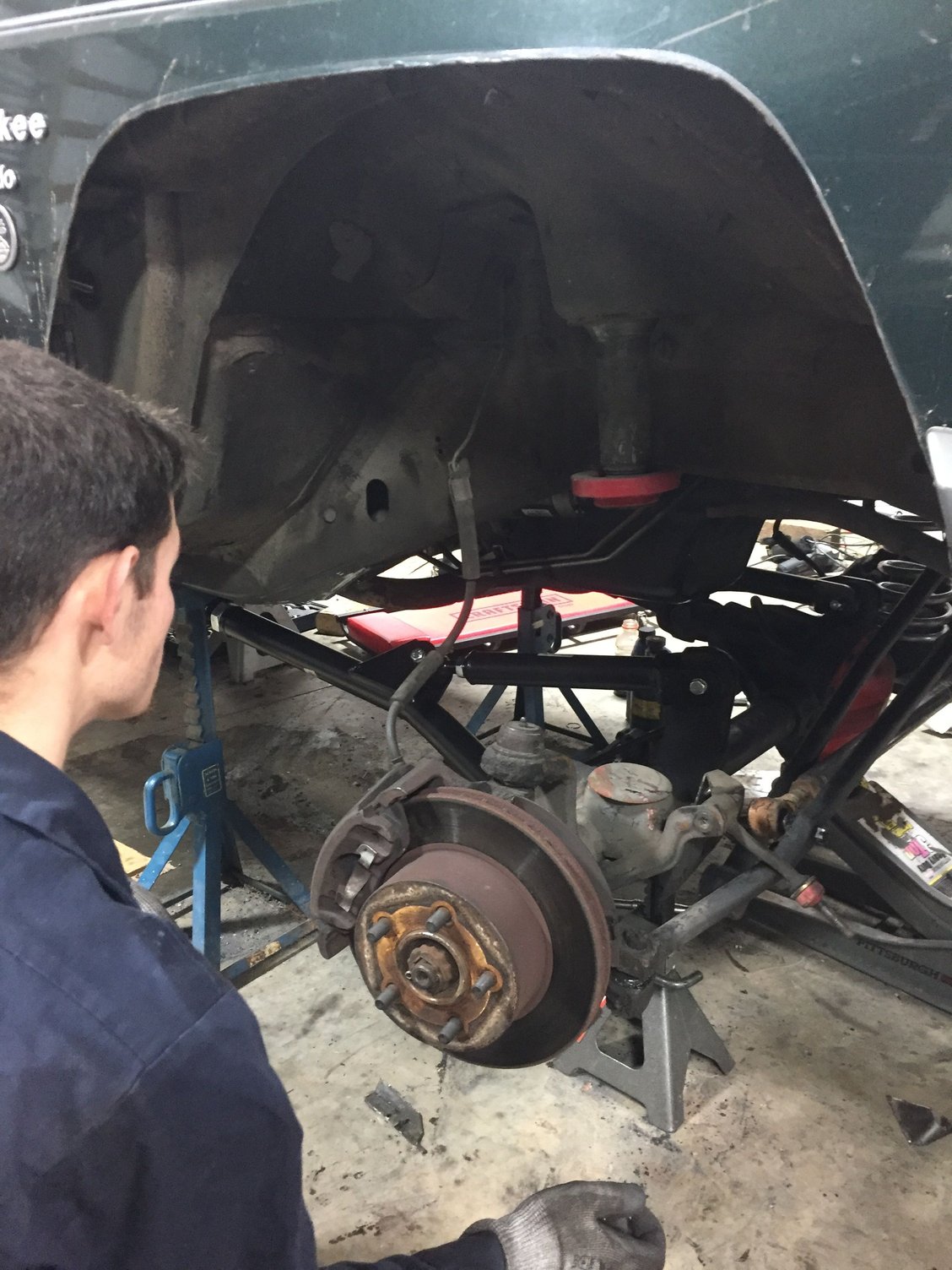

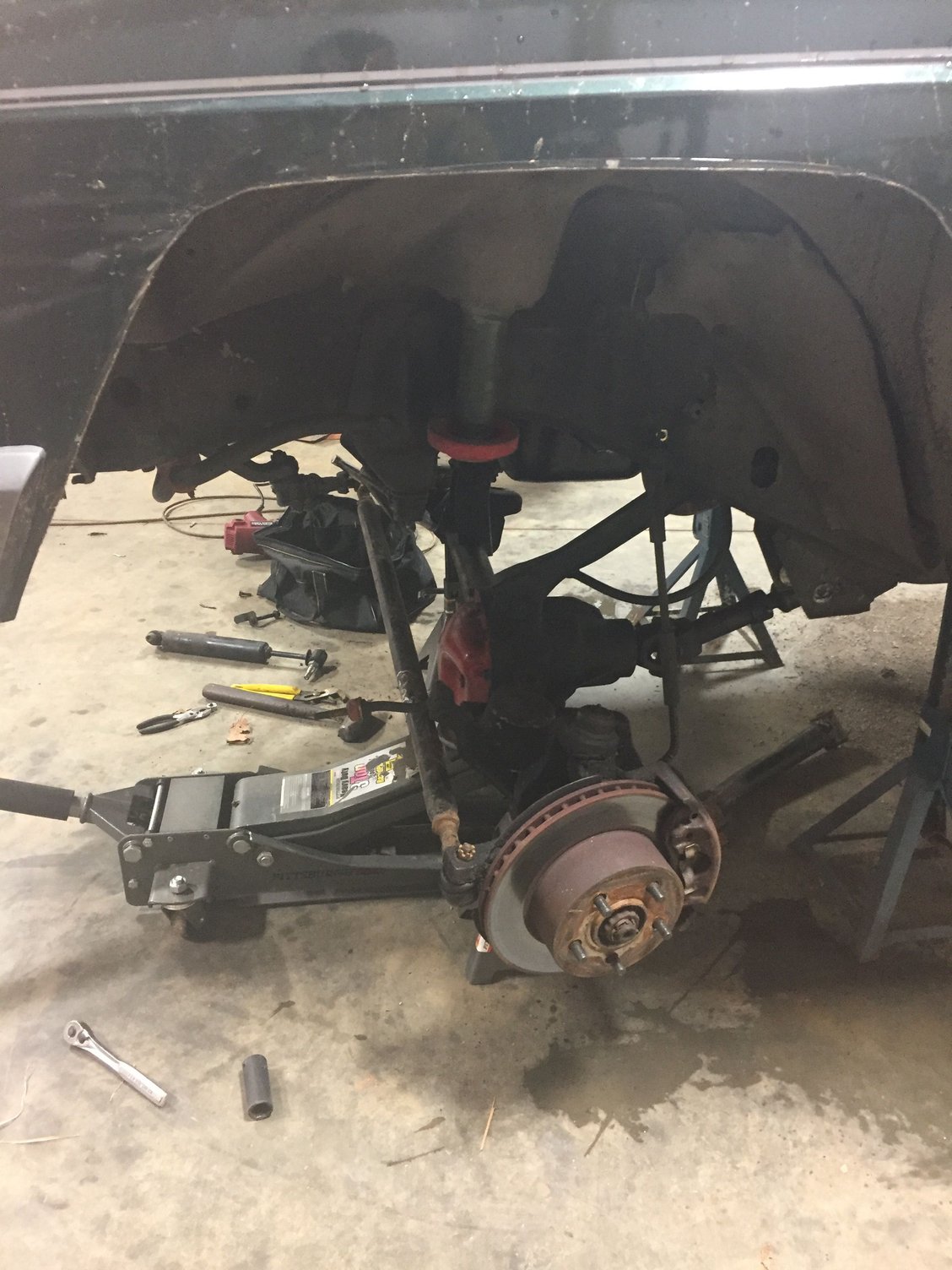

The last picture was just showing the suspension set up in the front. As said earlier it's just a huge spaced and some sort of aftermarket control arms. And I had this left set up on the jeep for about two weeks and then Christmas came early!

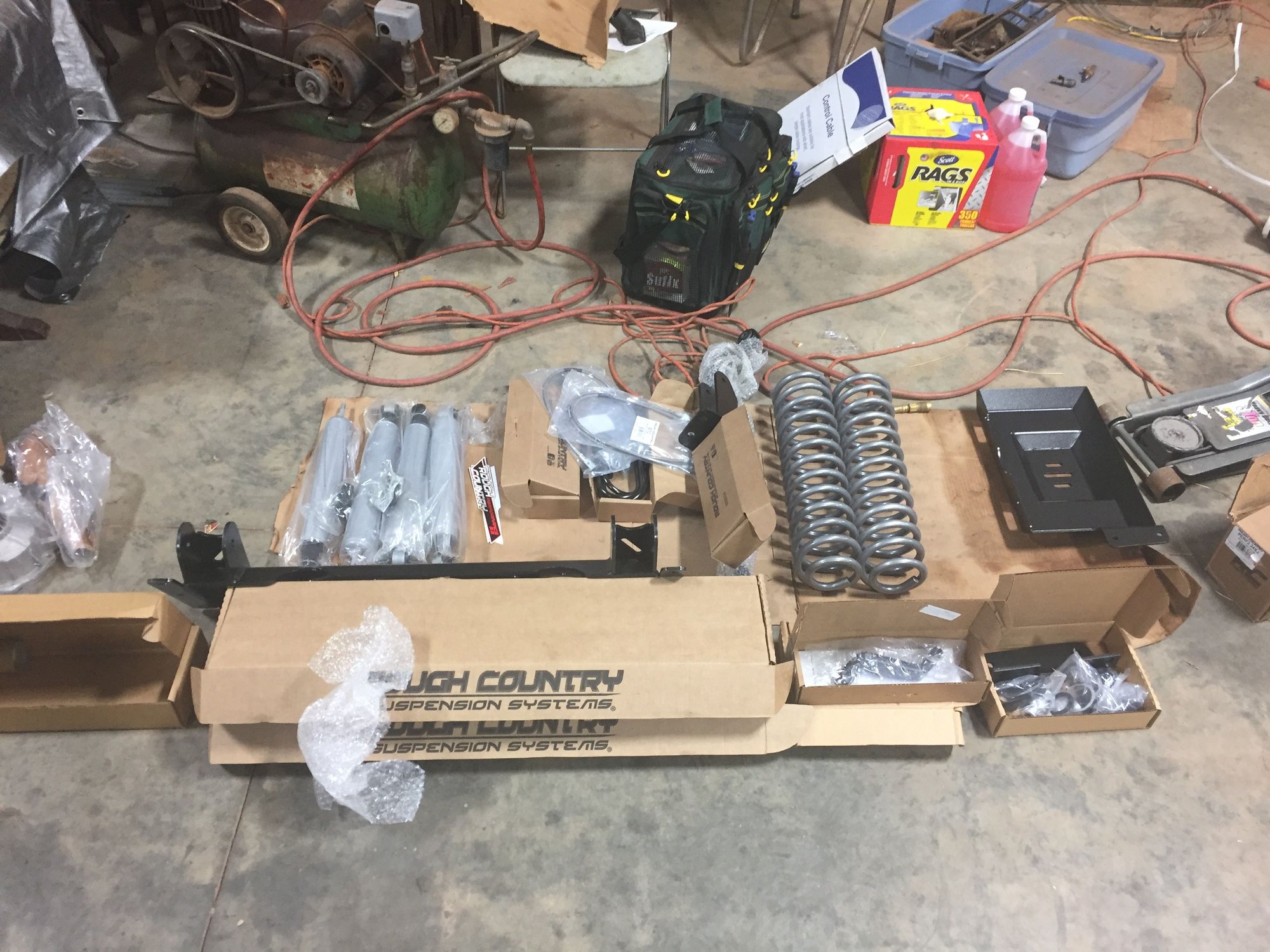

I decided to order A ROUGH COUNTRY (remember I said I was a broke firefighter) 4.5" long arm lift. Of course with that I ordered the RC SYE. Ordered everything through Morris4x4. Such an awesome company to deal with. My parts were here in 2 days and they also hooked me up with a nice discount.
I did the cut and fold on the rear, also did the cut and fold with the rear quarter panels.
This turned out pretty good! All that's left with it is tack welding the quarter panel up.
The last picture was just showing the suspension set up in the front. As said earlier it's just a huge spaced and some sort of aftermarket control arms. And I had this left set up on the jeep for about two weeks and then Christmas came early!
I decided to order A ROUGH COUNTRY (remember I said I was a broke firefighter) 4.5" long arm lift. Of course with that I ordered the RC SYE. Ordered everything through Morris4x4. Such an awesome company to deal with. My parts were here in 2 days and they also hooked me up with a nice discount.
#4
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
...save up man!!! To heck with drums! Swap to disc. And I know you said your broke, but you should have saved for a more quality lift. Especially long arm. There's no need to rush into something. Like you did with the first jeep you got and with your rather quick pace on this build with low funds haha. No need to sprint to get everything.
Interested to see where you go from here. Subbed.
Interested to see where you go from here. Subbed.
#5
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I trailed the jeep to my dads shop and got busy right away. Unfortunately I didn't get too many pictures of the lift install because I forgot and my hands were dirty. All in all it wasn't that difficult to install but it definitely took longer than the 8-9 hours that rough country says it takes.

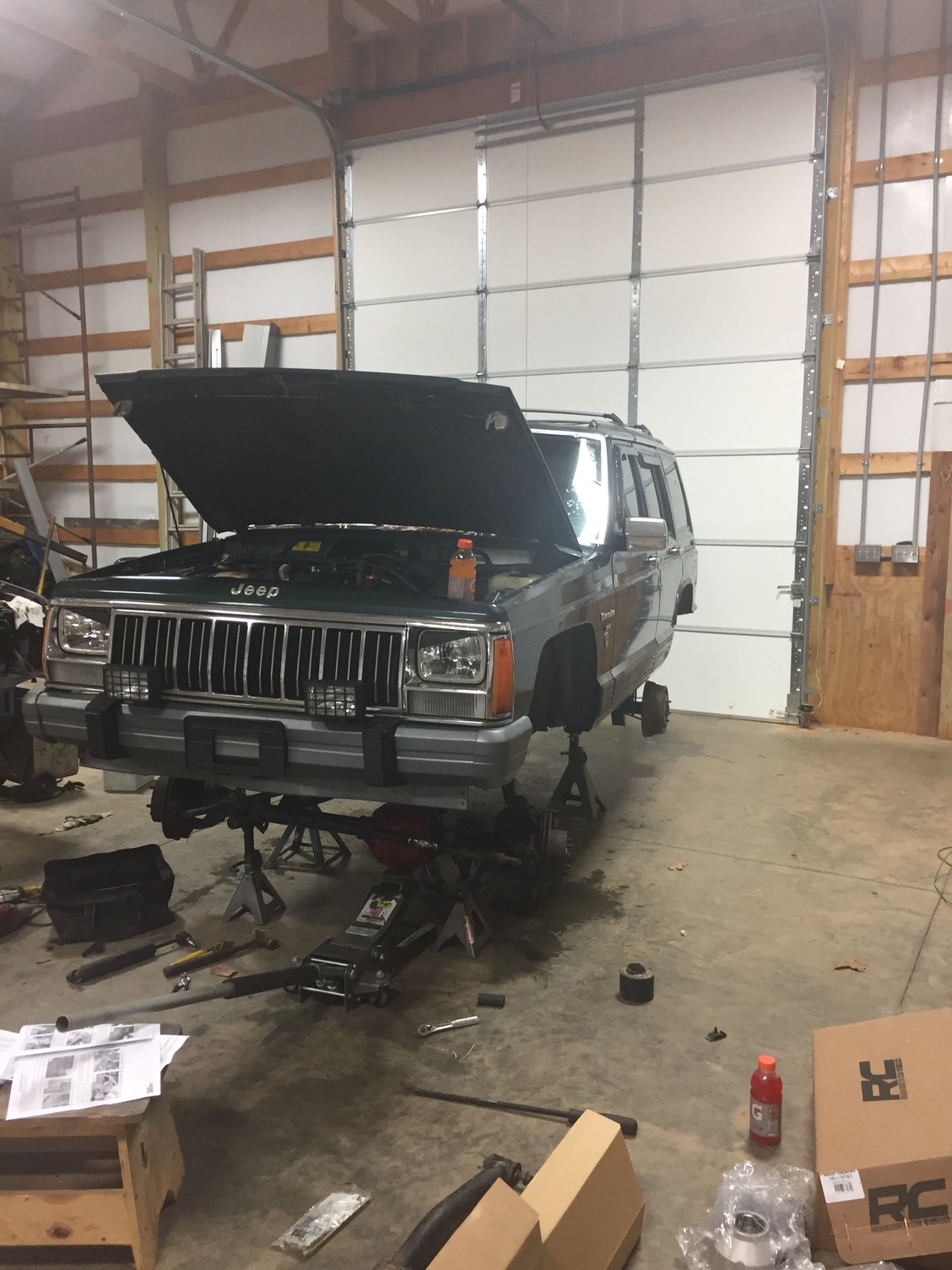

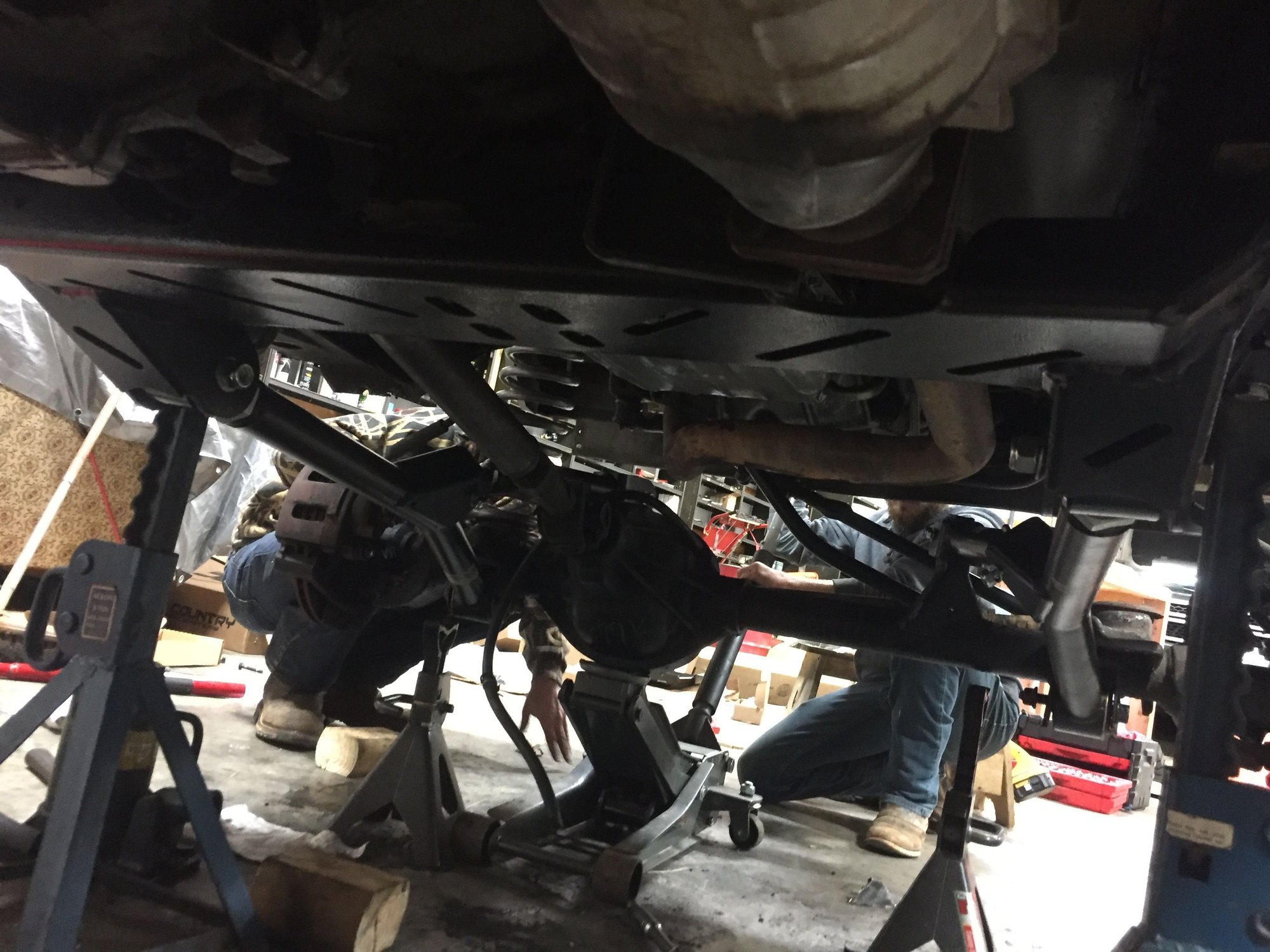

This is after taken the old lift off and getting ready for the long arm install.

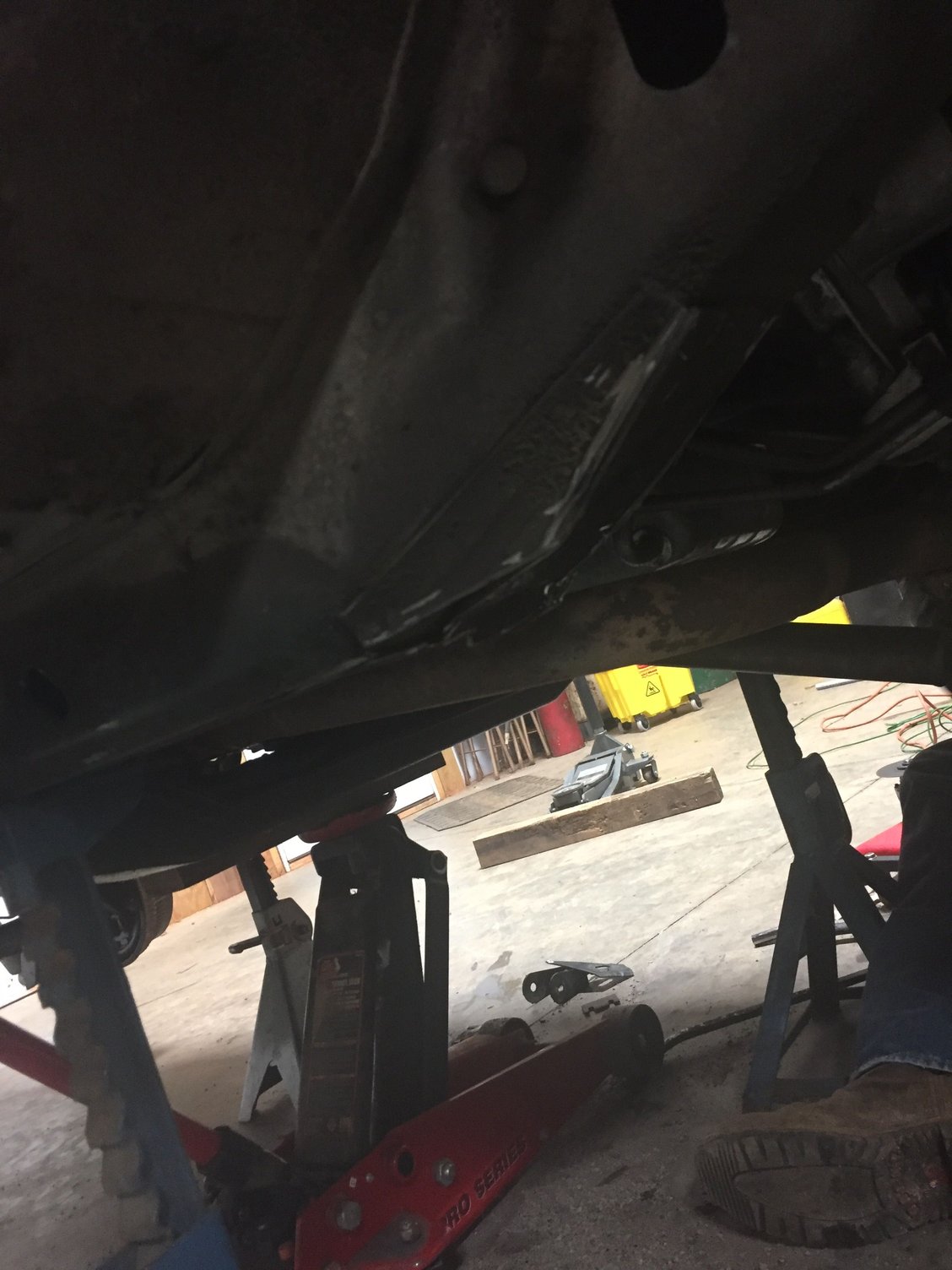

Grinding the lower control arm mounts off. This took probably 2 hours and 6 cut off wheels.
Next we drilled the holes for the cross member. I used a half inch and three quarter inch bit
After installing the new leafs

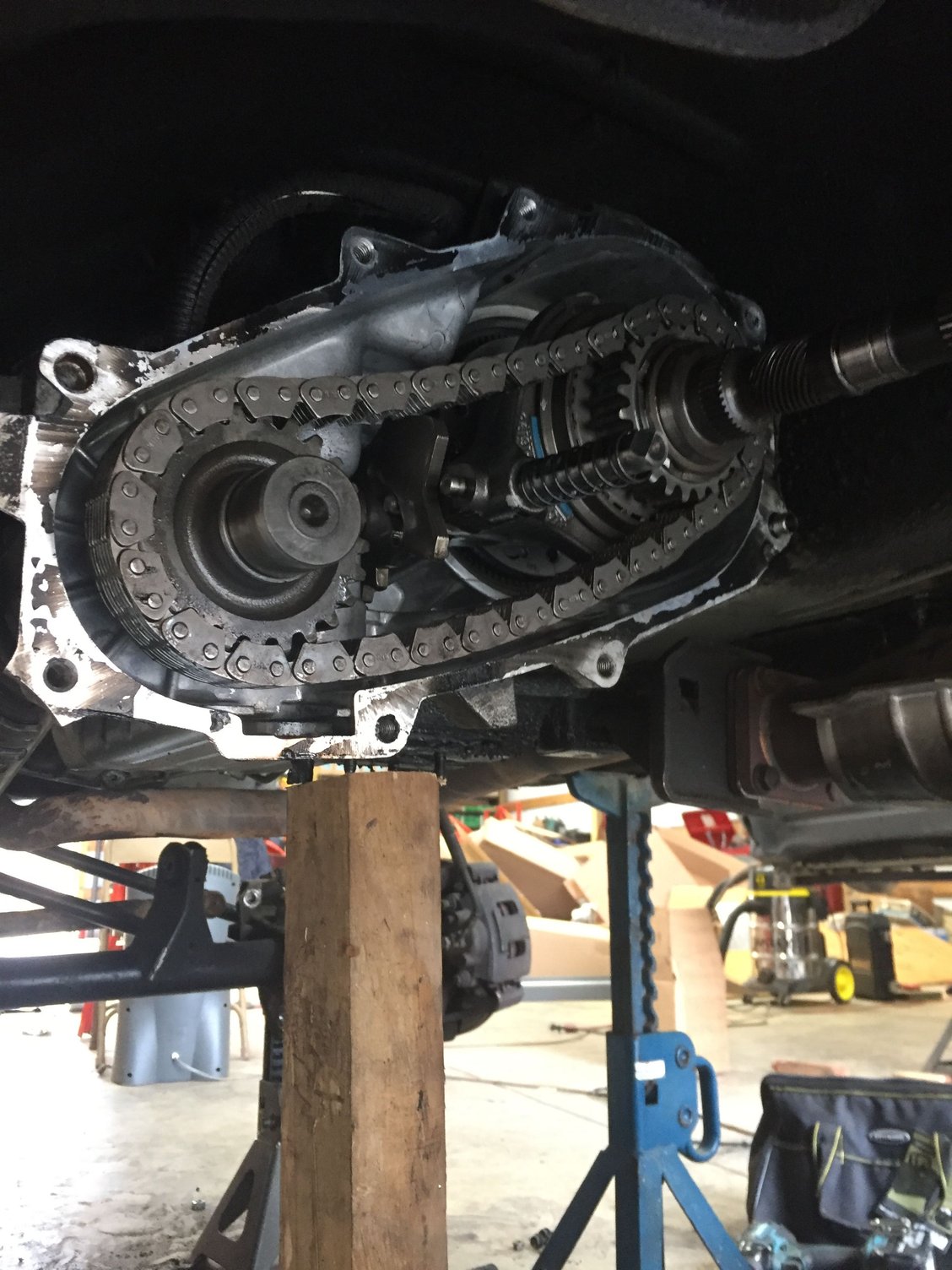

Sye install. I left the transfer case under the vehicle and to my surprise it was fairly easy and didn't take too long. Another set of hands always helps though.

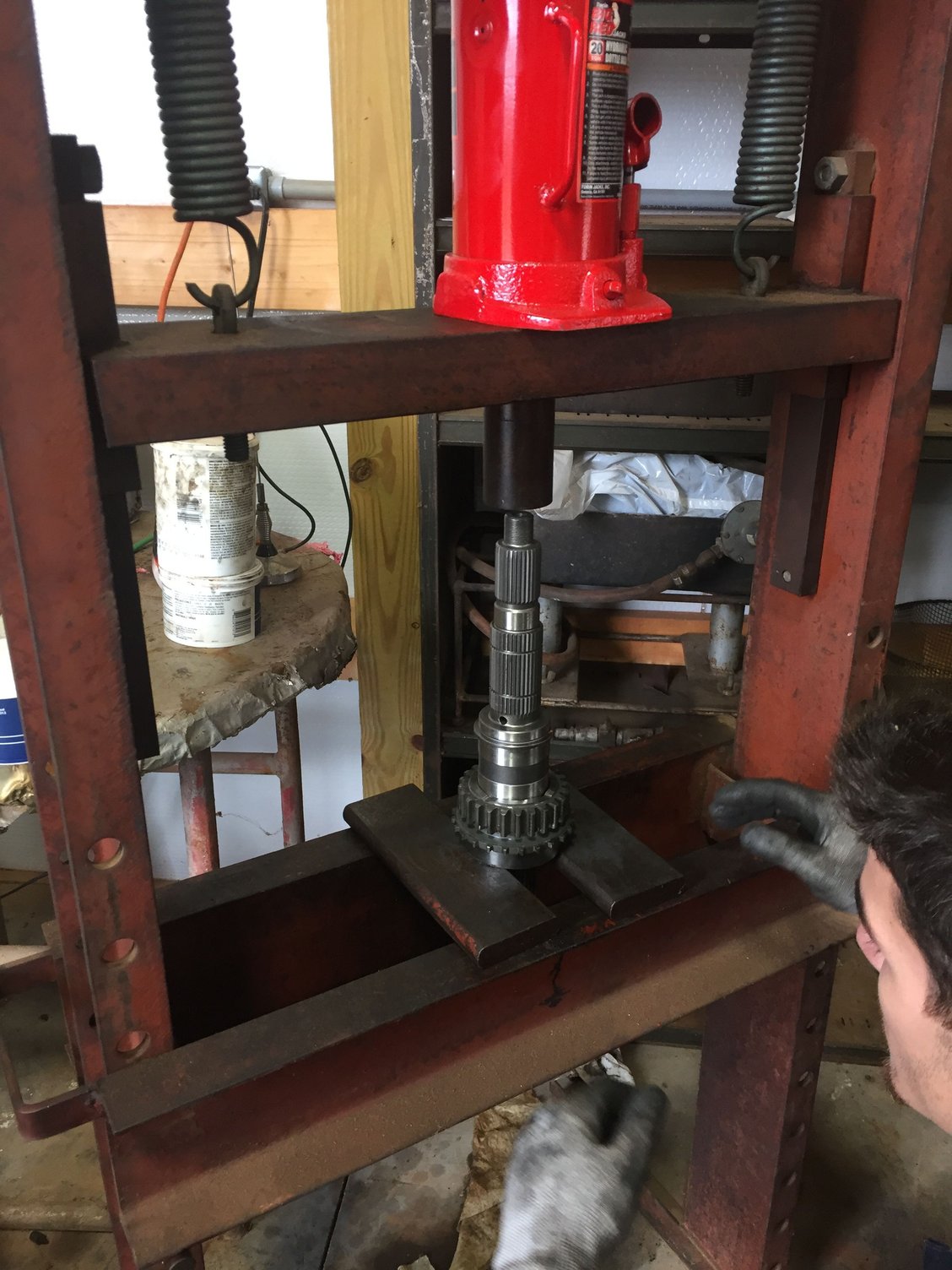

i used the front drive shaft out of my old xj and it fit perfectly. The other picture is of me pressing the old bearings out
This is after taken the old lift off and getting ready for the long arm install.
Grinding the lower control arm mounts off. This took probably 2 hours and 6 cut off wheels.
Next we drilled the holes for the cross member. I used a half inch and three quarter inch bit
After installing the new leafs
Sye install. I left the transfer case under the vehicle and to my surprise it was fairly easy and didn't take too long. Another set of hands always helps though.
i used the front drive shaft out of my old xj and it fit perfectly. The other picture is of me pressing the old bearings out
Last edited by bjefferies94; 12-11-2016 at 09:41 PM.
#6
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
...save up man!!! To heck with drums! Swap to disc. And I know you said your broke, but you should have saved for a more quality lift. Especially long arm. There's no need to rush into something. Like you did with the first jeep you got and with your rather quick pace on this build with low funds haha. No need to sprint to get everything.
Interested to see where you go from here. Subbed.
Interested to see where you go from here. Subbed.
And btw this build has been going on for a little while now I just haven't had much time to post a build thread
#7
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I know man! Luckily I got the complete drum brake assembly for 40$. And I went with rough country with the thoughts that if I need to beef their parts up later I can. Idk man I'm a newbie. I'm sure I'll make plenty of other mistakes during this build but I heard tons of good things about the warranty of their parts and how well they perform. We shall see!
And btw this build has been going on for a little while now I just haven't had much time to post a build thread
And btw this build has been going on for a little while now I just haven't had much time to post a build thread
Idk about those positive performance reviews or warranty praise haha. Most on the forum agree with neither. But it's coming along real nice. Any plans for armor?
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I've been on the forum for over a year. Learned alot of things so far. But I still consider myself a noob since there's so much info and things involved in vehicles. Your always learning.
Idk about those positive performance reviews or warranty praise haha. Most on the forum agree with neither. But it's coming along real nice. Any plans for armor?
Idk about those positive performance reviews or warranty praise haha. Most on the forum agree with neither. But it's coming along real nice. Any plans for armor?
#9
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee

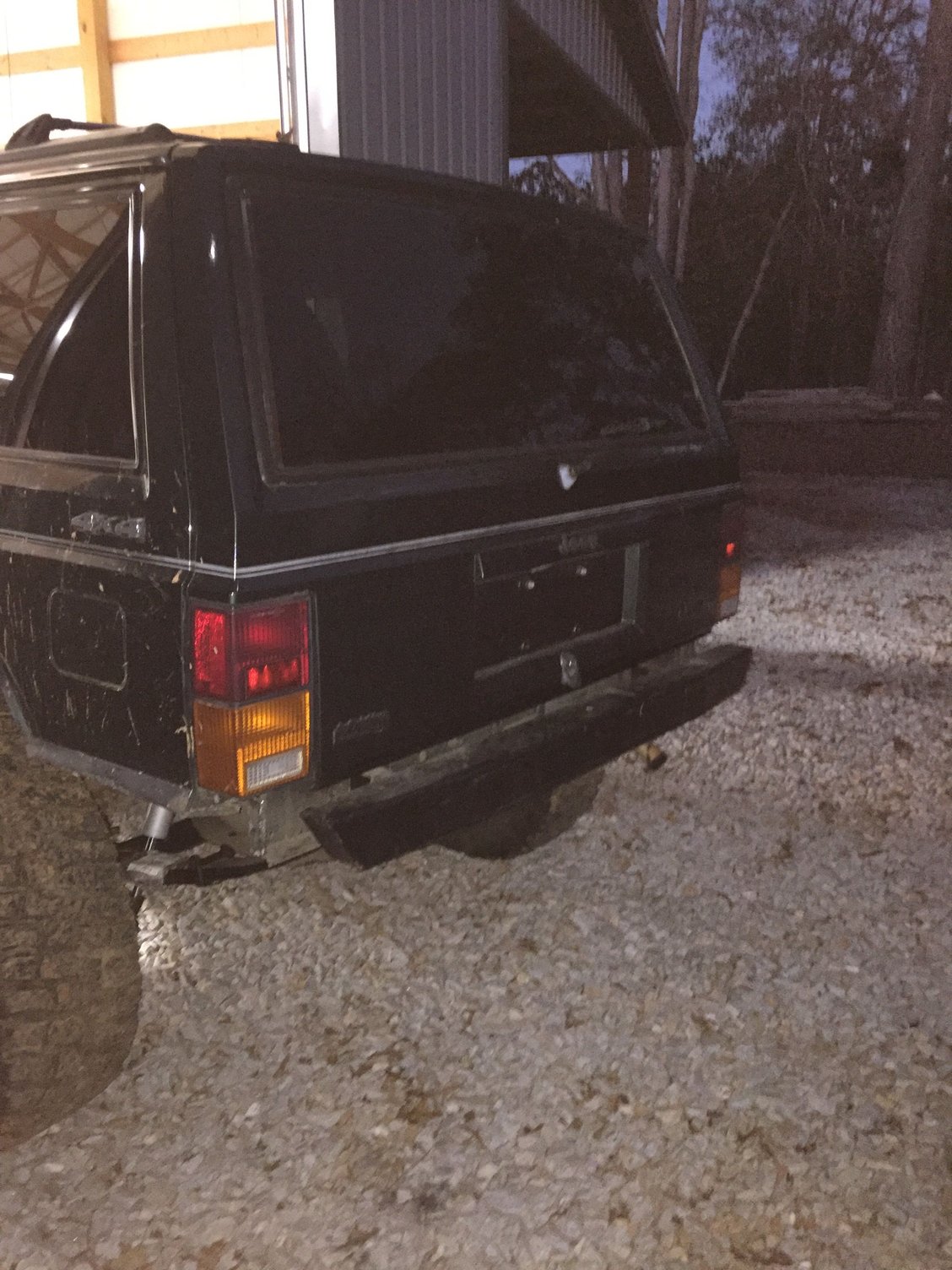

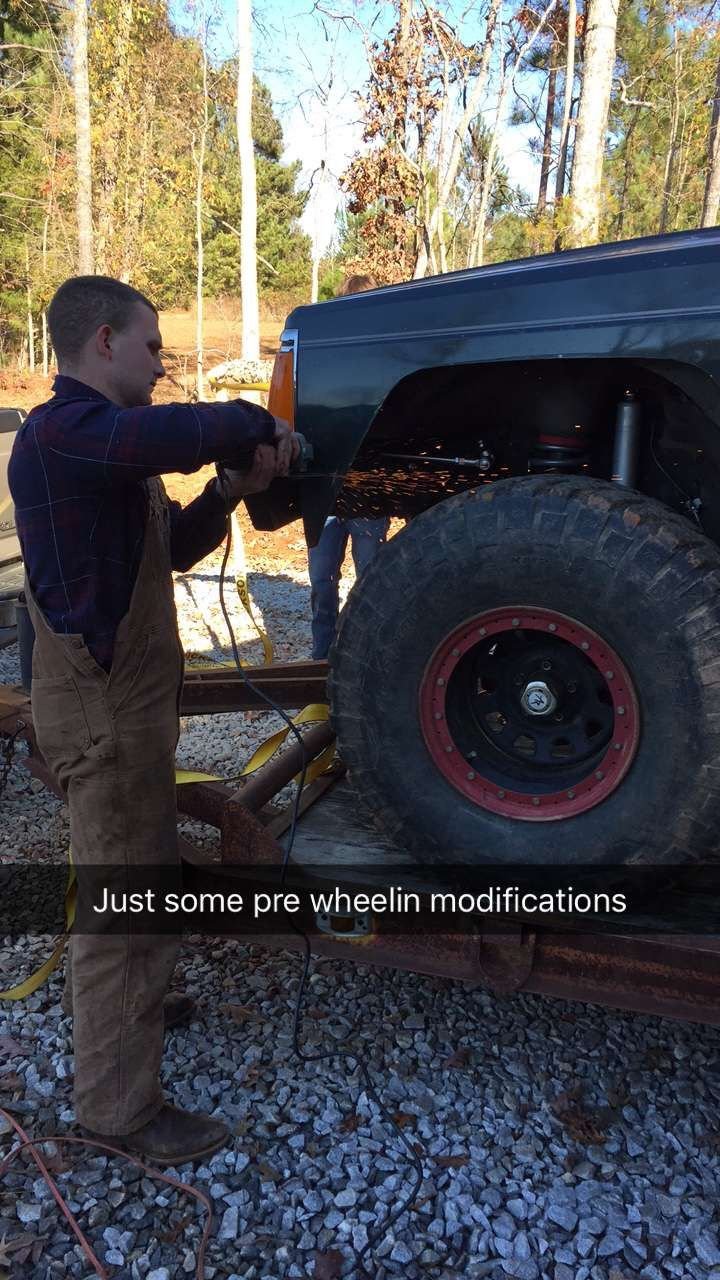

Before my first wheeling trip I put on the front and rear bumper. The rear bumpers needs to be a little bit wider but for free I'll take I! 👍🏻 I also hate my front bumper so I do have plans of replacing it in the future.
Here they are

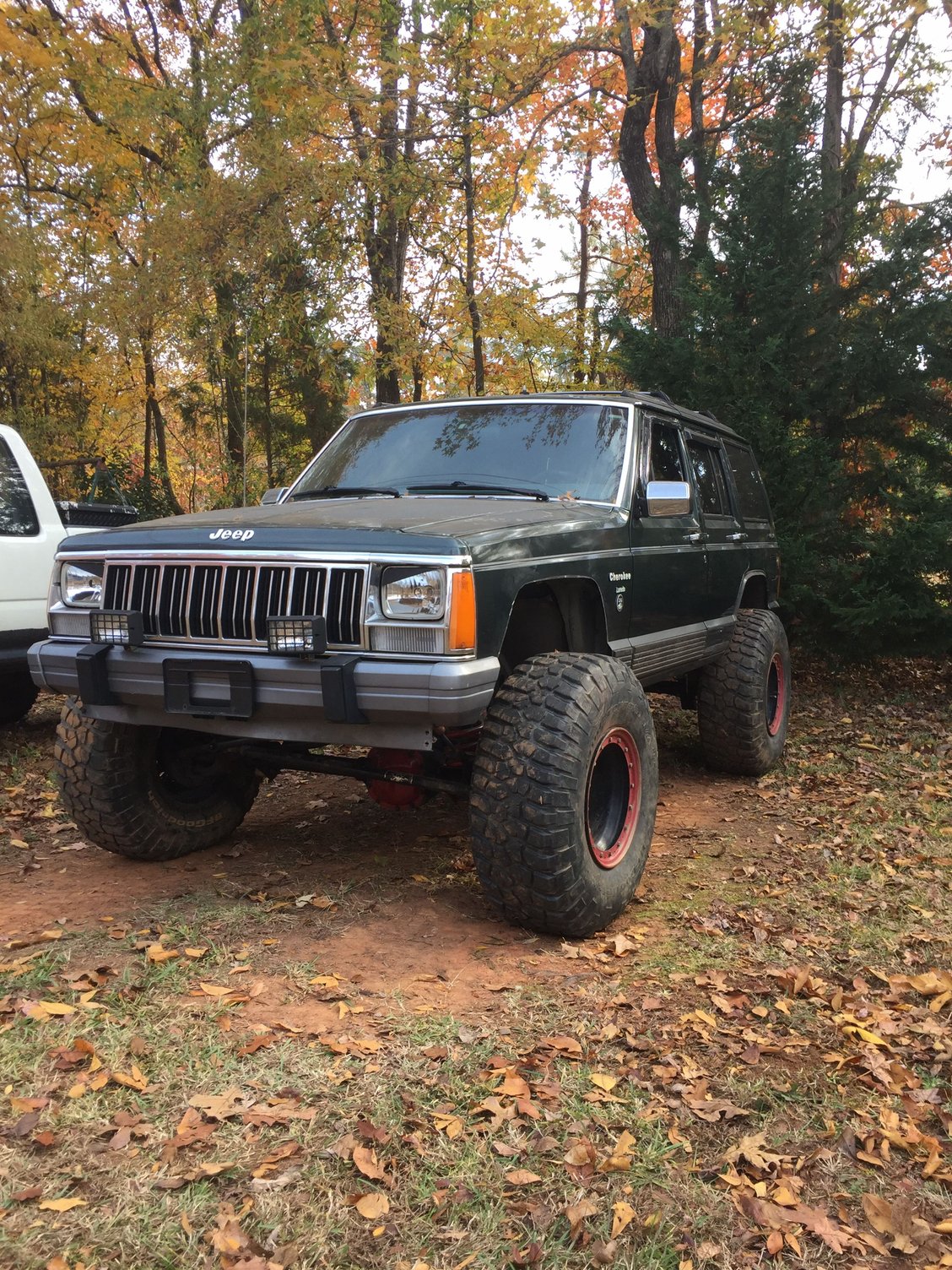

Oh yeah and here is a picture of the lift after install.
Here they are
Oh yeah and here is a picture of the lift after install.
#10
CF Veteran
Join Date: Feb 2016
Location: Northern New Mexico
Posts: 3,683
Likes: 0
Received 7 Likes
on
6 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I'll send this. I like the front bumper better then the rear haha! At least the front fills up everything whereas the rear looks like it doesn't reach the ends and has big gaps.
Coming along real nice
Coming along real nice
#11
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Btw for those of you saying you need a 6" lift for 35's think again. With some fender trimming you're good to go. And BUMPSTOPS!

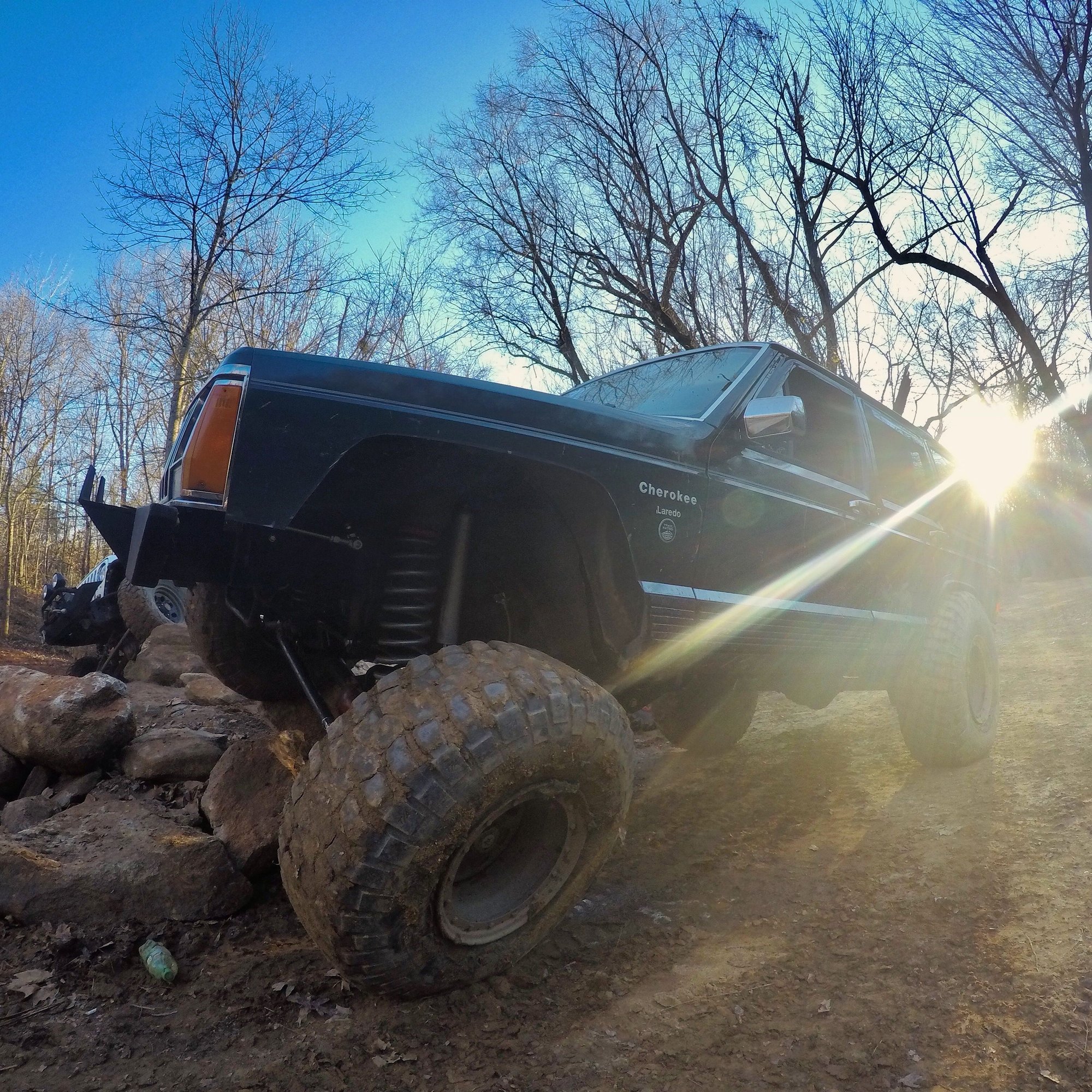

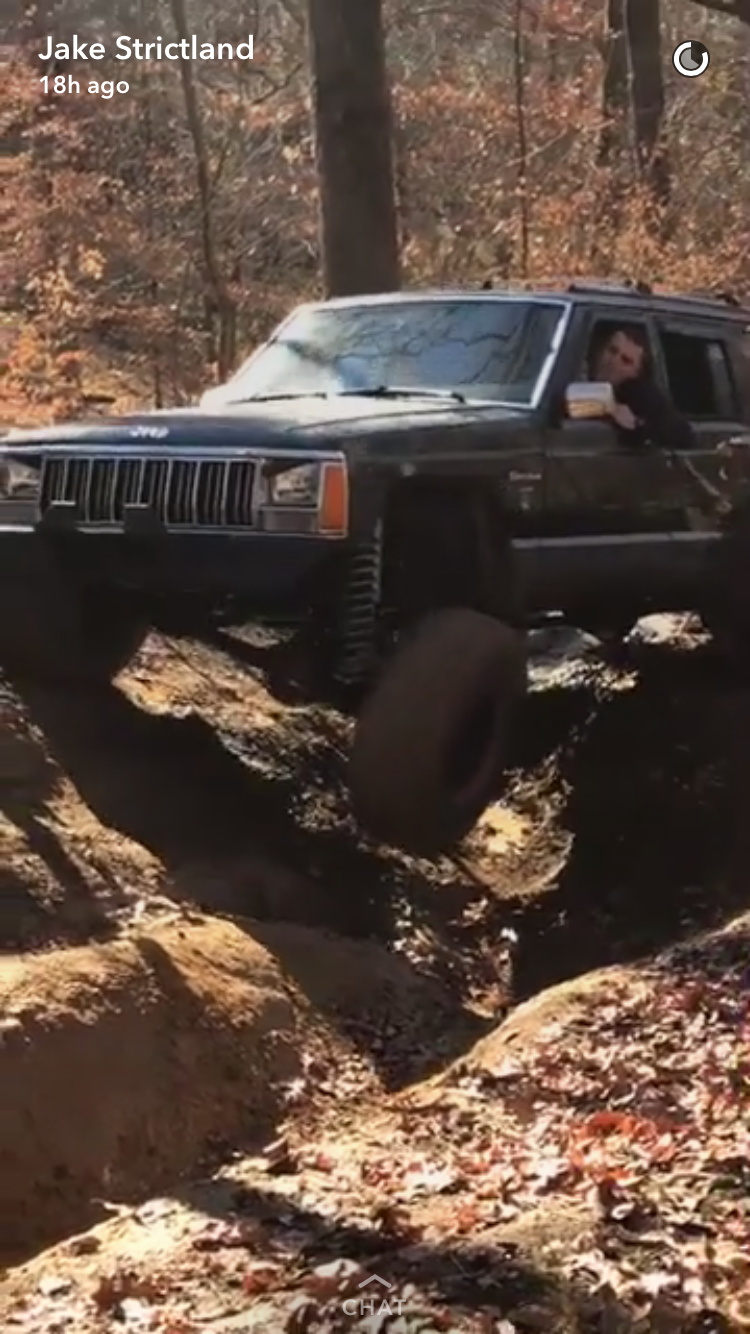

Time for some wheeling pics! My first trip out in the rig and wow it surprised the hell out of me considering I have no locker in the front.
Testing out the lift before I left for gulches. Which btw living 30 minutes from there is pretty great!
I had to pull over to take my exhaust off since it kept coming off on its own 😂 Everyone said it sounds better without it anyways.
My brothers tj. He'll be building his pretty soon. Doing a 5.9 swap, 4 link suspension and Dana 44's front and rear. I'm sure he'll have a build thread on jeep forum.
I wish I could post all of the videos I have!
Well I guess a busted light is better than a crushed quarter panel. It was a little slick Saturday and I slid right into a tree.
BUMPSTOPS!? What are those? I guess my next investment is bumpstops. I really don't wanna cut too much more off of my fenders
Time for some wheeling pics! My first trip out in the rig and wow it surprised the hell out of me considering I have no locker in the front.
Testing out the lift before I left for gulches. Which btw living 30 minutes from there is pretty great!
I had to pull over to take my exhaust off since it kept coming off on its own 😂 Everyone said it sounds better without it anyways.
My brothers tj. He'll be building his pretty soon. Doing a 5.9 swap, 4 link suspension and Dana 44's front and rear. I'm sure he'll have a build thread on jeep forum.
I wish I could post all of the videos I have!
Well I guess a busted light is better than a crushed quarter panel. It was a little slick Saturday and I slid right into a tree.
BUMPSTOPS!? What are those? I guess my next investment is bumpstops. I really don't wanna cut too much more off of my fenders
#13
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Greenwood
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Haven't been on in a while!! Well after a few wheeling trips and 15 dents later i can say that i should have put rock sliders on before. but ohhh well its a trail rig.
Lately ive been buying a few parts at a time and will doing some work to the rig soon!
my dana 44 is trashed and instead of spending tons of money on disk brakes, shafts, and new gears i will hopefully be picking up a 8.8 with 4.10's tomorrow. so here are the things ill be working on this month.
-ford 8.8 swap
-mid frame stiffeners
-plating the front and rear of the frame
-rock sliders
-bump stops... thinking of going with some hockey pucks.
I'll also be lowering my jeep just a tad since ive already flopped it. Id like a low center of gravity better haha
Lately ive been buying a few parts at a time and will doing some work to the rig soon!
my dana 44 is trashed and instead of spending tons of money on disk brakes, shafts, and new gears i will hopefully be picking up a 8.8 with 4.10's tomorrow. so here are the things ill be working on this month.
-ford 8.8 swap
-mid frame stiffeners
-plating the front and rear of the frame
-rock sliders
-bump stops... thinking of going with some hockey pucks.
I'll also be lowering my jeep just a tad since ive already flopped it. Id like a low center of gravity better haha
