Project: 4wd conversion 99 XJ
#31
CF Veteran
Thread Starter
Great.... So that means I really just need to find a complete axle with 4.10s in it from the factory or spend the extra $ and put a locker in.
And the rear end will be fine with stock 3.07 carrier? I thought I read somewhere that the 8.25 doesn't use shims for adjustment but has some sort of screw style adjustment?
And the rear end will be fine with stock 3.07 carrier? I thought I read somewhere that the 8.25 doesn't use shims for adjustment but has some sort of screw style adjustment?
#32
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Yeahhh you can do a full case locker but a carrier can be had for about $100 buckaroos which is definitely cheaper than a full case locker. I'd just throw a lockright in at the same time.
The 8.25's carrier can be used for 4.10's no problem. It's certainly a different animal to deal with though. I swapped my 8.25 for a D44 when I was doing my axle build so I haven't actually set one up but here's a link to what's involved - http://www.4wdmechanix.com/Moses-Lud...ysler-Axle?r=1
The 8.25's carrier can be used for 4.10's no problem. It's certainly a different animal to deal with though. I swapped my 8.25 for a D44 when I was doing my axle build so I haven't actually set one up but here's a link to what's involved - http://www.4wdmechanix.com/Moses-Lud...ysler-Axle?r=1
#33
CF Veteran
Thread Starter
Thanks for the link. It doesn't look too bad to set up. Maybe even easier then dealing with shims. Might need to invest in some more tools though.
So if I was to do a new carrier and a Lockright, that is about $350. I could get a Truetrac for around the same price. I think I would rather have a Truetrac over a Lockright. I know its not a locker but still way better then an open diff.
So if I was to do a new carrier and a Lockright, that is about $350. I could get a Truetrac for around the same price. I think I would rather have a Truetrac over a Lockright. I know its not a locker but still way better then an open diff.
#35
CF Veteran
Thread Starter
I am pretty sure my Dad had a Lockright is his Wrangler a few years ago. When they unload on a turn, dont they make a nice pop sound and you can feel it too? I just remember driving it and randomly it would pop and cause you to almost go in to the other lane. He only had it in the rear though. Does that sound about right?
#36
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
They normally click/ratchet in the rear when going around turns. I run an ARB in the rear and a lockright in the front. I only hear my lockright when I turn sharp at low speeds but I don't feel it.
#37
CF Veteran
Thread Starter
I might just have to do a little bit more research on it then. What you are describing is not the same as what my Dads Jeep did. If it is just a little noise you hear, I am fine with that. His did a huge pop like an axle just snapped.
#38
CF Veteran
Thread Starter
In the box I got from Lowrange2, I found a nice blue fender flare. So I decided it was time to put it on. I sanded it, primed it, painted it then cleared it. I think the color came out pretty close. Then I put it back on. Still need to remove what looks like tape residue from the fender.
I also fixed the drivers side flare. The front half wasnt clipped in. I am just about done with the outside restoration! Need to paint the rear bumper black and put the roof rack on. After that, I am moving on to normal maintenance stuff. The clutch and brake fluid looks like its the original...
I also fixed the drivers side flare. The front half wasnt clipped in. I am just about done with the outside restoration! Need to paint the rear bumper black and put the roof rack on. After that, I am moving on to normal maintenance stuff. The clutch and brake fluid looks like its the original...
#40
CF Veteran
Thread Starter
Last night I decided to throw on the roof rack. Yet another item from Lowrange2. Gave it a quick paint job and looks new again.
I also put in new shifter bushings. 3rd gear was pretty hard to find and the shifter was very sloppy. Sure enough, this is what I found. Now it feels like a new shifter again! The B&M shifter will be coming in the future. Had one in the last Cherokee and loved it.
#41
CF Veteran
Thread Starter
Alright so I got some good confirmations today.
#1 transmission is getting dropped off tomorrow
#2 wheels and tires were shipped out today and should be here tomorrow
#3 just ordered a SYE and rear driveshaft from Adams. Should be here on Friday
#4 new clutch, pressure plate, flywheel and TO bearing will be here by Friday
#5 still no luck finding a Dana 30 locally
What this means is that I might have a busy weekend. It is supposed to rain though... So I might just have to make some room in the garage so that the Jeep can fit. There is no way I will kick the Bug out to the rain so I will have to make them both fit. Time to clean the garage!
#1 transmission is getting dropped off tomorrow
#2 wheels and tires were shipped out today and should be here tomorrow
#3 just ordered a SYE and rear driveshaft from Adams. Should be here on Friday
#4 new clutch, pressure plate, flywheel and TO bearing will be here by Friday
#5 still no luck finding a Dana 30 locally
What this means is that I might have a busy weekend. It is supposed to rain though... So I might just have to make some room in the garage so that the Jeep can fit. There is no way I will kick the Bug out to the rain so I will have to make them both fit. Time to clean the garage!
#42
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Looks like quite a bit of work ahead of you. Can't believe you're having a hard time finding a front axle. They're not too bad to find around here. Maybe just throw a D44 at it then
#43
CF Veteran
Thread Starter
Well there has been one hanging around on craigslist that is a really good deal. Its fully trussed, comes with aftermarket track bar and steering for $800. BUT it is setup for a drivers side 3 link and has 3.55 gears. And to top it off, its about 1.5 hours away. If I could still use the factory 4 link, I would be all over it.
#44
CF Veteran
Thread Starter
I did find another good deal while searching. Front and rear gears (4.10s) plus a front carrier for $240. Says its for a 2000 Grand Cherokee.
Edit - read the ad again. Wrong kit.
Edit - read the ad again. Wrong kit.
Last edited by 5-Speed; 01-04-2017 at 12:58 PM. Reason: Retard
#45
CF Veteran
Thread Starter

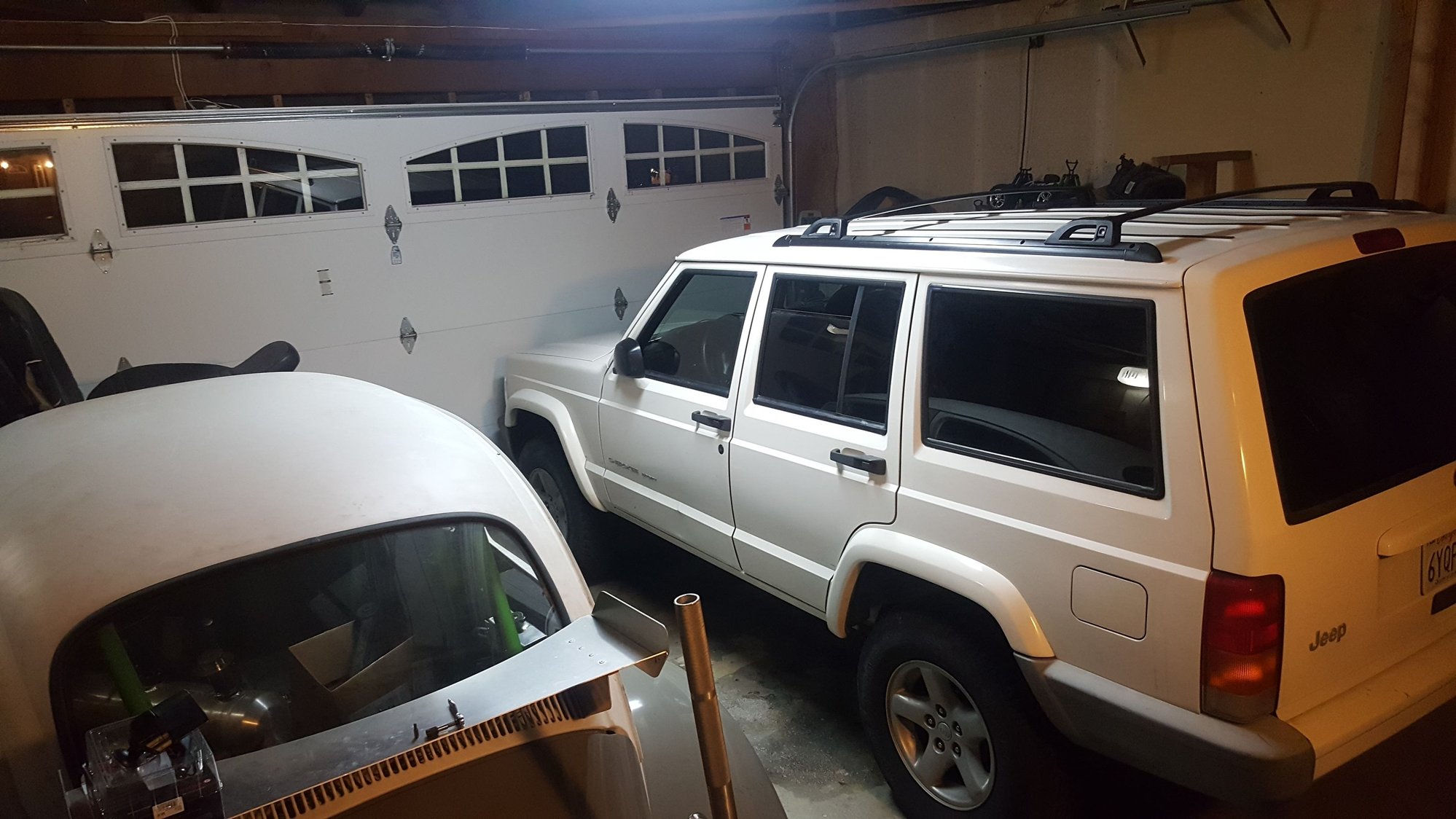

Somehow this happened. Didnt think 2 cars would ever fit in the garage. Right in time for rain. Need to get the front window replaced before it goes back outside. Leaks like crazy.
