GOLIATH WJ project

Old 05-08-2017, 09:06 PM
  #1
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default GOLIATH WJ project

WELCOME TO GOLIATH WJ PROJECT

Few weeks ago I picked up a red jeep grand cherokee WJ laredo.
Unfortunately I can't find any photo how the jeep looked like when I picked it up, but it was a typical laredo wj.

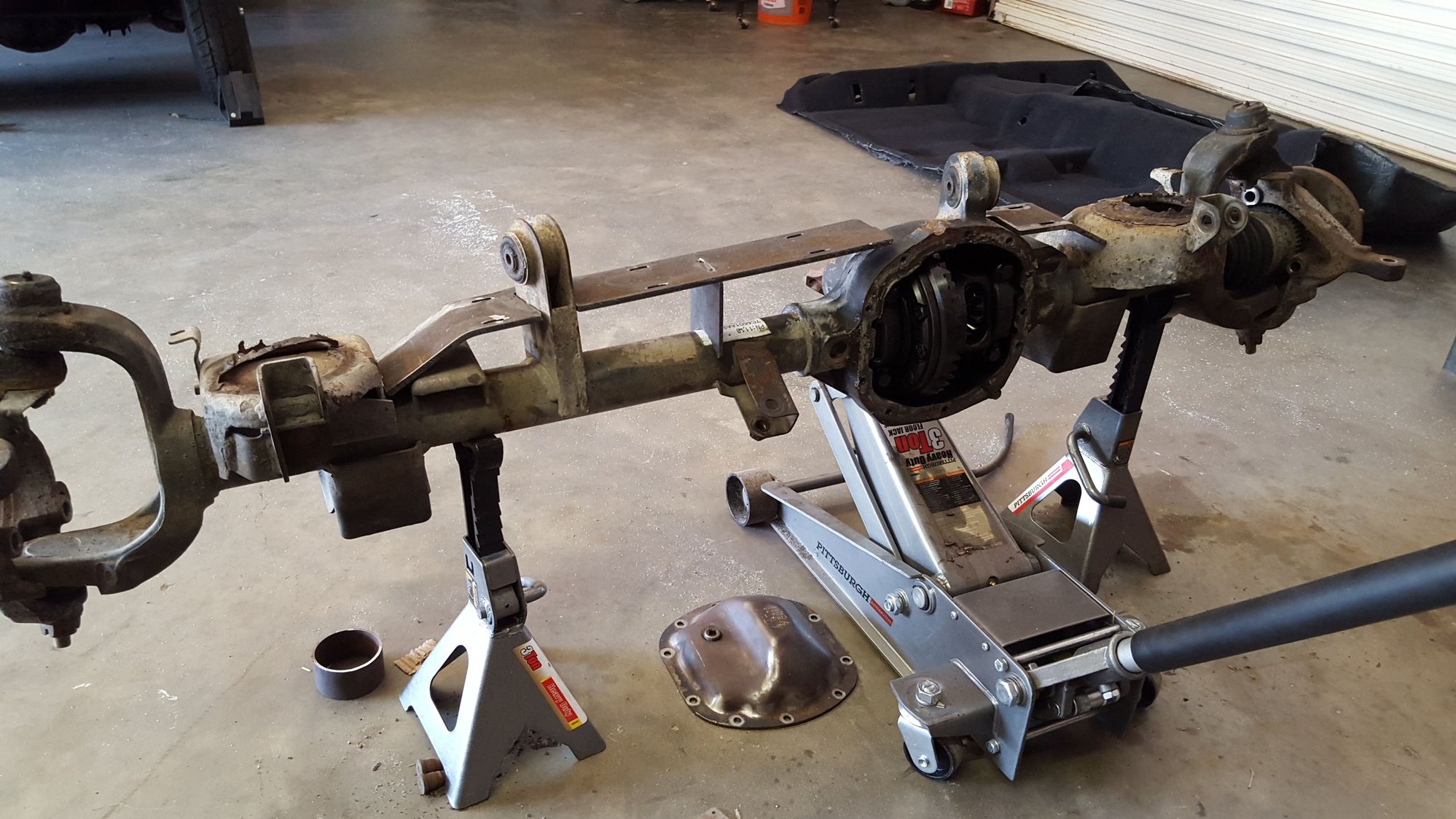

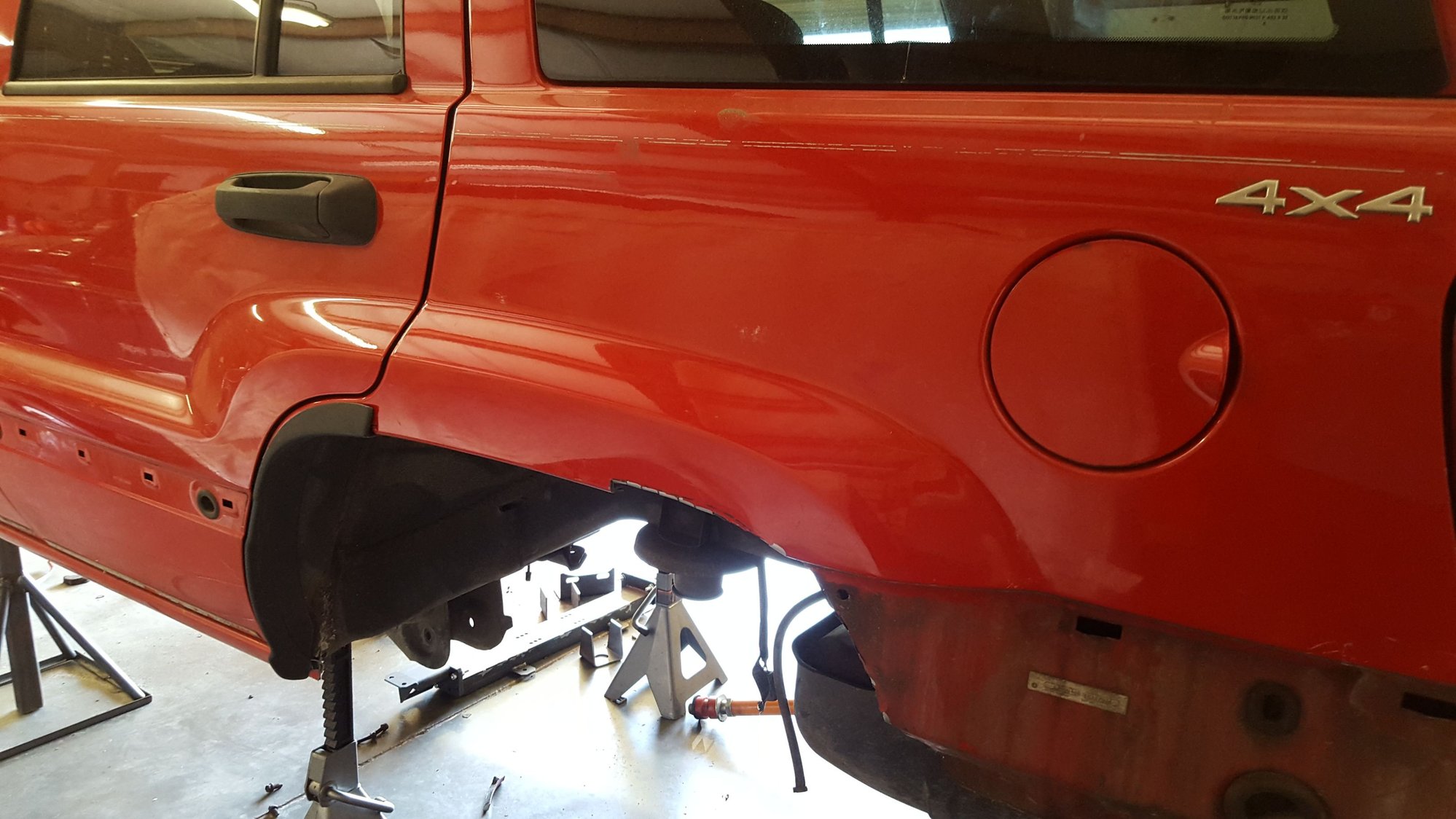

At the shop we started to striping it down. Jeep had regular dana 30 on the front and dana 35 on the rear, because it is 4.0 inline 6. We took the axles out and made some room for dana 30 and 44a from overland WJ with quadra-drive ( hydraulic lockers ).

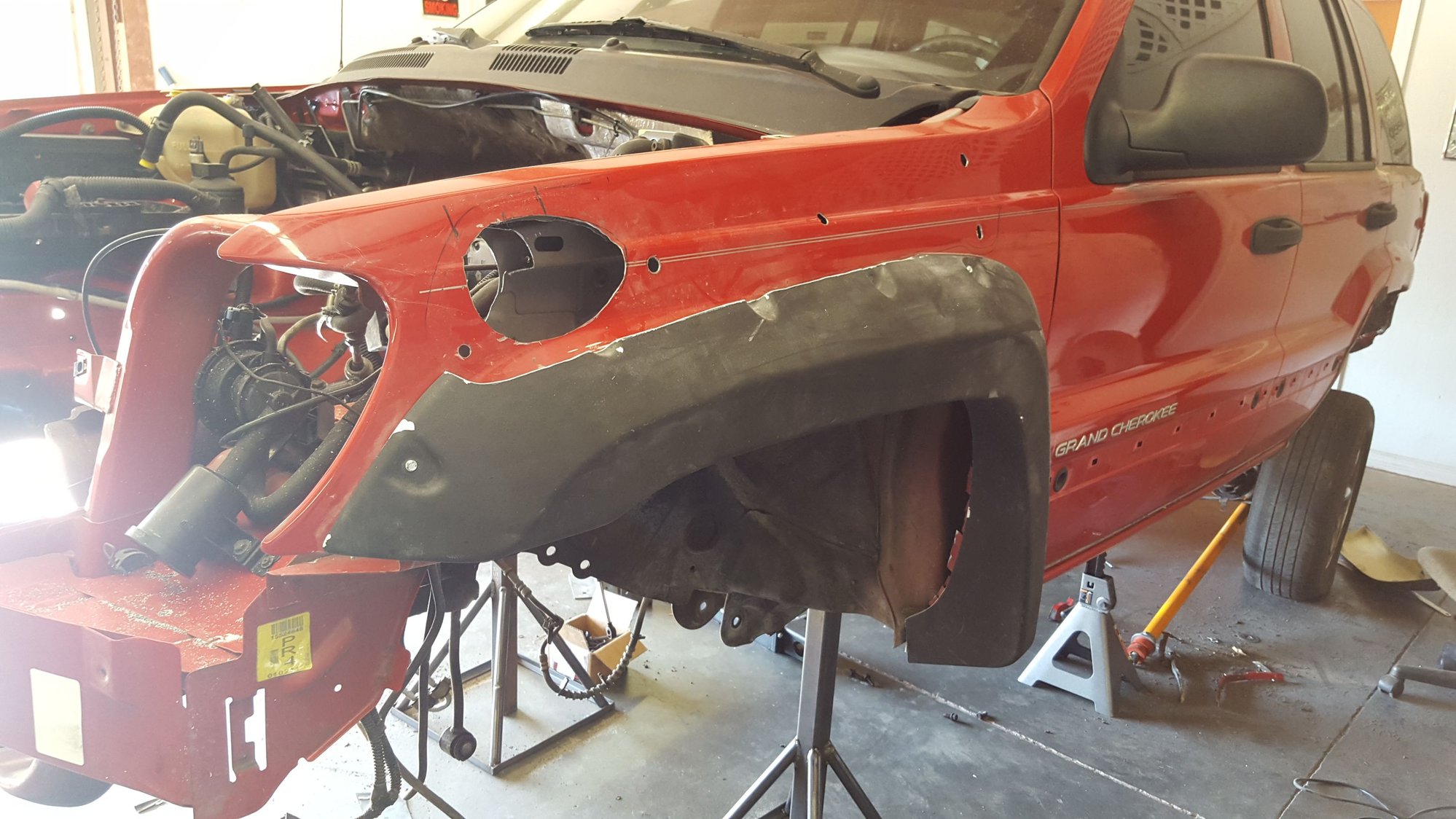

Also we test fitted some bushwacker flares and mock up the snorkel.










* Engine was blown, so we sold it to Titan engines in Ocala and made some money

Now it's time to beef up the axles a little bit. We are working on the trusses and diff covers for dana 30 and 44a.

GOLIATH-XJ is offline
Old 05-11-2017, 01:51 PM
  #2
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

* quick update *

Scored the carpet for the WJ on the junkyard yesterday. This thing is in perfect condition! Paid $16


GOLIATH-XJ is offline
Old 05-27-2017, 08:55 PM
  #3
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

During the last few day I did some progress on the build

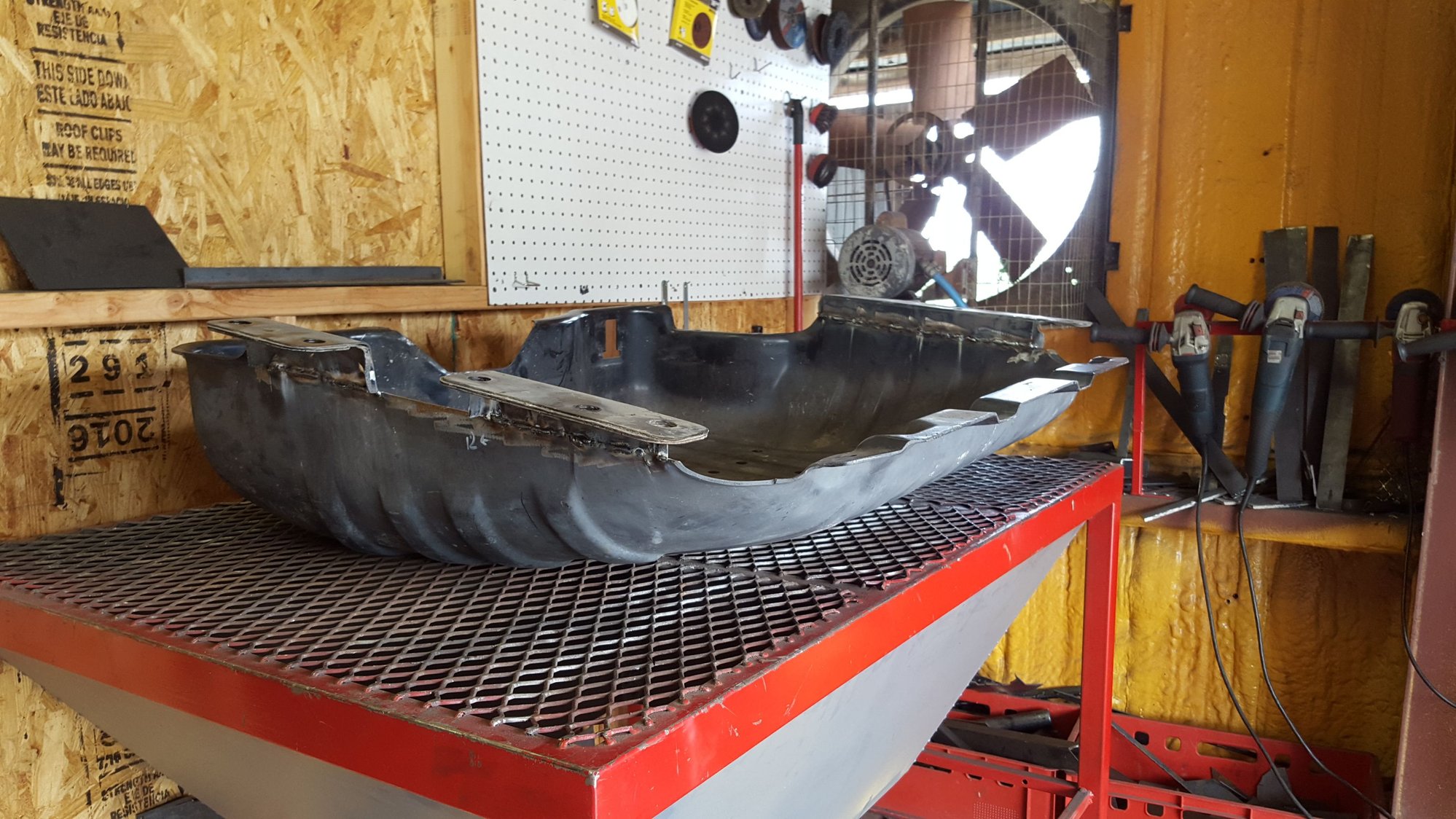

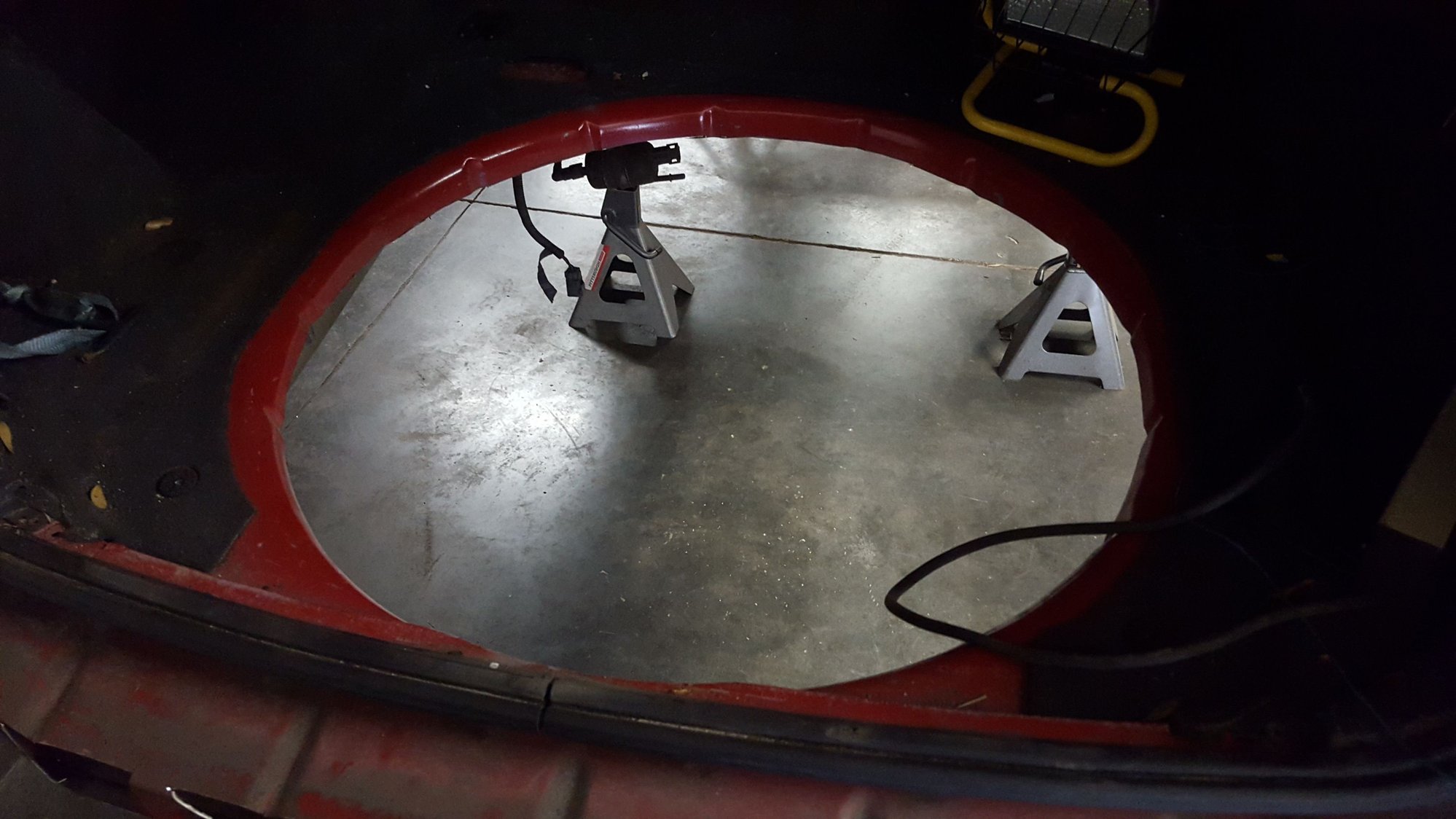

Spare tire area delete and shortening the gas tank skid plate. Now gas tank is sitting 6" higher than it was before. Nice upgrade to gain some ground clearence. Will post some more pictures when I get everything welded together and painted.








Front axle received new coil buckets. Now start to build some long arms for the front.





I also painted whole undercarriage with some undercarriage paint with sound deadening additive.



GOLIATH-XJ is offline
Old 06-01-2017, 08:59 PM
  #4
Junior Member

Join Date: May 2017
Location: Minnesota u bet
Posts: 47
Year: 99
Model: Grand Cherokee
Engine: 4.7
Default

Out of curiosity, where did the axles come from and what did they run you? I don't have room (or inclination ) to go so far as you look to be going with this, but I'm keen to swap axles to flip my qt2 into a qd2. I'm new to all is and got no clue what I've got myself into.
GCWJ is offline
Old 06-01-2017, 09:38 PM
  #5
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by GCWJ View Post
Out of curiosity, where did the axles come from and what did they run you? I don't have room (or inclination ) to go so far as you look to be going with this, but I'm keen to swap axles to flip my qt2 into a qd2. I'm new to all is and got no clue what I've got myself into.
Axles came from Grand Cherokee WJ Overland V8. They have 3.73 gears and Quadra Drive which is basically a hydraulic locker.
QT is basically open differential. Quadra drive is a " locker ", but you won't put any other locker into it. You can buy them on the junk yard for dirt cheap and this is a nice upgrade.

I will make my rear axle to ba a 90% locker. The upgrades for dana 44a are pretty limited. People don't know what this axles can.
GOLIATH-XJ is offline
Old 06-14-2017, 10:00 PM
  #6
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

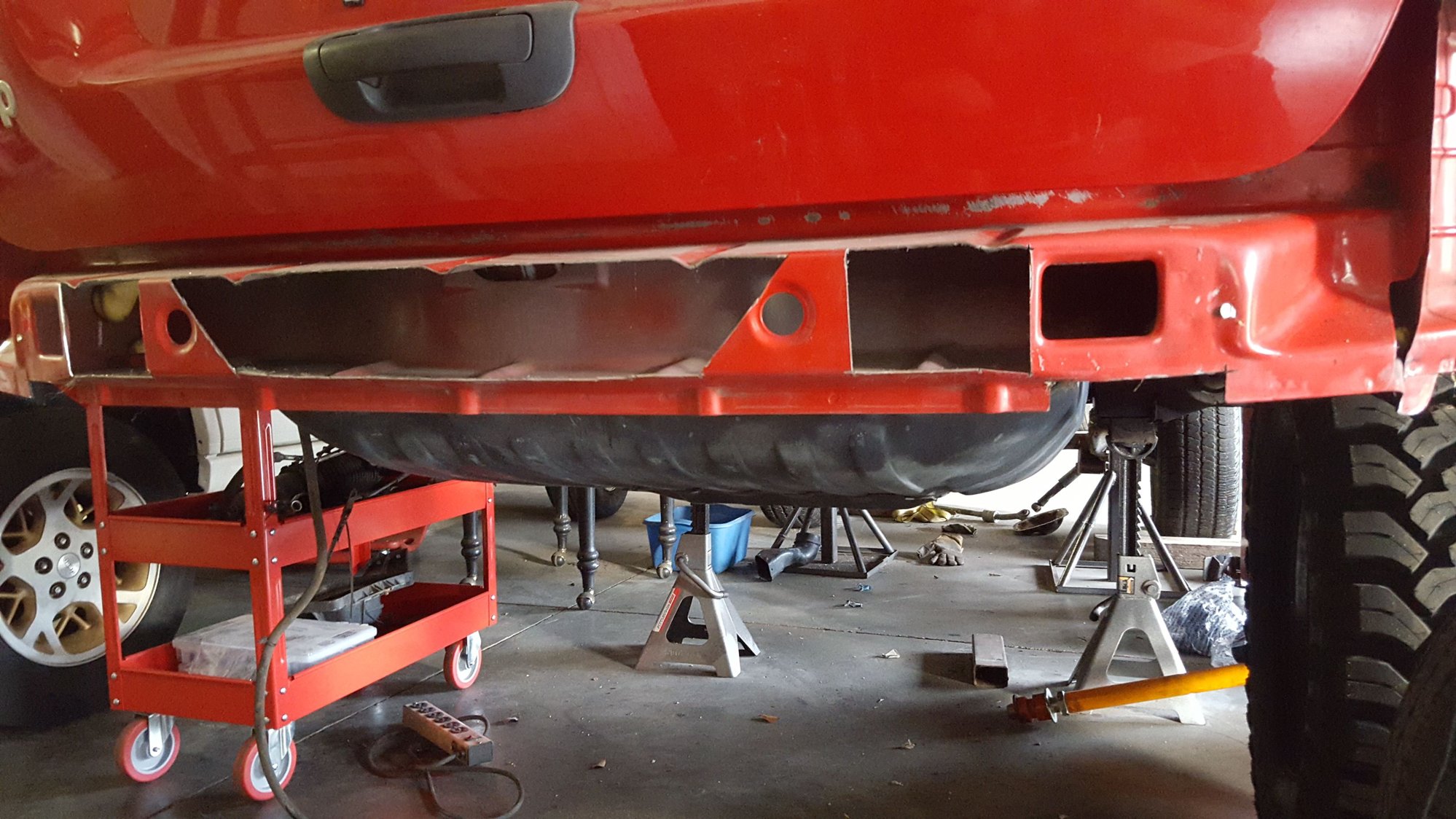

Tank tuck is complete! I have to paint it as the rest of the undercarriage also.
Now is time to make some suspension.



GOLIATH-XJ is offline
Old 06-17-2017, 09:45 PM
  #7
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Just a little sneak peek



GOLIATH-XJ is offline
Old 06-19-2017, 10:14 PM
  #8
Junior Member

marklar134's Avatar

Join Date: Nov 2016
Location: Henderson NV
Posts: 91
Year: 2001
Model: Grand Cherokee
Engine: 4.0
Default

lookin good dude, hard to find other wj builds on here
marklar134 is offline
Old 06-19-2017, 10:57 PM
  #9
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by marklar134 View Post
lookin good dude, hard to find other wj builds on here
I know... They're not that popular. People don't know what they can...
GOLIATH-XJ is offline
Old 08-26-2017, 08:51 PM
  #10
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Haven't posted in a while, but I have some update for you guys!

Rear axle is welded, sand blasted, and primered, so it won't rust.
Front axle is trussed as well. Just don't have the photo. It's still sand blasting, and will pick it up next week.
Trusses came out really well, and I'm super happy!





I also gave some love to the old 4.0L, and rebuilt it. ( I don't have single photo from the rebuilt... Was busy to finish it as soon as possible, and totally forget about photos. Don't blame me )
Upgraded to 4 hole injectors. Basically everything is brand new or rebuilt / refreshed. I also had some throttle body spacer lying arround, so I installed it as well, because why not...




GOLIATH-XJ is offline
Old 09-01-2017, 09:07 PM
  #11
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Front long arms and crossmember are ready to install. ( Powder coated textured black )

Axles came from the sand blasting. Primered and painted textured black ( not a bedliner ) Ready to install.






PURE BEEF!

GOLIATH-XJ is offline
Old 09-02-2017, 09:04 PM
  #12
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

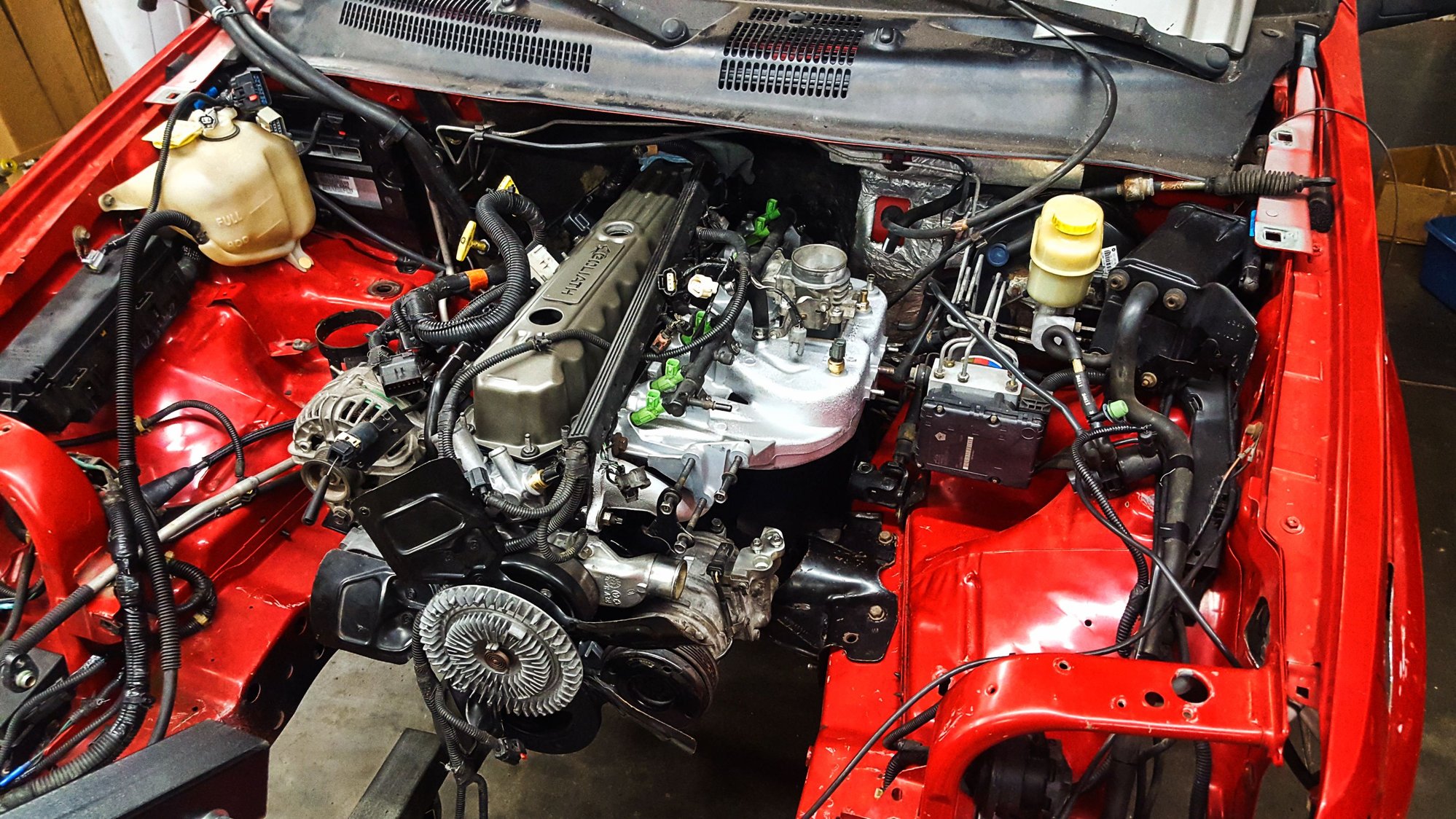

It was a long day, but engine, transmission, transfer case and new crossmember are on!
next challenge... put all the wires back together

GOLIATH-XJ is offline
Old 09-03-2017, 06:48 AM
  #13
Member

OmgNoWai's Avatar

Join Date: Jan 2015
Posts: 138
Model: Cherokee
Default

Killer!
OmgNoWai is offline
Old 09-03-2017, 07:42 PM
  #14
Senior Member

TrailerTrash's Avatar

Join Date: Jun 2017
Location: Hangover, PA
Posts: 500
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0L
Thumbs up

This is just awesome! Keep it up
TrailerTrash is online now
Old 09-03-2017, 07:47 PM
  #15
Member
Thread Starter

GOLIATH-XJ's Avatar

Join Date: Dec 2016
Location: Apopka, FL
Posts: 185
Year: 2001
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by OmgNoWai View Post
Killer!
Originally Posted by TrailerTrash View Post
This is just awesome! Keep it up
Thanks guys! I'm glad you like it
GOLIATH-XJ is offline
