Chunk the Cherokee ...1994

Old 03-19-2016, 10:32 AM
  #1
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default Chunk the Cherokee ...1994

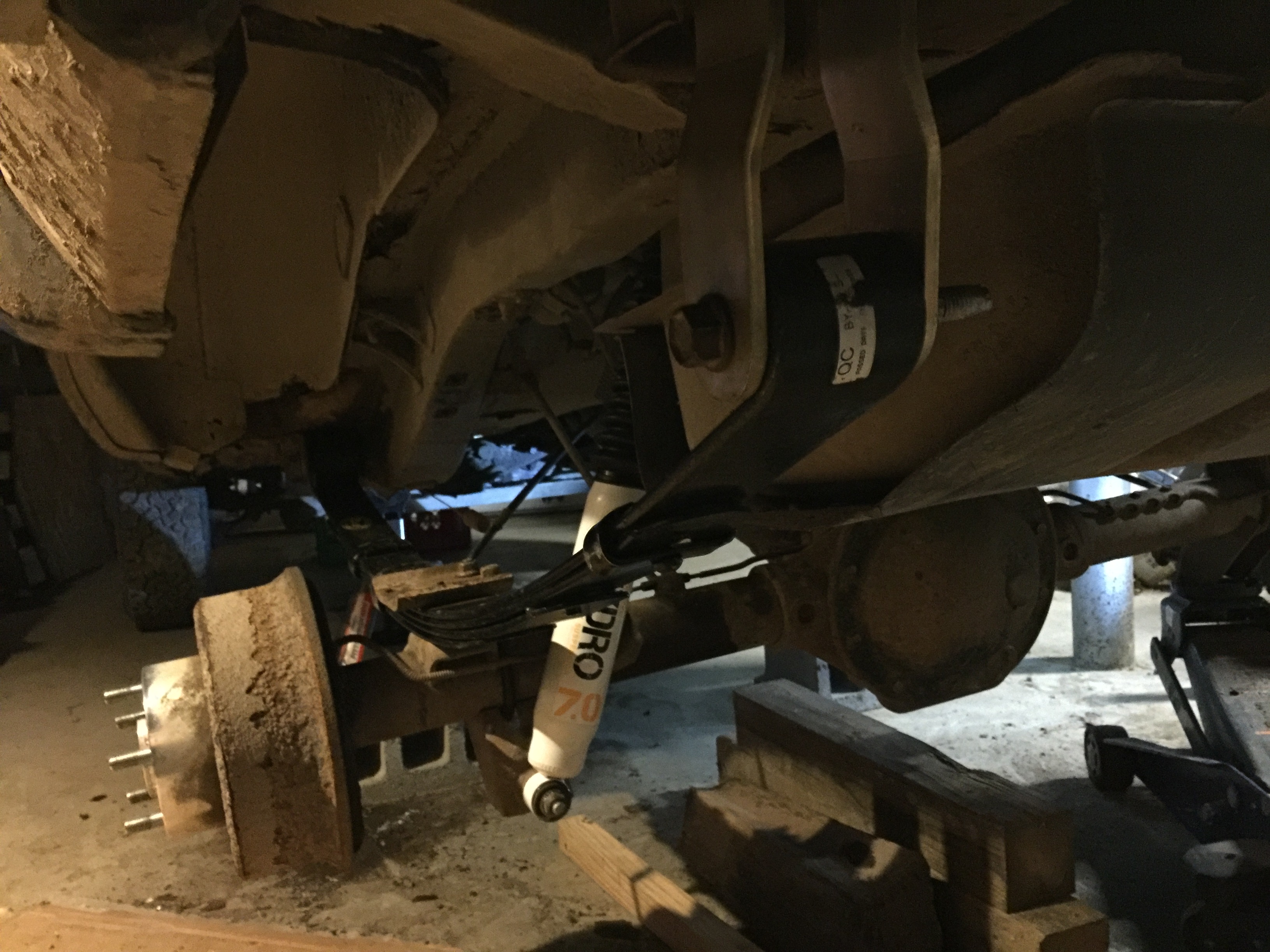

Suspension overhaul mainly,.....but I've had this guy for years and done a crapload of things. First things first I had to pull the old garbage leafs off,....a lot of cursing later ,...drivers rear done
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-19-2016, 10:55 AM
  #2
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

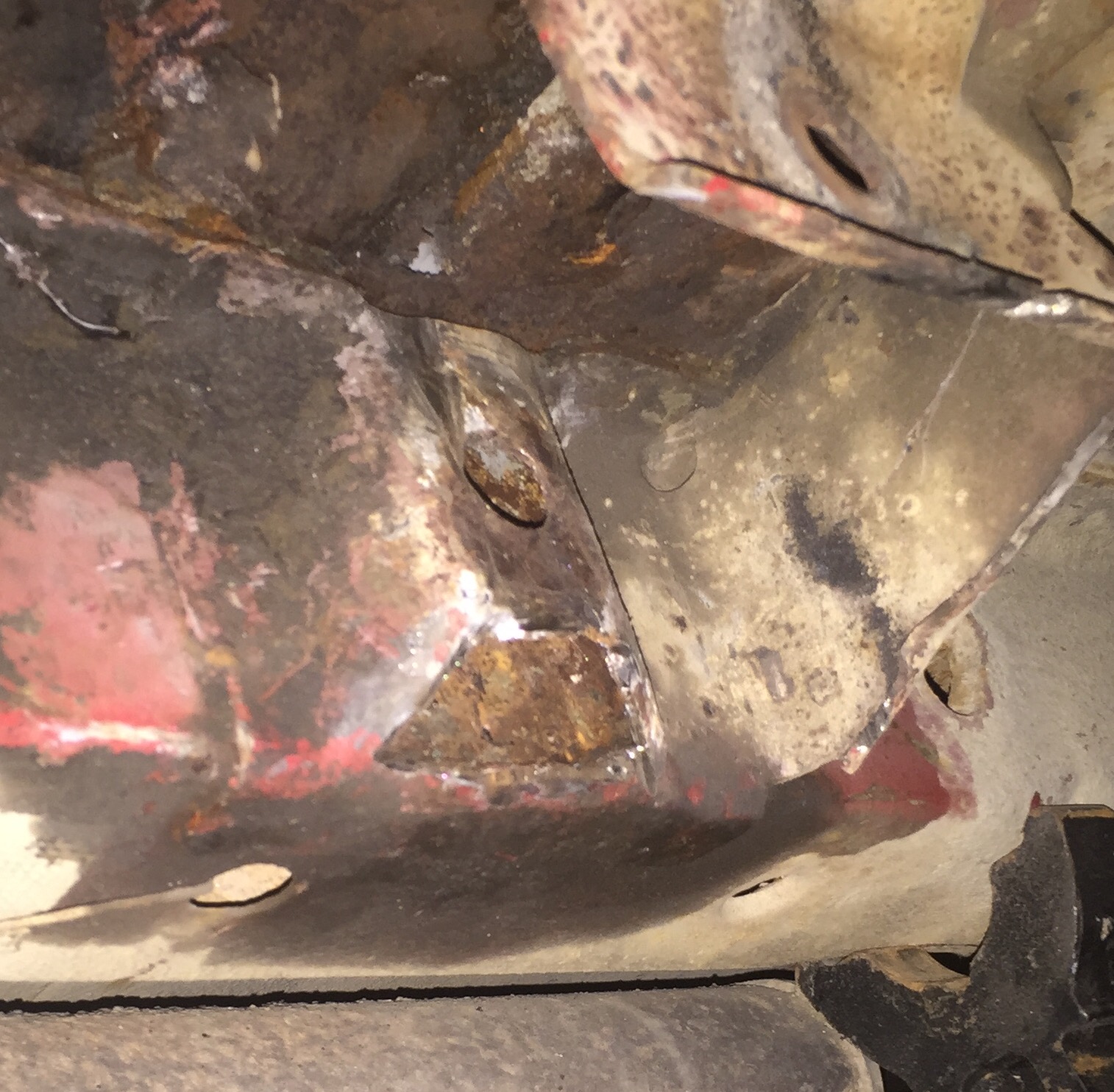

Moving on to the passenger rear,...things got exiting. Broke the front leaf bolt off,..had to cut the dam spring in two than chop up the end to get up in to the bolt! Ugh! Than i cut a hole right below the nut so I could knock it off with a punch.
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-19-2016, 11:02 AM
  #3
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

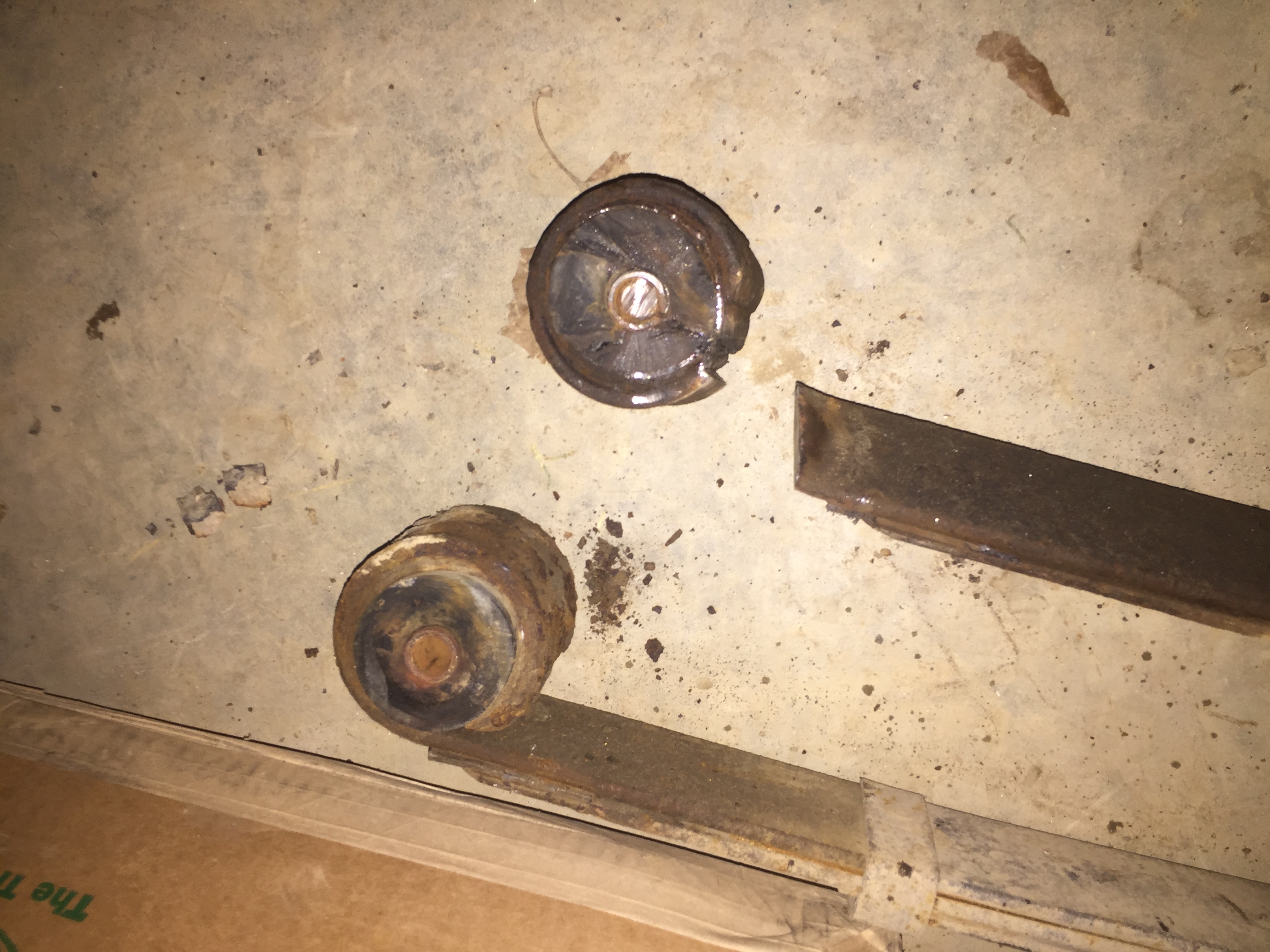

Cut leaf
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-19-2016, 11:04 AM
  #4
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

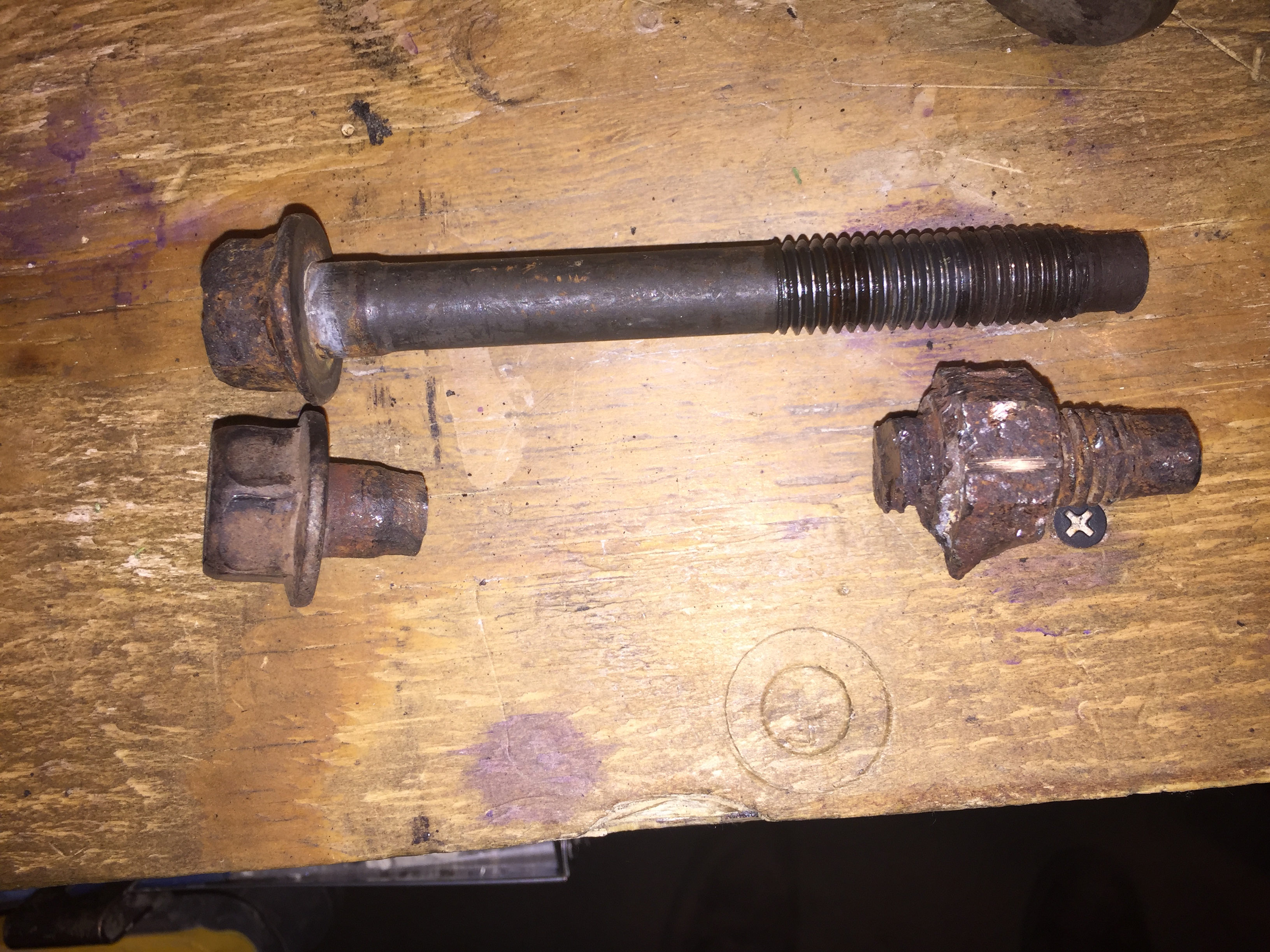

Offending bolt
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-19-2016, 11:06 AM
  #5
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

By the way,..I'm installing a 'budget boost' system by Quadratech which is basically extended shackles and coil spacers. Also I'm adding new leaf springs new coils and all new bushings for front and rear sway bars.
JeepinChrispy is offline
Old 03-19-2016, 12:58 PM
  #6
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

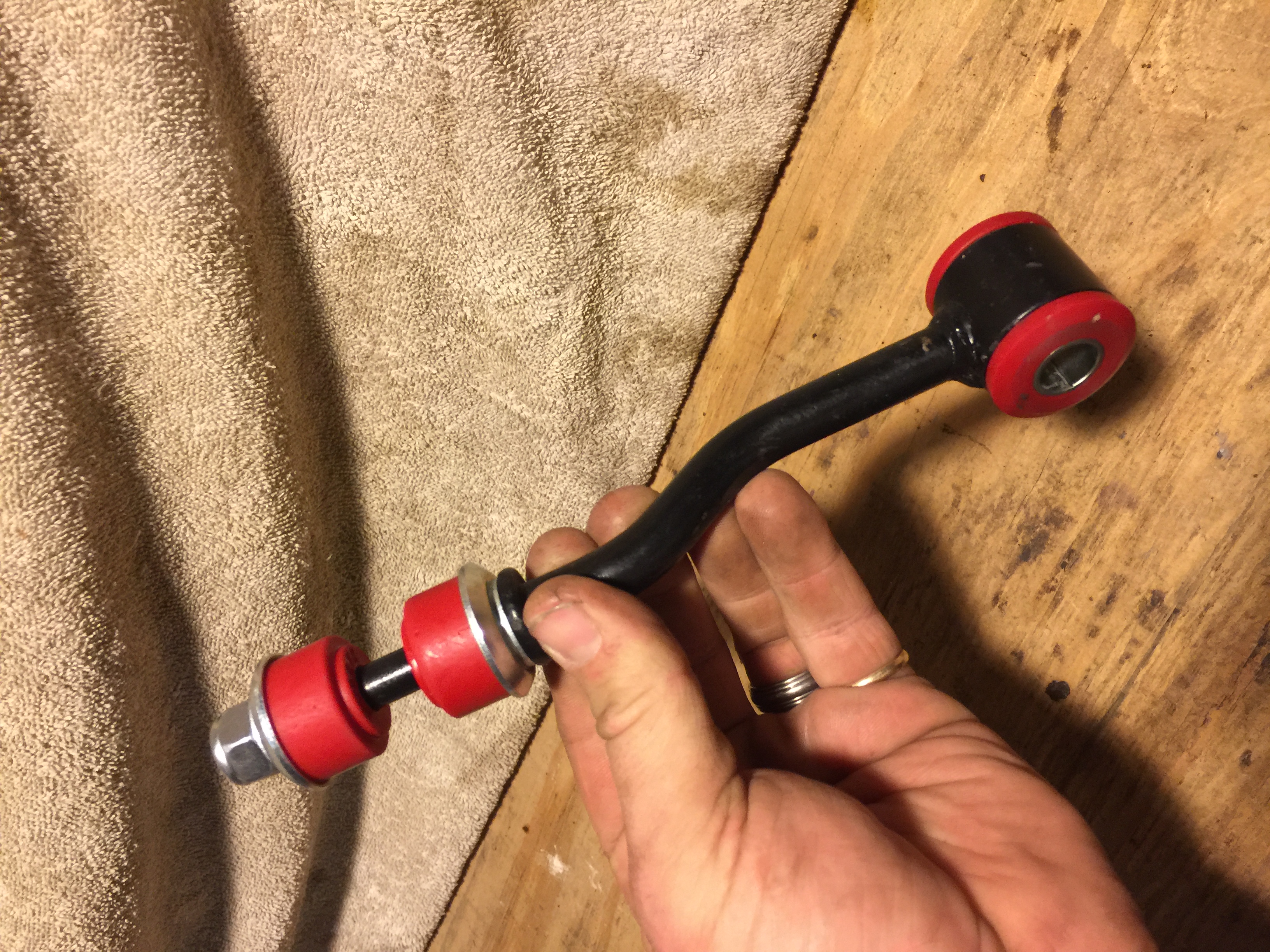

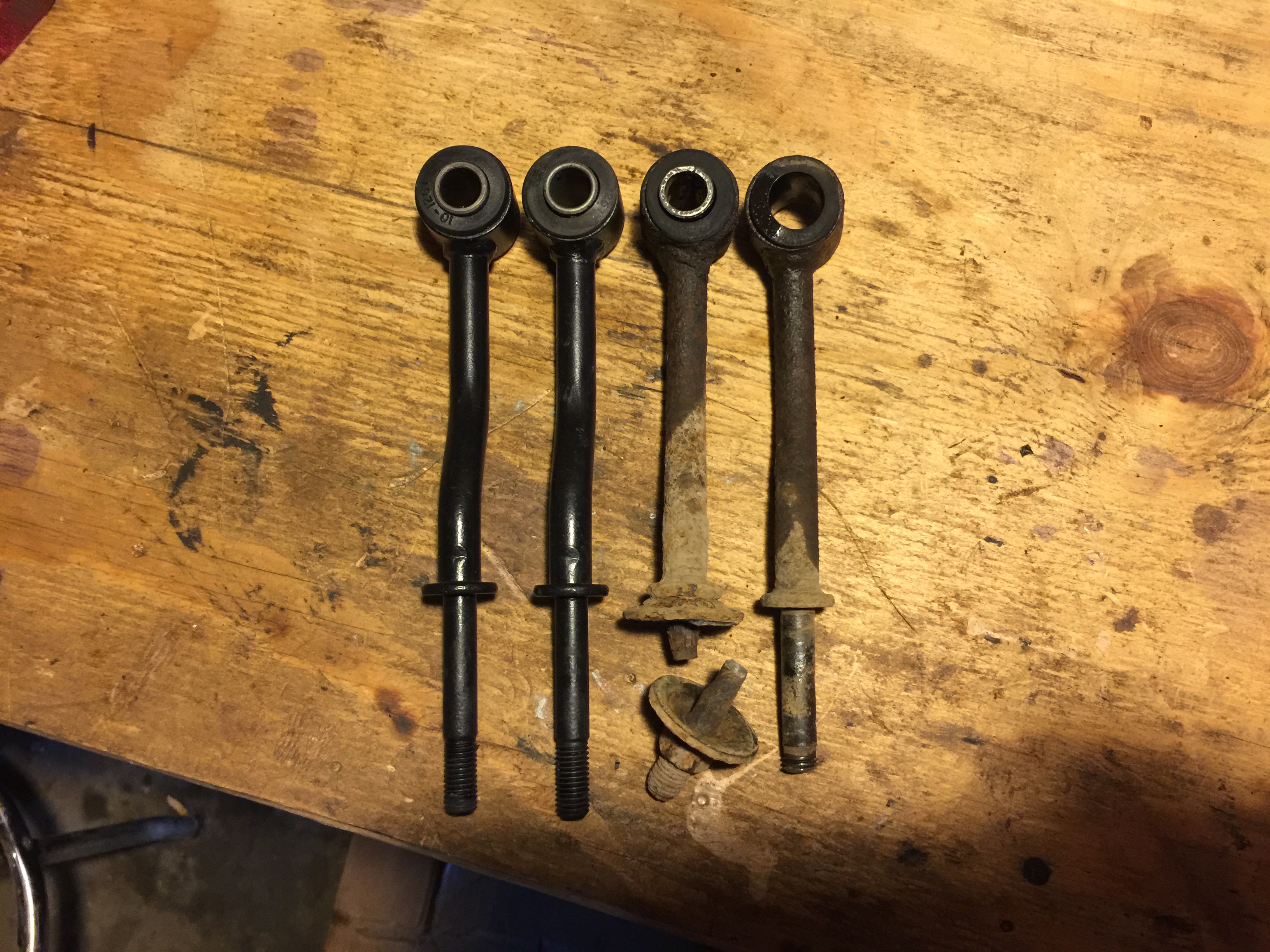

Sway bar links replaced,...all poly bushings. If you're jeep is old and rusty like mine you might as well buy new sway bar links if you are replacing bushings. Both mine broke while trying to remove the nuts. They were like 12 bucks each not too bad
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-19-2016, 12:59 PM
  #7
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Thumbs down

Broken and rusted thin
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-26-2016, 12:30 PM
  #8
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

So I finished up the front end with all new coils, shocks and poly bushings for the sway bar and links
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-26-2016, 12:32 PM
  #9
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

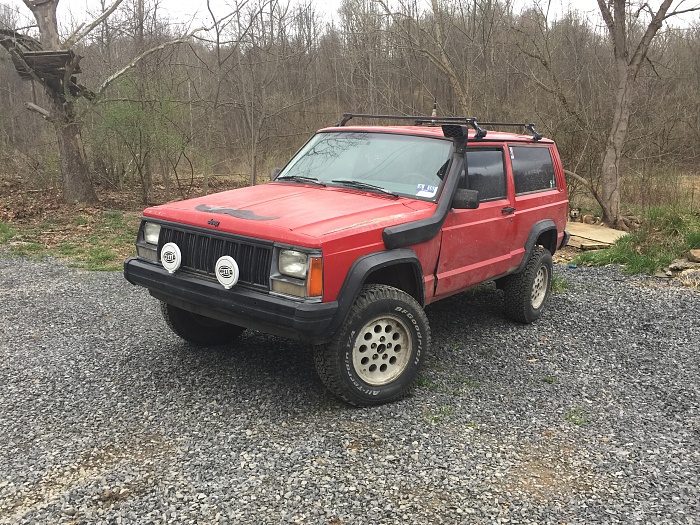

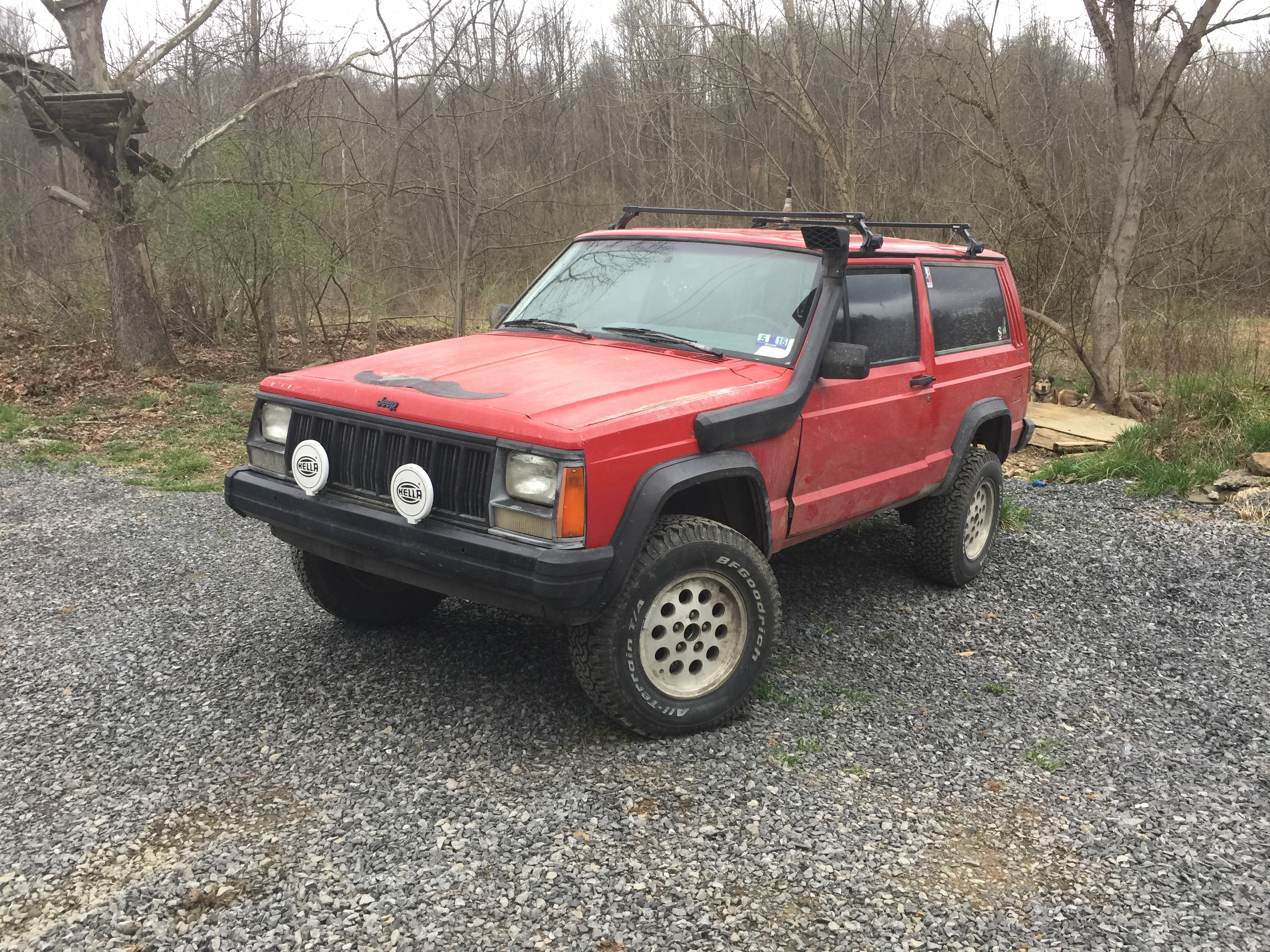

I ended up with about a 3" lift after its all said and done,...Chunk is lookin sweet ! Ready for mud!
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-26-2016, 12:33 PM
  #10
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

Woohoo!
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 03-26-2016, 12:35 PM
  #11
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

I also got rid of that old junky magnet antenna and replaced it with this sweet side mount and a 10' steel whip
Attached Thumbnails Chunk the Cherokee ...1994-image.jpeg
JeepinChrispy is offline
Old 04-09-2016, 09:53 AM
  #12
Junior Member
Thread Starter

JeepinChrispy's Avatar

Join Date: Mar 2016
Location: Morgantown, West Virginia
Posts: 74
Year: 1994
Model: Cherokee
Engine: 4.0 Inline 6 High Output
Default

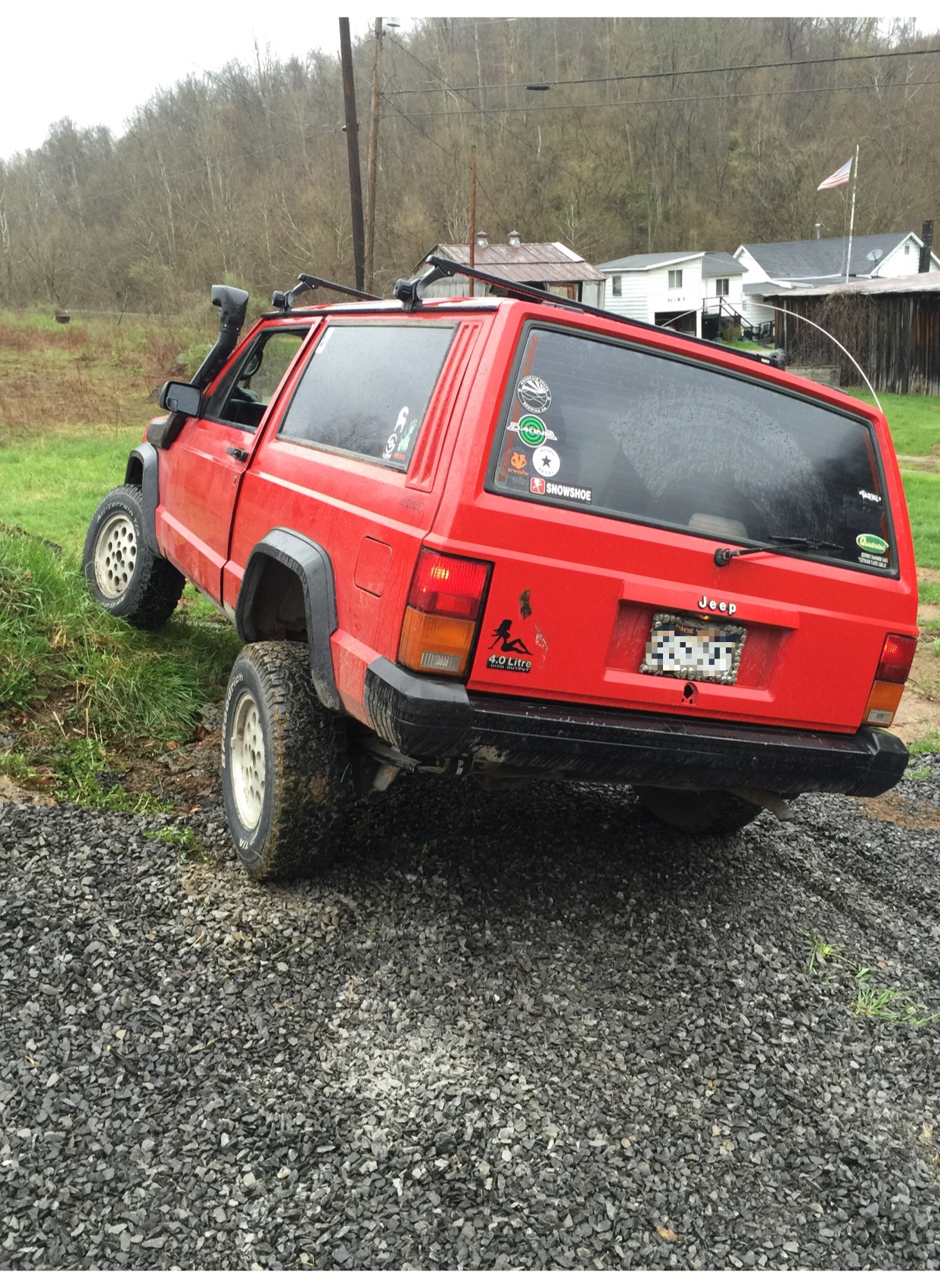

I got more travel that I thought with this system !
